Home › Lincoln › 2019 › MKT Base › Repair and Diagnosis › Brakes › Traction Control › Anti-Lock Brake System (Abs) And Stability Control › Removal And Installation › Wheel Speed Sensor - Front › Removal

Wheel Speed Sensor - Front: Removal

NOTE: Steps in the removal procedure may contain installation details.
  1. Remove the wheel and tire. Refer to Wheels and Tires .
  2. GFD91226Courtesy of FORD MOTOR COMPANY
  3. GFD91227Courtesy of FORD MOTOR COMPANY
  4. GFD91228Courtesy of FORD MOTOR COMPANY

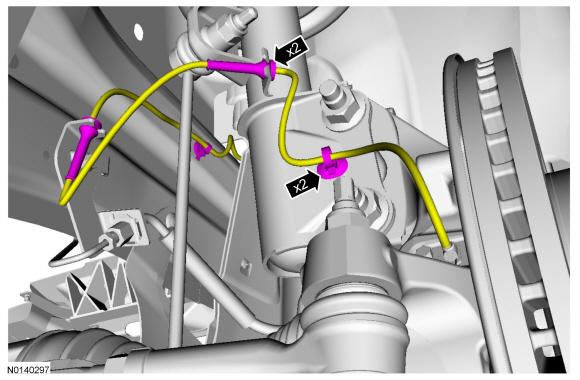

  5. GFD91229Courtesy of FORD MOTOR COMPANY
    • To install, tighten to 15 Nm (133 lb-in).

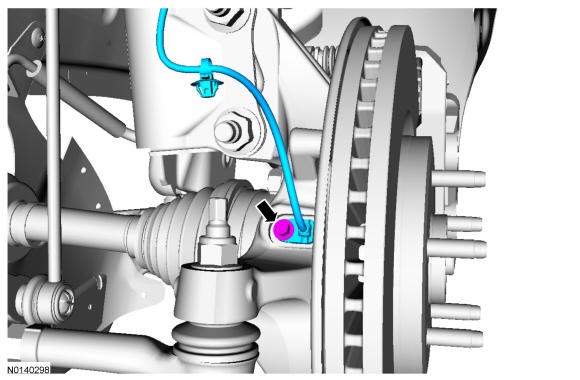

    GFD91230Courtesy of FORD MOTOR COMPANY
