Engine Mount: Notes

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

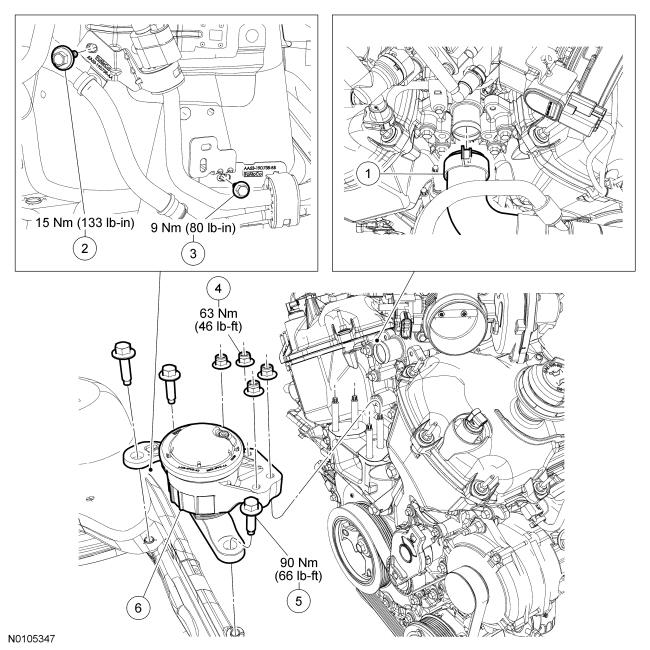

Fig 1: Engine Mount With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	8B274	Upper radiator hose
2	W708877	A/C tube bracket bolt
3	W705622	A/C tube retaining clamp bolt
4	W714682	Engine mount-to-engine nut (4 required)
5	W712507	Engine mount-to-frame bolts (3 required)
6	6F012	Engine mount
