Component Location Views

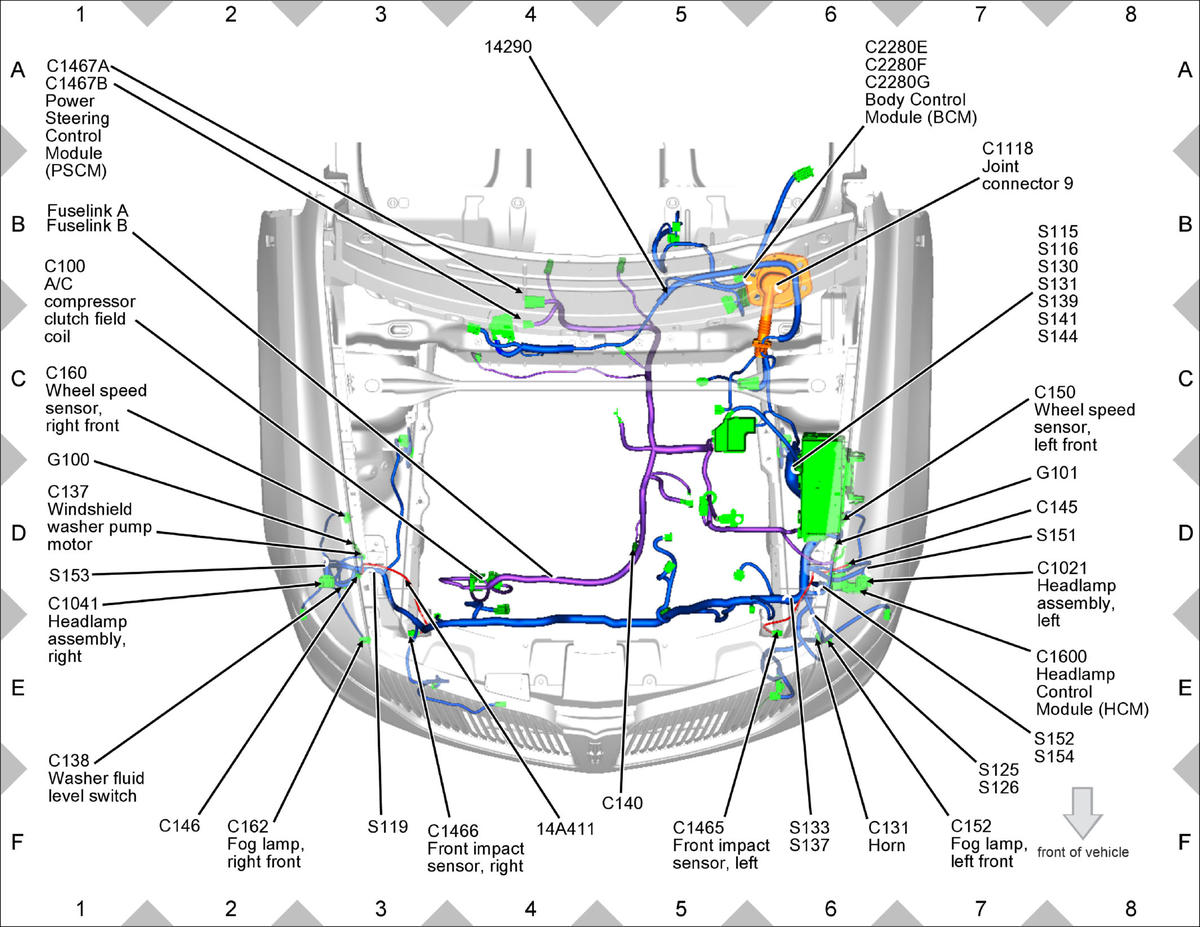

GFDW91253Courtesy of FORD MOTOR COMPANY

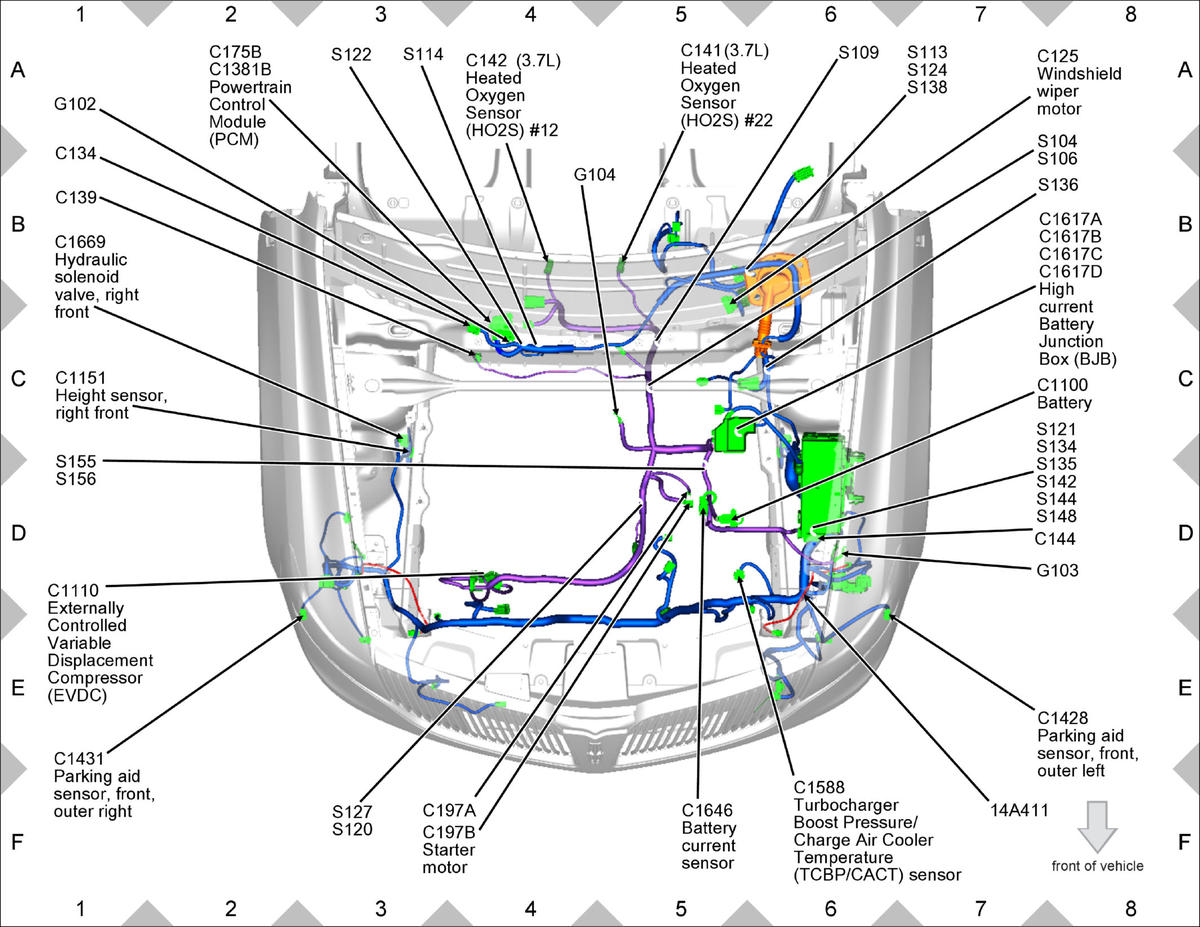

GFDW91254Courtesy of FORD MOTOR COMPANY

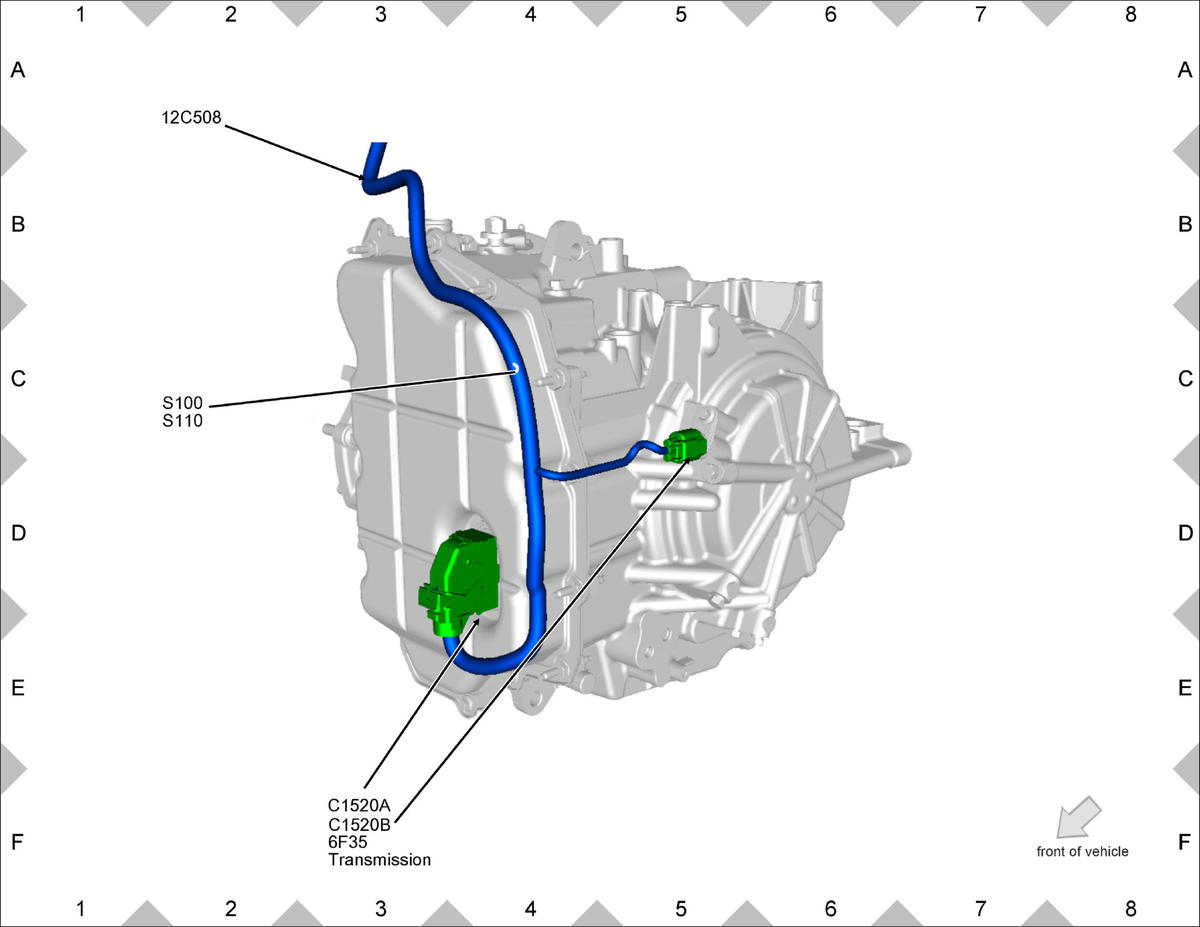

GFDW91255Courtesy of FORD MOTOR COMPANY

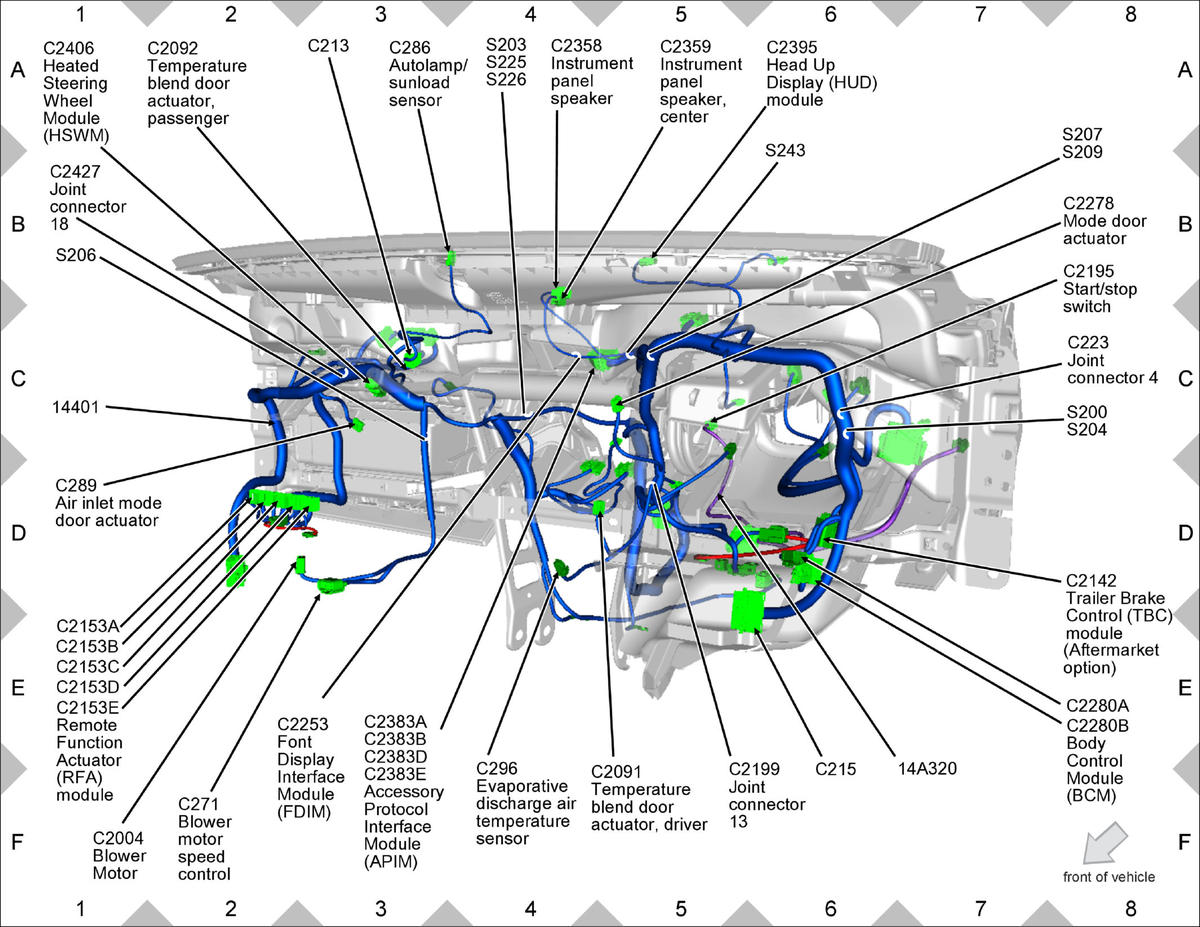

GFDW91256Courtesy of FORD MOTOR COMPANY

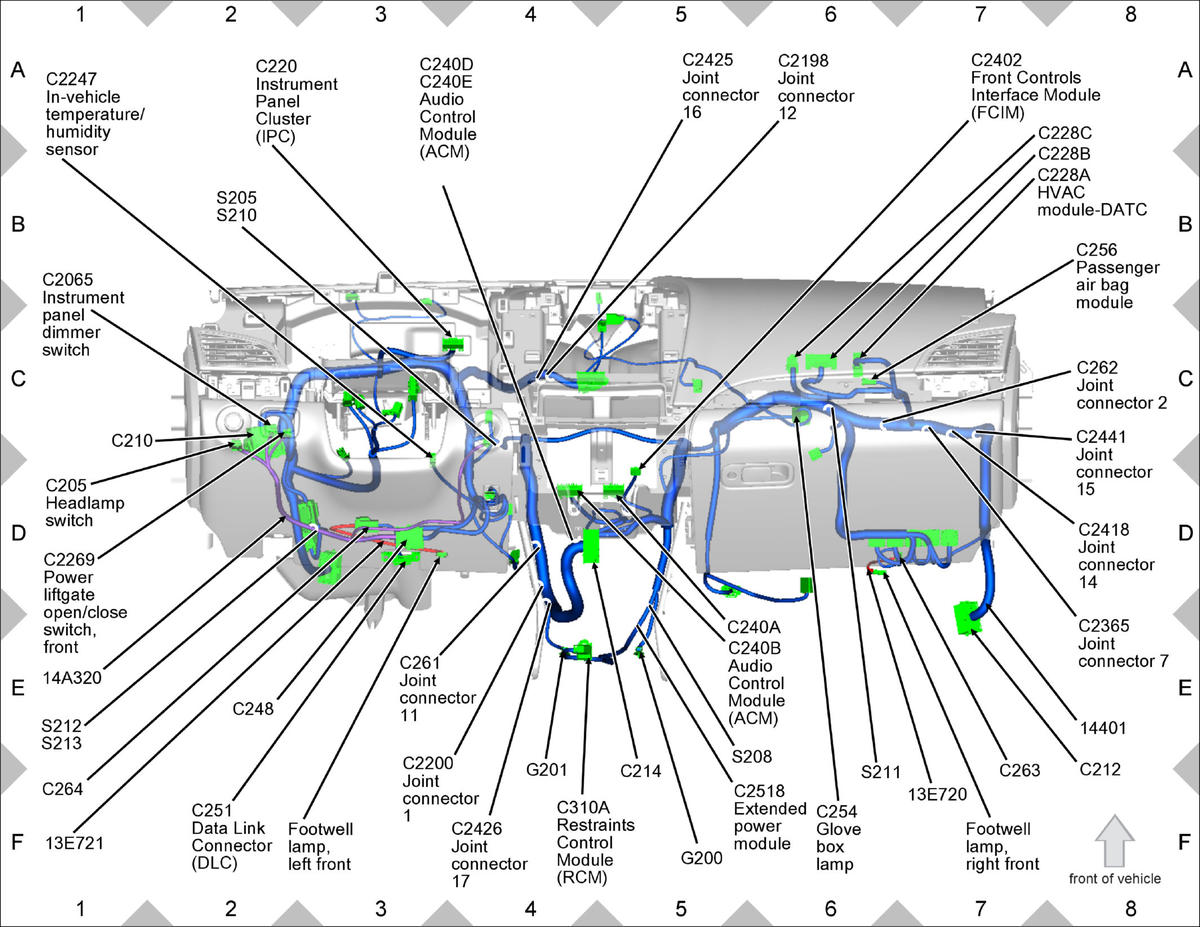

GFDW91257Courtesy of FORD MOTOR COMPANY

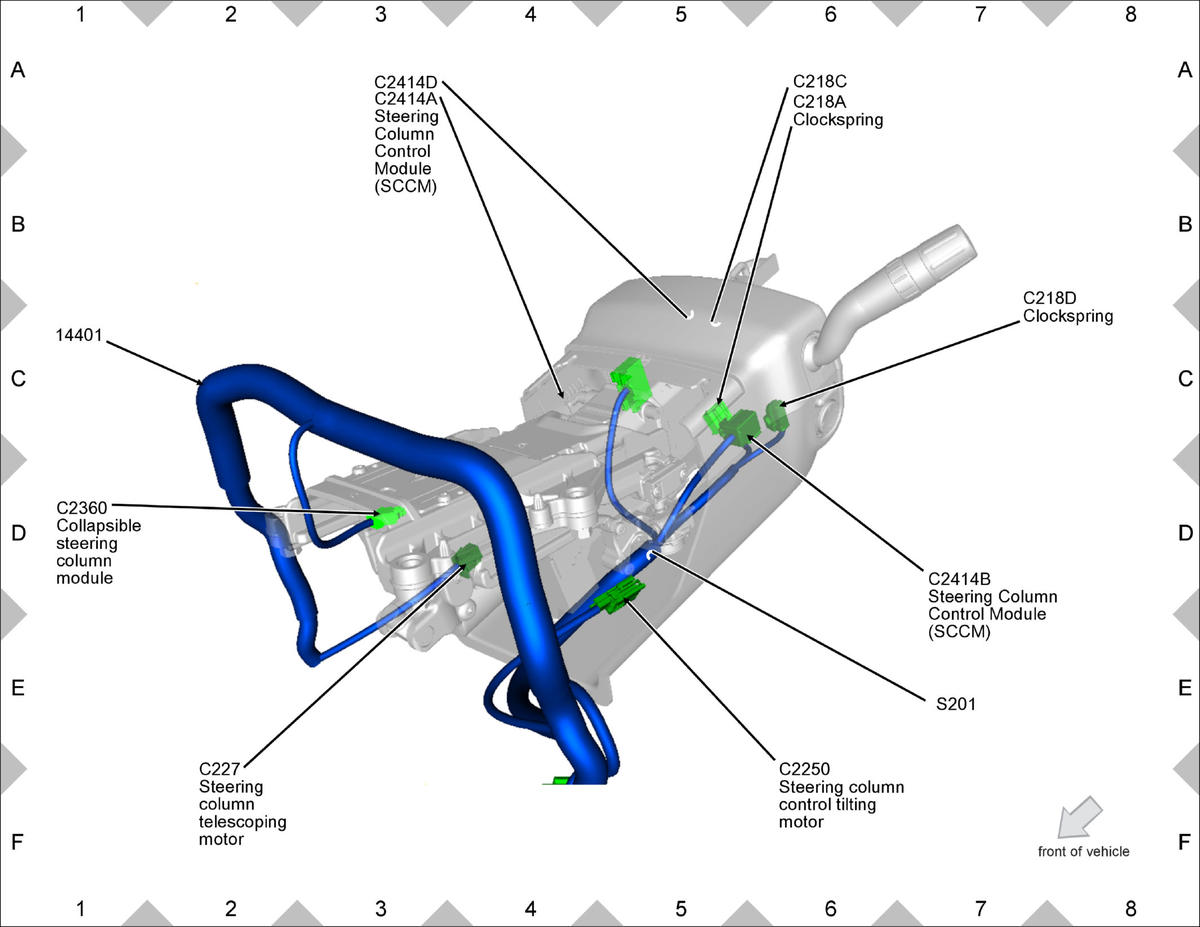

GFDW91258Courtesy of FORD MOTOR COMPANY

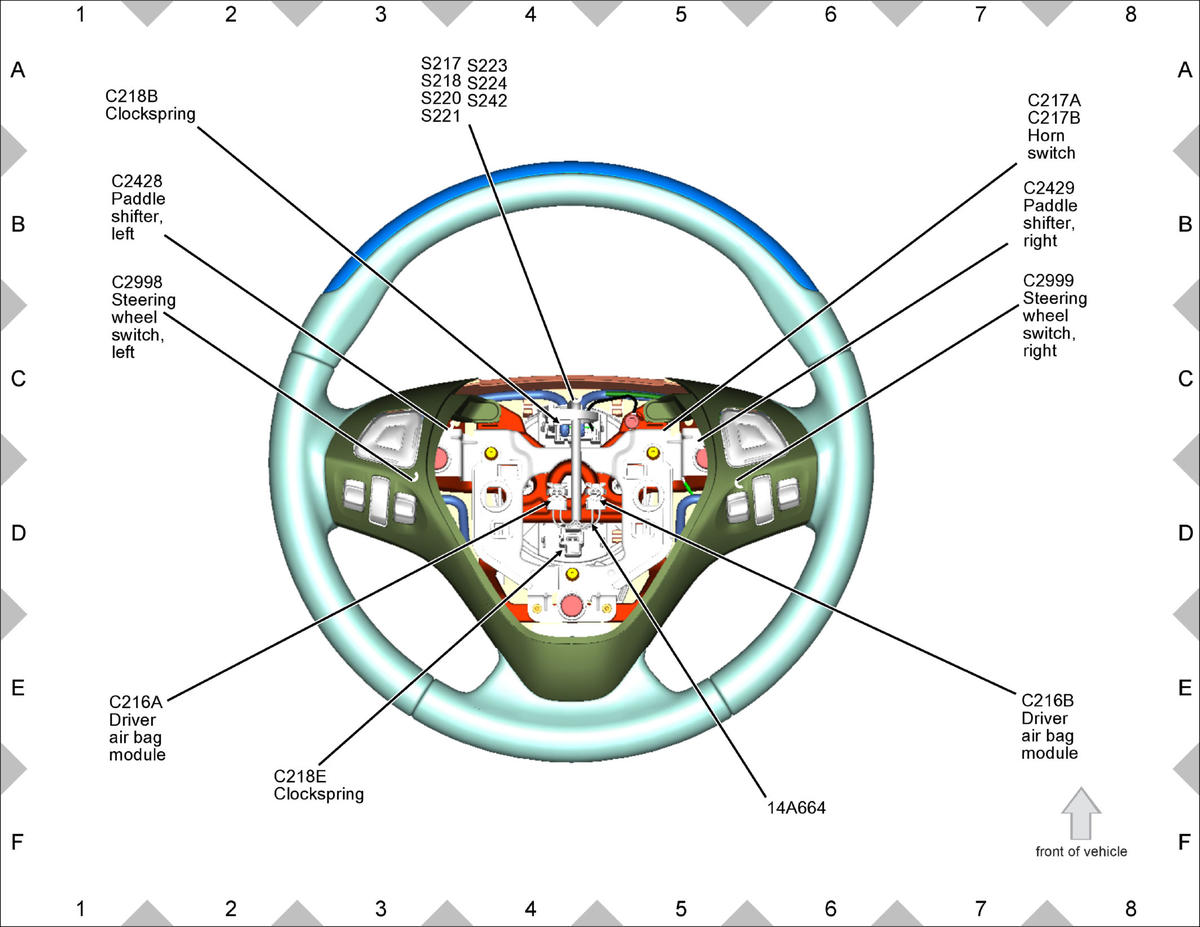

GFDW91259Courtesy of FORD MOTOR COMPANY

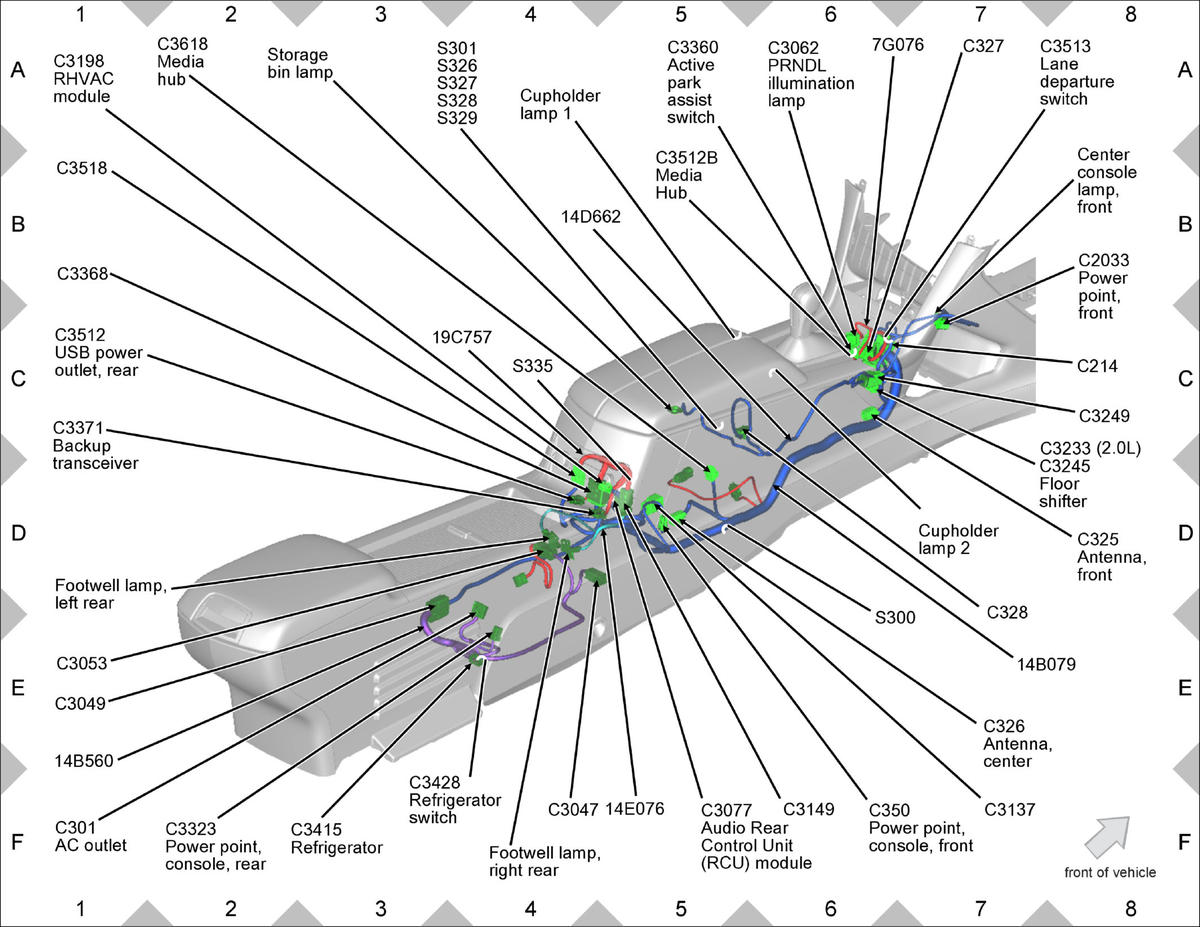

GFDW91260Courtesy of FORD MOTOR COMPANY

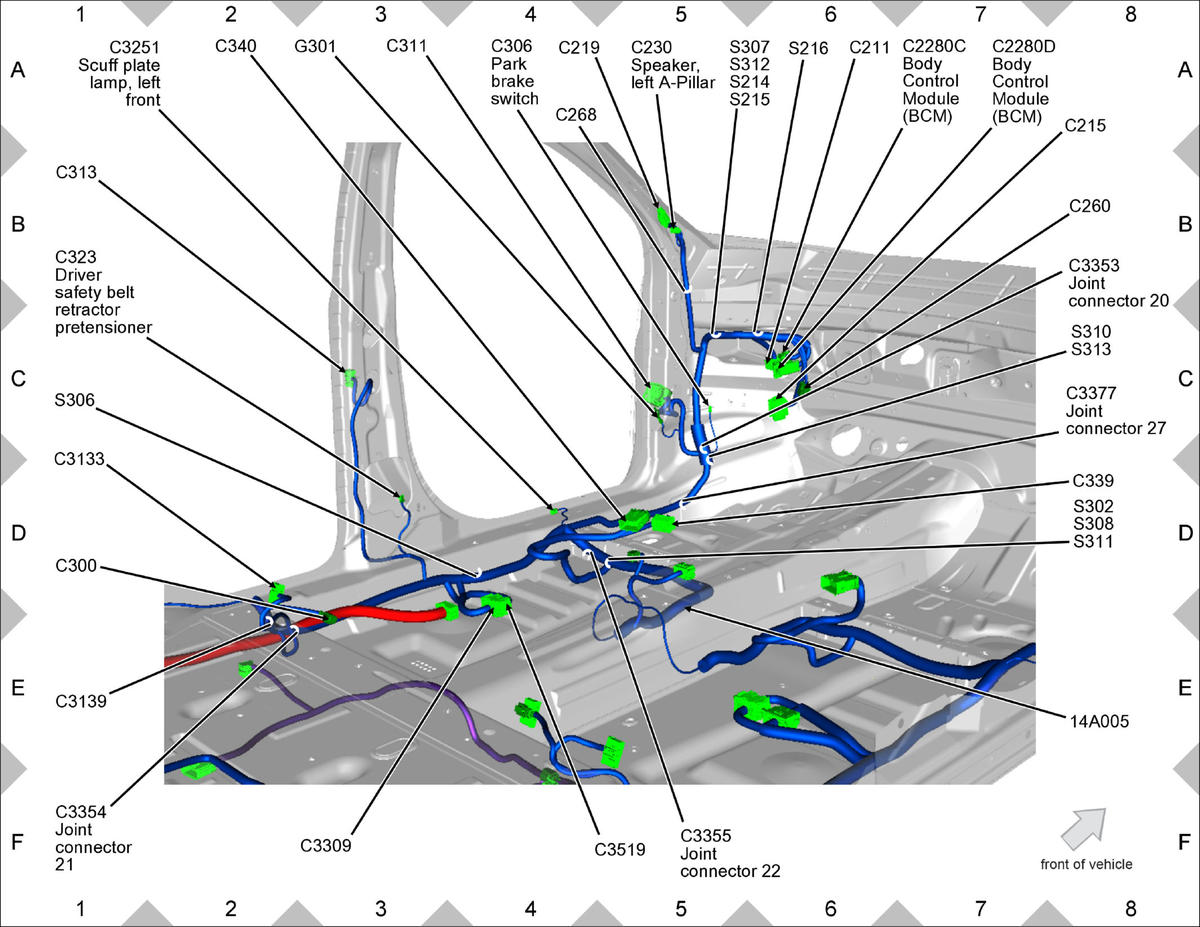

GFDW91261Courtesy of FORD MOTOR COMPANY

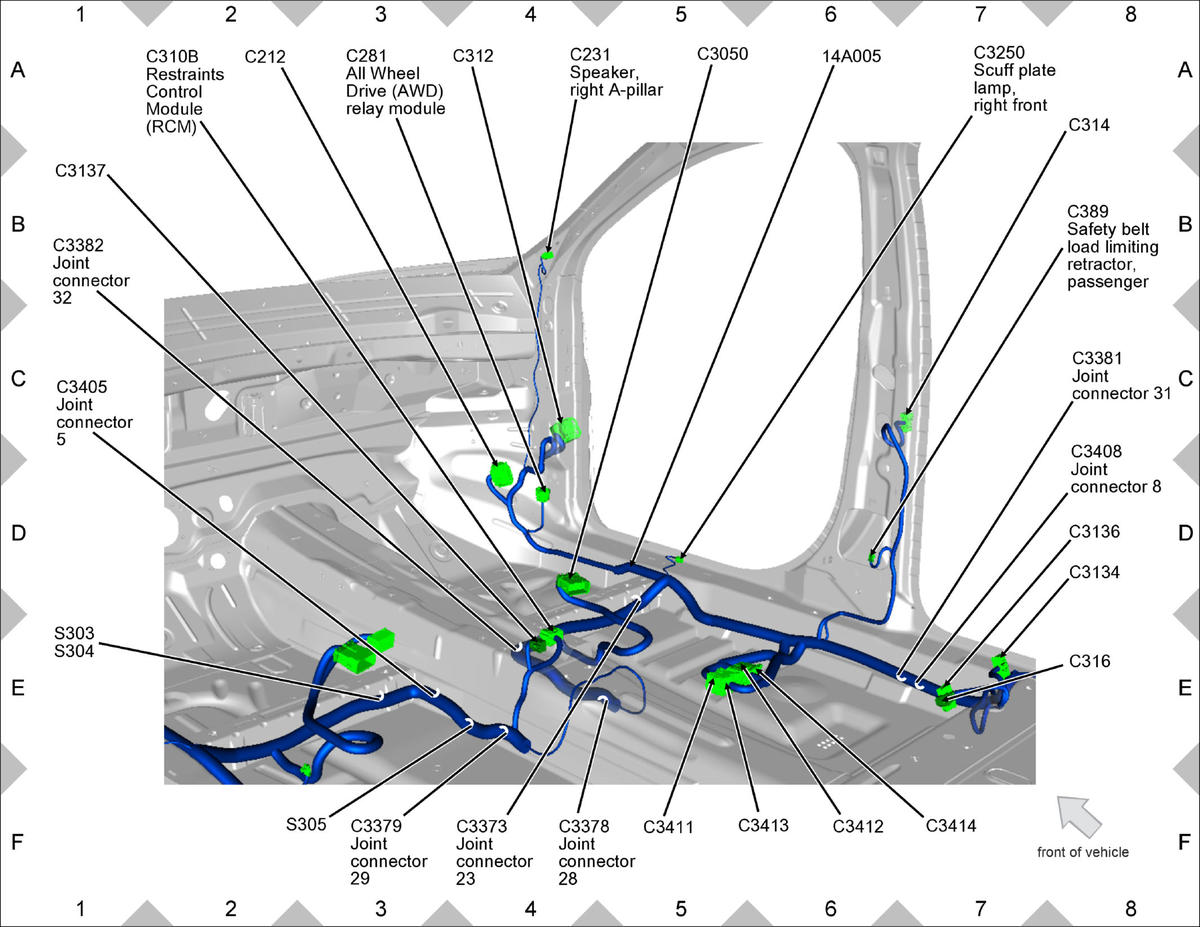

GFDW91262Courtesy of FORD MOTOR COMPANY

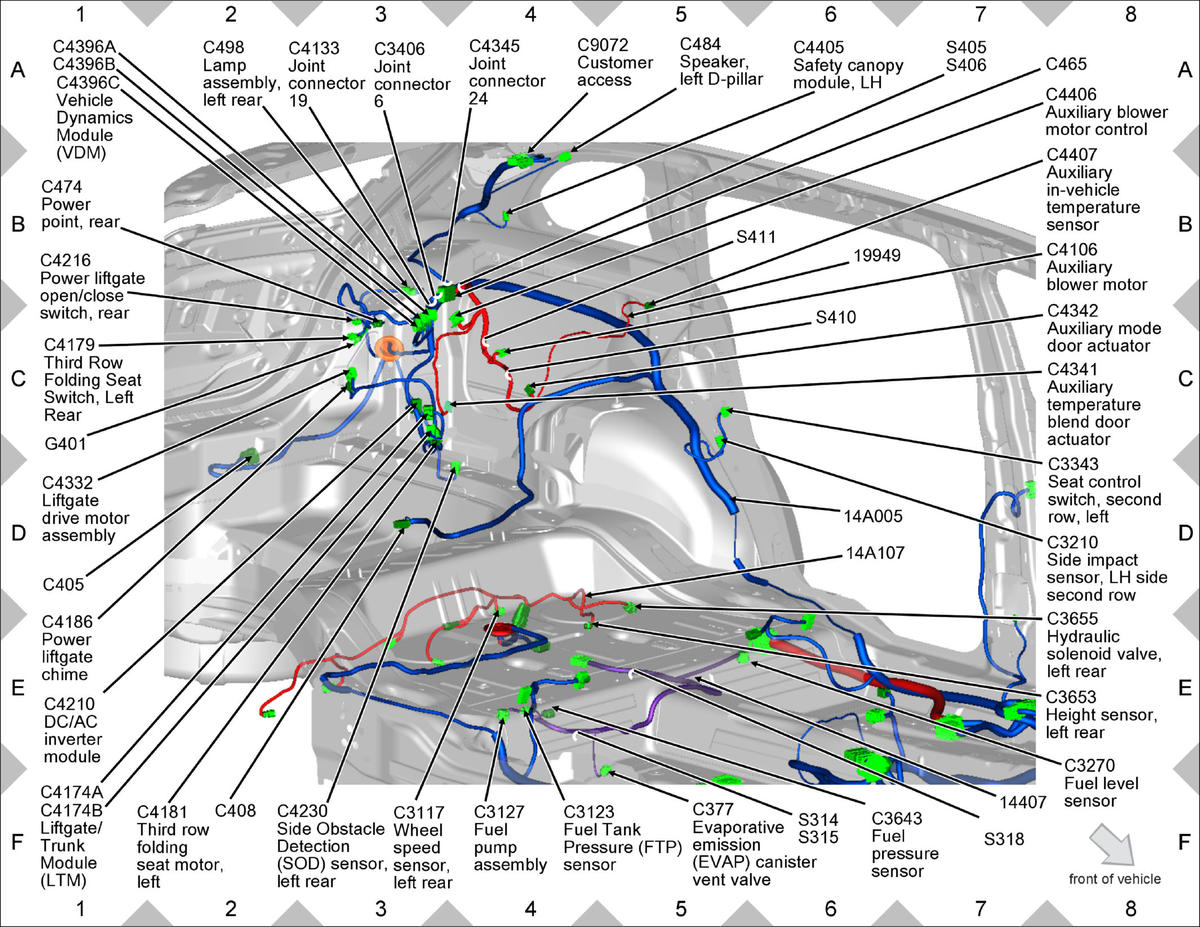

GFDW91263Courtesy of FORD MOTOR COMPANY

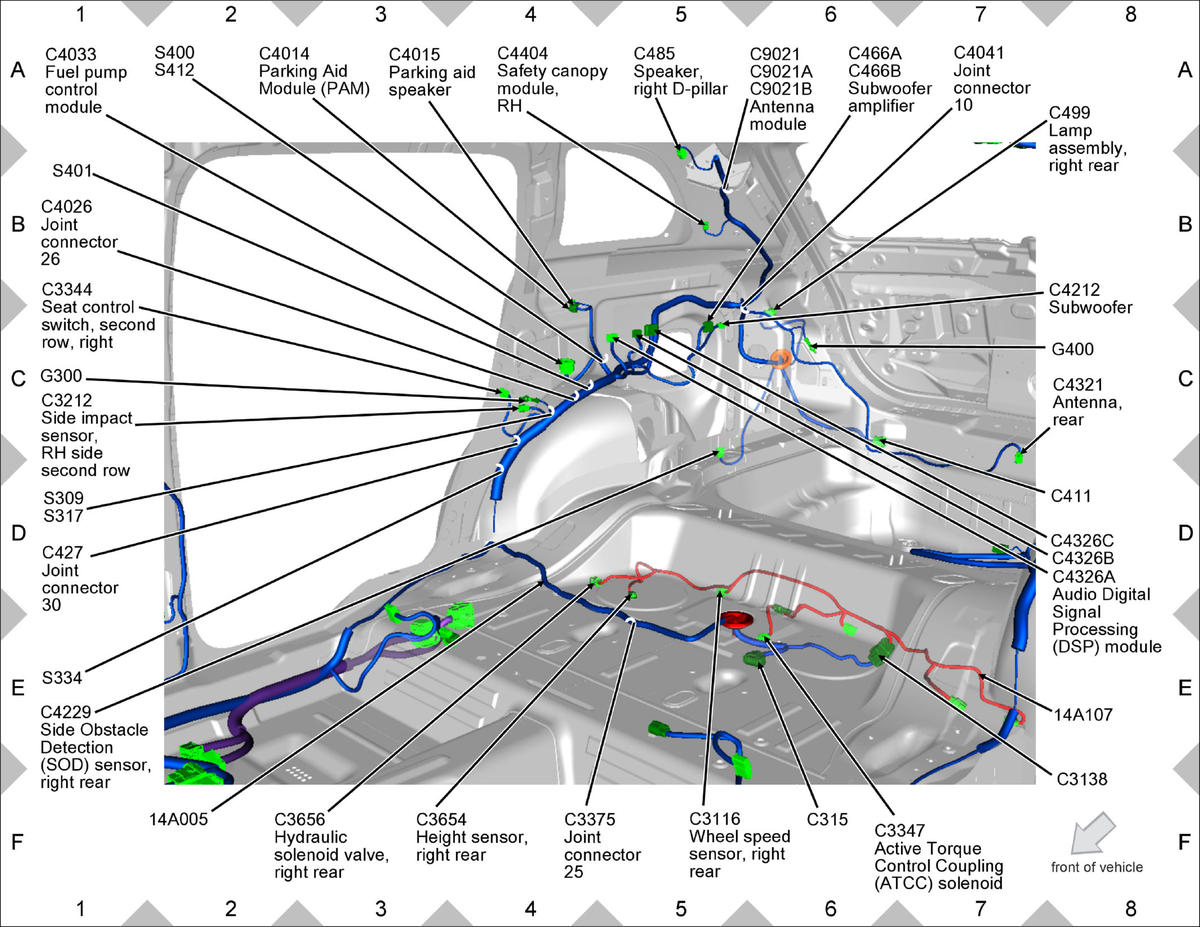

GFDW91264Courtesy of FORD MOTOR COMPANY

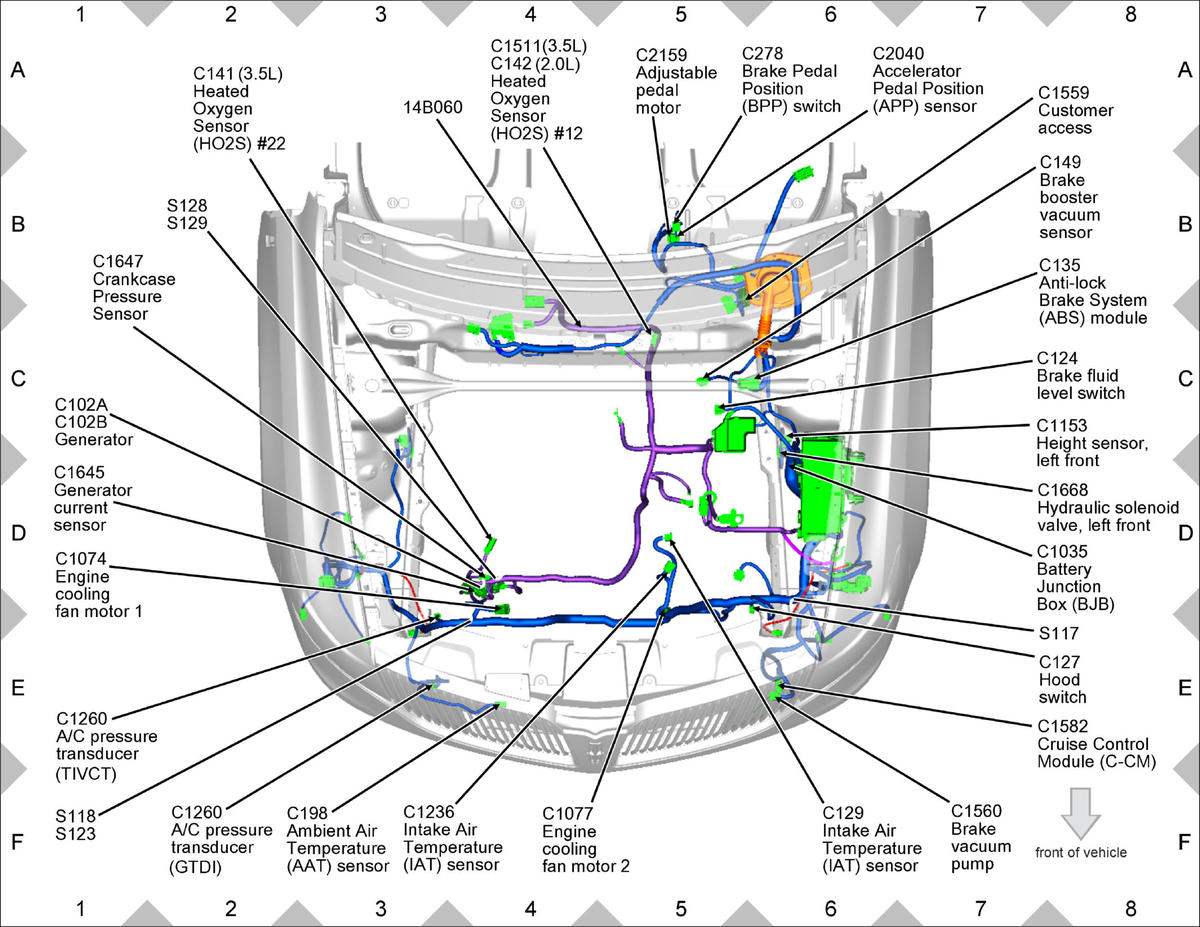

GFDW91265Courtesy of FORD MOTOR COMPANY

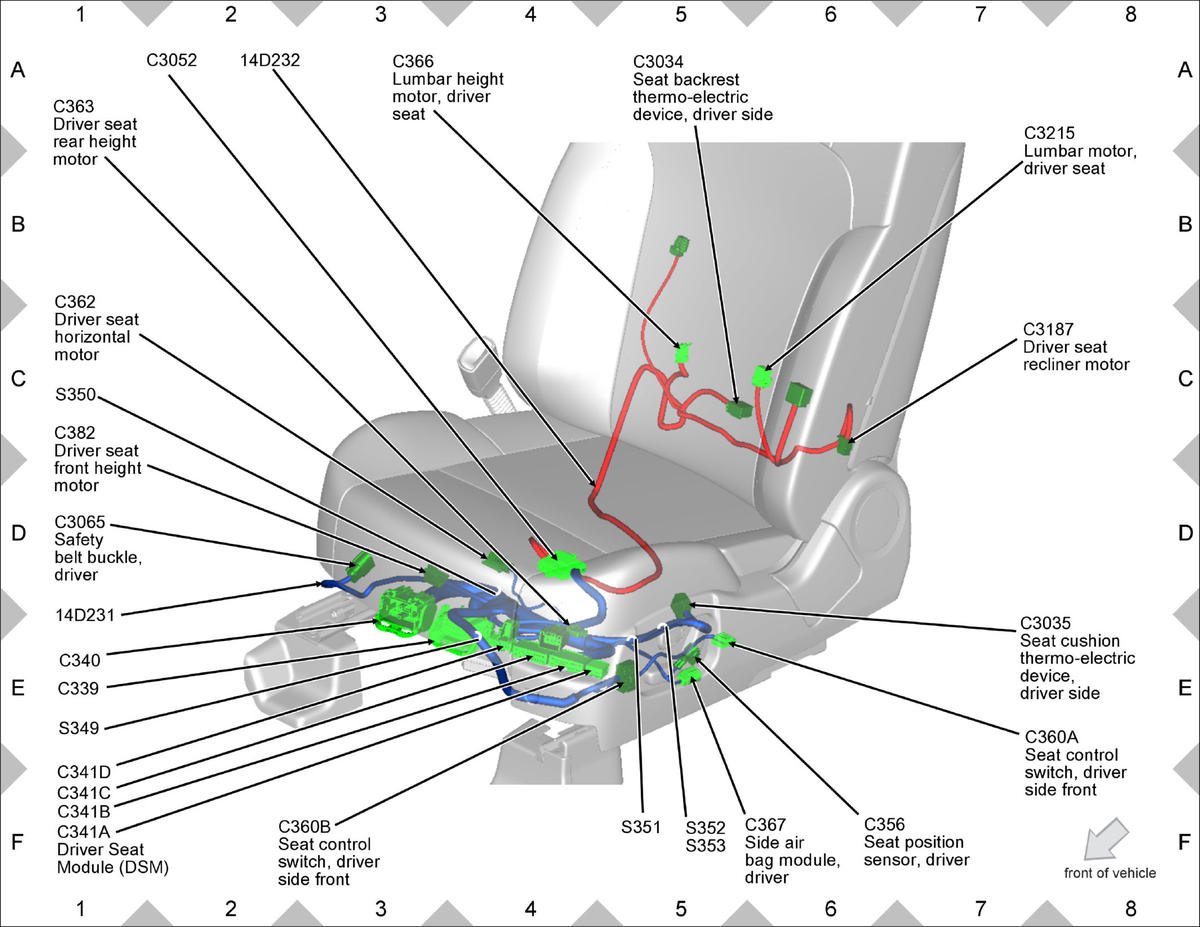

GFDW91266Courtesy of FORD MOTOR COMPANY

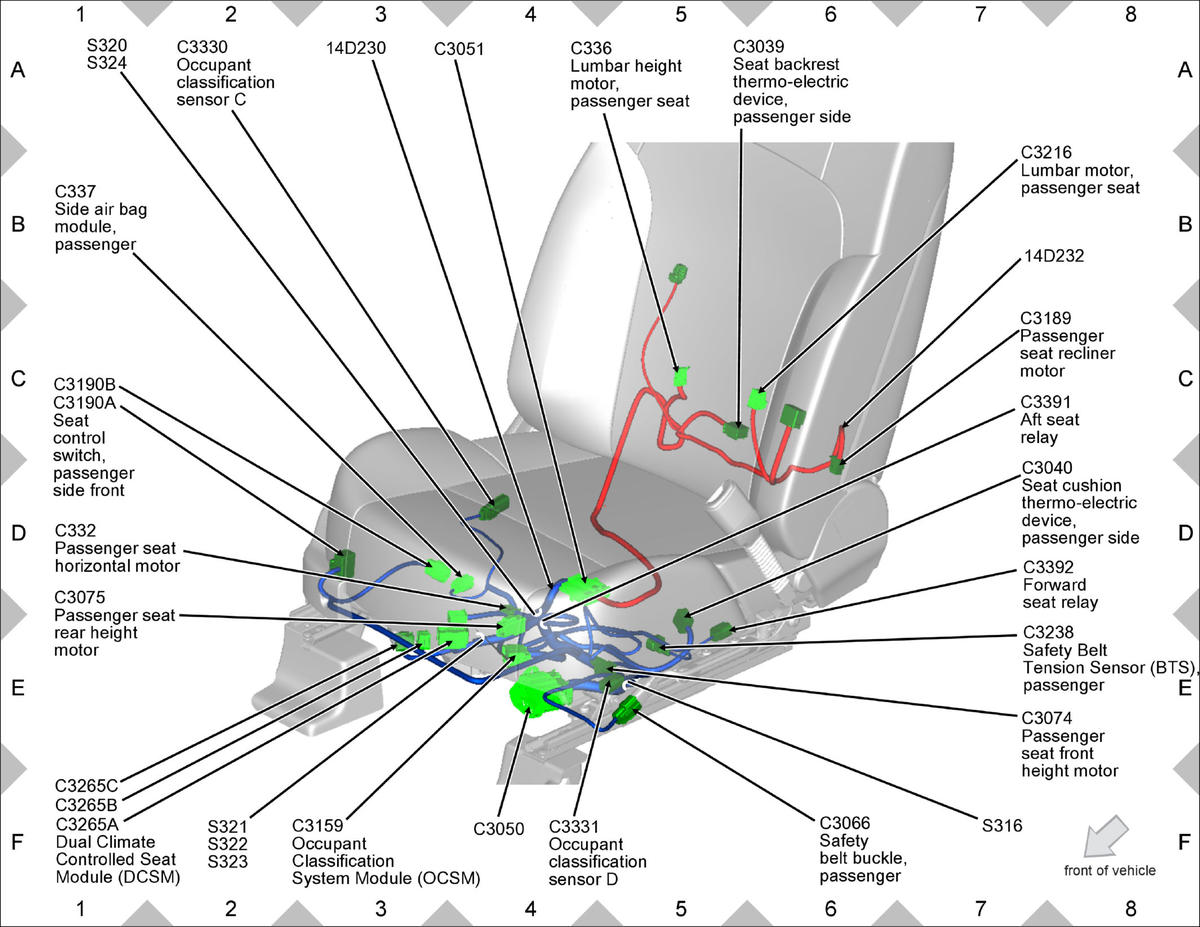

GFDW91267Courtesy of FORD MOTOR COMPANY

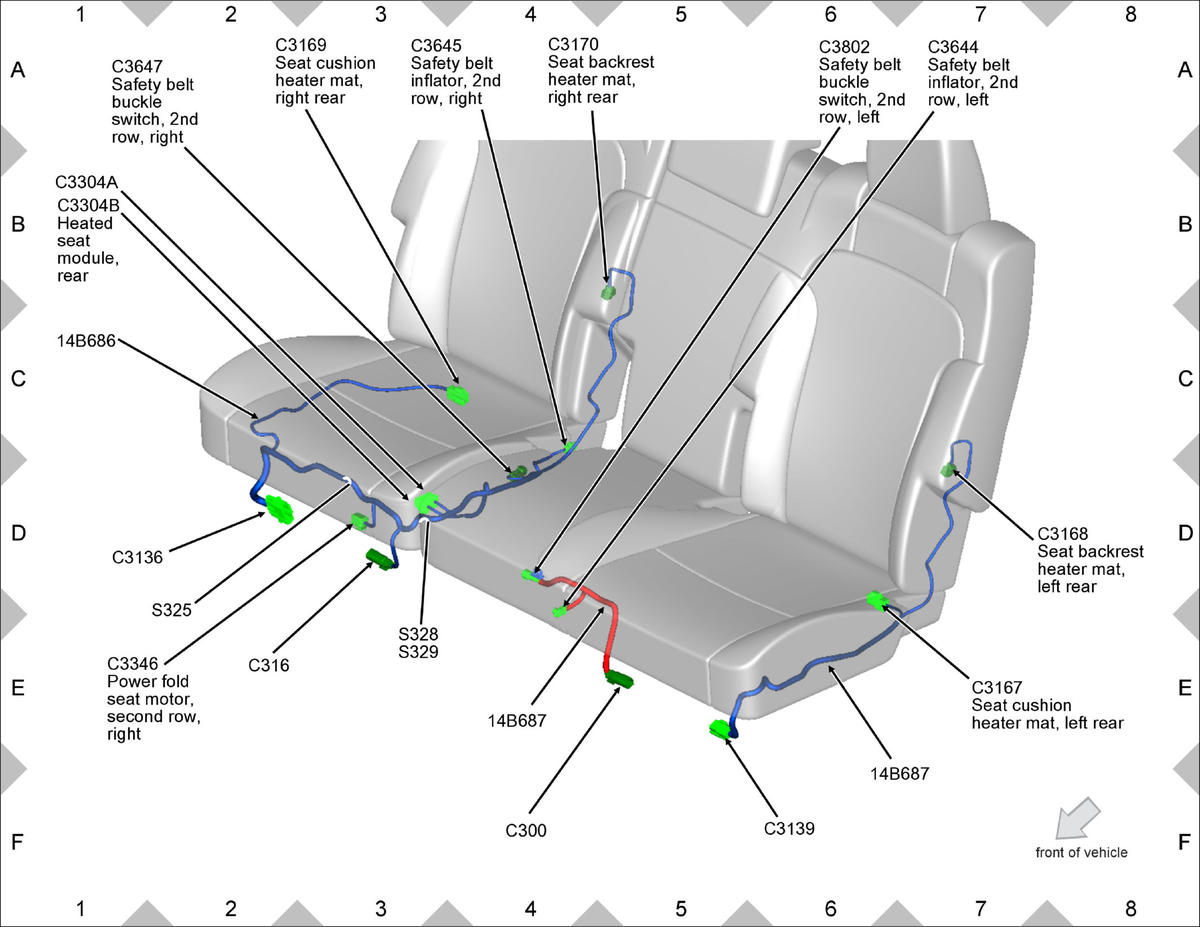

GFDW91268Courtesy of FORD MOTOR COMPANY

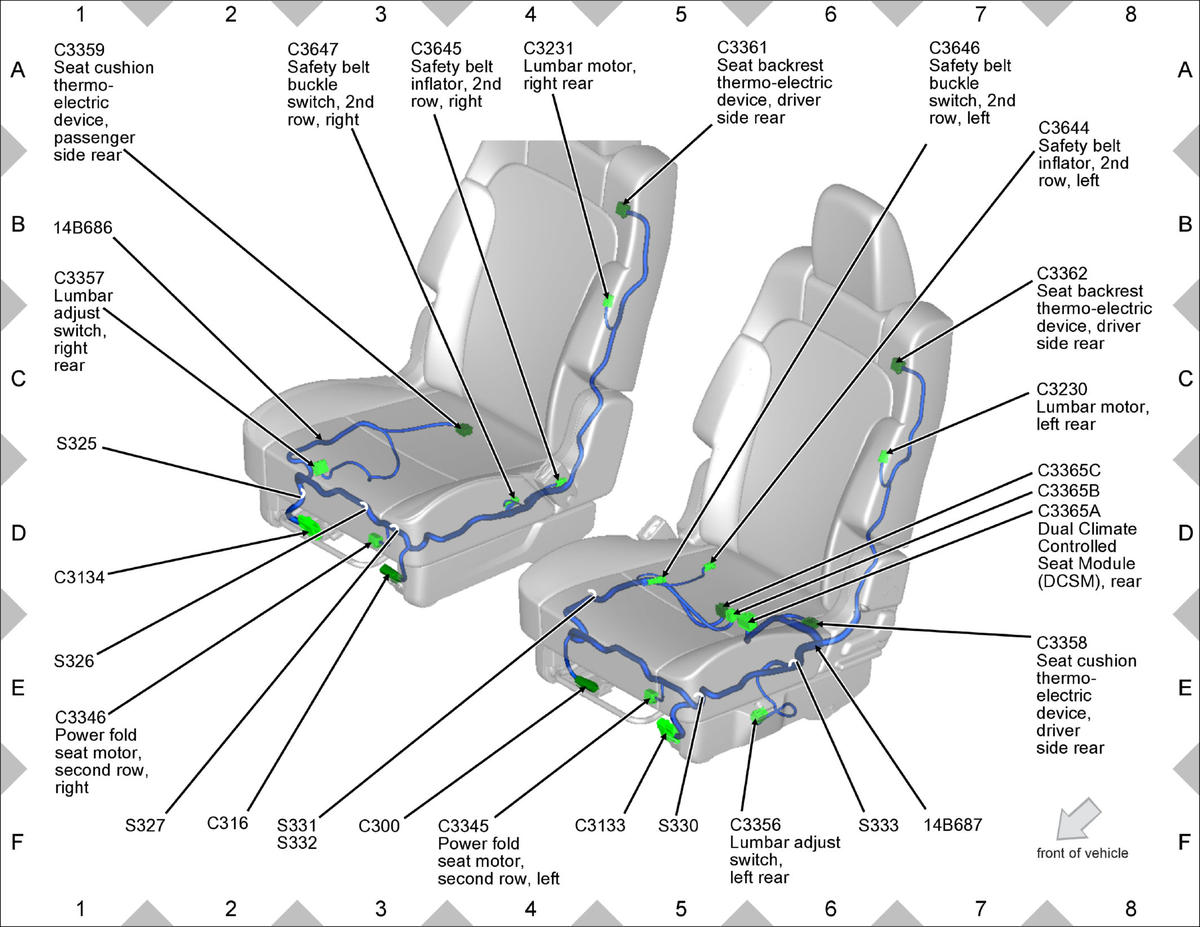

GFDW91269Courtesy of FORD MOTOR COMPANY

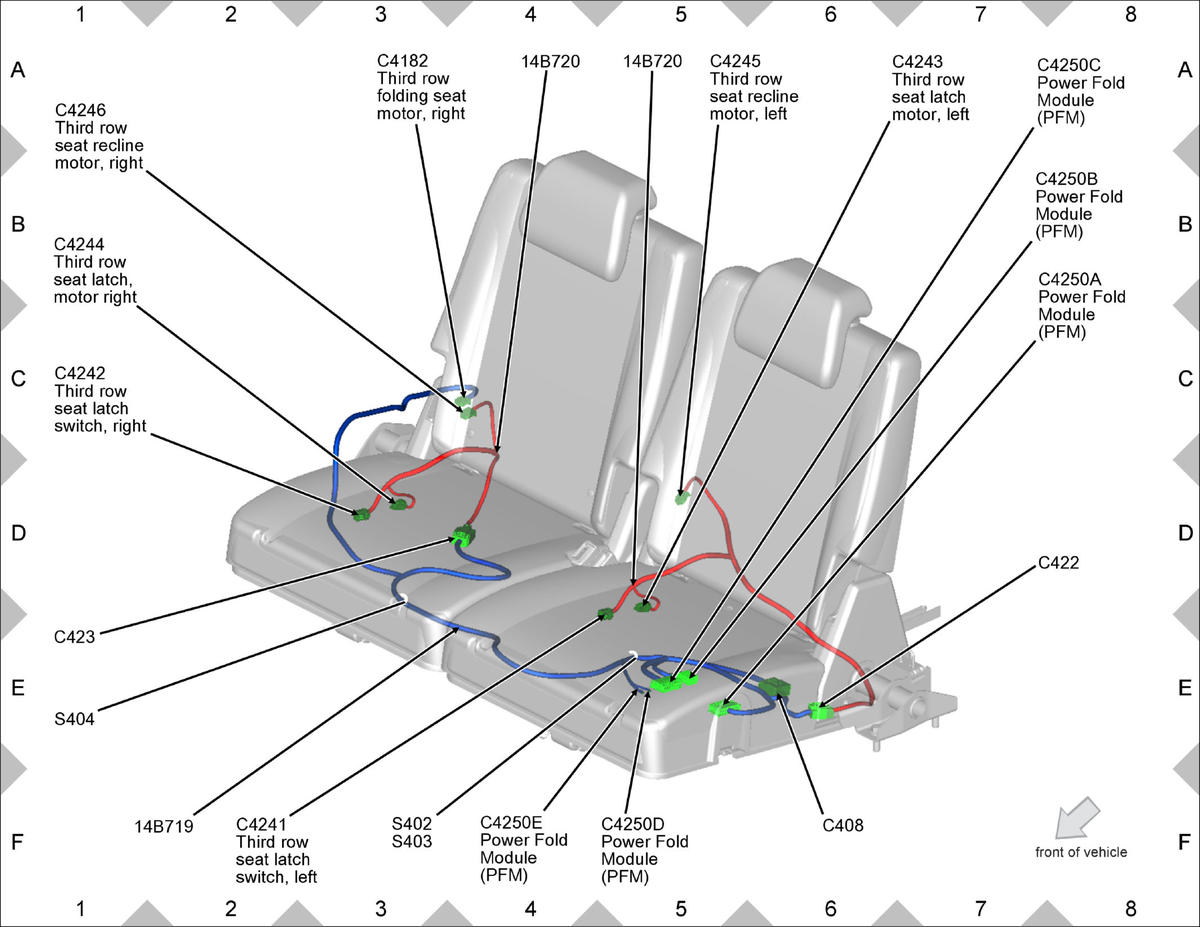

GFDW91270Courtesy of FORD MOTOR COMPANY

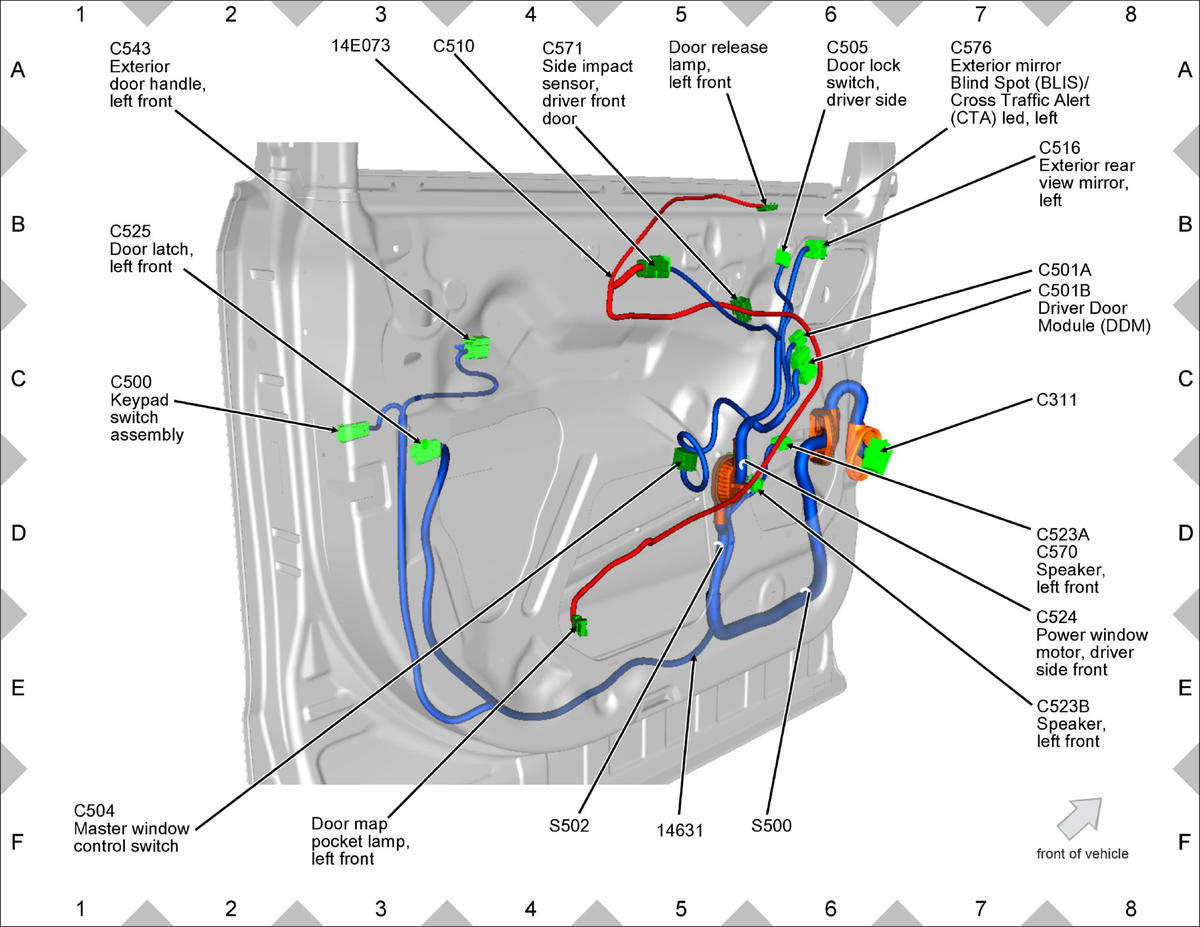

GFDW91271Courtesy of FORD MOTOR COMPANY

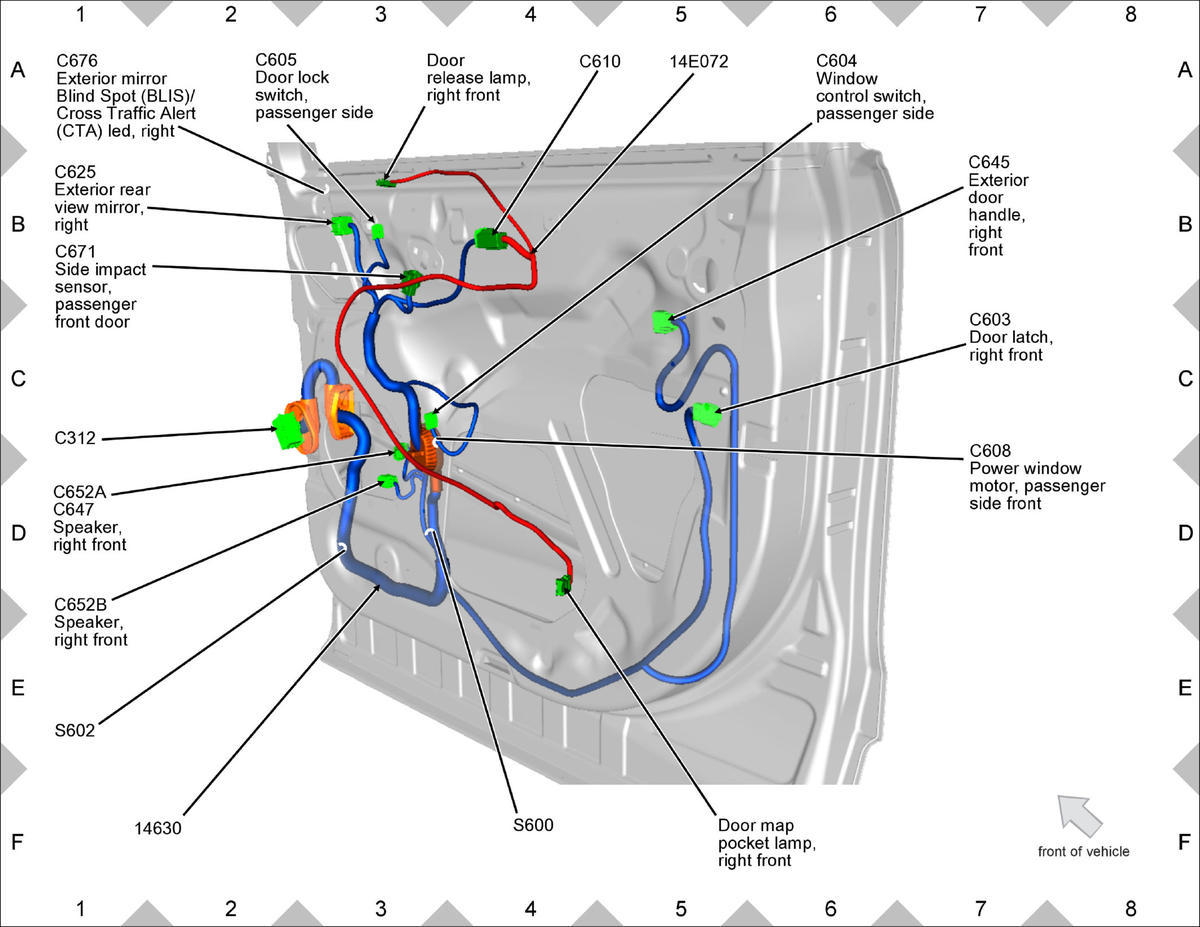

GFDW91272Courtesy of FORD MOTOR COMPANY

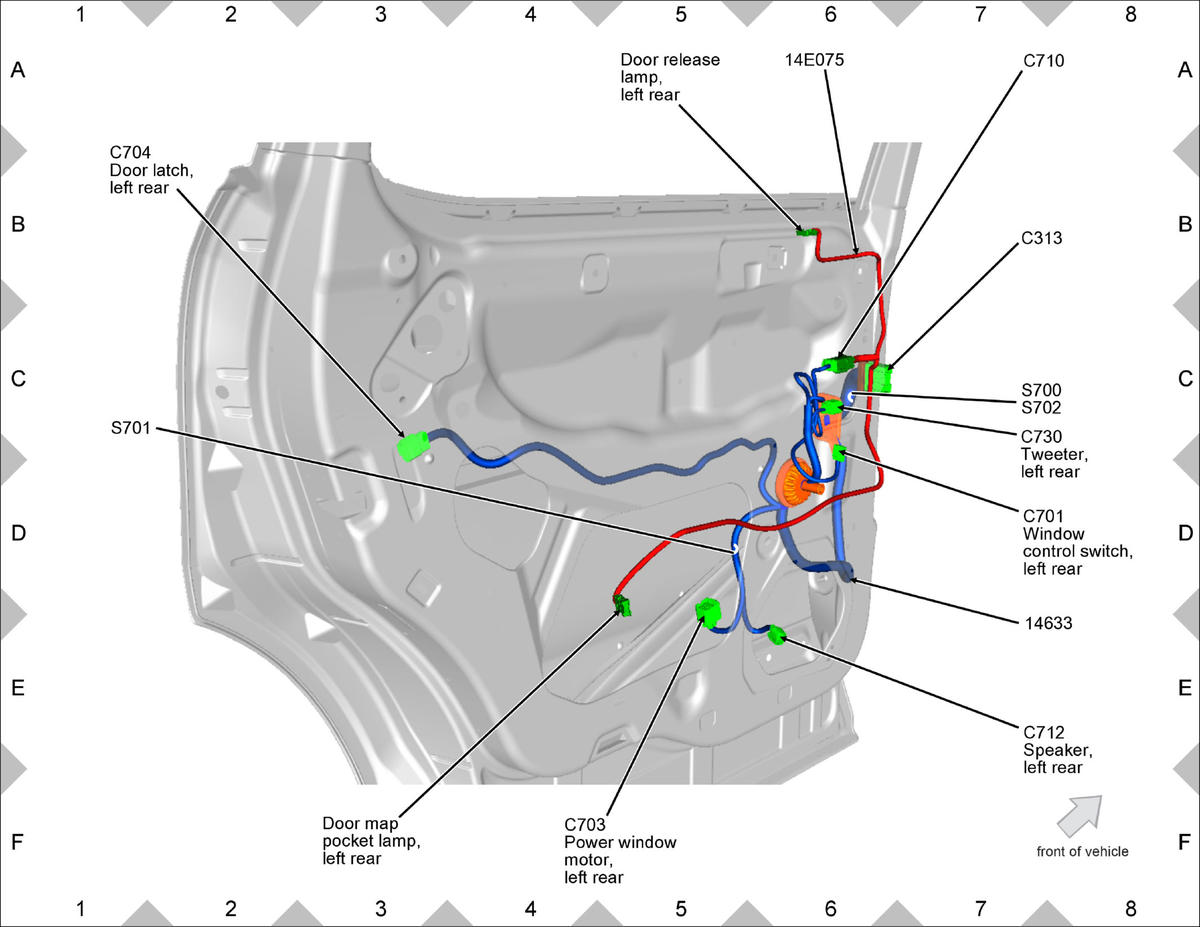

GFDW91273Courtesy of FORD MOTOR COMPANY

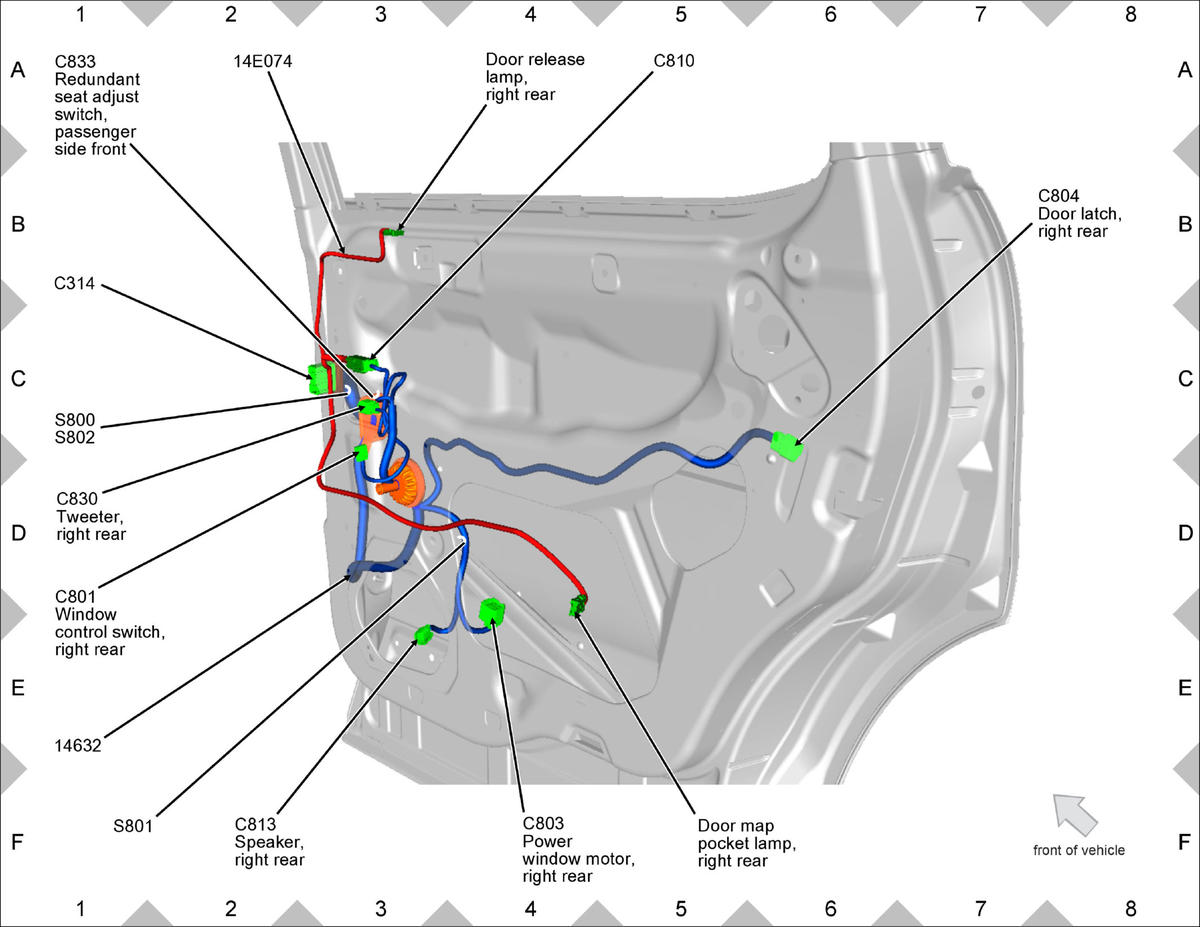

GFDW91274Courtesy of FORD MOTOR COMPANY

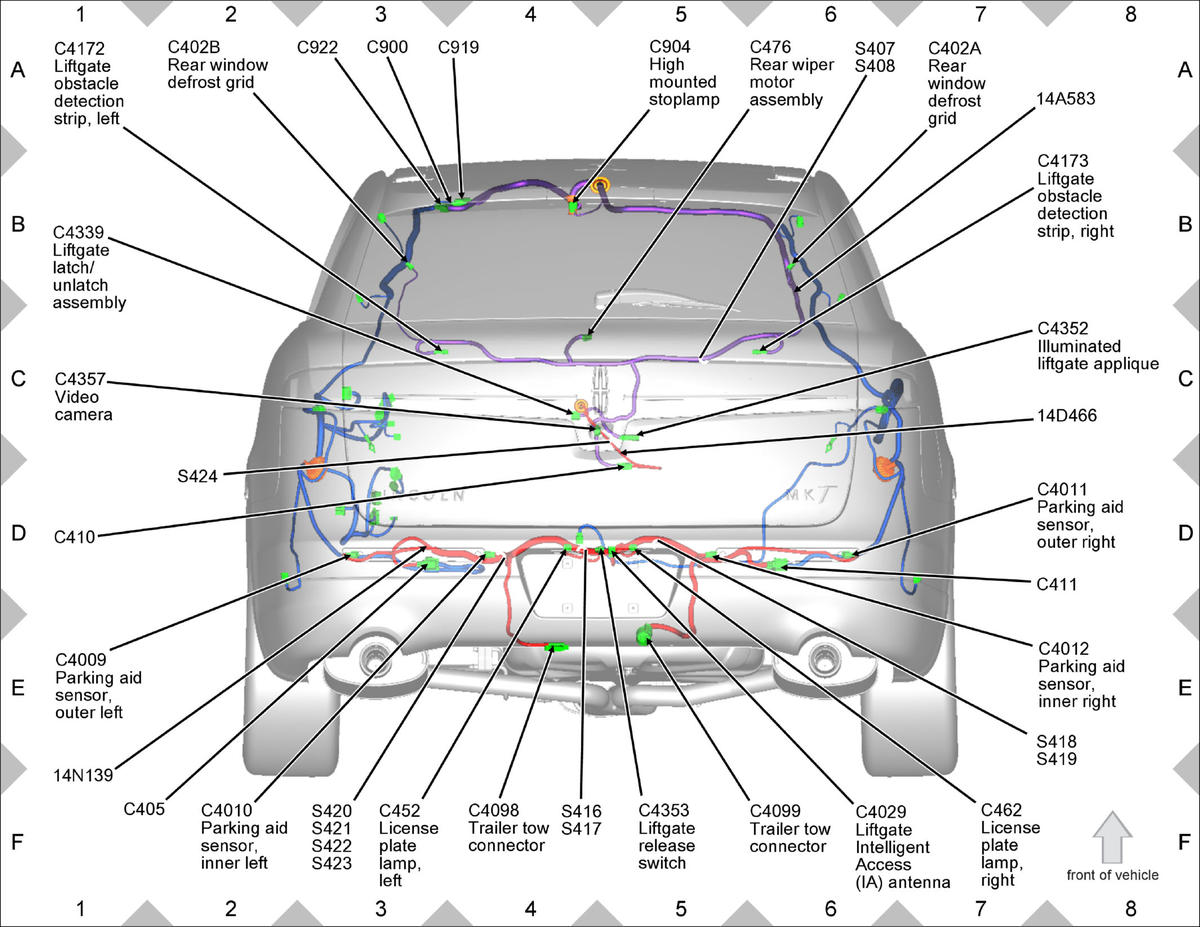

GFDW91275Courtesy of FORD MOTOR COMPANY

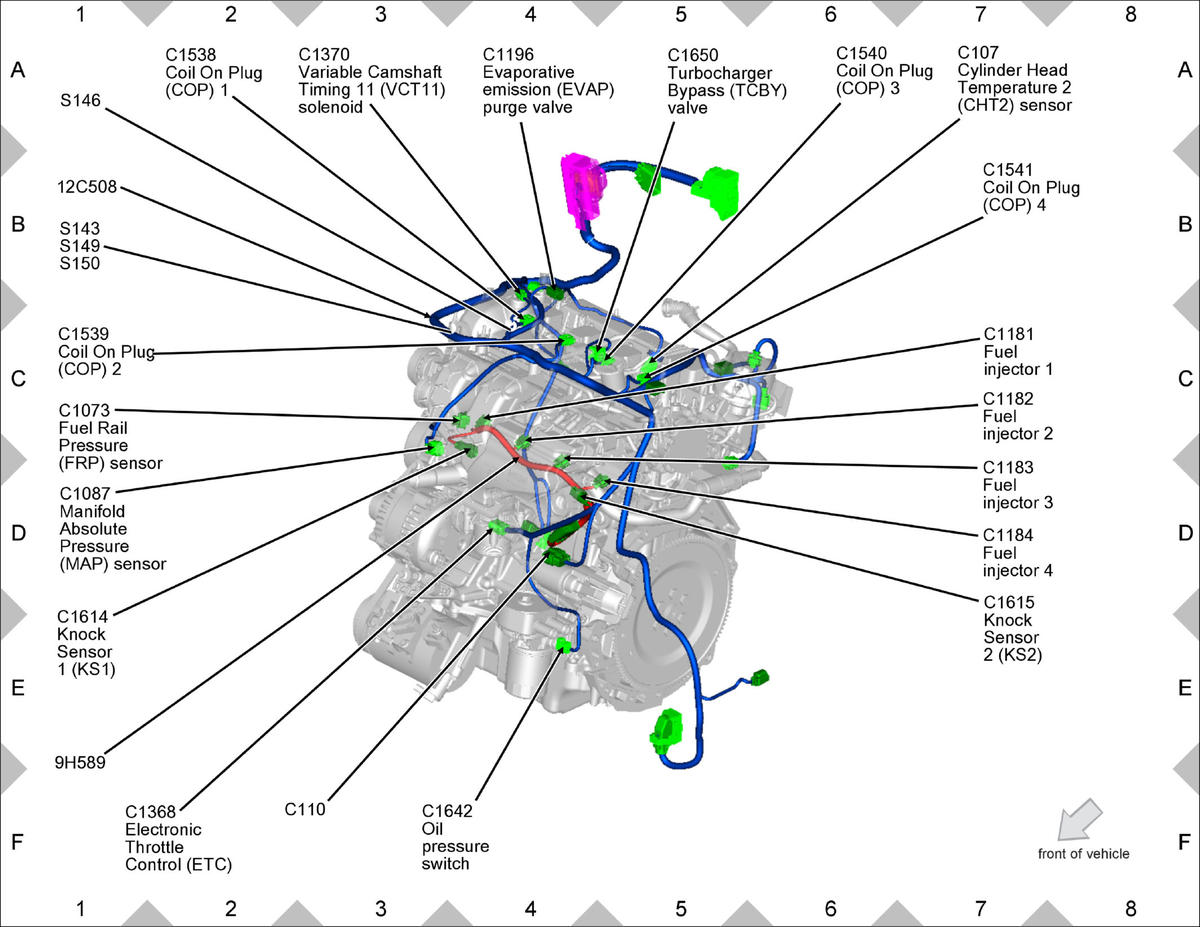

GFDW91276Courtesy of FORD MOTOR COMPANY

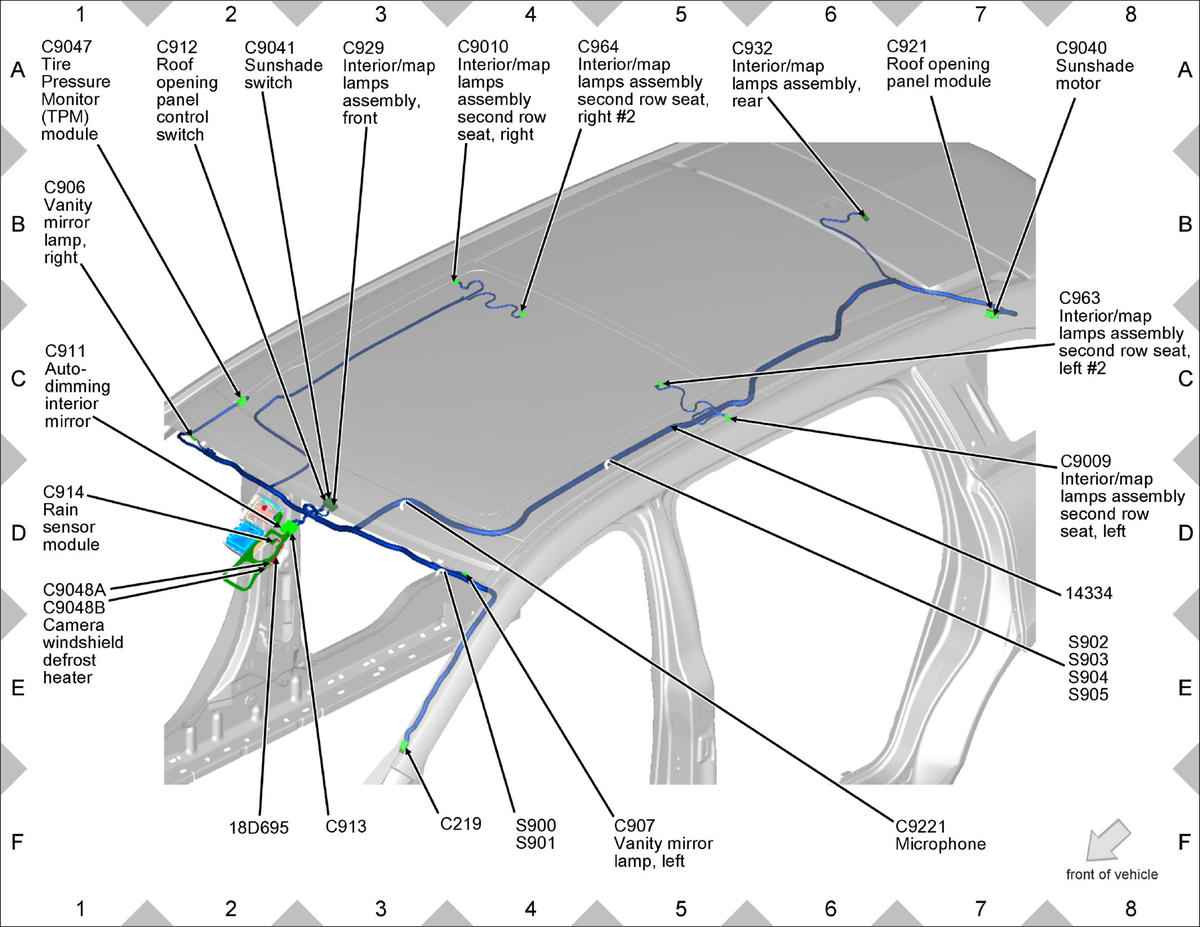

GFDW91277Courtesy of FORD MOTOR COMPANY

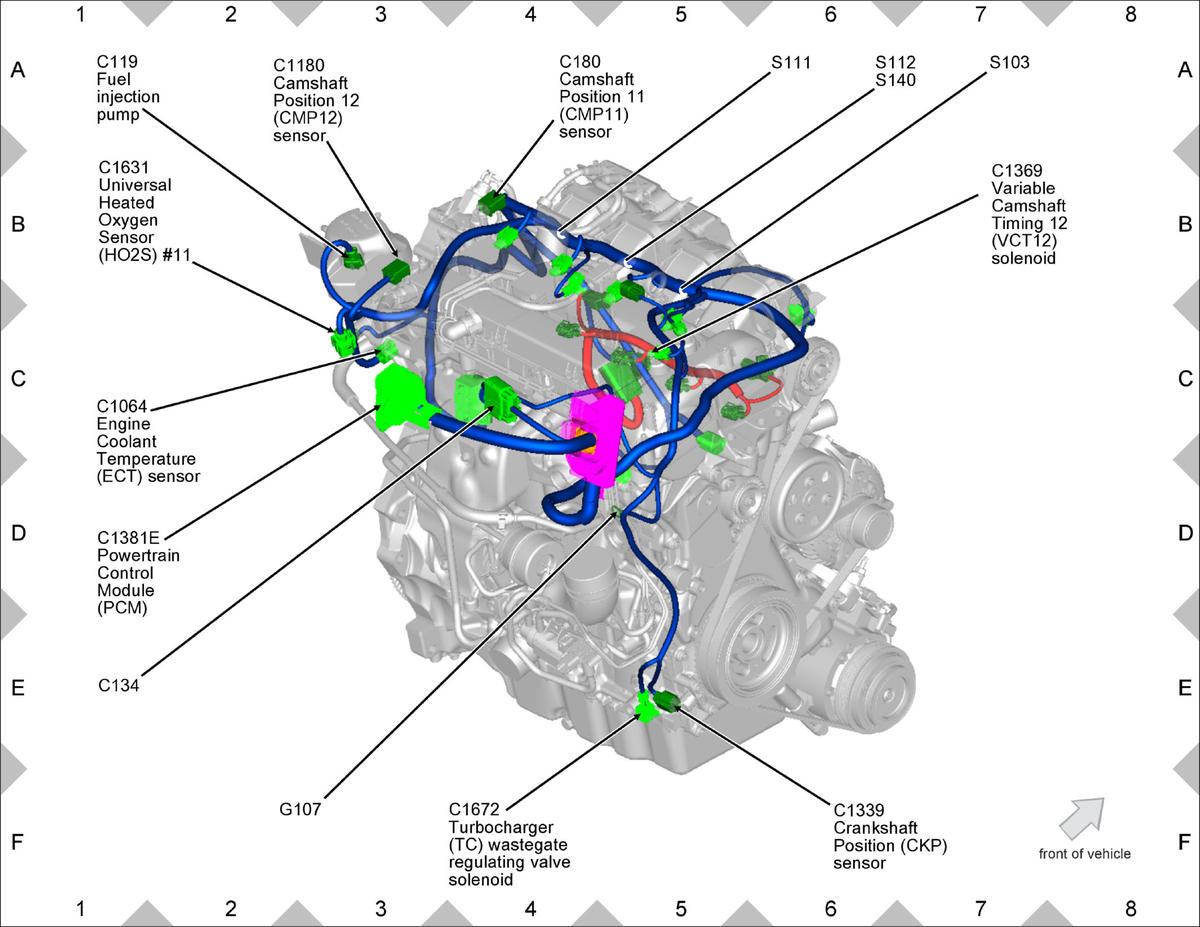

GFDW91278Courtesy of FORD MOTOR COMPANY

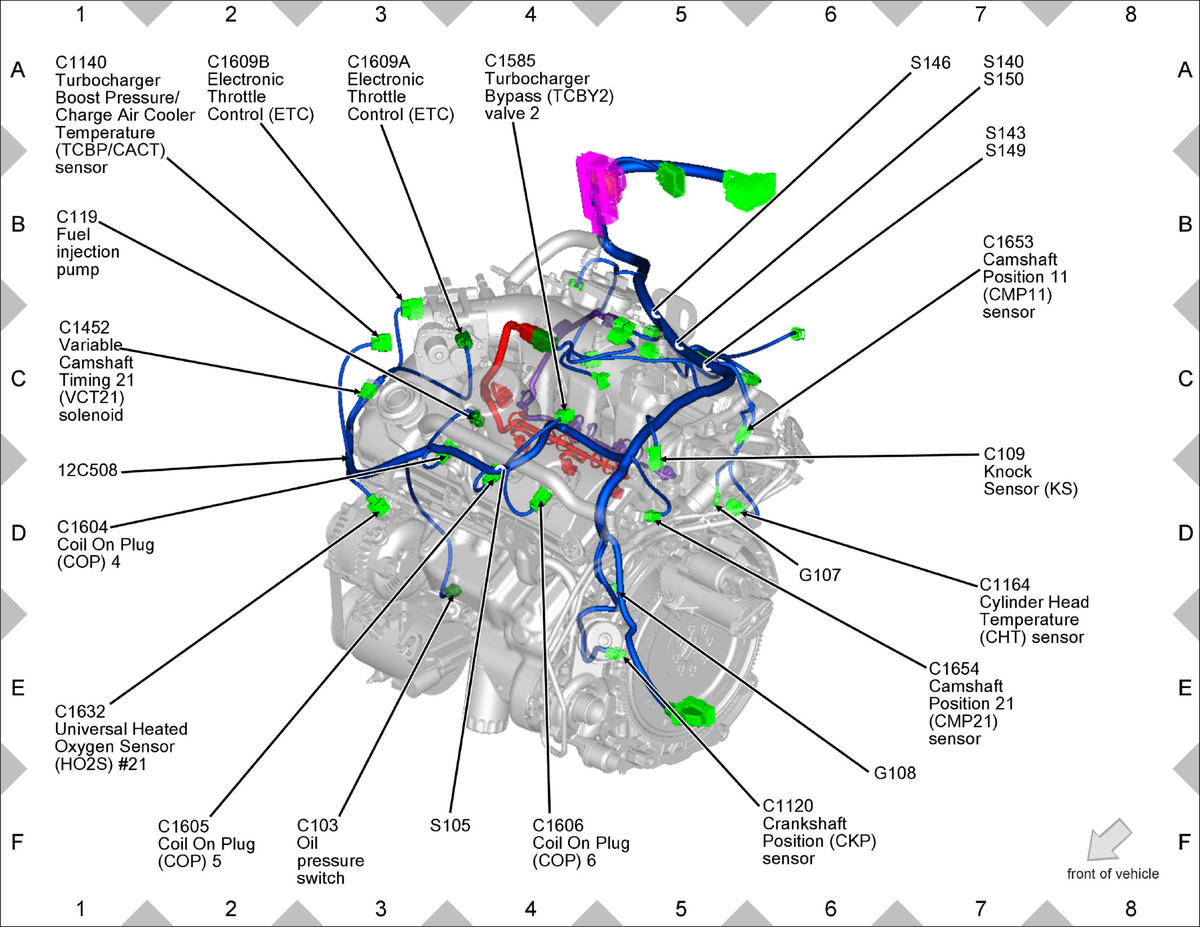

GFDW91279Courtesy of FORD MOTOR COMPANY

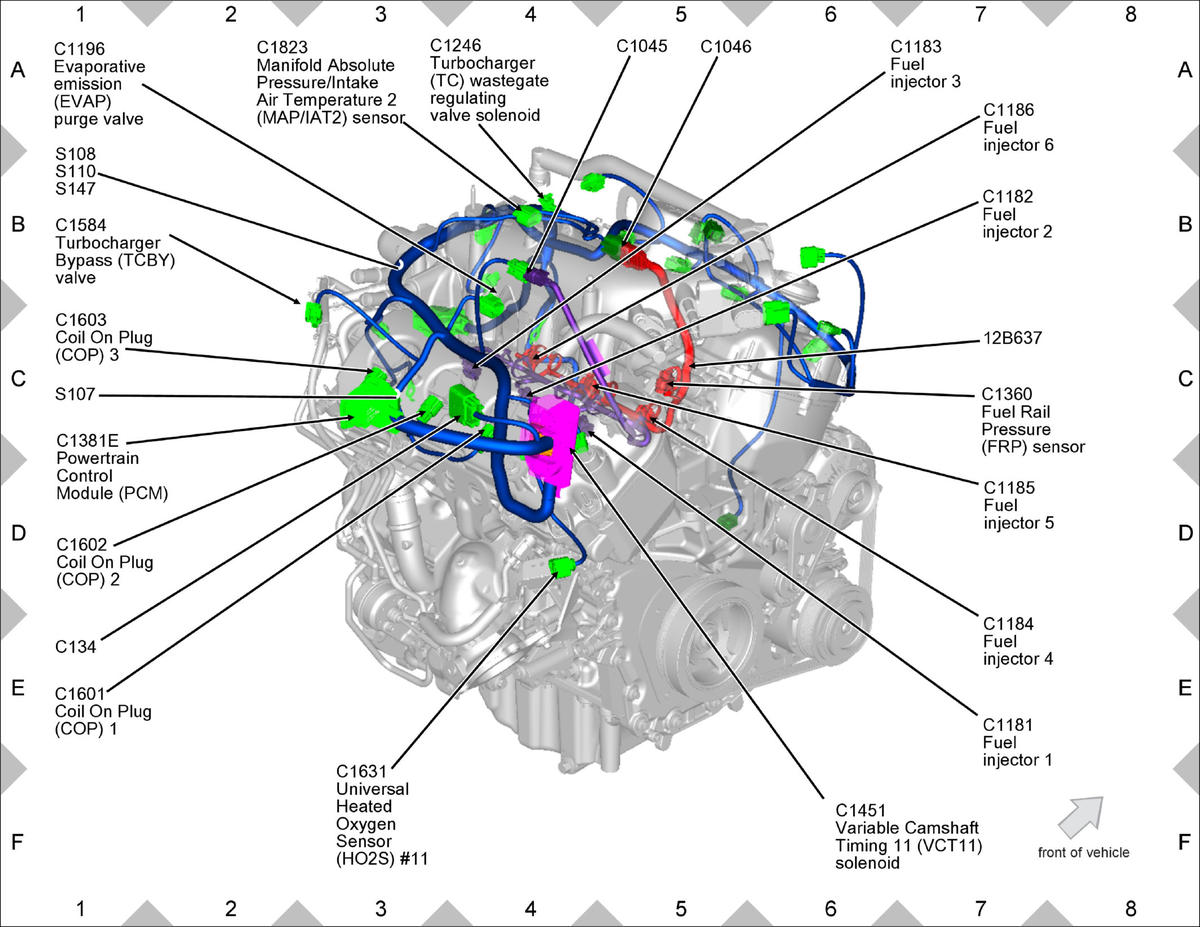

GFDW91280Courtesy of FORD MOTOR COMPANY

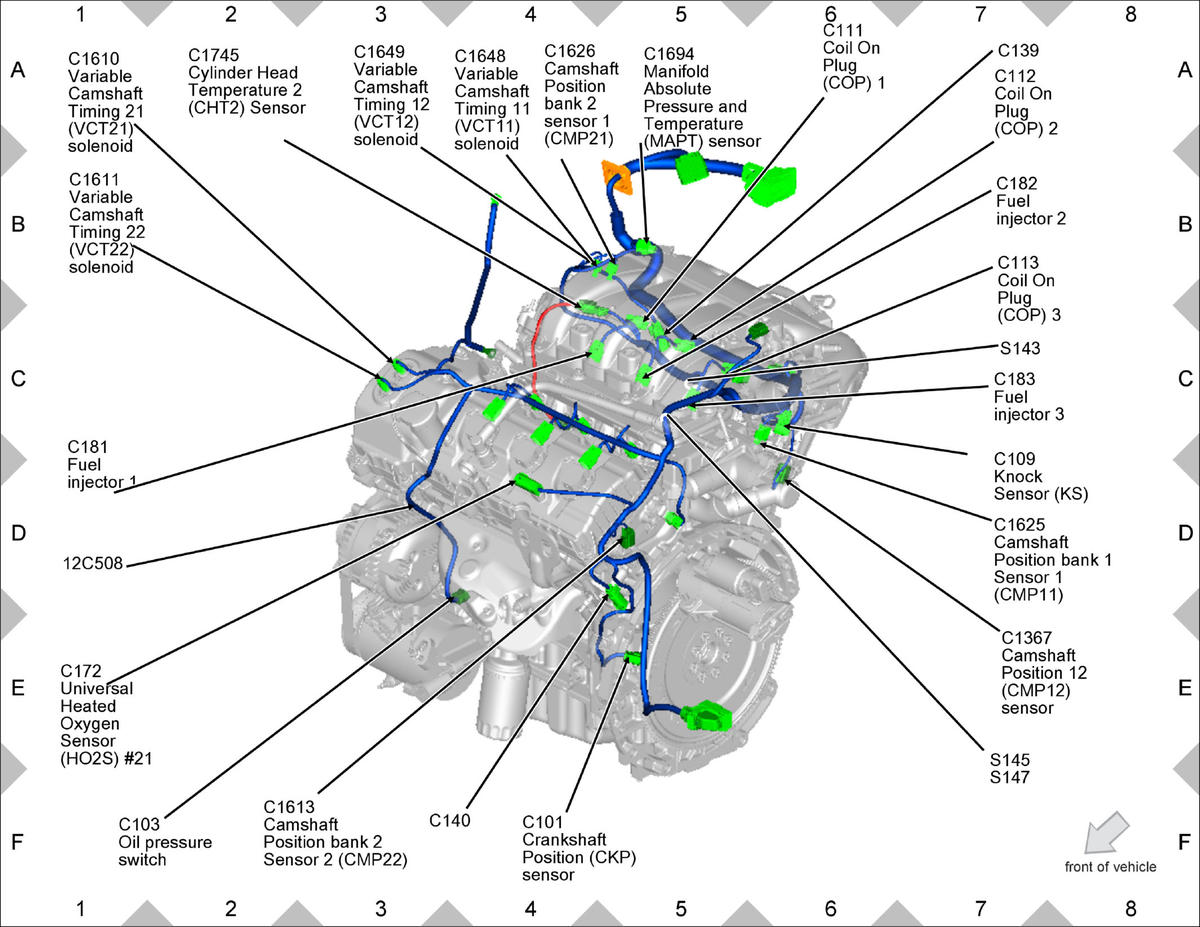

GFDW91281Courtesy of FORD MOTOR COMPANY

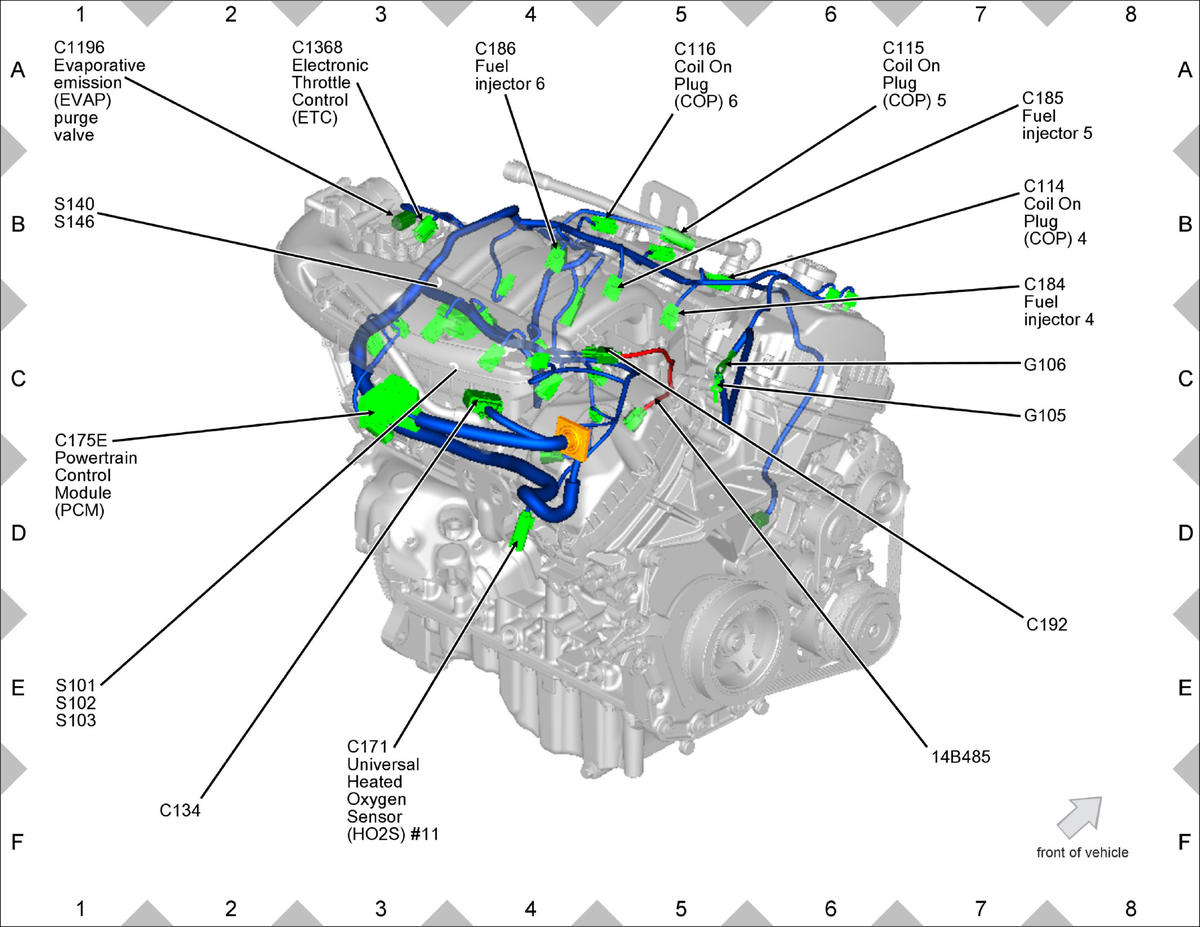

GFDW91282Courtesy of FORD MOTOR COMPANY

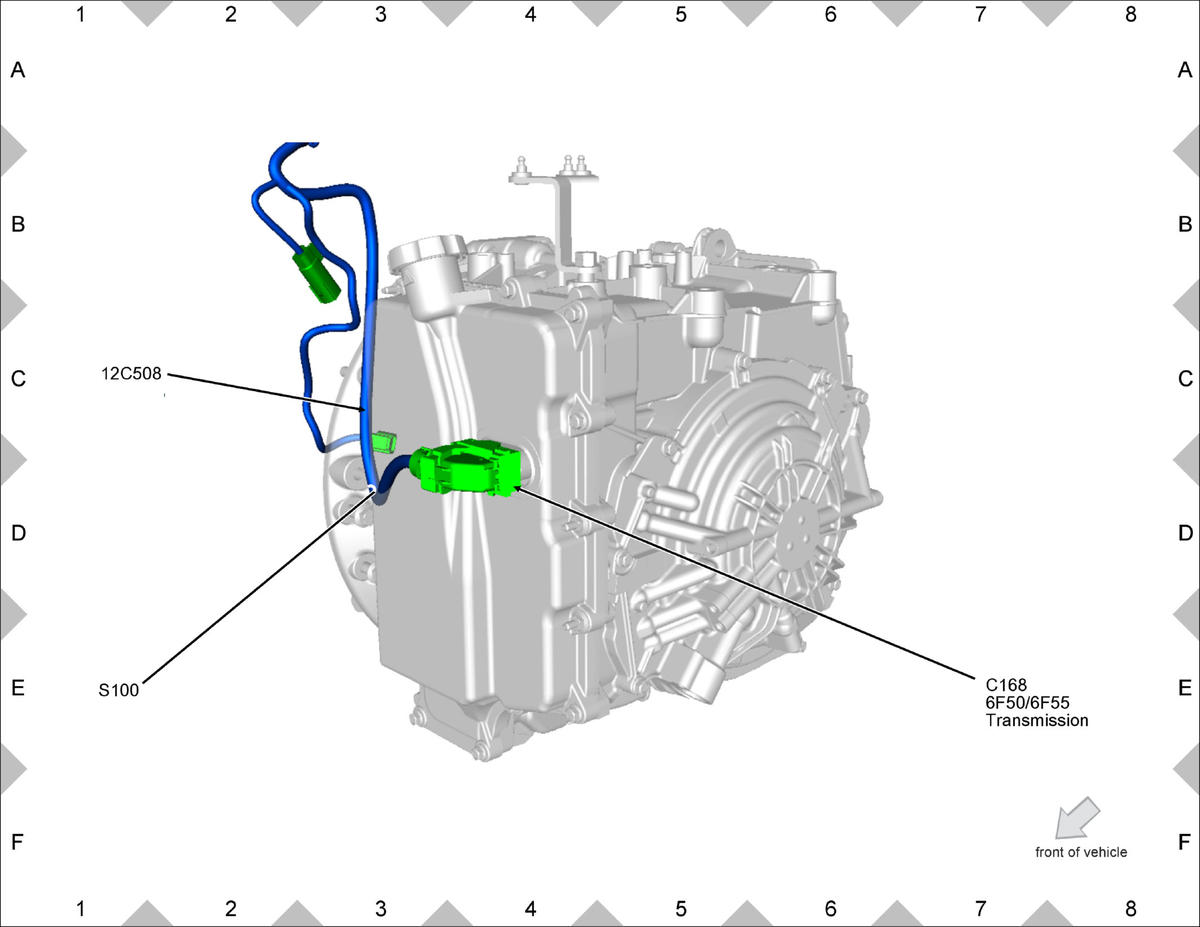

GFDW91283Courtesy of FORD MOTOR COMPANY
