OEM Wiring Diagrams Component Testing
›
Component Testing
›

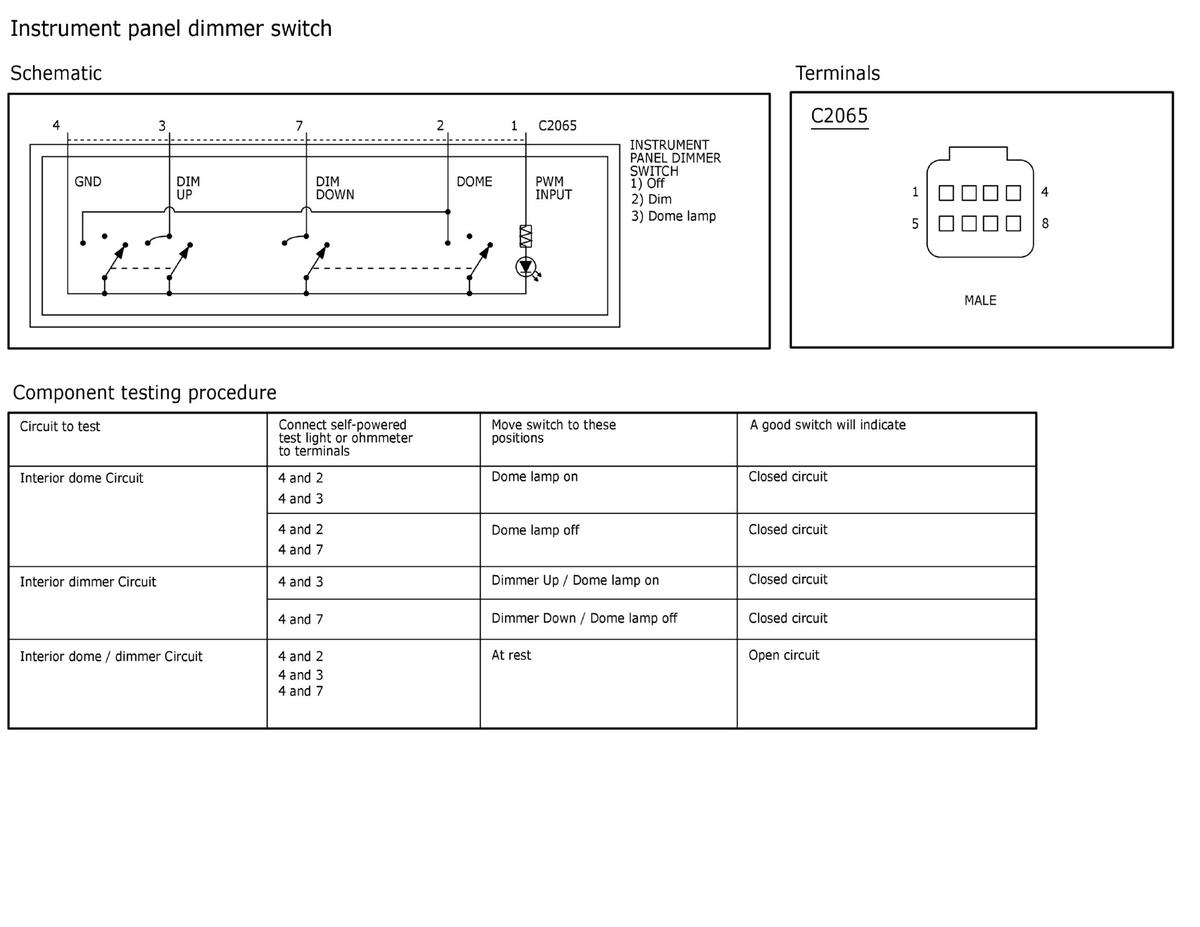

Instrument Panel Dimmer Switch
Instrument Panel Dimmer Switch
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
