Safety Belt Buckle Third Row: Notes

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

NOTE: RH shown, LH similar.

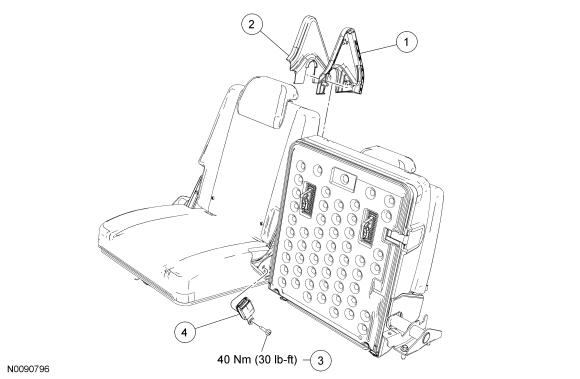

Fig 1: Safety Belt Buckle Third Row With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	LH inboard pivot cover
2	-	RH inboard pivot cover
3	-	RH safety belt buckle bolt (part of 613D48)
4	613D48	RH safety belt buckle
