Cruise Control Module (CCM): Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Cruise control module (CCM)

Remove the front bumper cover. Refer to: Front Bumper Cover .

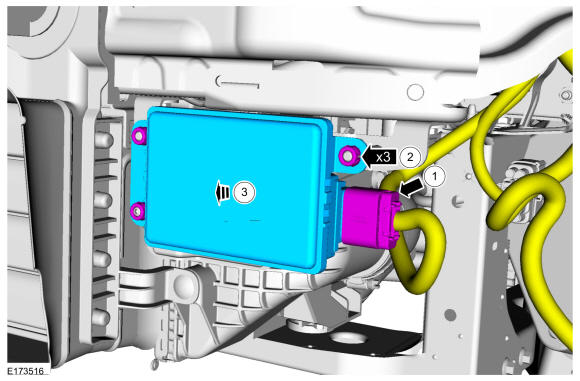

1. Disconnect the electrical connector.
2. Disconnect the CCM from the CCM bracket.
3. Remove the CCM.
- To install, align the CCM after installation. Refer to: Cruise Control Radar Alignment .
Courtesy of FORD MOTOR COMPANY

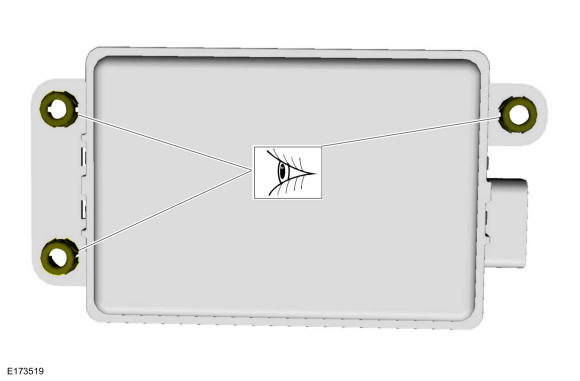

NOTE: Replace any damaged CCM grommets.

Inspect CCM grommets for damage.

Courtesy of FORD MOTOR COMPANY

CCM bracket
Remove the front bumper cover. Refer to: Front Bumper Cover .
Remove the CCM. Refer to: Cruise Control Module (CCM) .

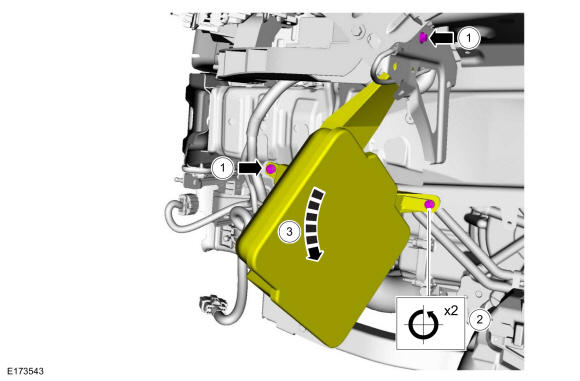

1. Remove the PCM bracket bolts.
  Torque: 28 lb.in (3.2 Nm)
2. Loosen the lower PCM bracket bolt.
  Torque: 28 lb.in (3.2 Nm)
3. Position the PCM aside.
Courtesy of FORD MOTOR COMPANY

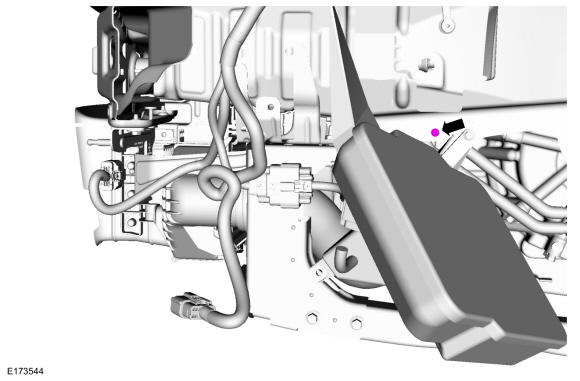

Remove the rear CCM bracket bolt.
Torque: 42 lb.in (4.8 Nm)

Courtesy of FORD MOTOR COMPANY

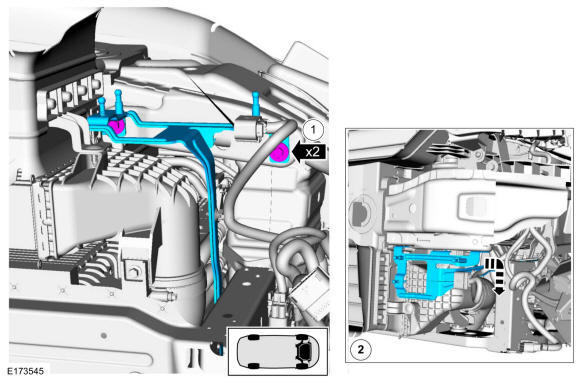

Remove the 2 bolts and the CCM bracket.
Torque: 93 lb.in (10.5 Nm)

Courtesy of FORD MOTOR COMPANY
