In-Vehicle Temperature and Humidity Sensor: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. NOTE: Push button start vehicle shown, all others similar.

    Lower the steering column opening trim panel.

    GFD201097Courtesy of FORD MOTOR COMPANY
  2. Remove the 2 bolts, release the clips and remove IPC trim panel.

    • Detach the gap hider from the upper steering column shroud.

      Torque: 22 lb.in (2.5 Nm)

    GFD205768Courtesy of FORD MOTOR COMPANY
  3. Remove the IPC.

    Torque: 7 lb.in (.8 Nm)

    GFD205769Courtesy of FORD MOTOR COMPANY

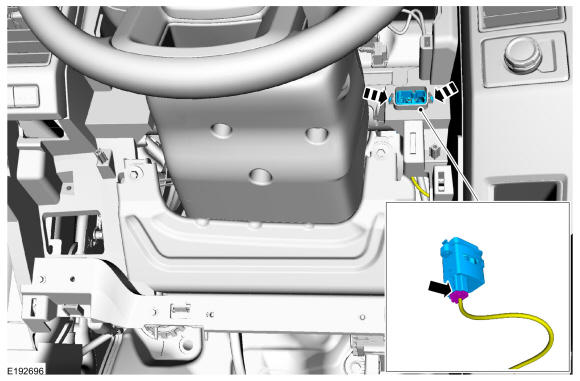

  4. Remove the in-vehicle temperature and humidity sensor and disconnect the electrical connector.
GFD205770Courtesy of FORD MOTOR COMPANY
