Front Seat Control Switch: Removal
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
LH shown, RH similar.

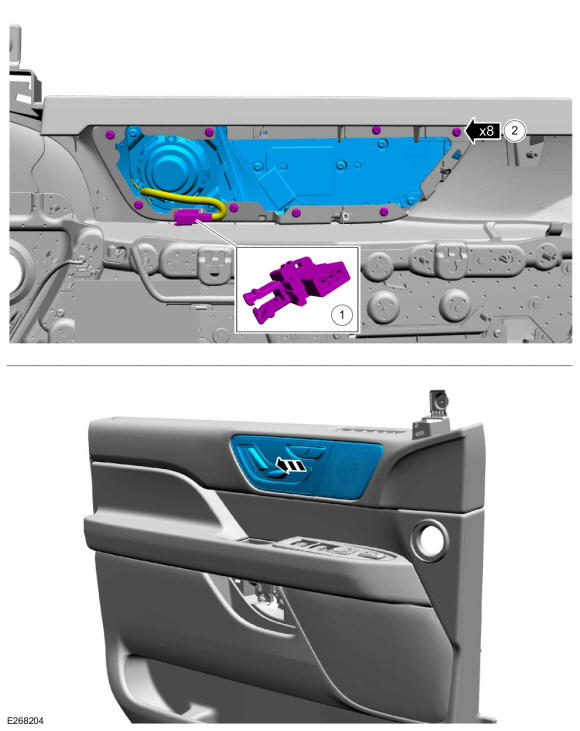

- Remove the front door trim panel. Refer to: Front Door Trim Panel .

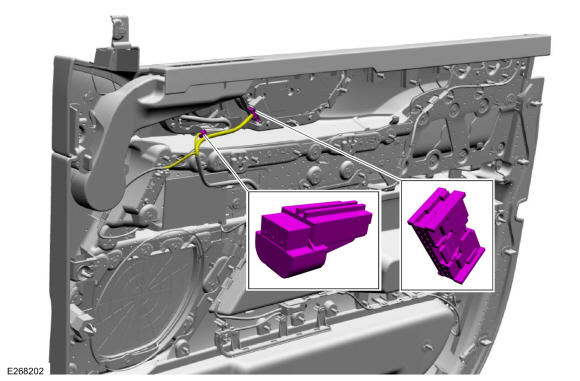

- Disconnect the front seat control switch and speaker electrical connectors.

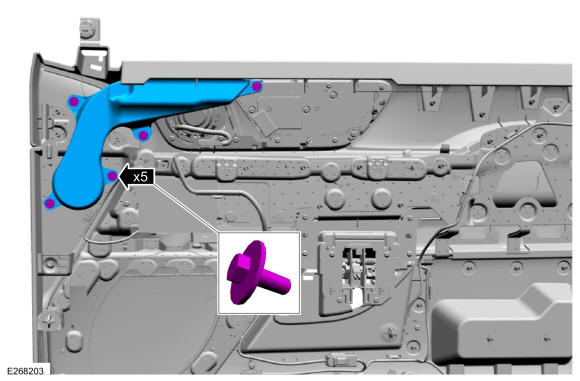

- Remove the bolts and the HVAC air duct.
- Remove the front seat control switch and bezel.
- Detach the speaker electrical connector.

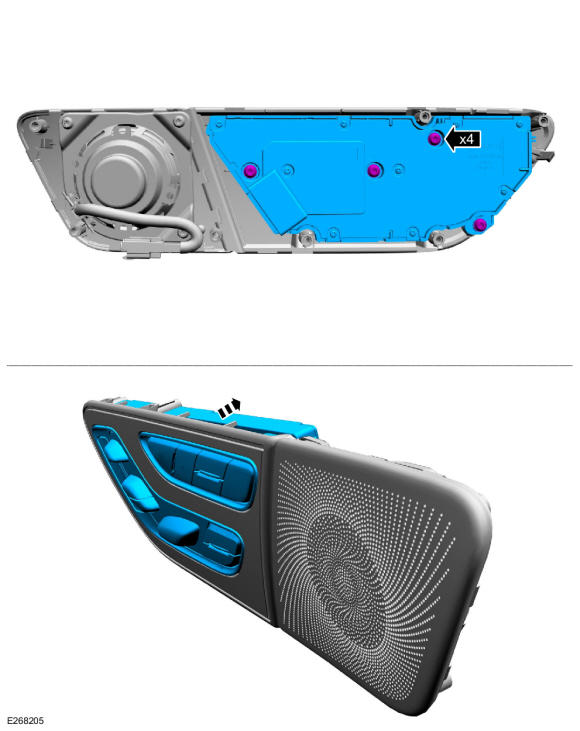

- Remove the screws.
- Remove the screws and the front seat control switch.
