OEM Ground Distribution: Grounds

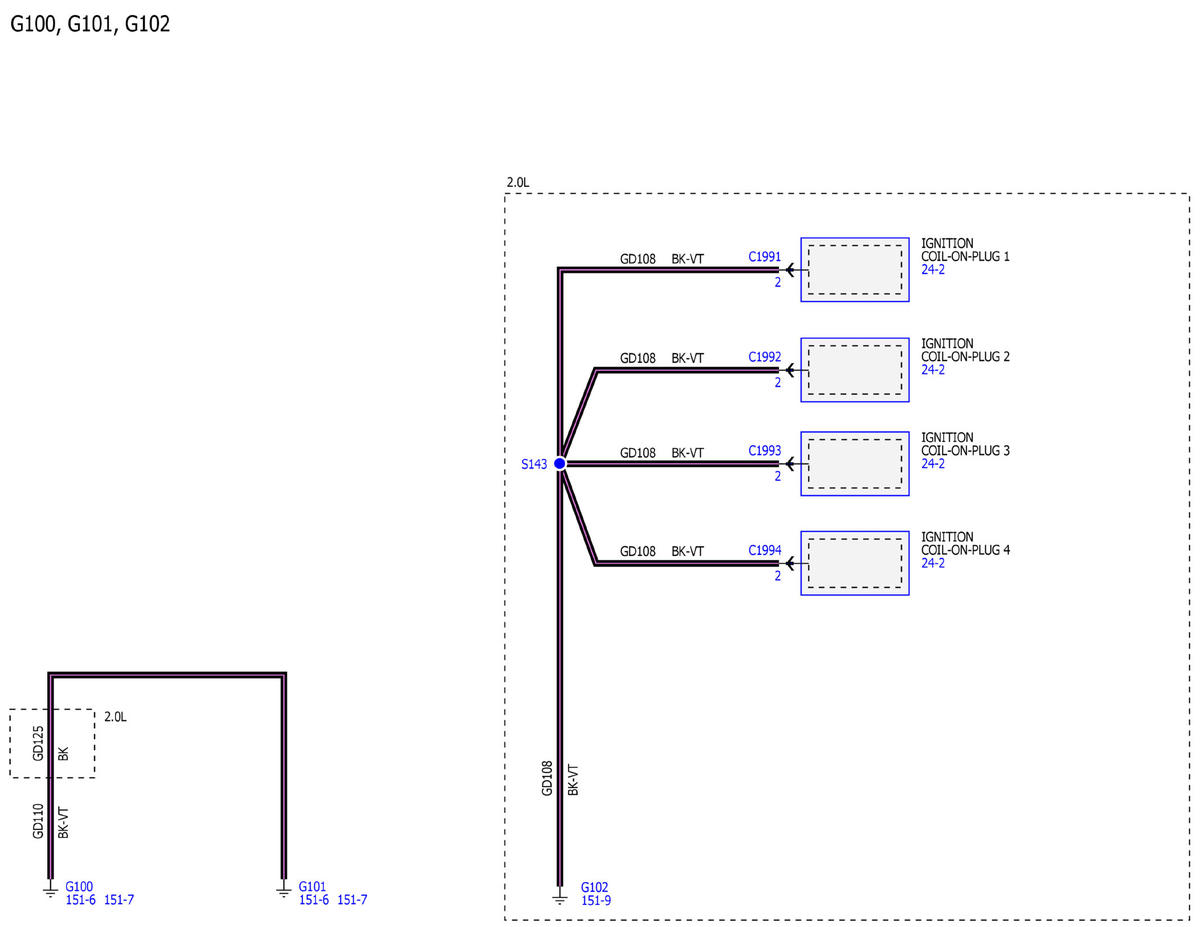

GFDWR68630Courtesy of FORD MOTOR COMPANY

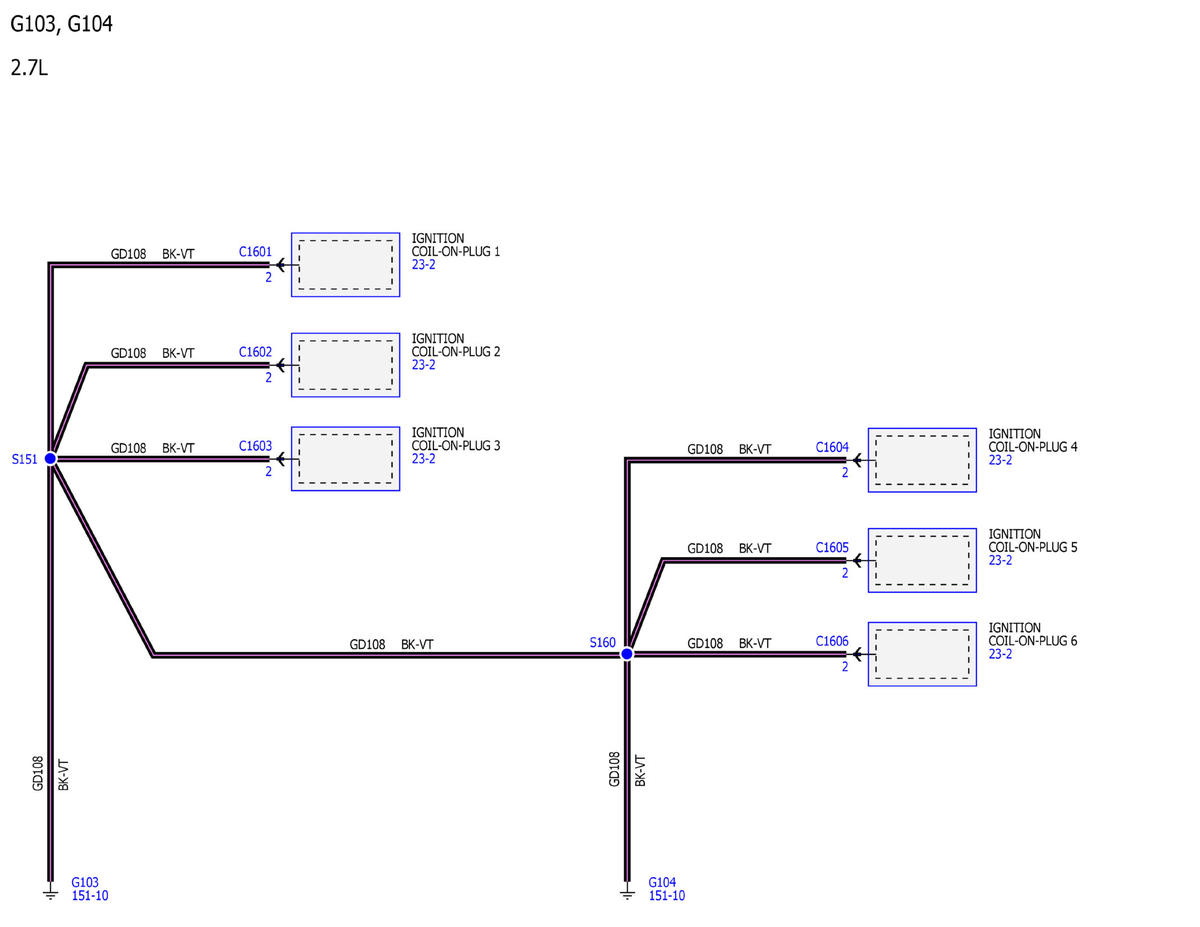

GFDWR68615Courtesy of FORD MOTOR COMPANY

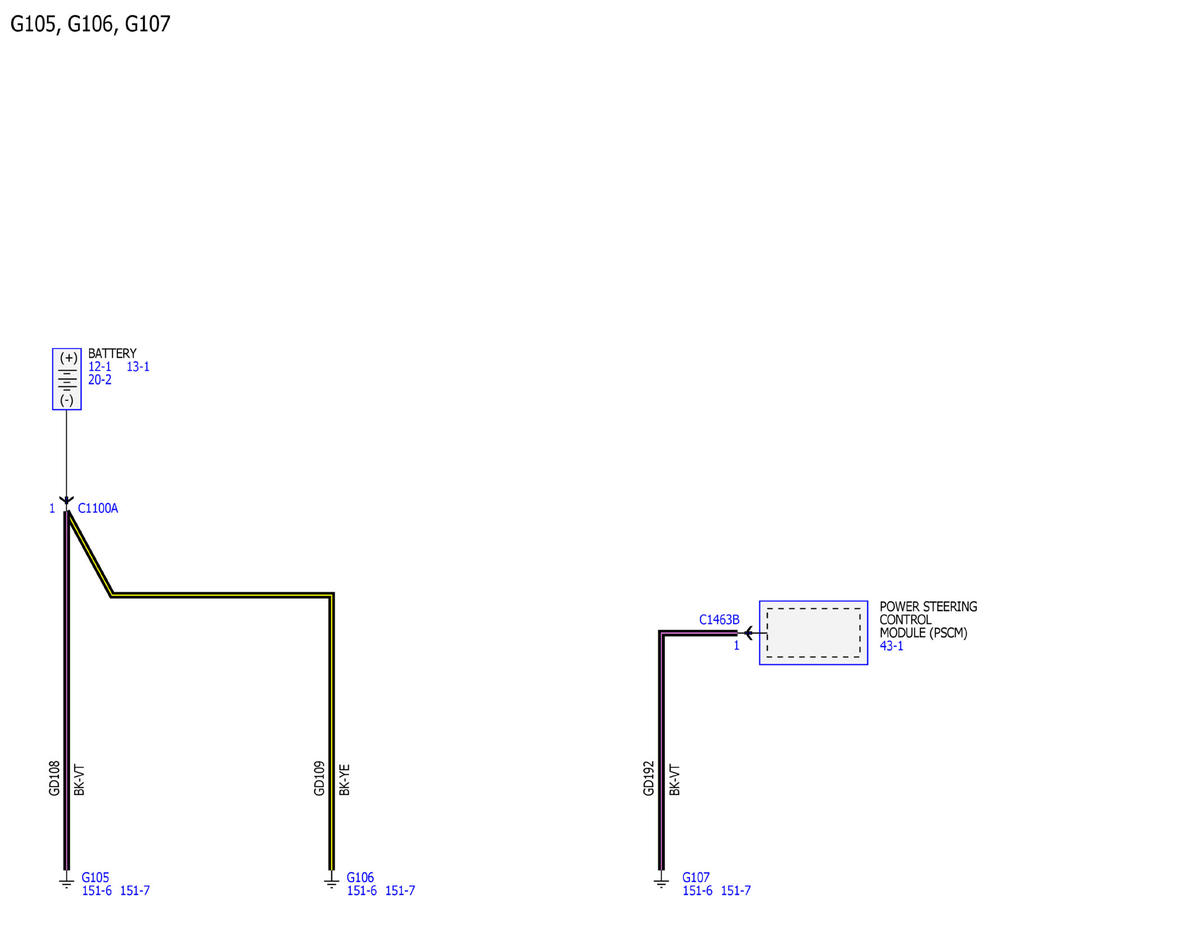

GFDWR68627Courtesy of FORD MOTOR COMPANY

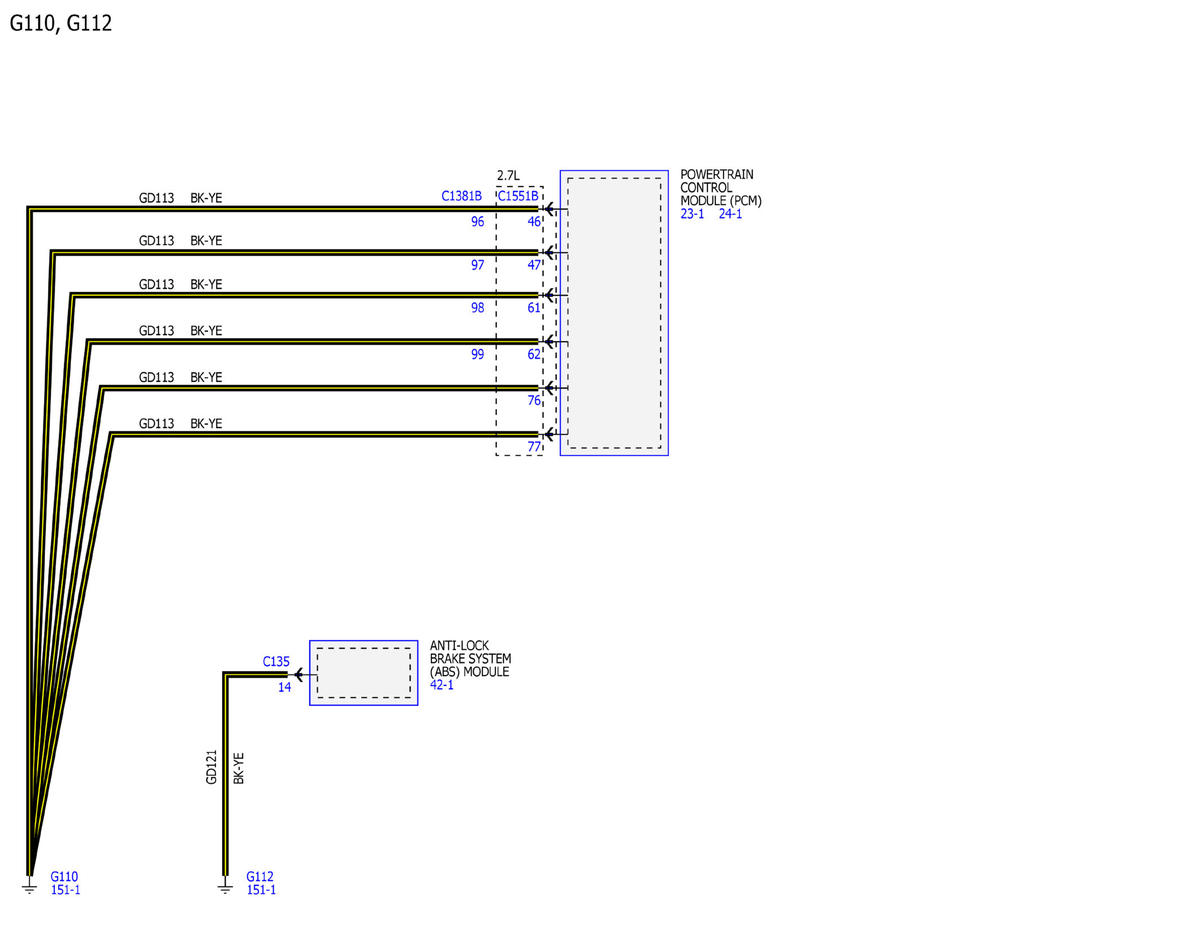

GFDWR68632Courtesy of FORD MOTOR COMPANY

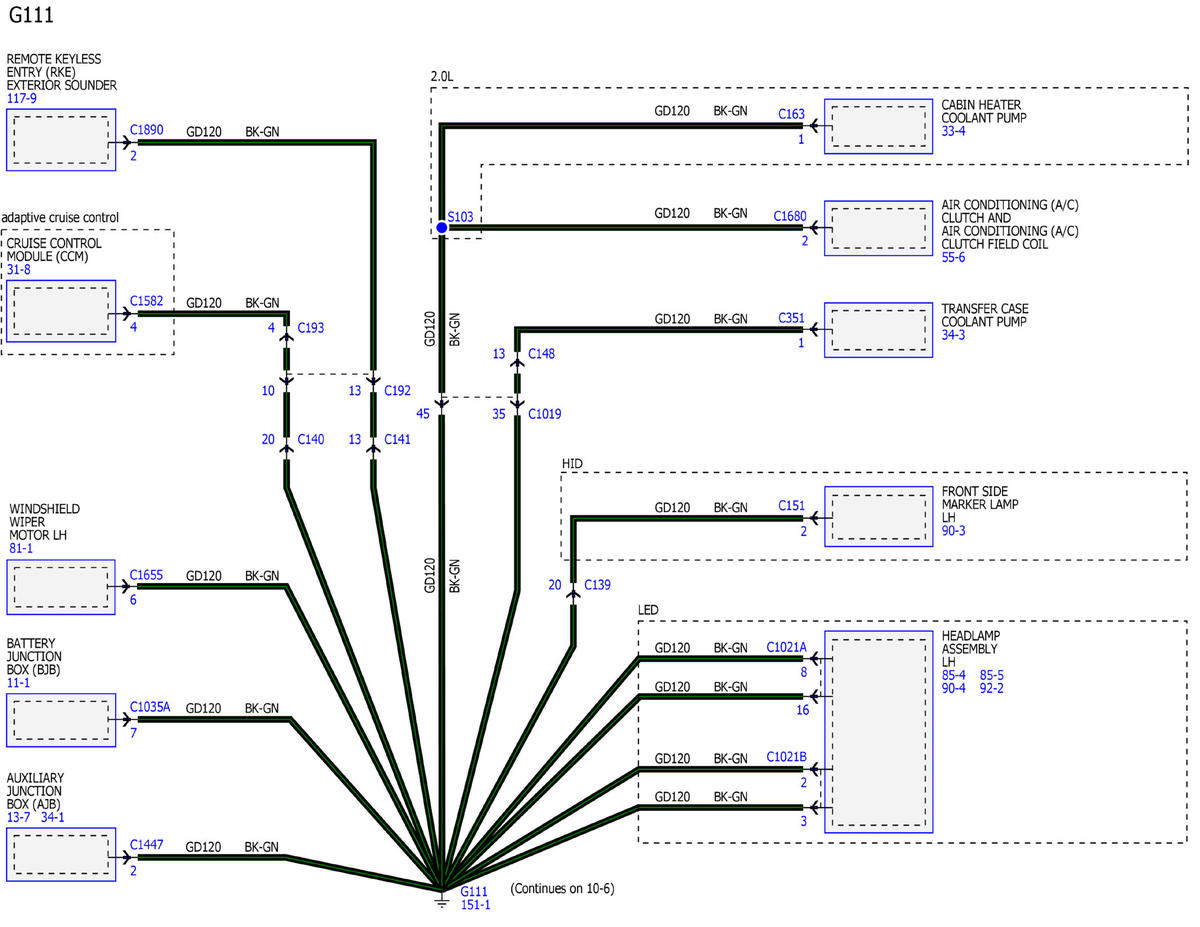

GFDWR68638Courtesy of FORD MOTOR COMPANY

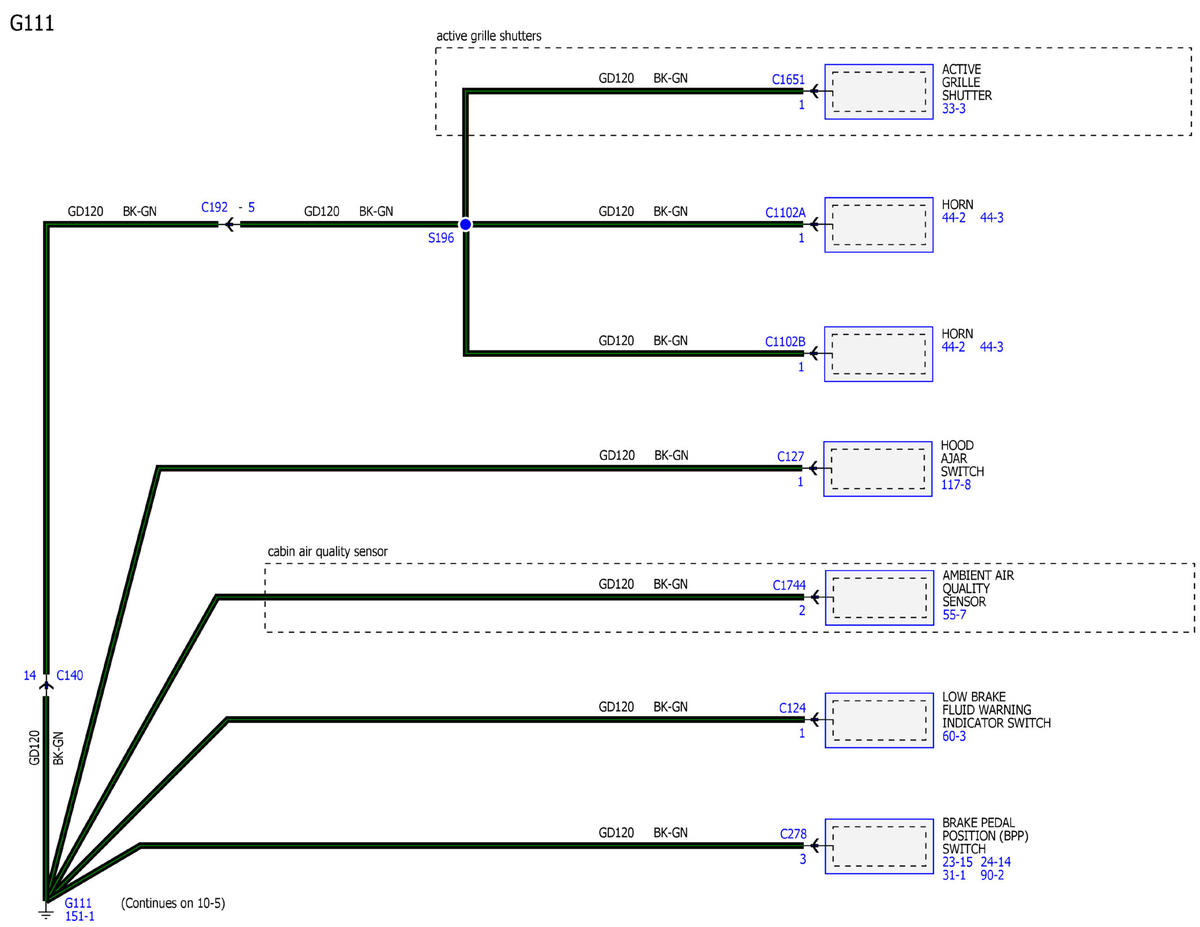

GFDWR68628Courtesy of FORD MOTOR COMPANY

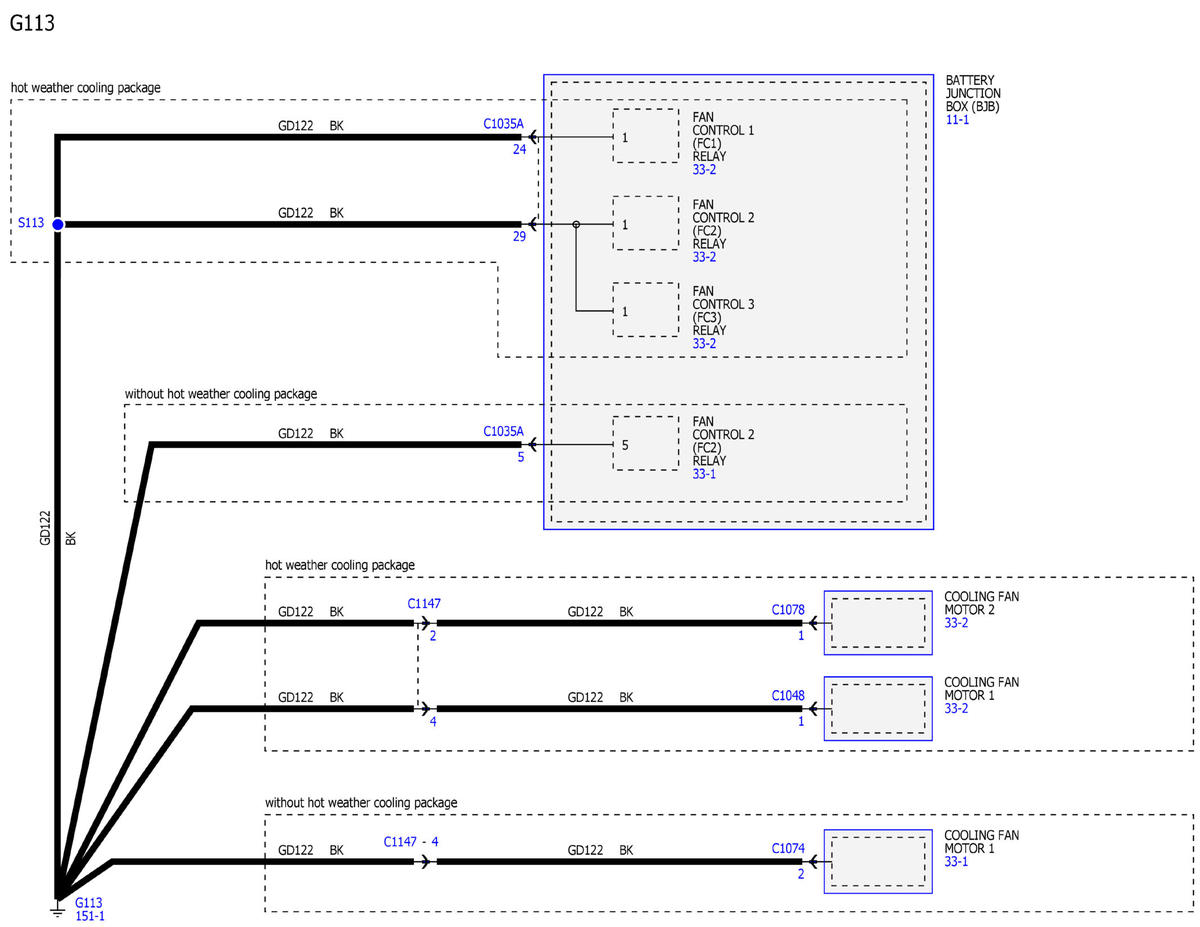

GFDWR68624Courtesy of FORD MOTOR COMPANY

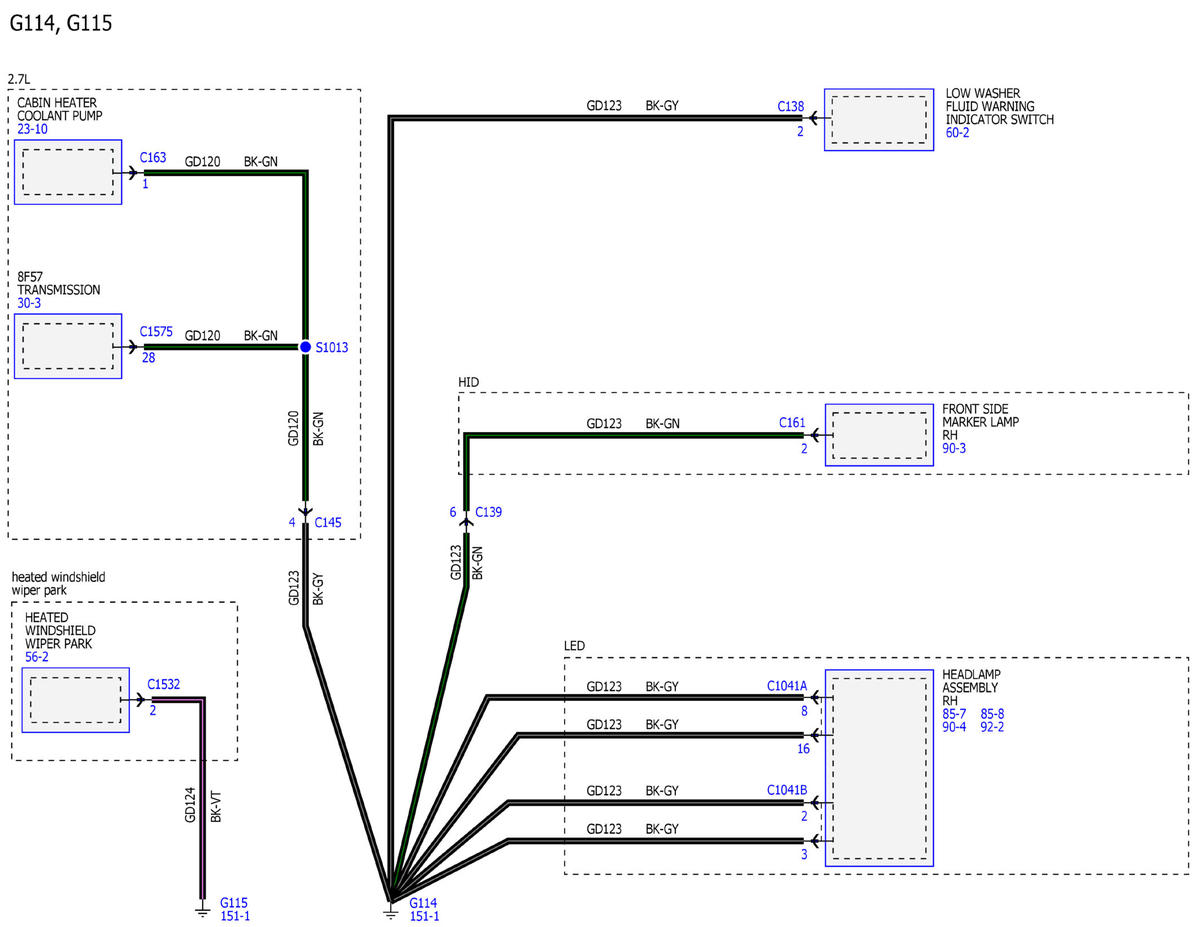

GFDWR68621Courtesy of FORD MOTOR COMPANY

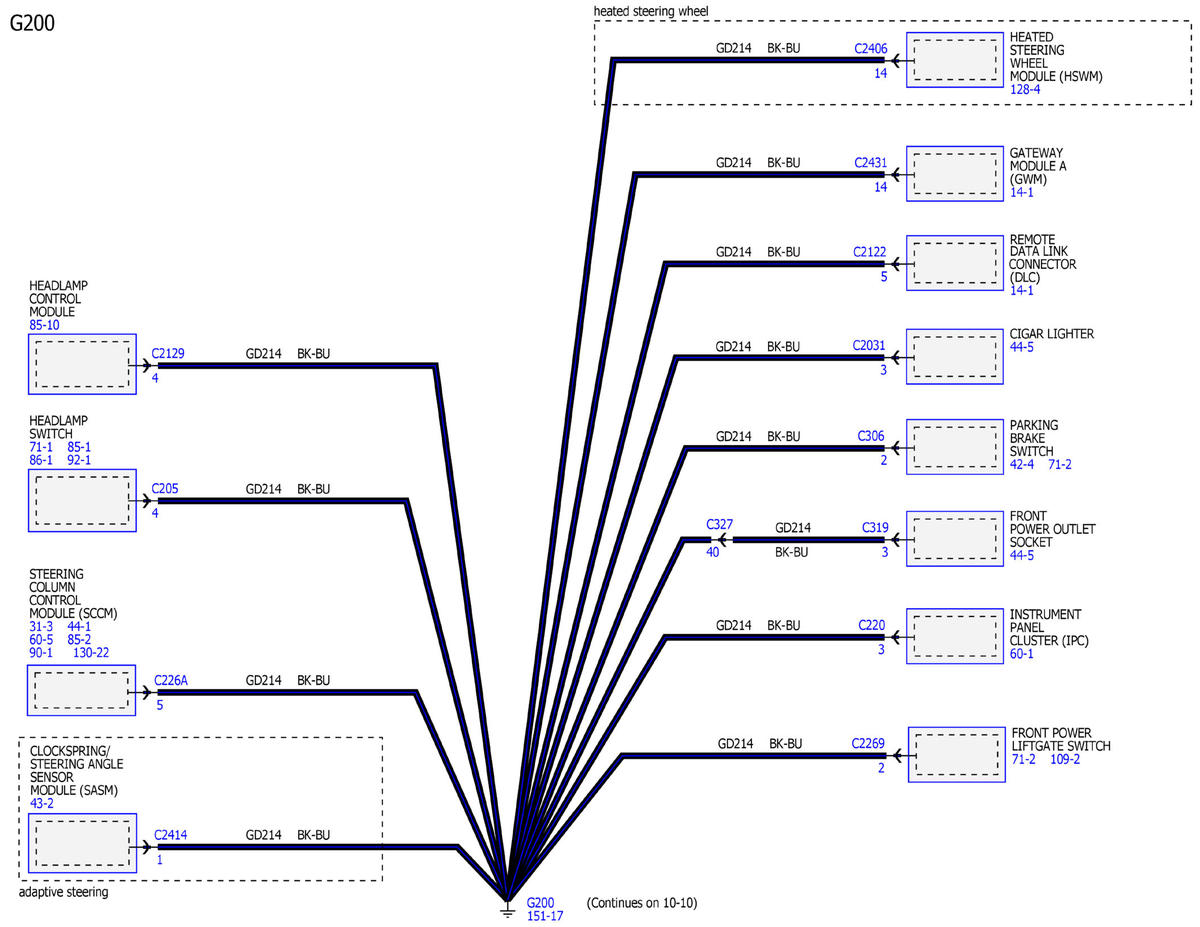

GFDWR68619Courtesy of FORD MOTOR COMPANY

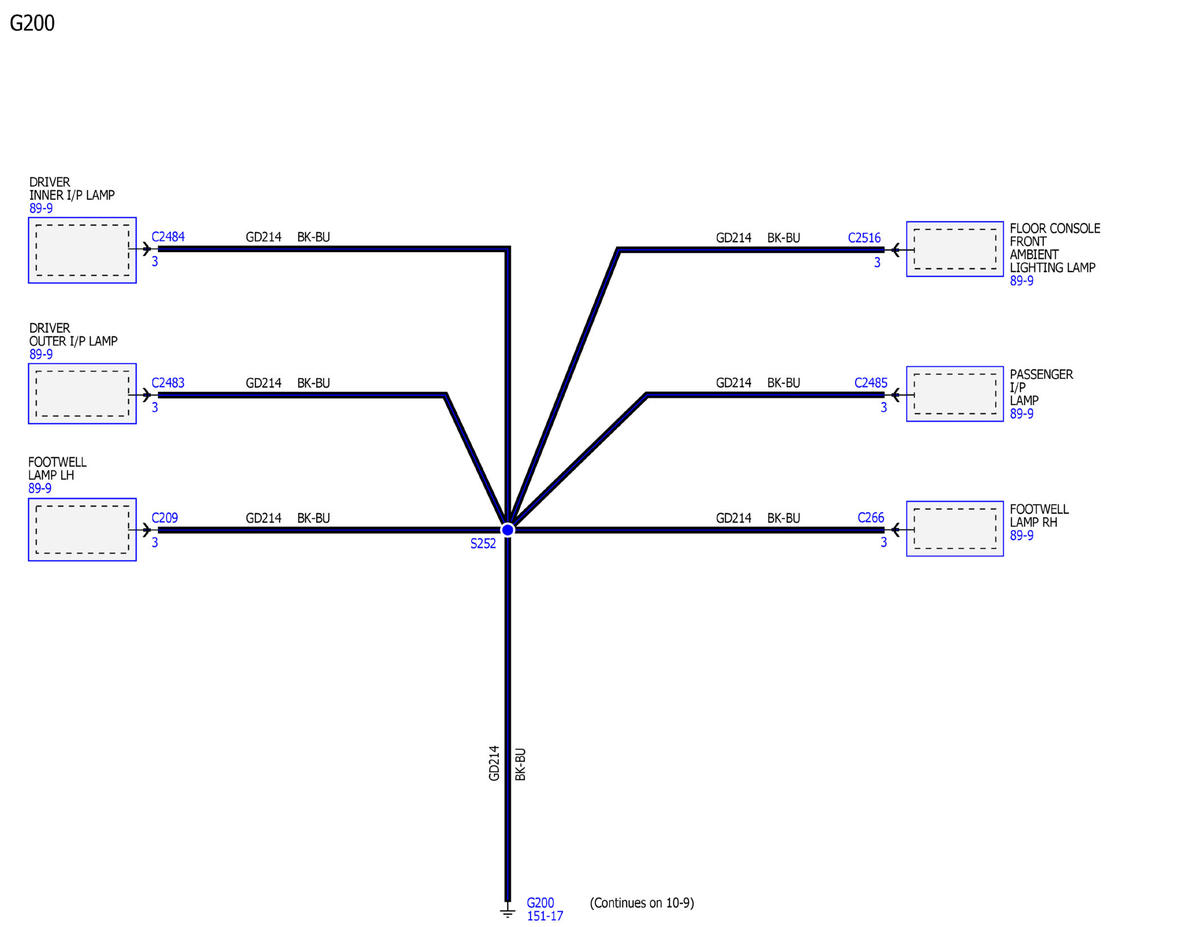

GFDWR68639Courtesy of FORD MOTOR COMPANY

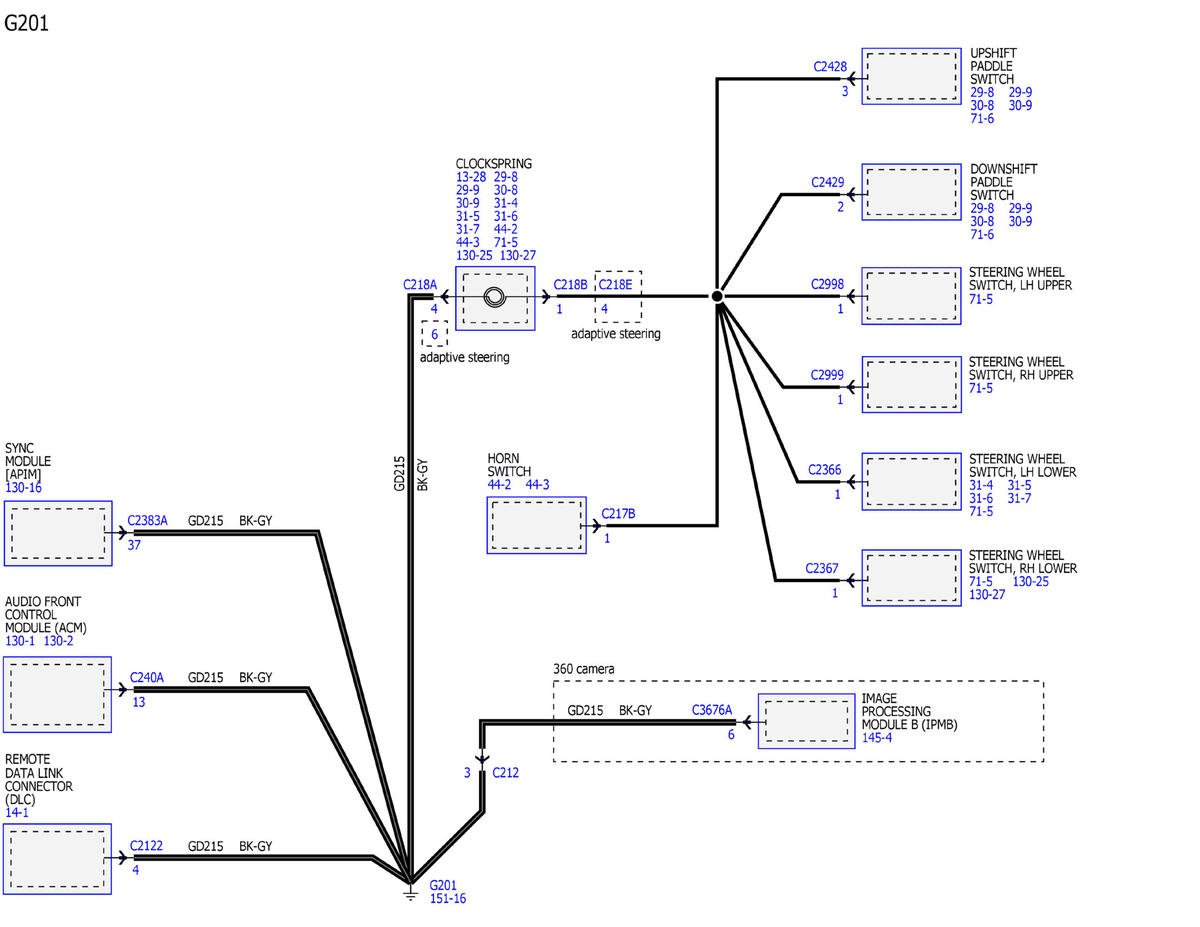

GFDWR68634Courtesy of FORD MOTOR COMPANY

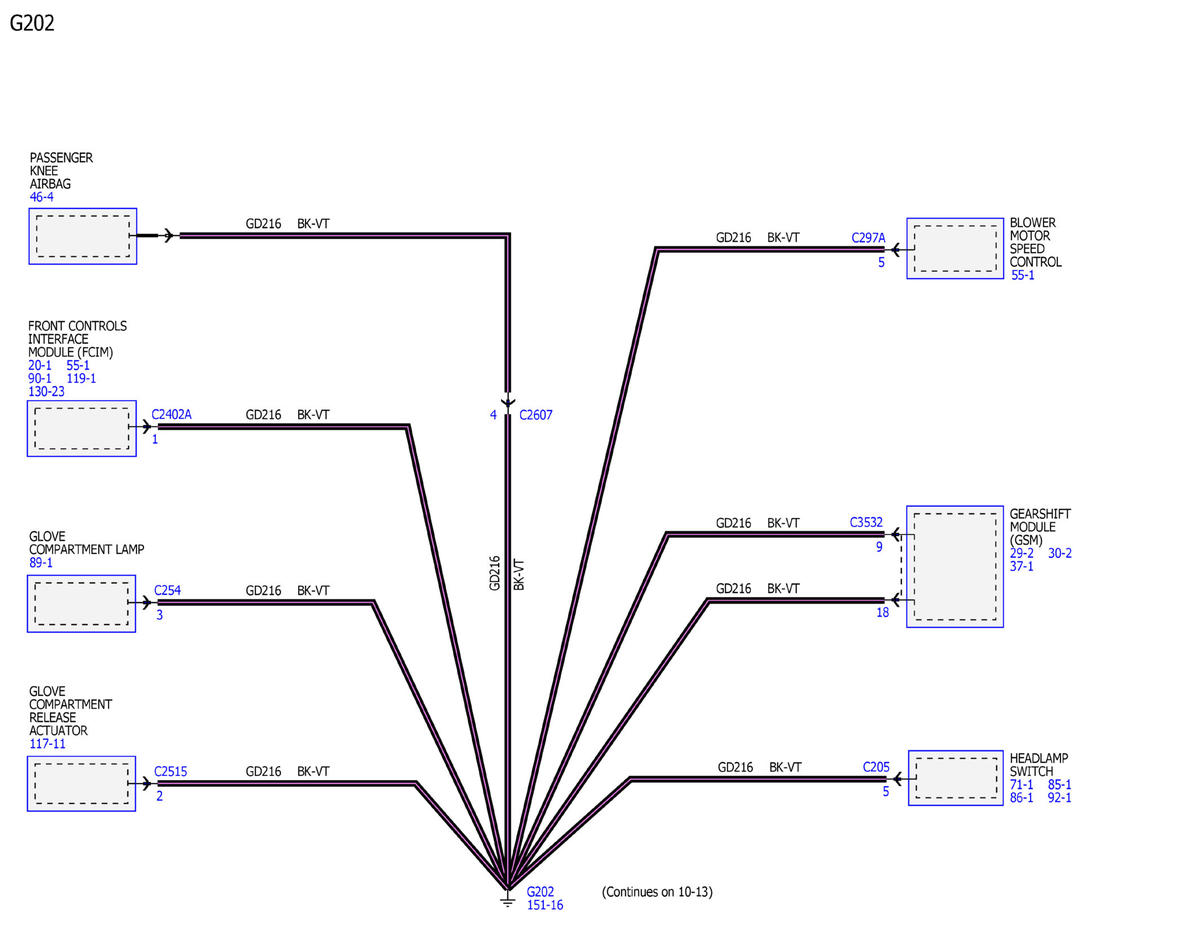

GFDWR68622Courtesy of FORD MOTOR COMPANY

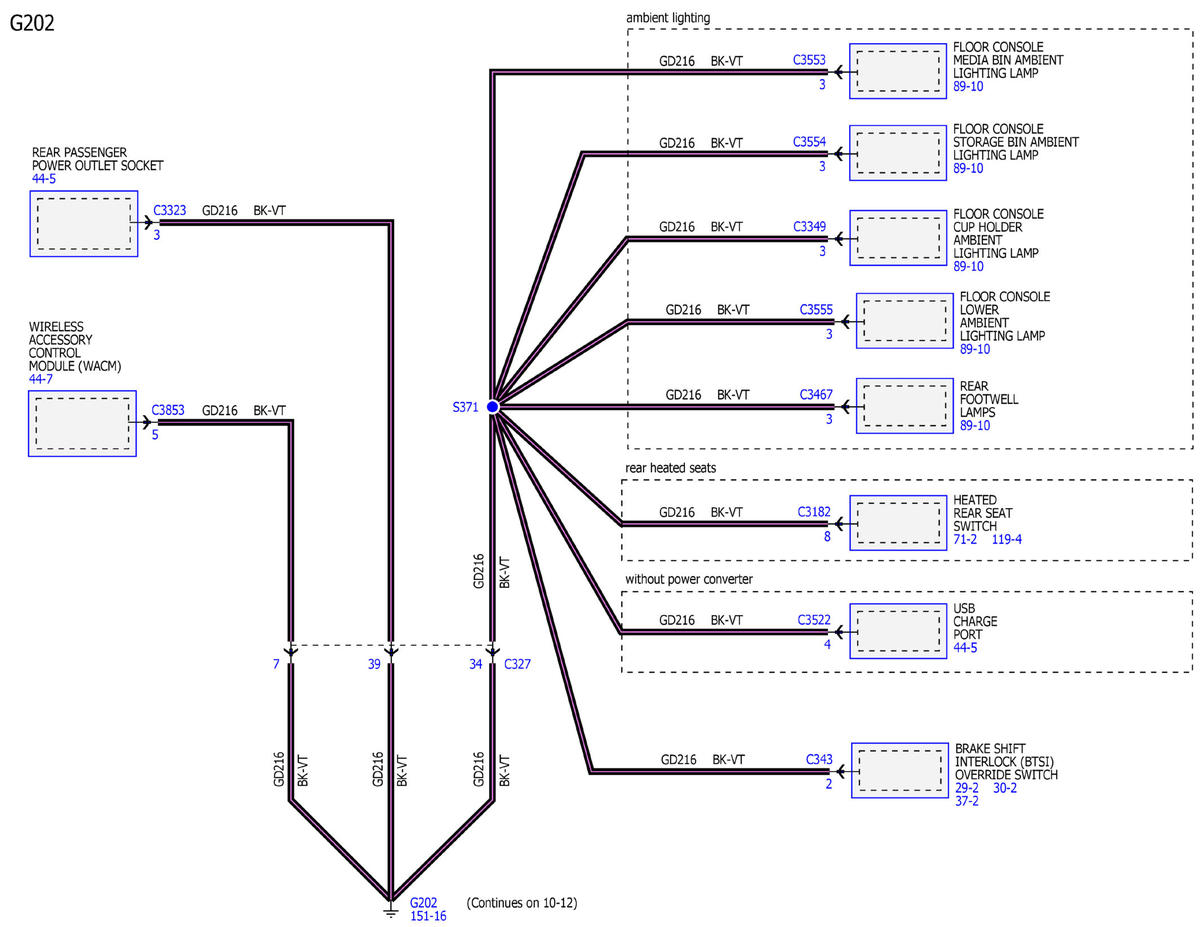

GFDWR68618Courtesy of FORD MOTOR COMPANY

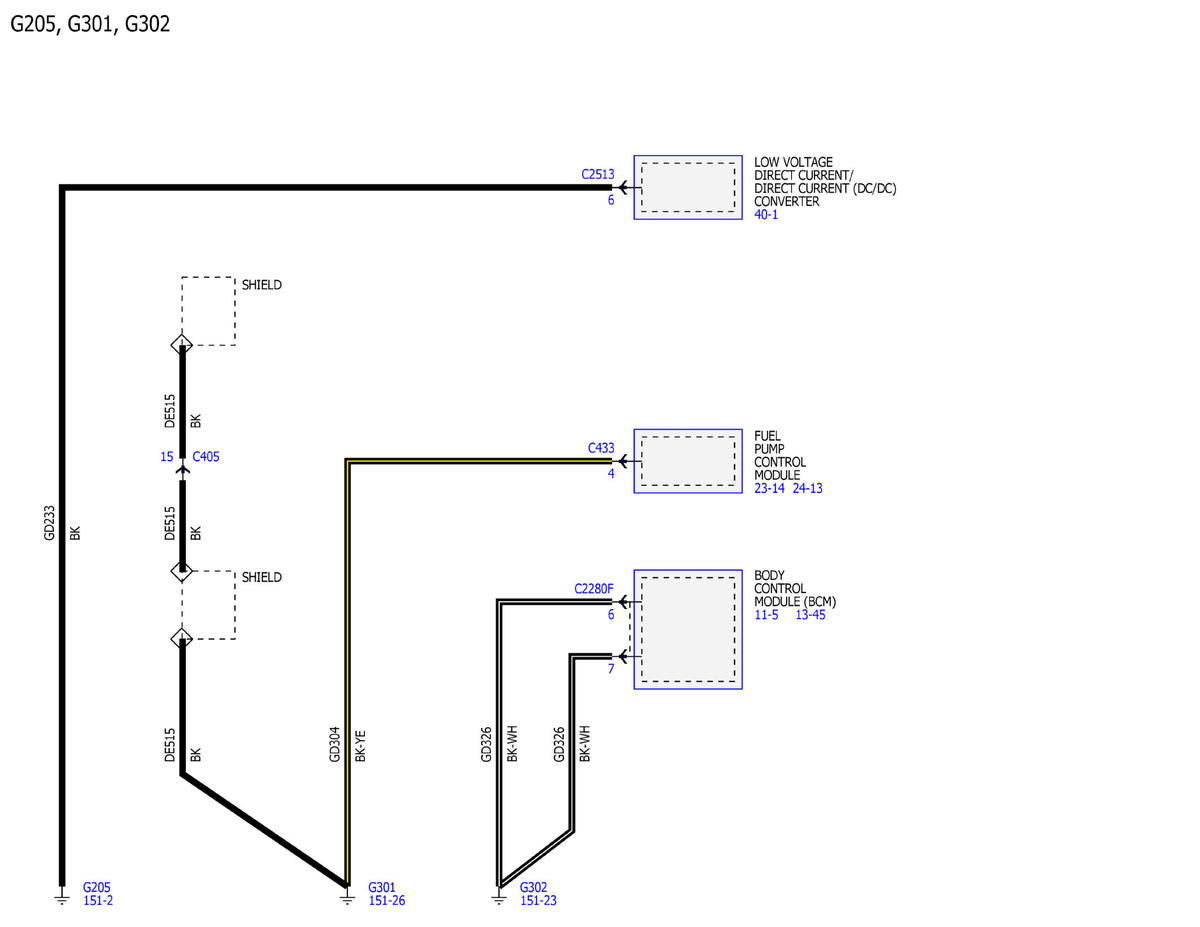

GFDWR68636Courtesy of FORD MOTOR COMPANY

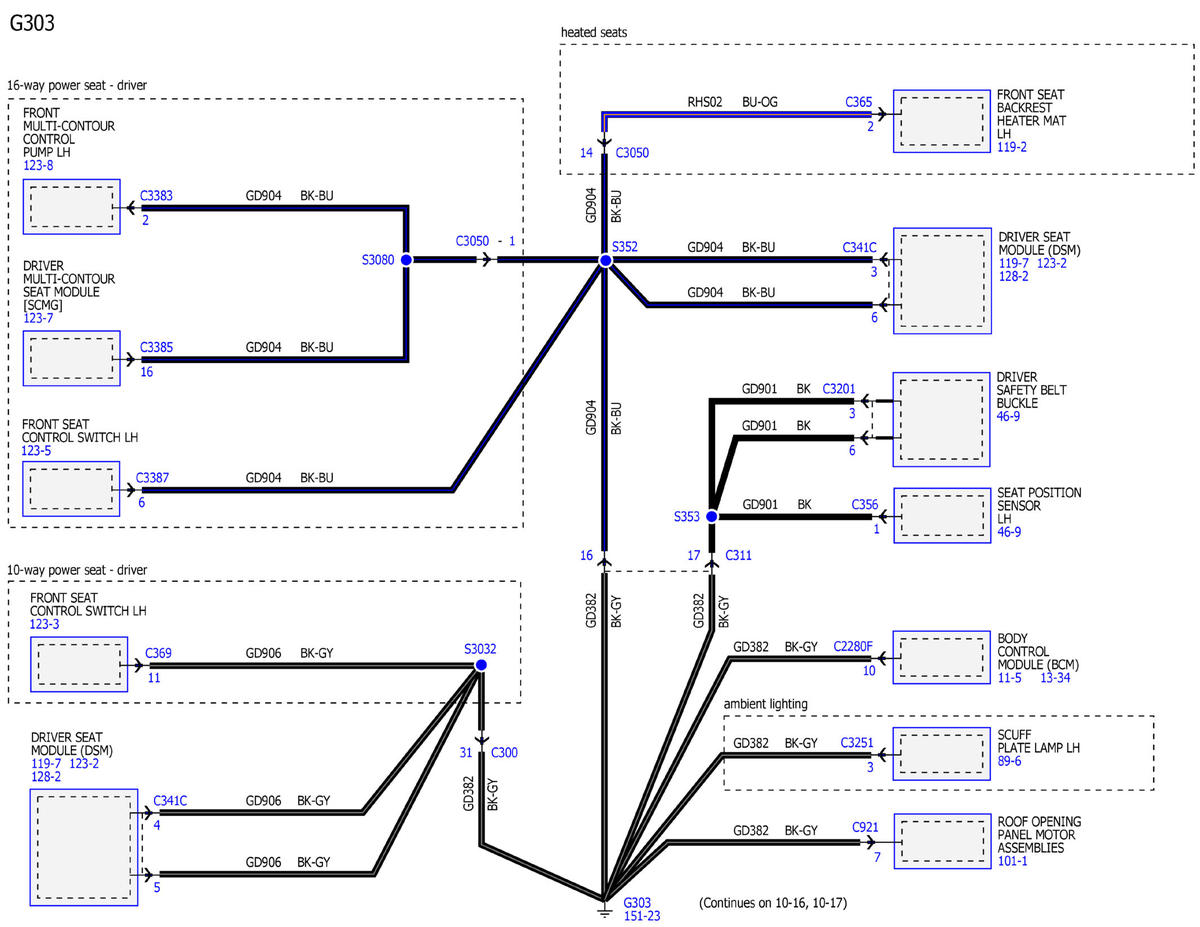

GFDWR68629Courtesy of FORD MOTOR COMPANY

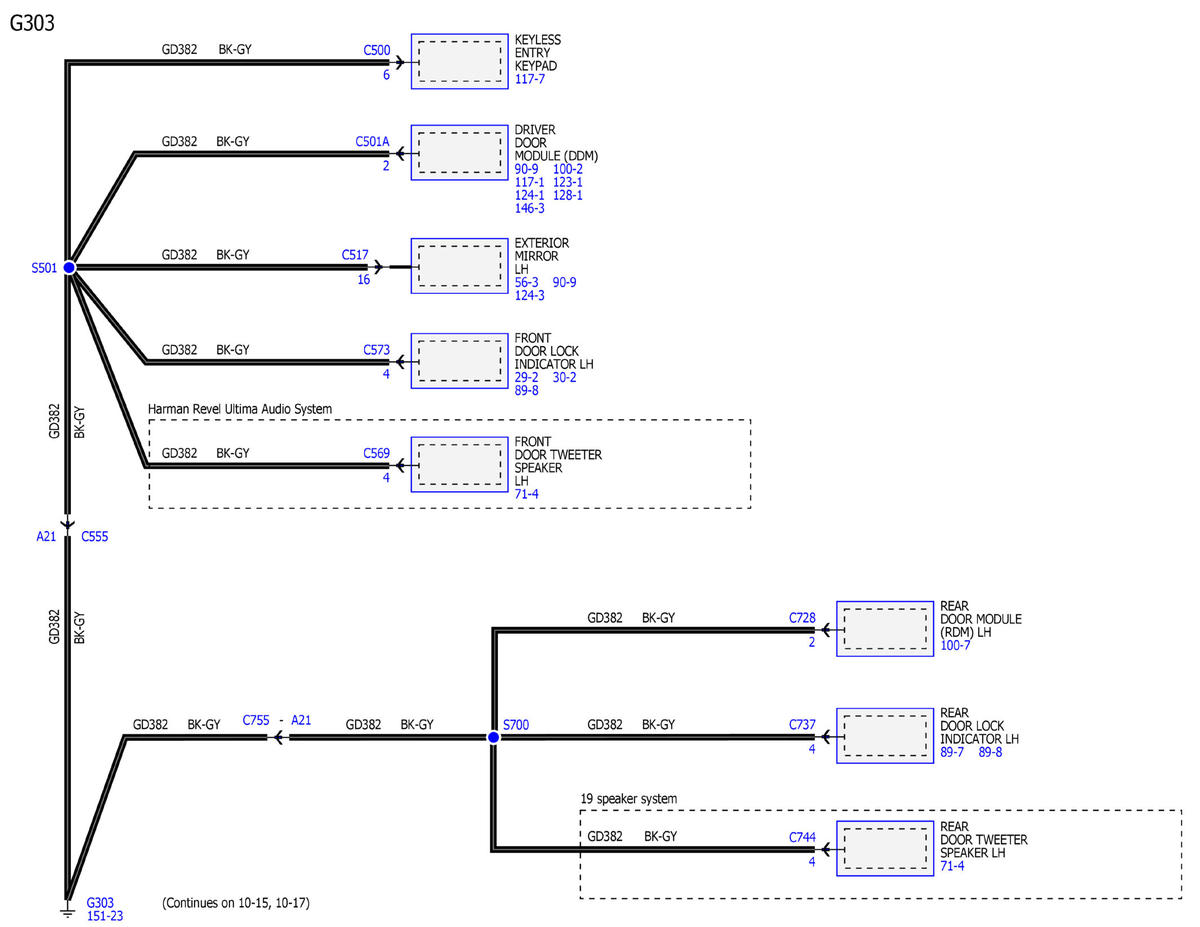

GFDWR68620Courtesy of FORD MOTOR COMPANY

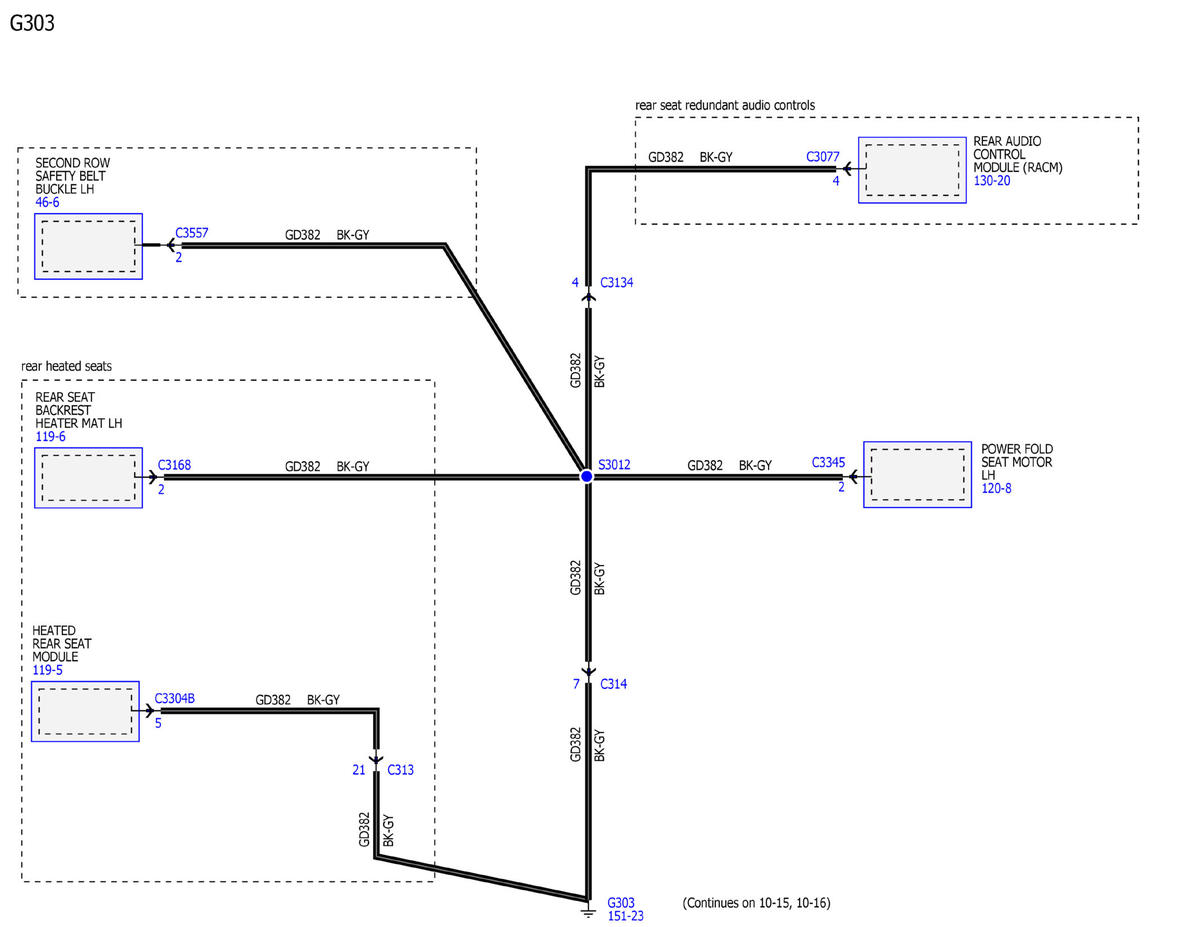

GFDWR68633Courtesy of FORD MOTOR COMPANY

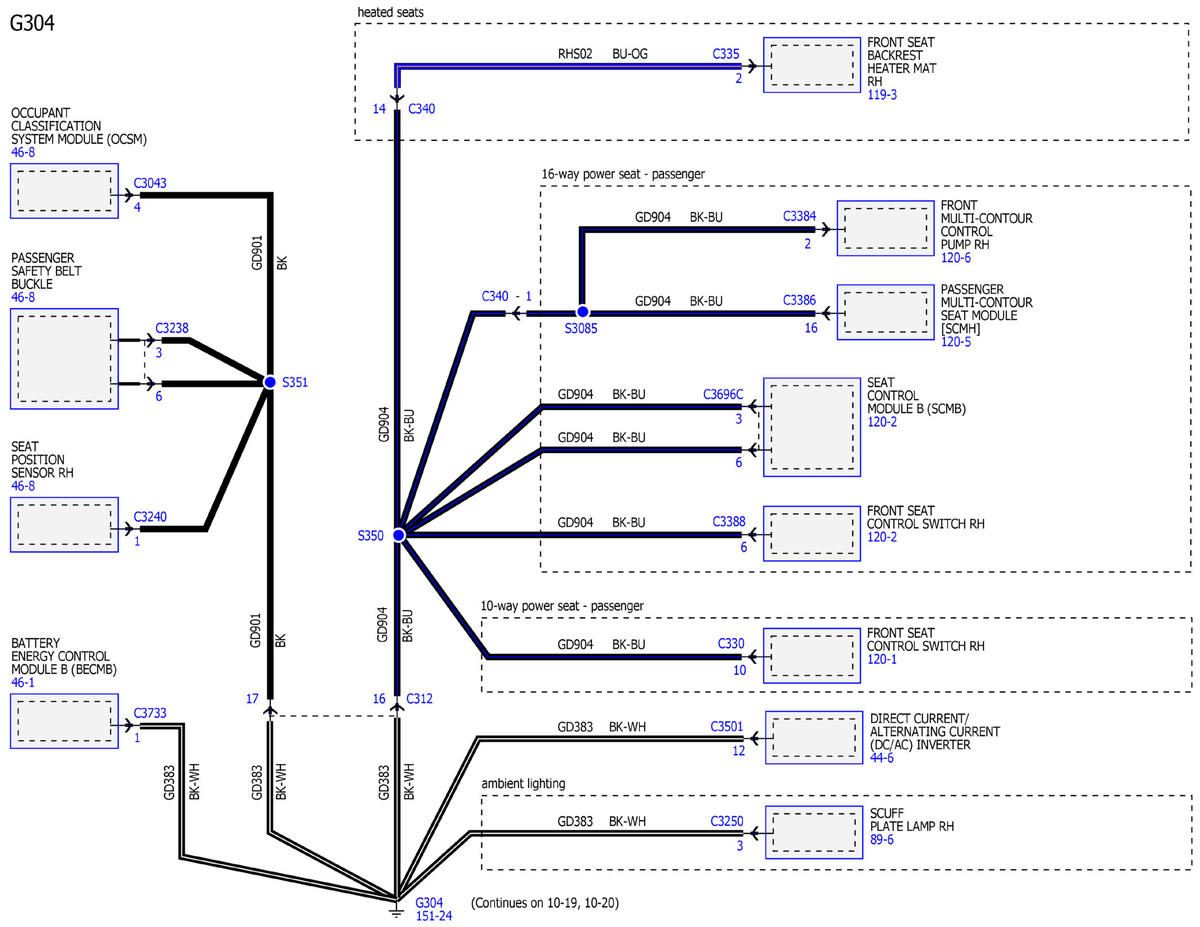

GFDWR68635Courtesy of FORD MOTOR COMPANY

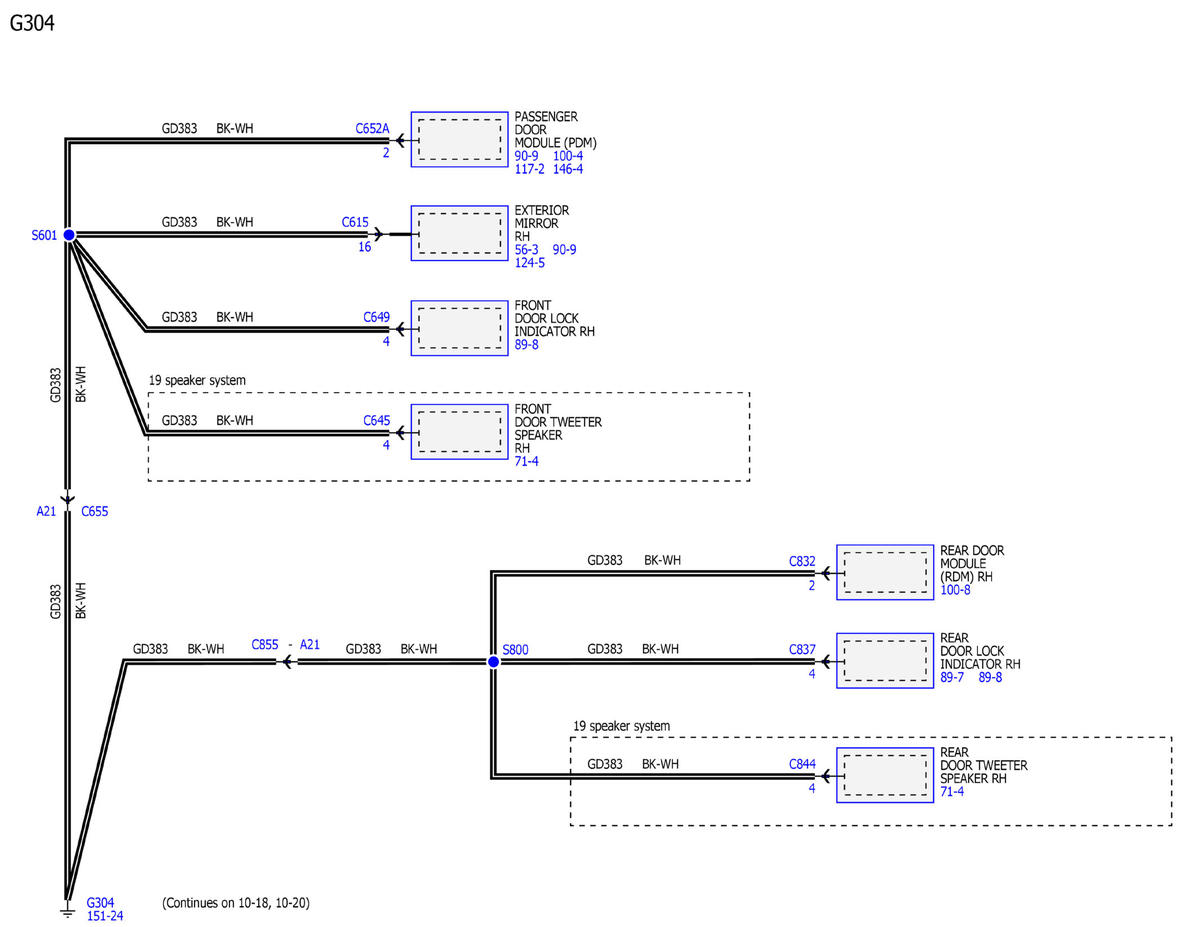

GFDWR68623Courtesy of FORD MOTOR COMPANY

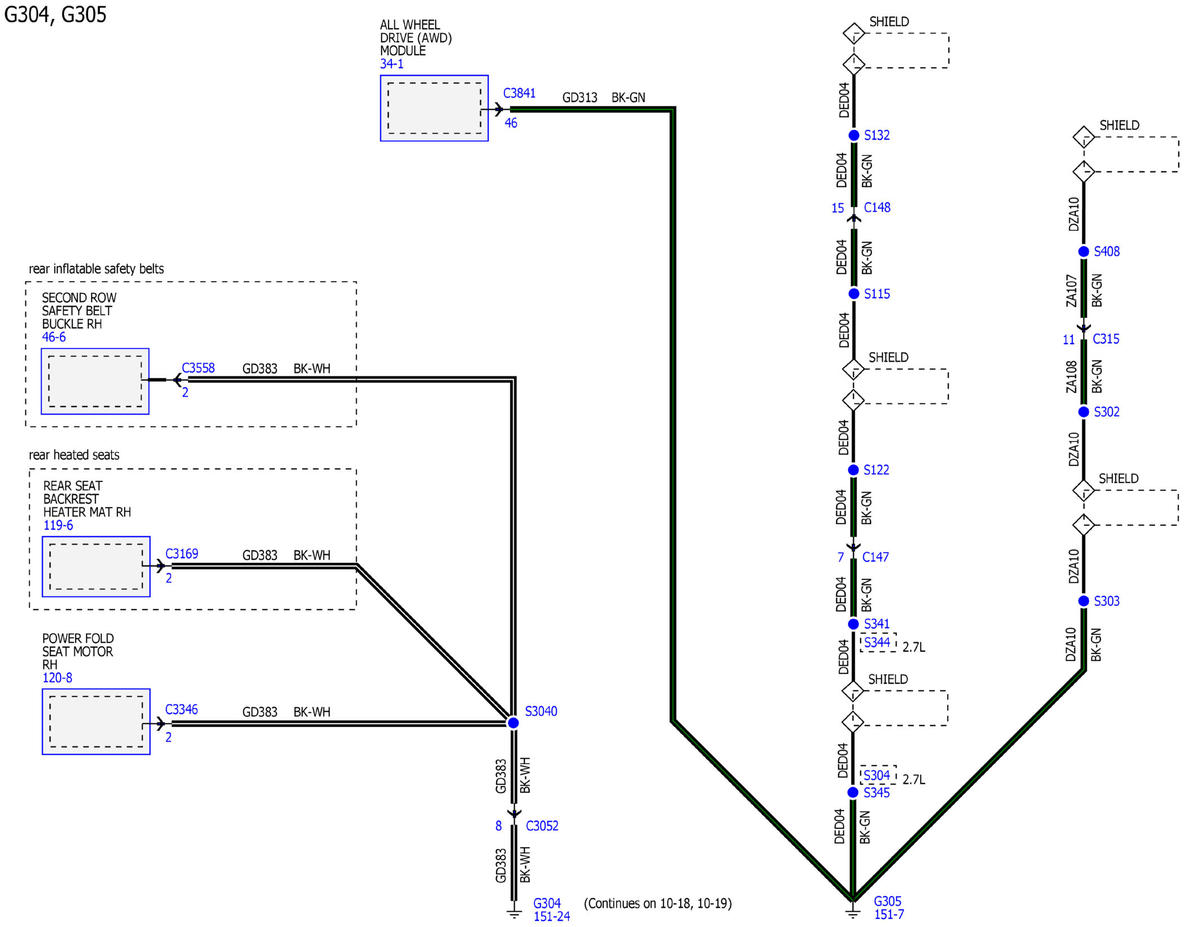

GFDWR68625Courtesy of FORD MOTOR COMPANY

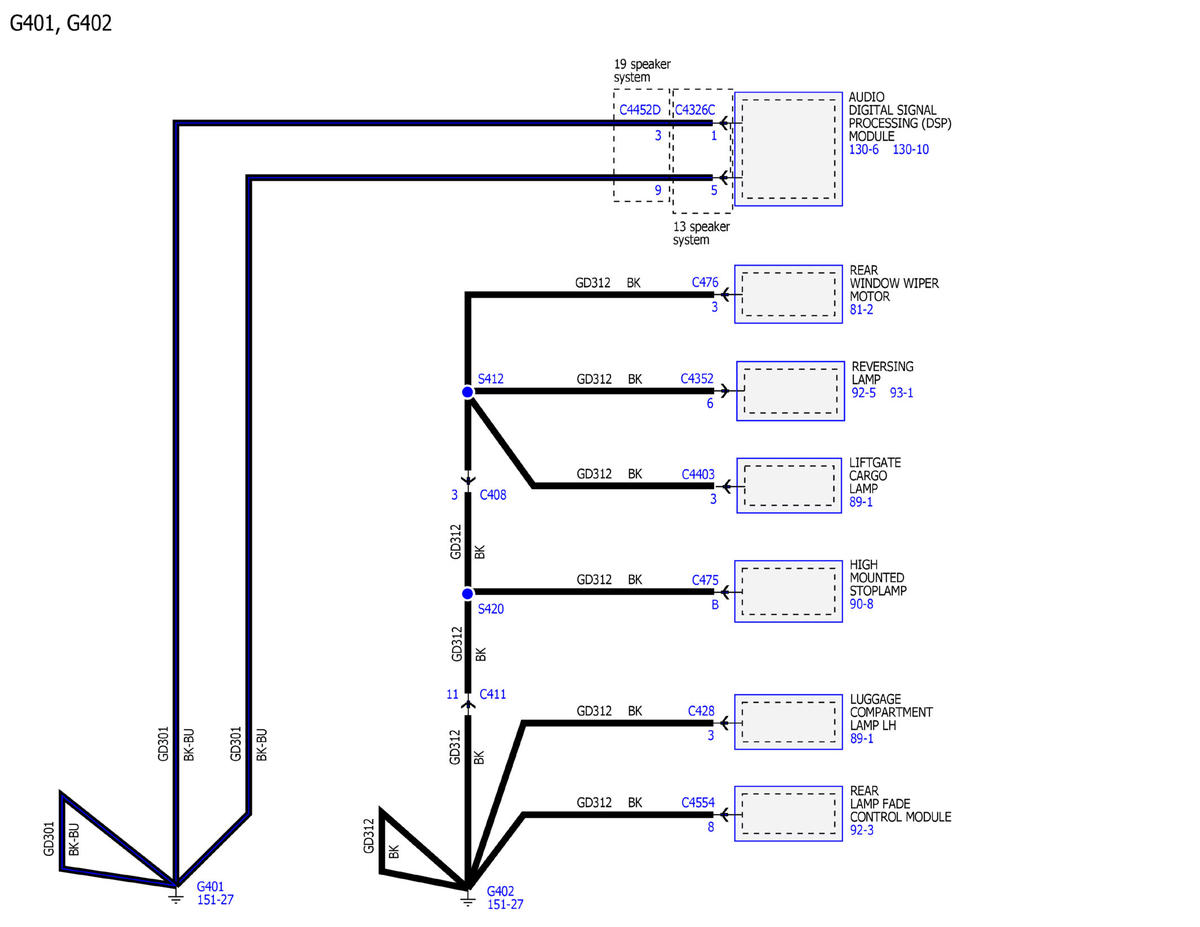

GFDWR68617Courtesy of FORD MOTOR COMPANY

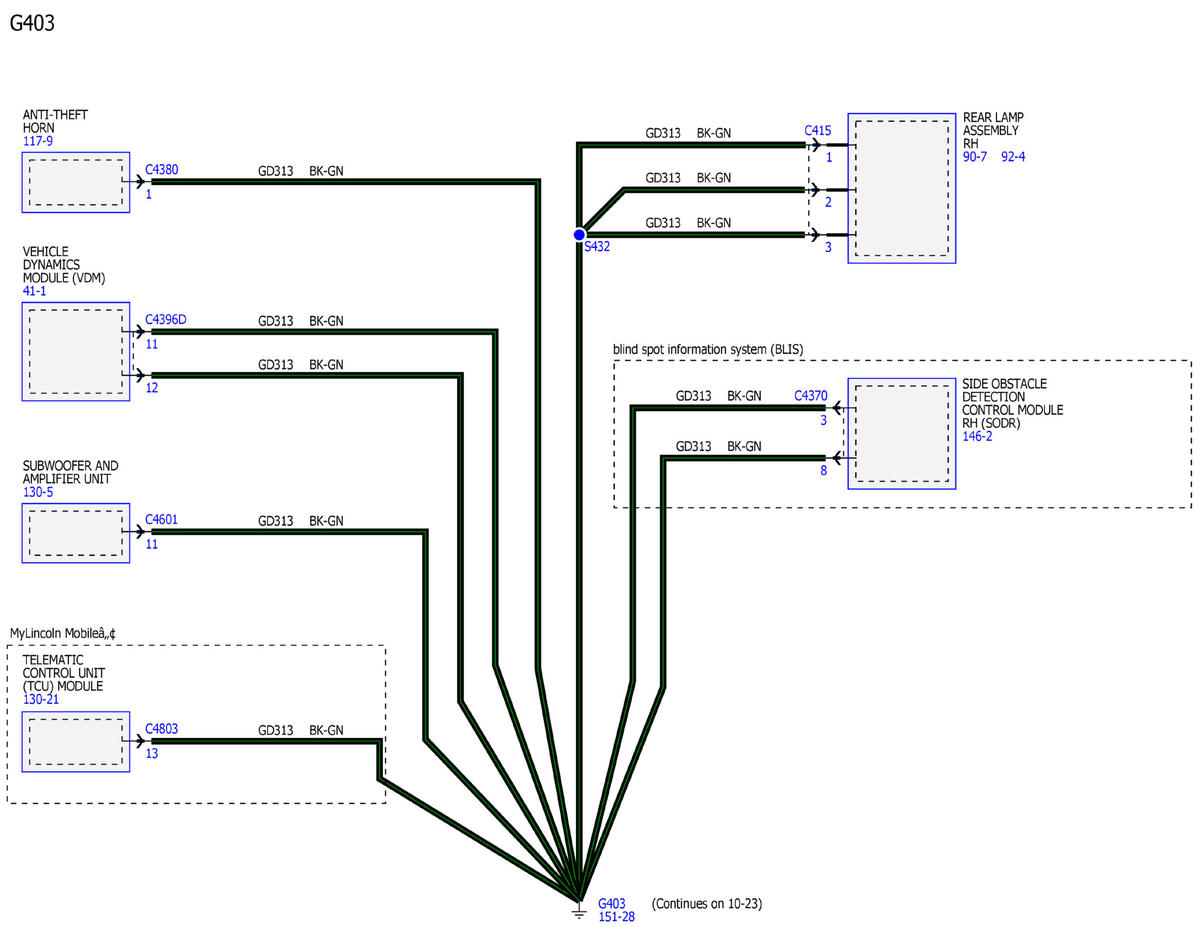

GFDWR68631Courtesy of FORD MOTOR COMPANY

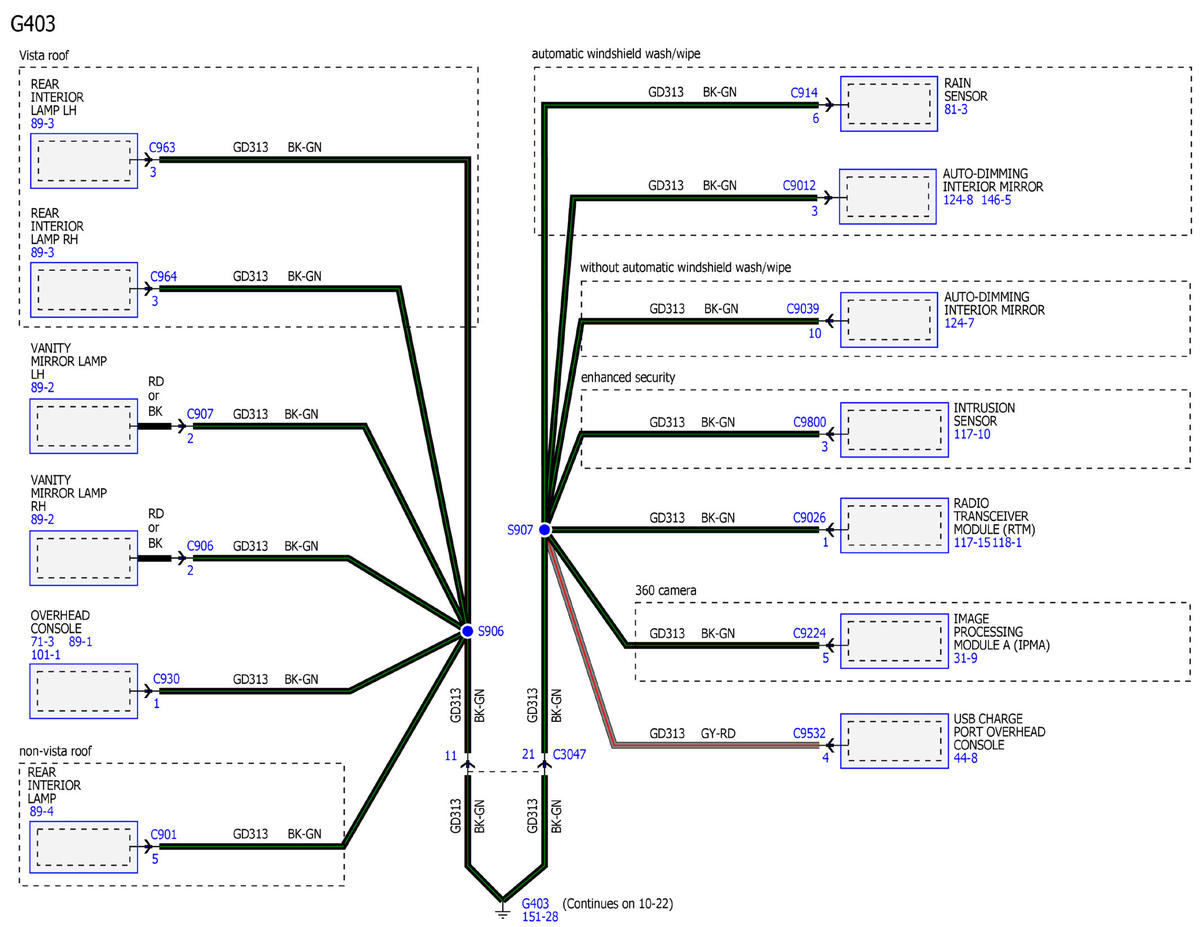

GFDWR68616Courtesy of FORD MOTOR COMPANY

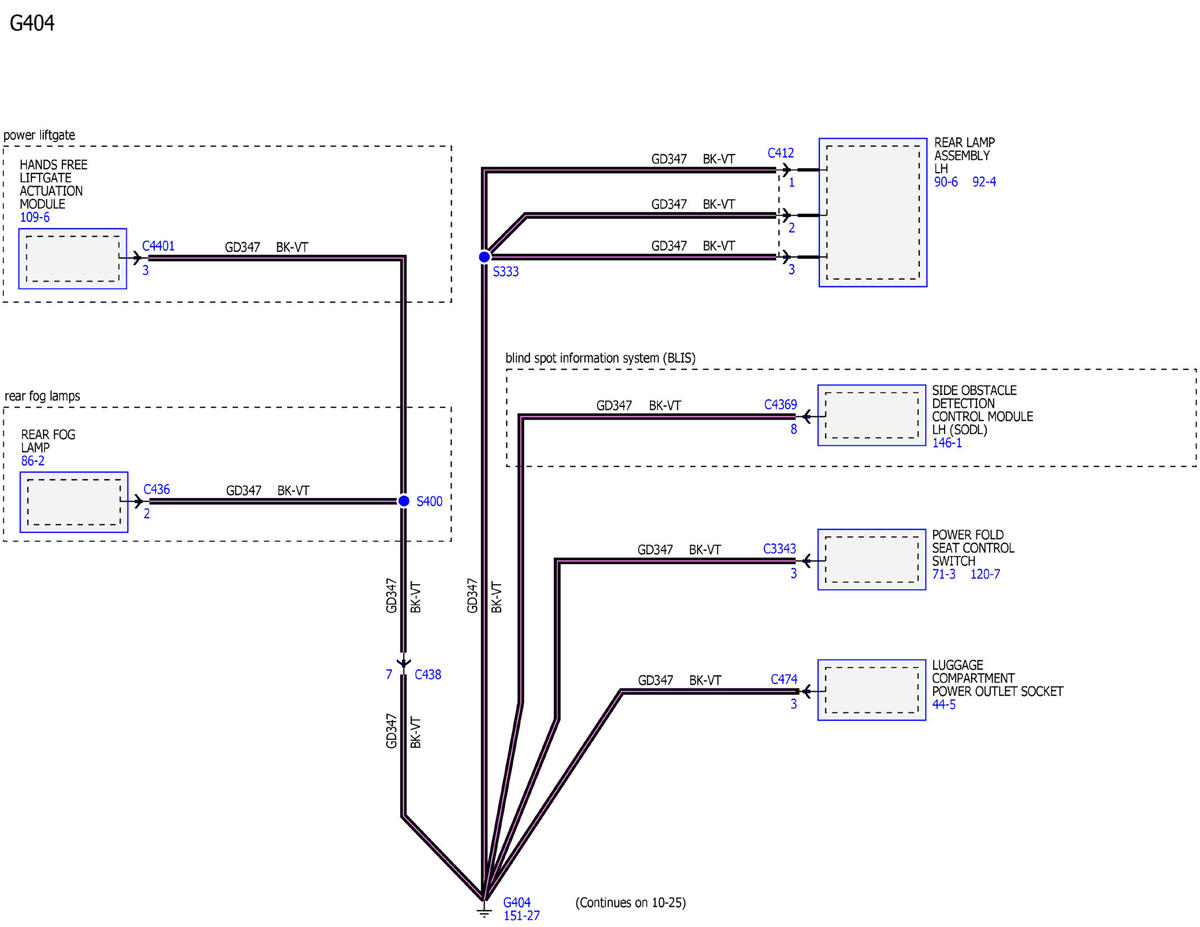

GFDWR68637Courtesy of FORD MOTOR COMPANY

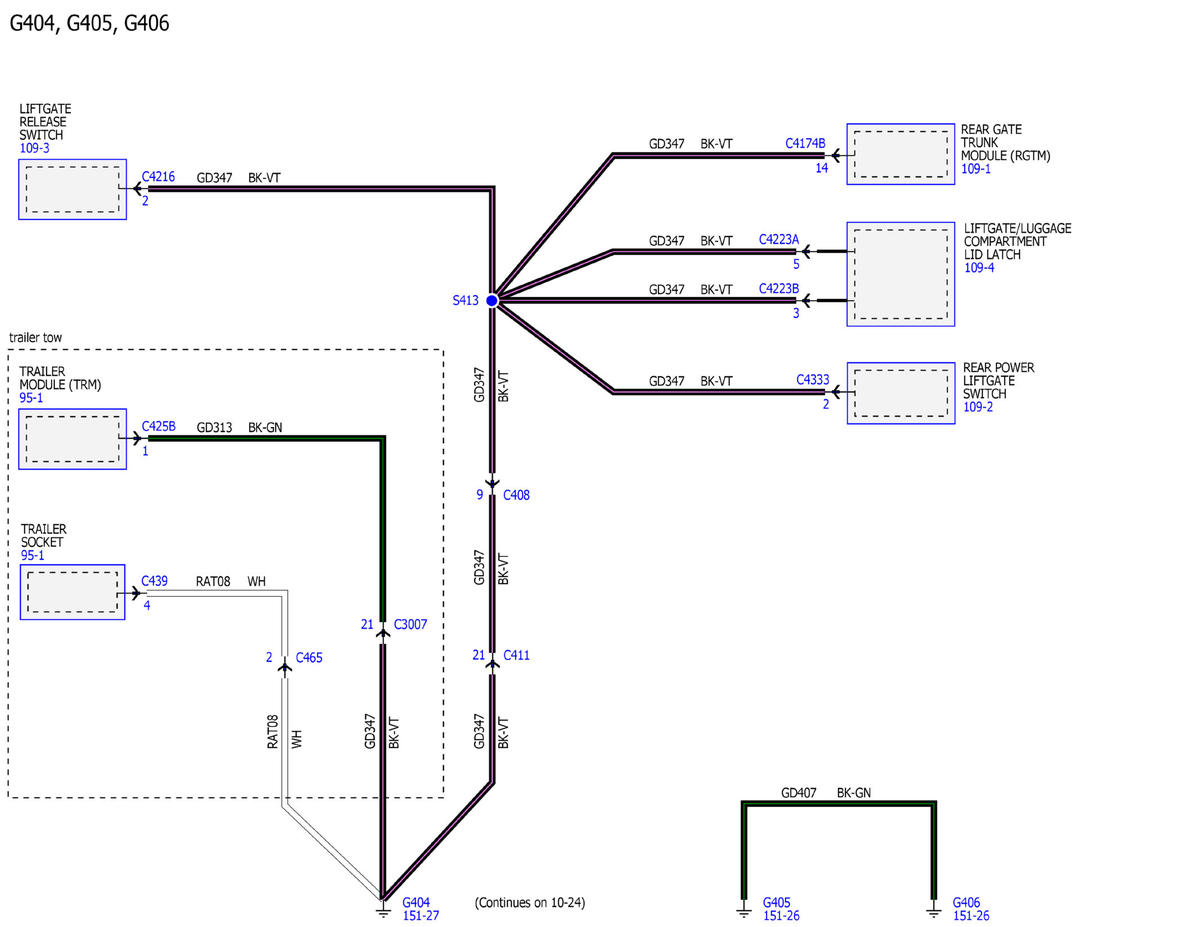

GFDWR68626Courtesy of FORD MOTOR COMPANY
