Component Testing: Relays

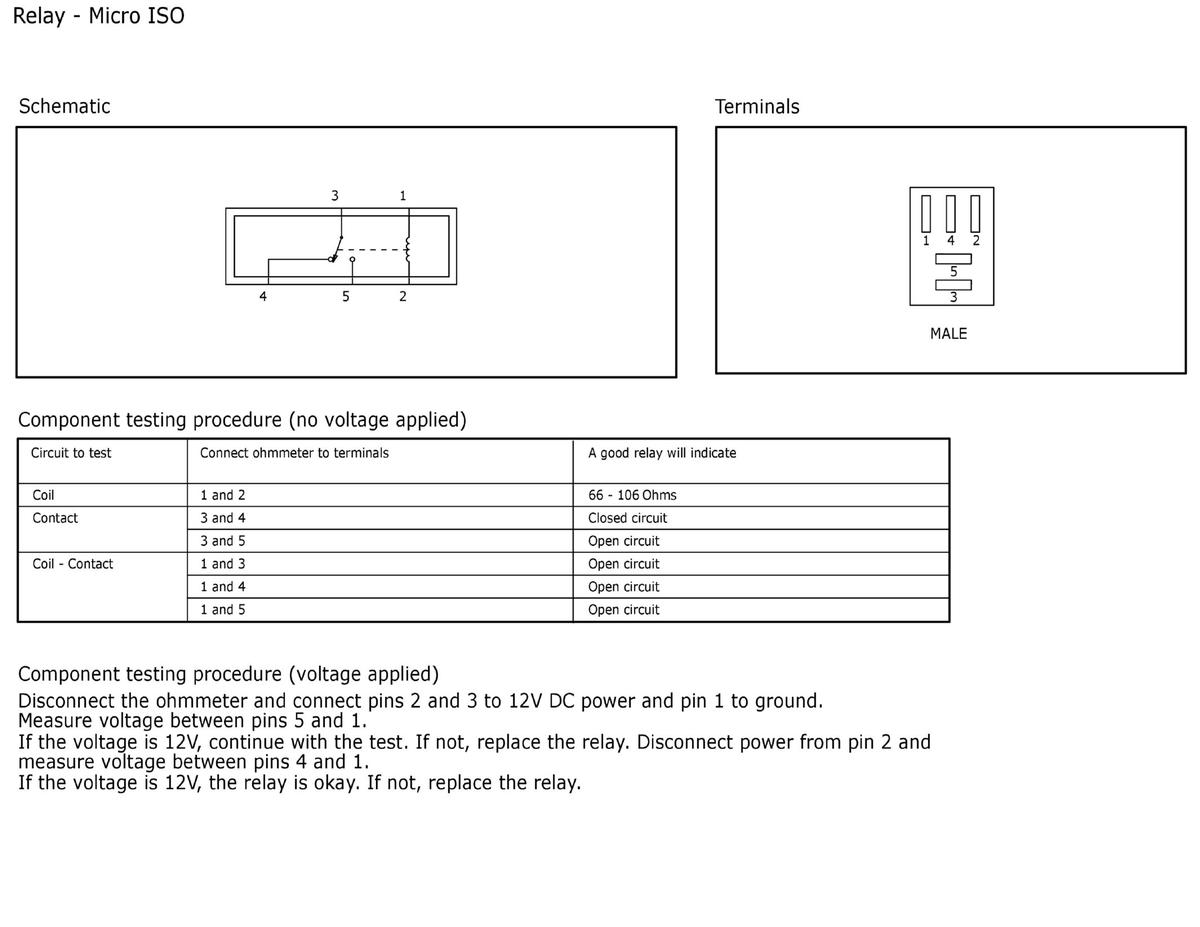

Fig 1: Relay - Micro ISO
GFDW102440Courtesy of FORD MOTOR COMPANY

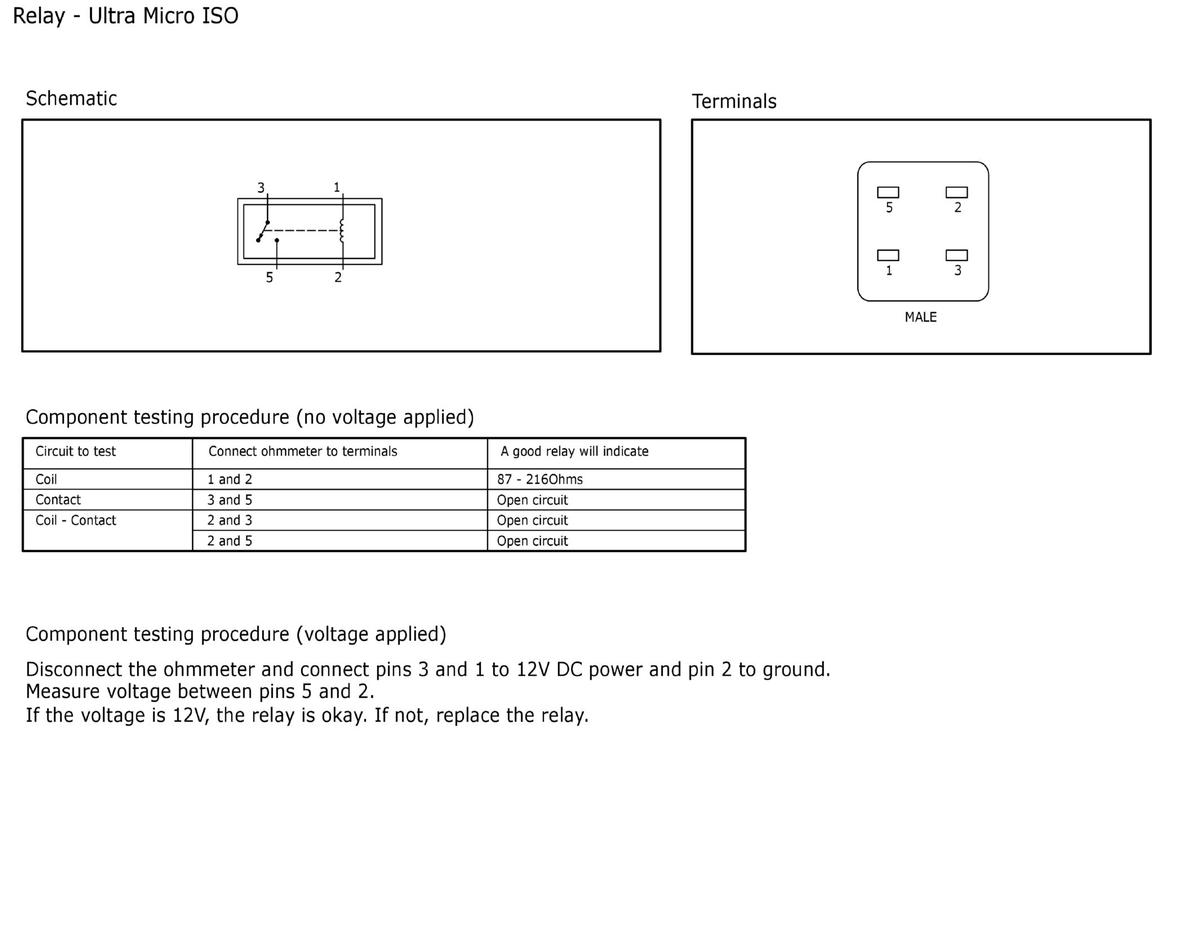

Fig 2: Relay - Ultra Micro ISO
GFDW102441Courtesy of FORD MOTOR COMPANY

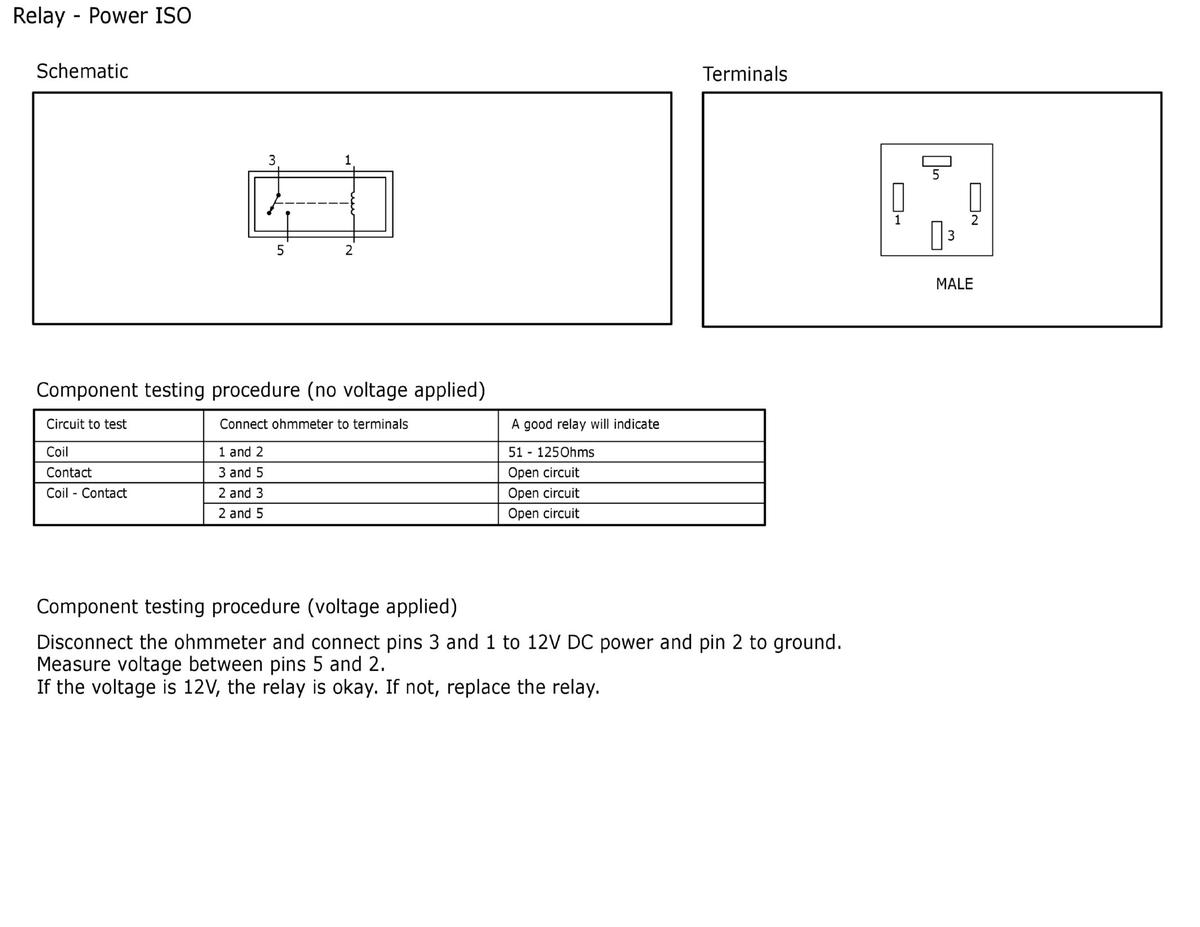

Fig 3: Relay - Power ISO
GFDW102442Courtesy of FORD MOTOR COMPANY
