Steering Column Telescopic Motor: Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the steering column. Refer to: Steering Column .

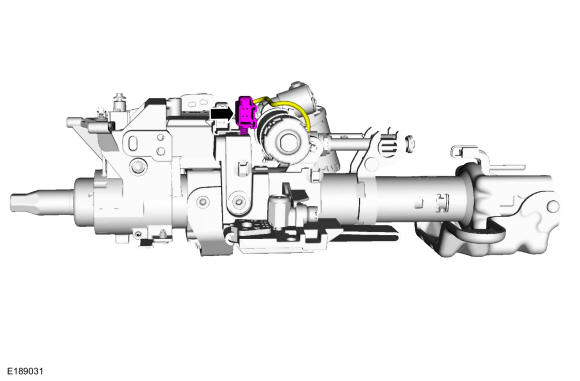

2. Detach the telescopic motor electrical connector retainer from the steering column.

   Courtesy of FORD MOTOR COMPANY

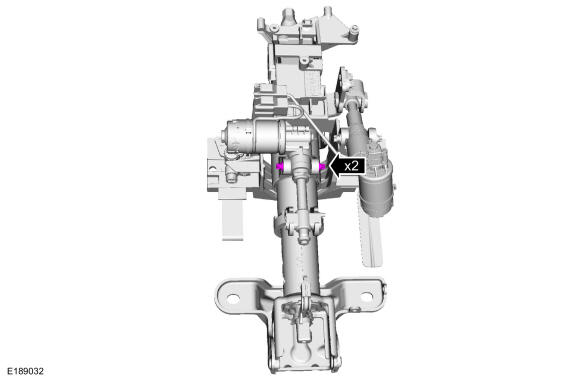

3. Remove the telescopic motor screws.

   Torque: 62 lb.in (7 Nm)

   Courtesy of FORD MOTOR COMPANY

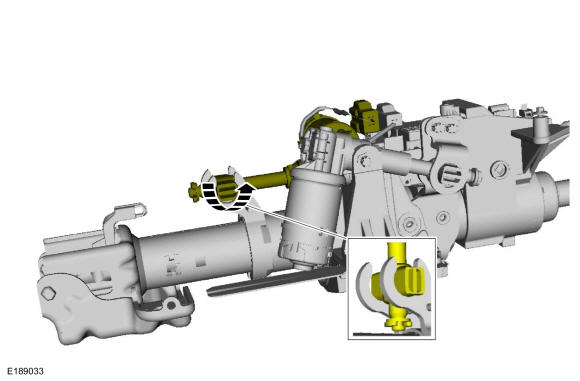

4. Rotate the trunnion nut.

   Courtesy of FORD MOTOR COMPANY

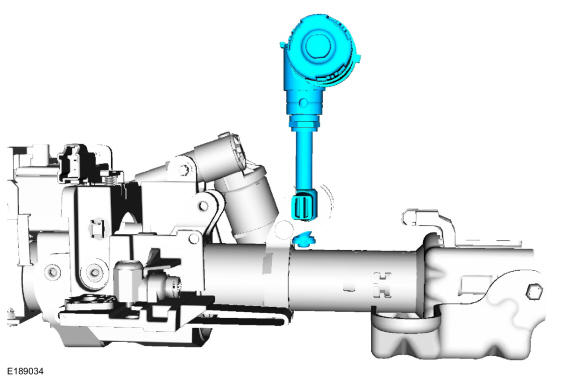

5. Remove the telescopic motor.

Courtesy of FORD MOTOR COMPANY
