Fuel Pump Driver Module (FPDM): Installation

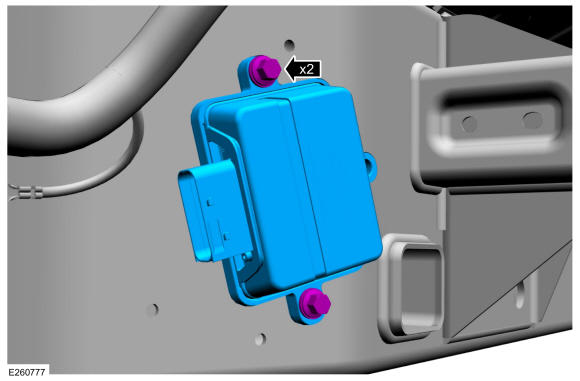

  1. Install the fuel pump driver module, then install and tighten the fuel pump driver module bolts.

    Torque

    : 133 lb.in (15 Nm)

    GFD273134Courtesy of FORD MOTOR COMPANY

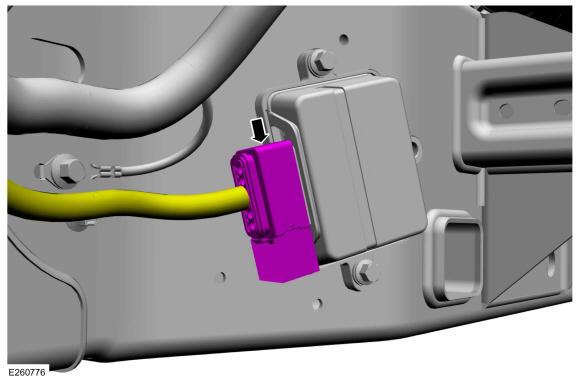

  2. Connect the fuel pump driver module electrical connector.
    GFD273133Courtesy of FORD MOTOR COMPANY

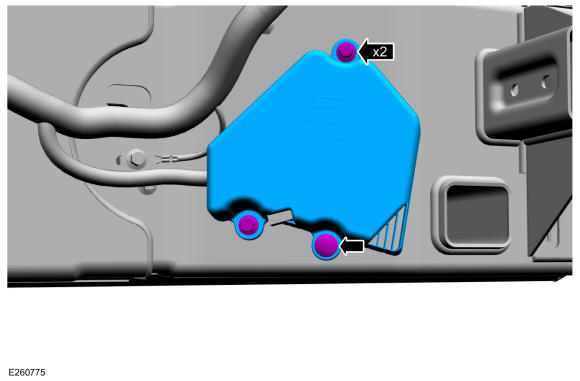

  3. Install the fuel pump driver module cover, then install and tighten the fuel pump driver module cover retainers.

    Torque

    : 133 lb.in (15 Nm)

GFD273132Courtesy of FORD MOTOR COMPANY
