Ignition Coil-On-Plug: Installation

Both sides

1. Inspect the ignition coil-on-plugs. Replace any damaged ignition coil-on-plugs. Replace any of the ignition coil-on-plug boots with cracks, rips or tears.

   Courtesy of FORD MOTOR COMPANY

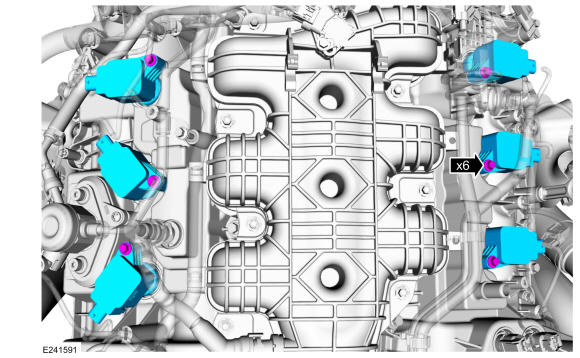

2. 1. Install the ignition coil-on-plugs.
   2. Install and tighten the ignition coil-on-plug retainers.

      Torque:

      Stage 1: 62 lb.in (7 Nm)

      Stage 2: 50°

   Courtesy of FORD MOTOR COMPANY

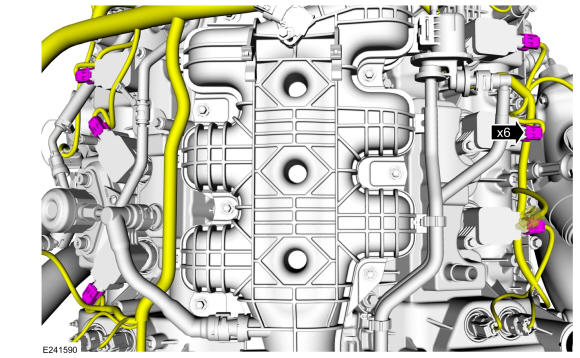

3. Connect the ignition coil-on-plug electrical connectors.

   Courtesy of FORD MOTOR COMPANY

   Left side

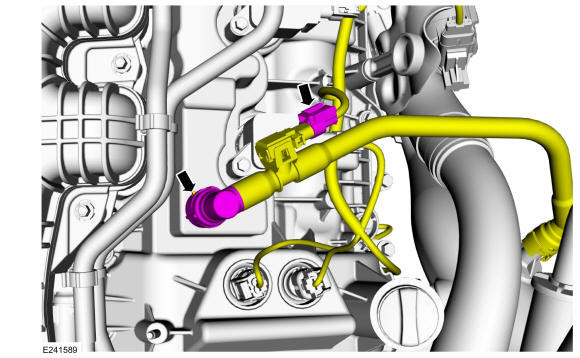

4. Connect the crankcase ventilation tube, then connect the electrical connector. Refer to:QUICK RELEASE COUPLING .

   Courtesy of FORD MOTOR COMPANY

   Both sides

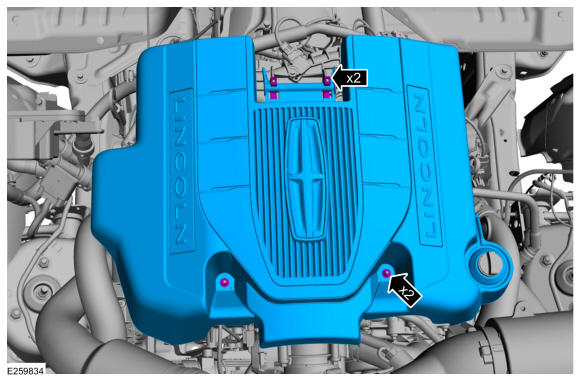

5. Install the engine appearance cover into the rear retainers, then install and tighten the engine appearance cover retainers.

   Torque: 97 lb.in (11 Nm)
