Catalyst Monitor Sensor: Removal
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
Left Hand Catalyst Monitor Sensor (CMS)
- 1.
With the vehicle in NEUTRAL, position it on a hoist. Refer to Jacking and Lifting .
- 4.
Using the Exhaust Gas Oxygen Sensor Socket, remove the LH CMS.- Apply penetrating lubricant to the CMS to assist in removal.
Right Hand Catalyst Monitor Sensor (CMS)
- 5.
With the vehicle in NEUTRAL, position it on a hoist. Refer to Jacking and Lifting .
- 8.

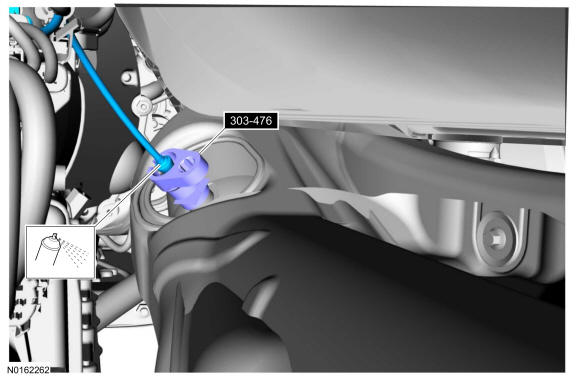

Using the Exhaust Gas Oxygen Sensor Socket, remove the RH CMS.- Apply penetrating lubricant to the CMS to assist in removal.
