Piston Diameter

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Check

NOTE: Refer to the appropriate Engine article for the specification.

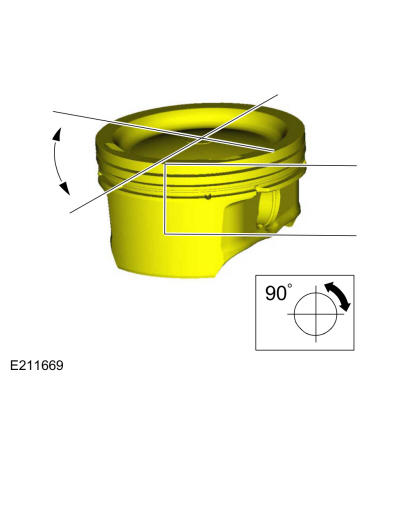

  1. Measure the piston diameter 90 degrees from the piston pin and down from the top of the piston to the point indicated.
GFD536395Courtesy of FORD MOTOR COMPANY
