Gear Shift Module (GSM): Removal
NOTE:
It is not necessary to carry out a PMI when installing a new GSM.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the FCIM. Refer to: Front Controls Interface Module (FCIM) .

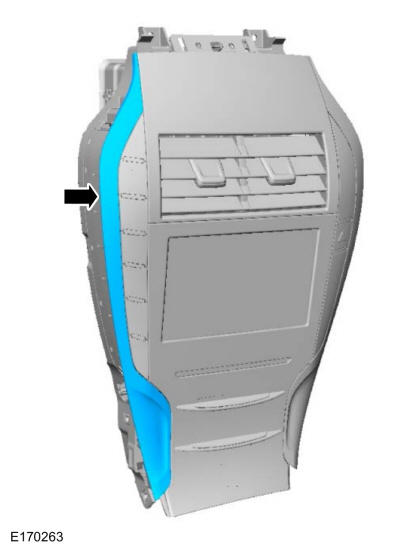

- Remove the trim panel.

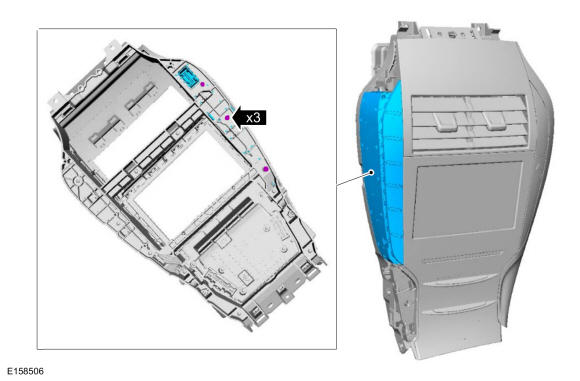

- Remove the screws and the GSM
