Differential Fluid Level Check

For information on Ford Color Coded Illustrations, refer to OEM COLOR CODING

Materials

Check

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting .

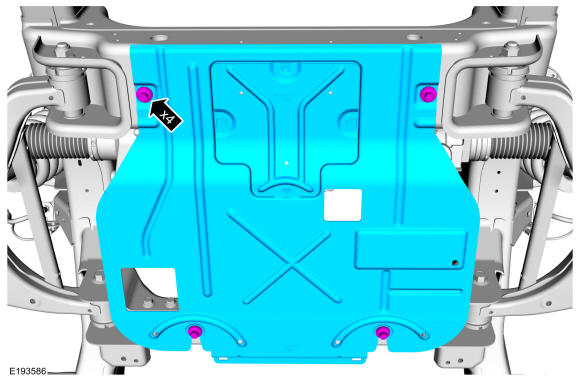

2. NOTE: If equipped.

   Remove the bolts and remove the underbody shield.

   Courtesy of FORD MOTOR COMPANY

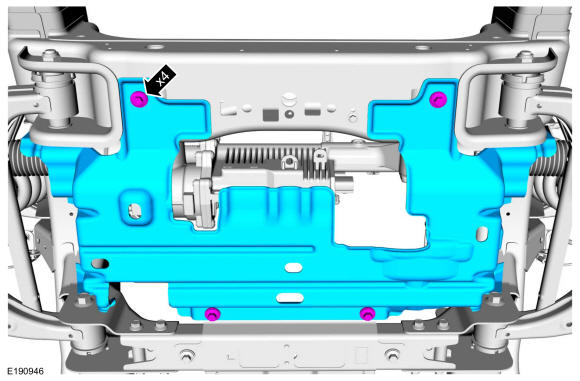

3. NOTE: If equipped.

   Remove the bolts, and remove the underbody shield.

   Courtesy of FORD MOTOR COMPANY

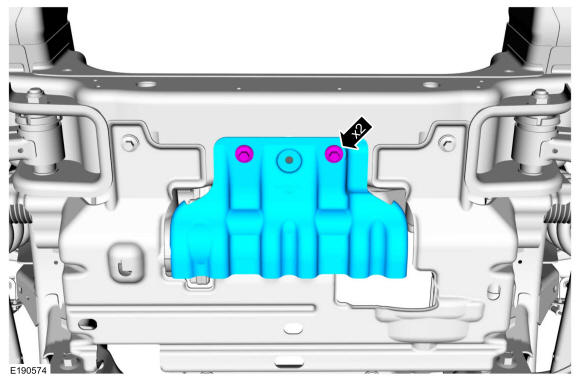

4. NOTE: If equipped.

   Remove the bolts and remove the underbody shield.

   Courtesy of FORD MOTOR COMPANY

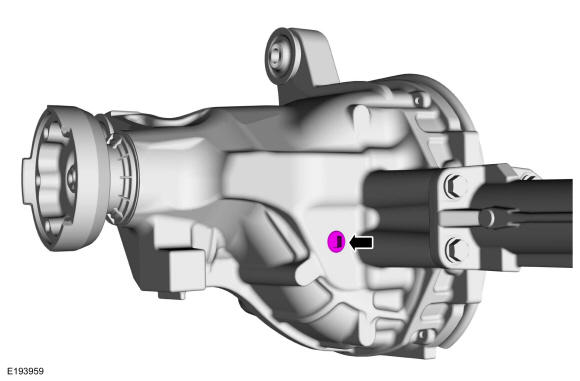

5. Remove the front differential fill plug.

   Courtesy of FORD MOTOR COMPANY

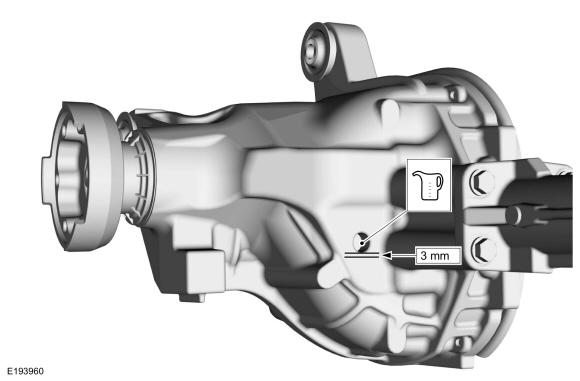

6. Check and top off the differential with clean differential gear lubricant. The differential gear lubricant level should be within 3mm (0.118 in.) from the fluid level fill plug opening. Install the differential fill plug.

   Material

   Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / XY-75W85-QL (WSS-M2C942-A)

   Courtesy of FORD MOTOR COMPANY

7. Install the front differential fill plug.

   Torque:

   18 lb.ft (25 Nm)

   Courtesy of FORD MOTOR COMPANY

8. NOTE: If equipped.

   Install the underbody shield and underbody shield bolts.

   Torque:

   71 lb.in (8 Nm)

   Courtesy of FORD MOTOR COMPANY

9. NOTE: If equipped.

   Install the underbody shield and the bolts.

   Torque:

   30 lb.ft (40 Nm)

   Courtesy of FORD MOTOR COMPANY

10. NOTE: If equipped.

    Install the underbody shield and the bolts.

    Torque:

    71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY
