OEM Electrical Wiring Diagram Introduction: Introduction

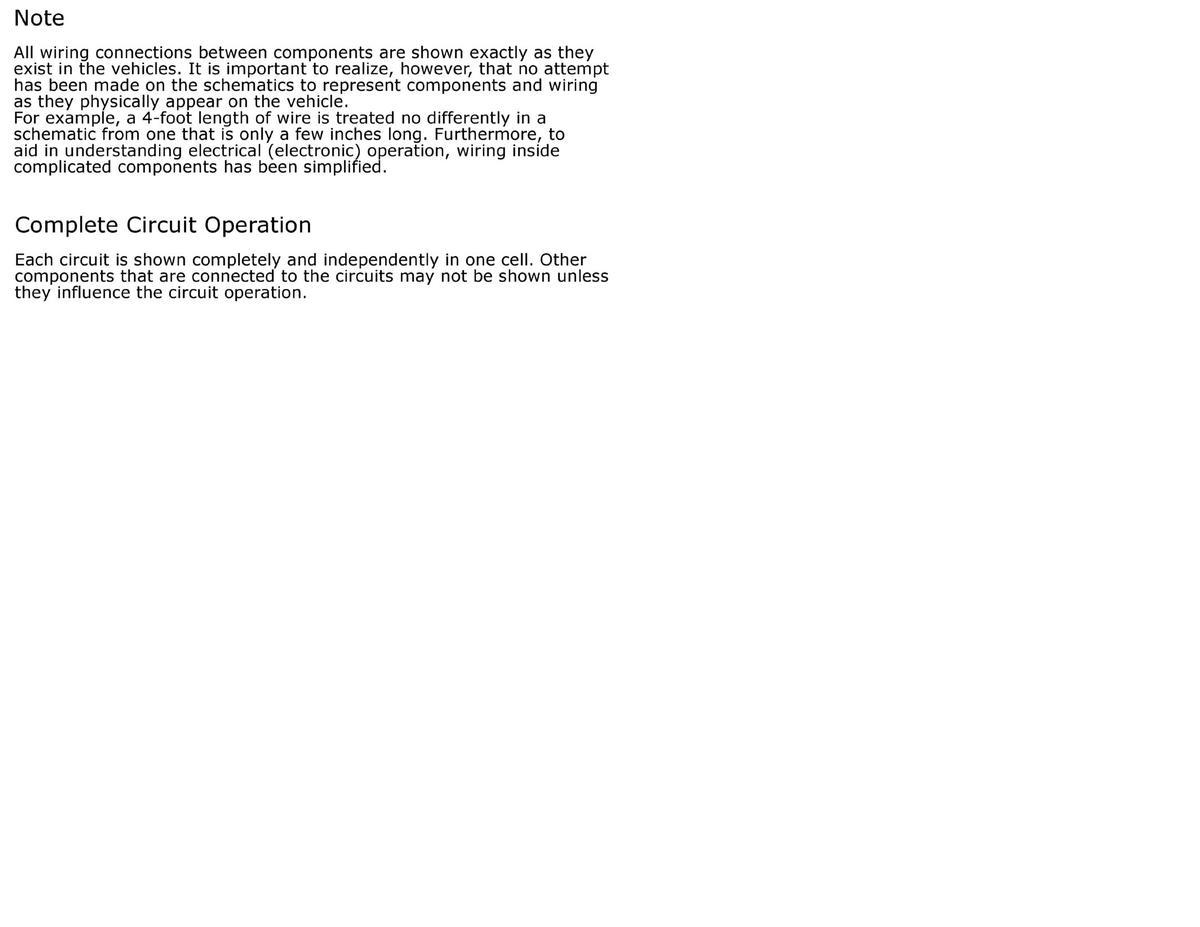

GFDWR110730Courtesy of FORD MOTOR COMPANY

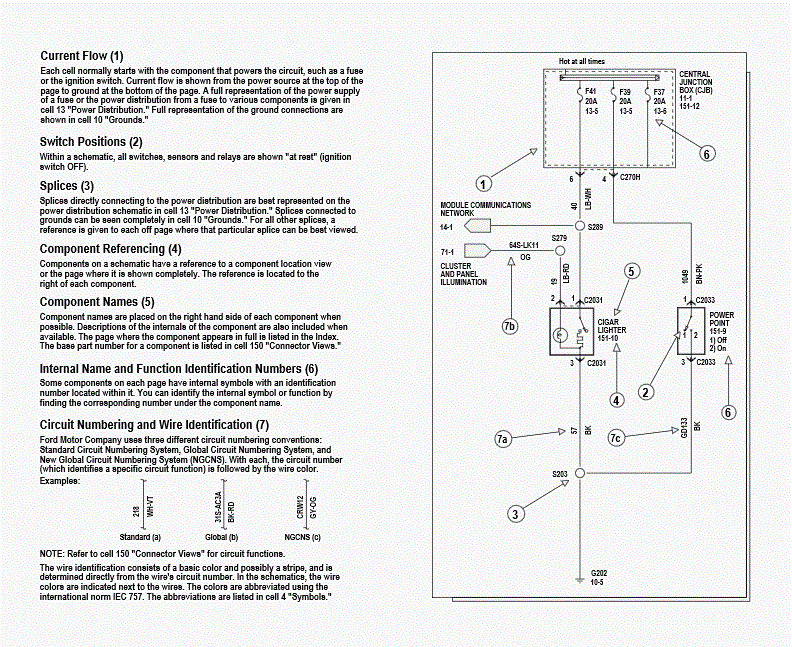

GFDWR110728Courtesy of FORD MOTOR COMPANY

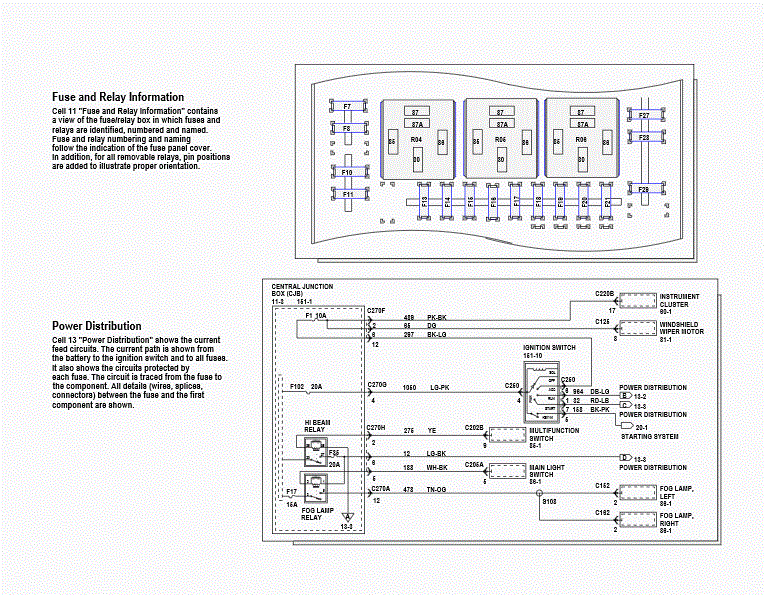

GFDWR110729Courtesy of FORD MOTOR COMPANY

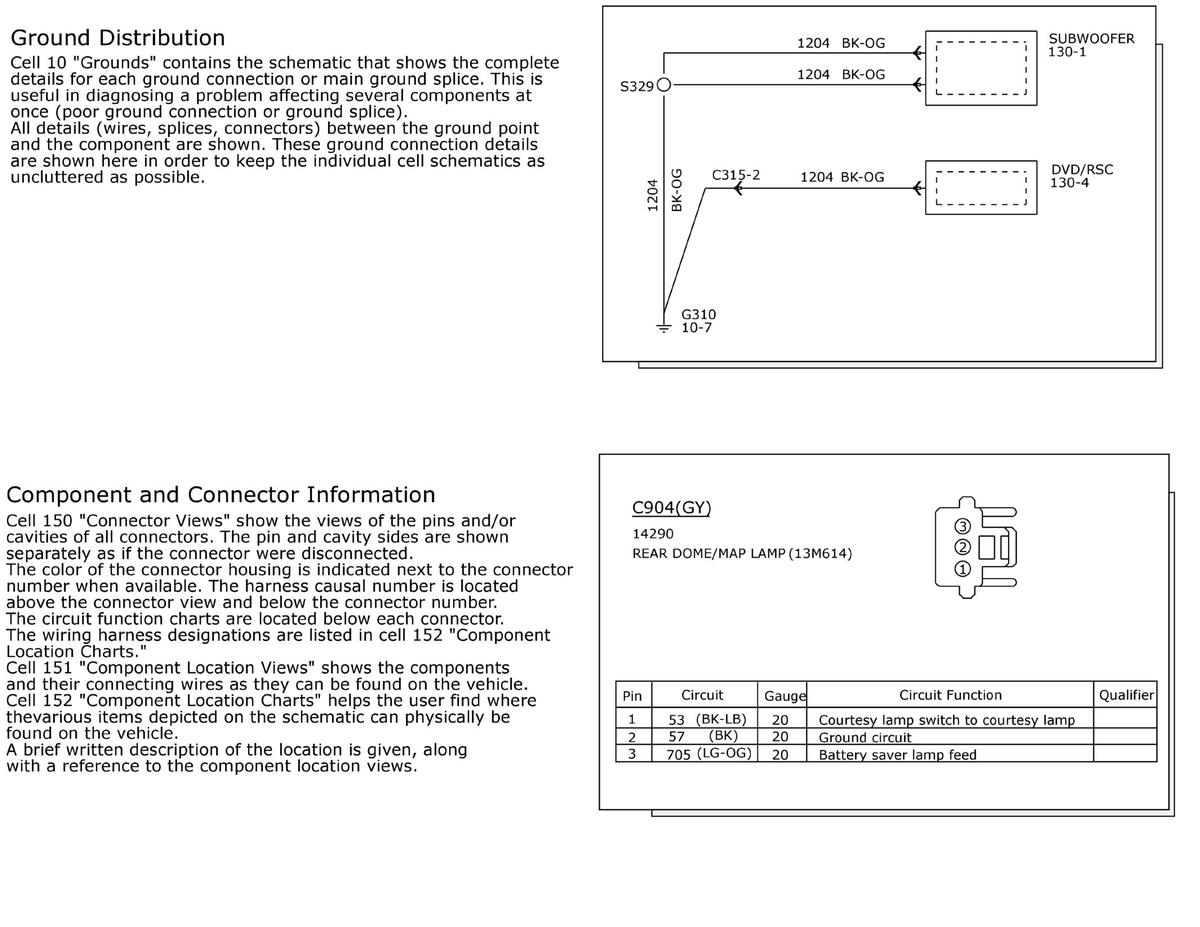

GFDWR110731Courtesy of FORD MOTOR COMPANY

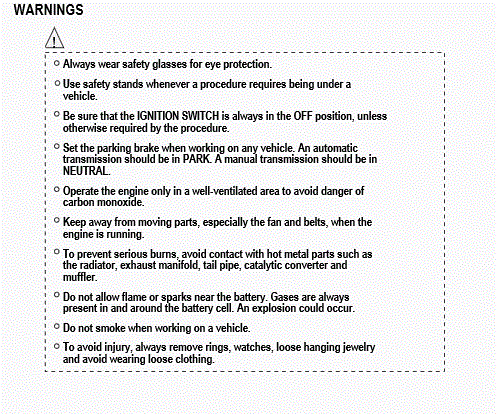

GFDWR110732Courtesy of FORD MOTOR COMPANY
