Passenger Door Window Control Switch: Removal

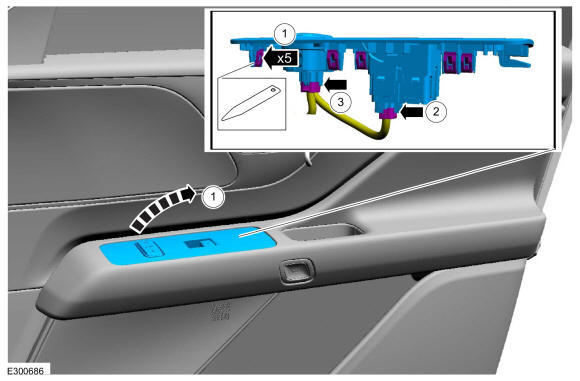

1. Release the locking tabs from the passenger door window control switch bezel assembly. Use the General Equipment: Interior Trim Remover
2. Disconnect the passenger door window control switch the electrical connector.
3. Disconnect the passenger door lock control switch electrical connector and remove the passenger door window control switch bezel assembly.

Courtesy of FORD MOTOR COMPANY

Remove the passenger door window control switch from the bezel assembly.

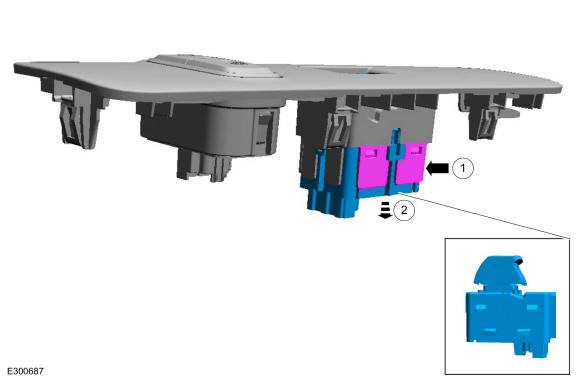

1. Release the locking tabs from the passenger door window control switch.
2. Remove the passenger door window control switch from the bezel assembly.
