Power Distribution

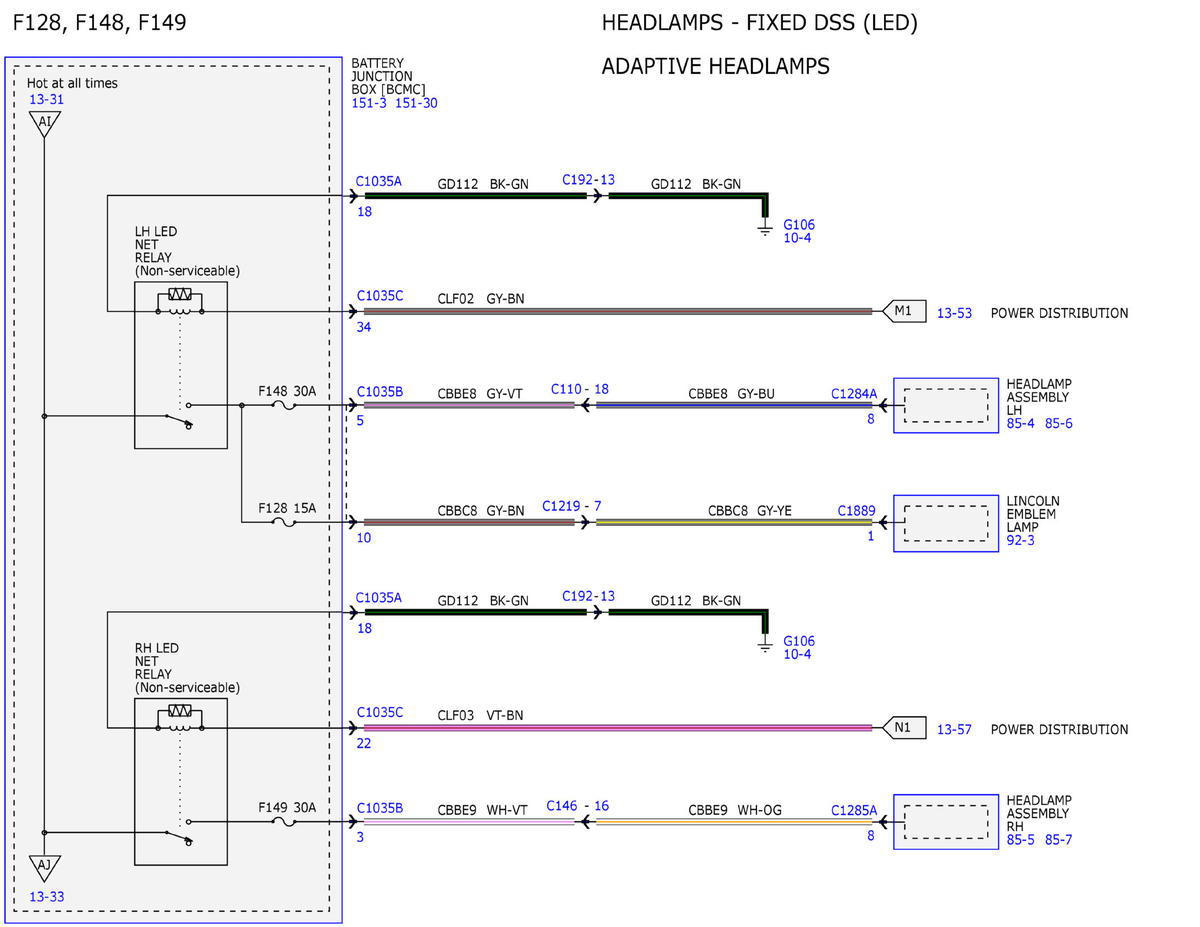

Fig 1: Power Distribution Wiring Diagram (1 Of 69)

GFDWR111061

Courtesy of FORD MOTOR COMPANY

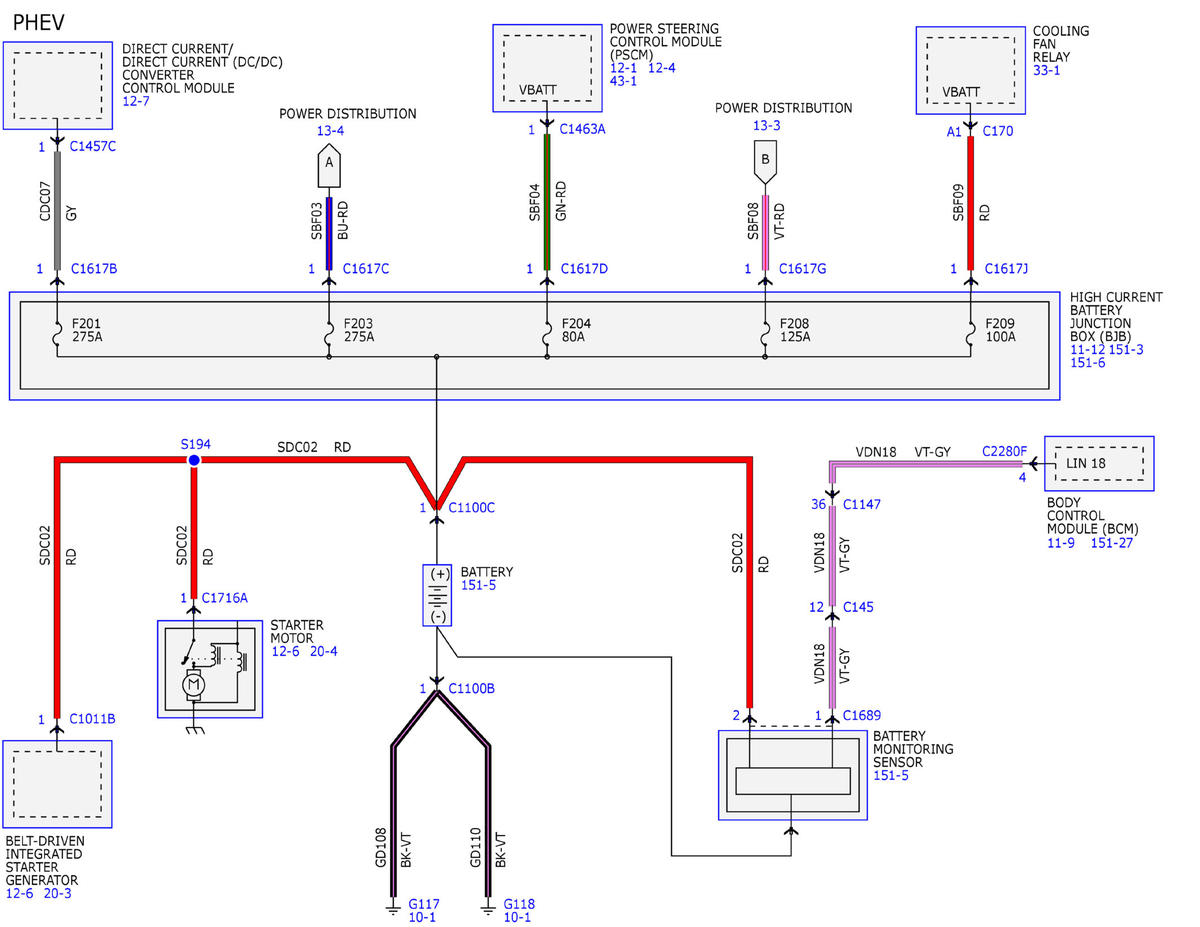

Fig 2: Power Distribution Wiring Diagram (2 Of 69)

GFDWR111062

Courtesy of FORD MOTOR COMPANY

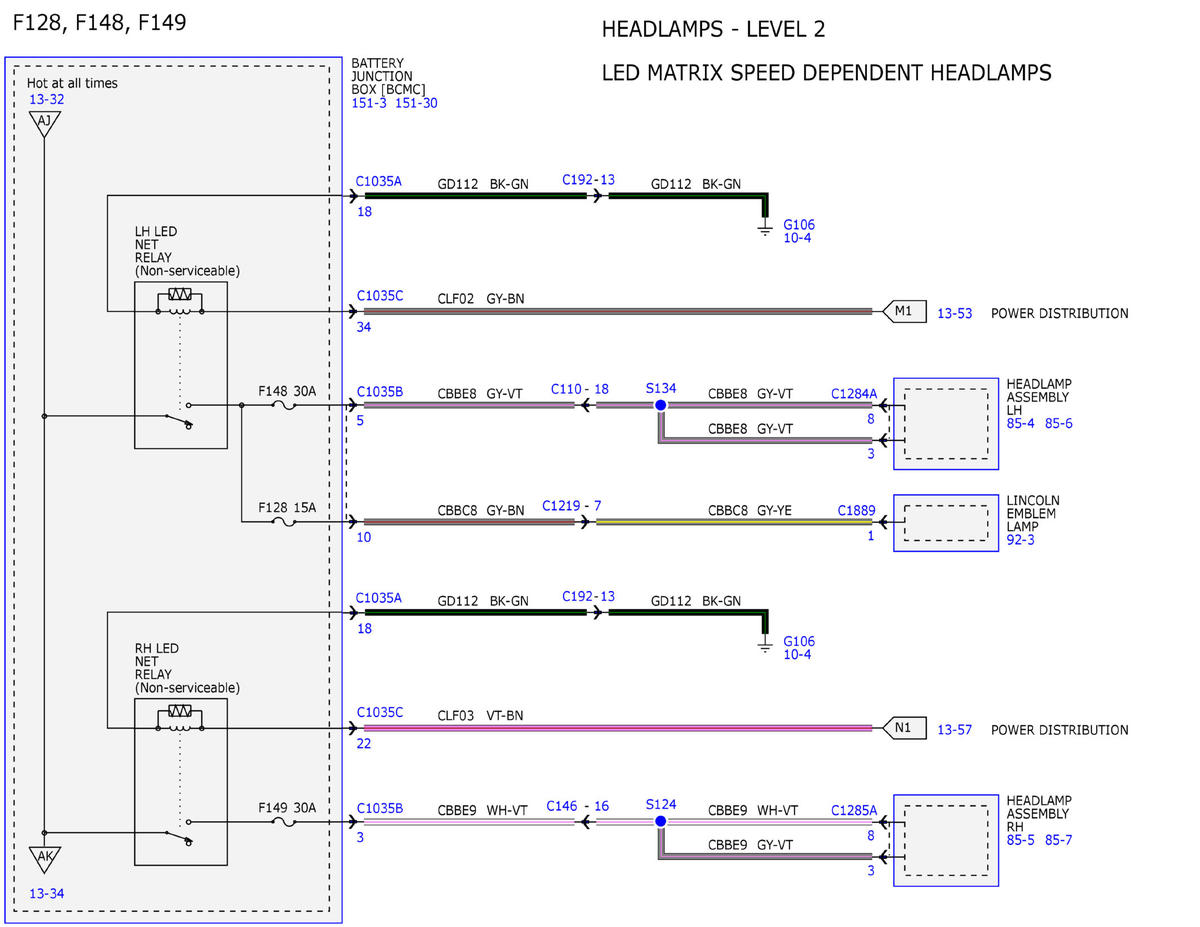

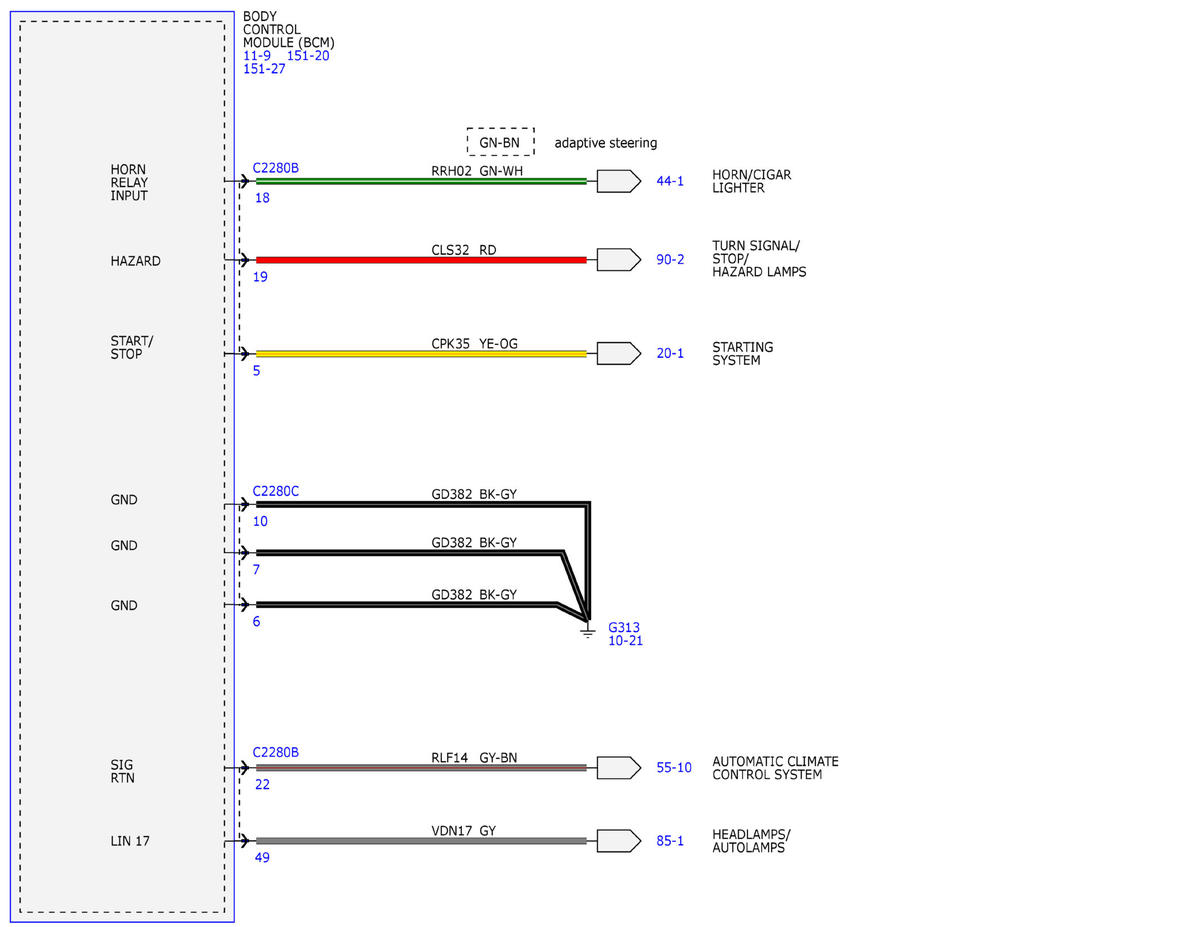

Fig 3: Power Distribution Wiring Diagram (3 Of 69)

GFDWR111063

Courtesy of FORD MOTOR COMPANY

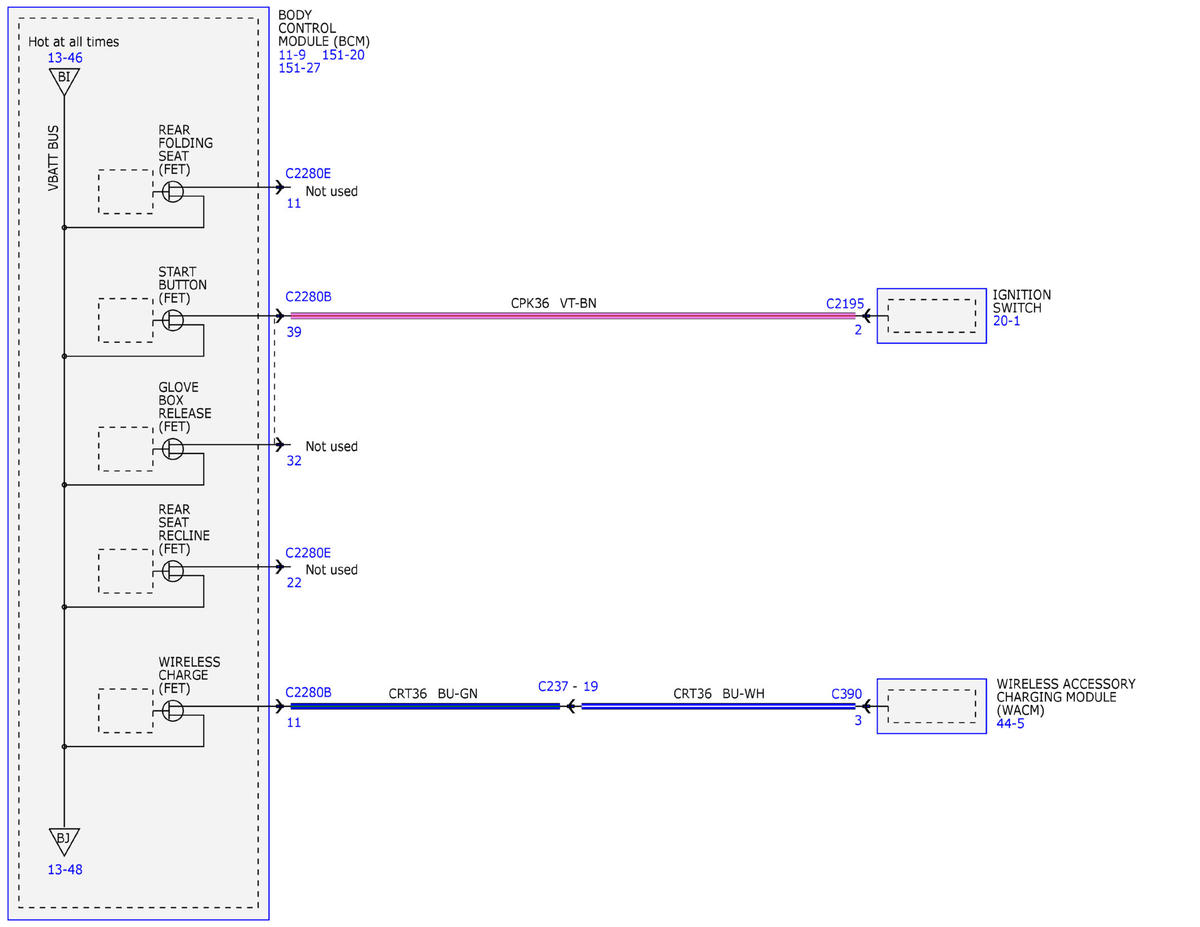

Fig 4: Power Distribution Wiring Diagram (4 Of 69)

GFDWR111064

Courtesy of FORD MOTOR COMPANY

Fig 5: Power Distribution Wiring Diagram (5 Of 69)

GFDWR111065

Courtesy of FORD MOTOR COMPANY

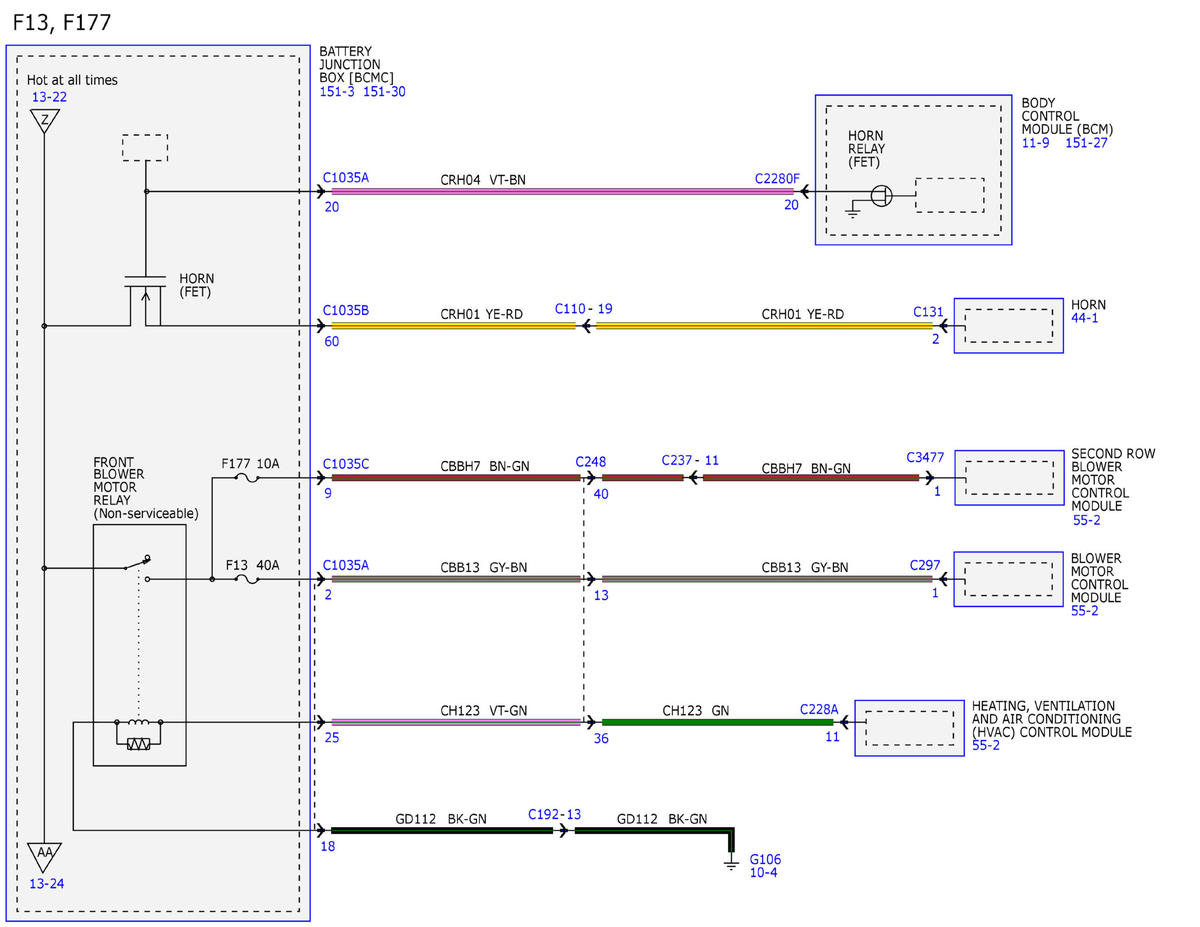

Fig 6: Power Distribution Wiring Diagram (6 Of 69)

GFDWR111066

Courtesy of FORD MOTOR COMPANY

Fig 7: Power Distribution Wiring Diagram (7 Of 69)

GFDWR111067

Courtesy of FORD MOTOR COMPANY

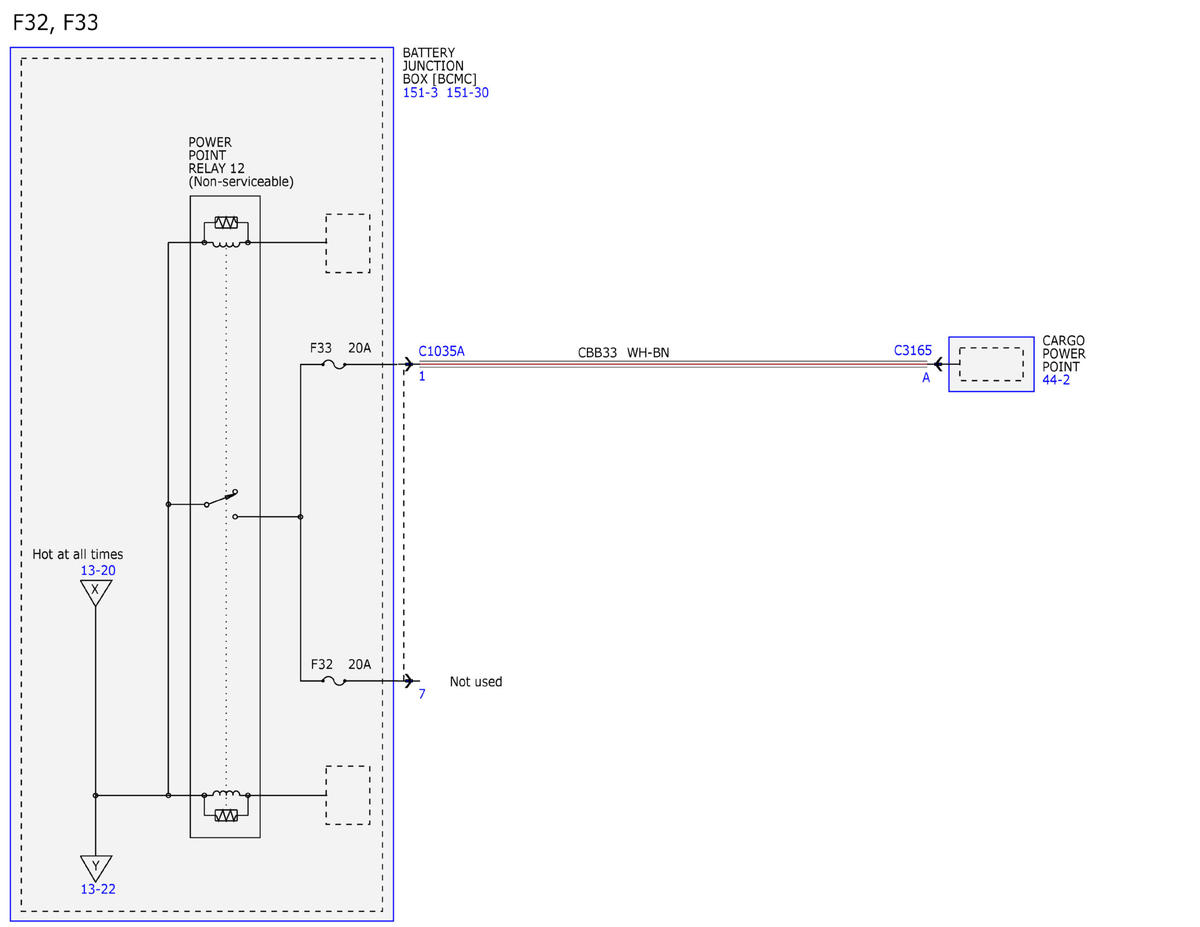

Fig 8: Power Distribution Wiring Diagram (8 Of 69)

GFDWR111068

Courtesy of FORD MOTOR COMPANY

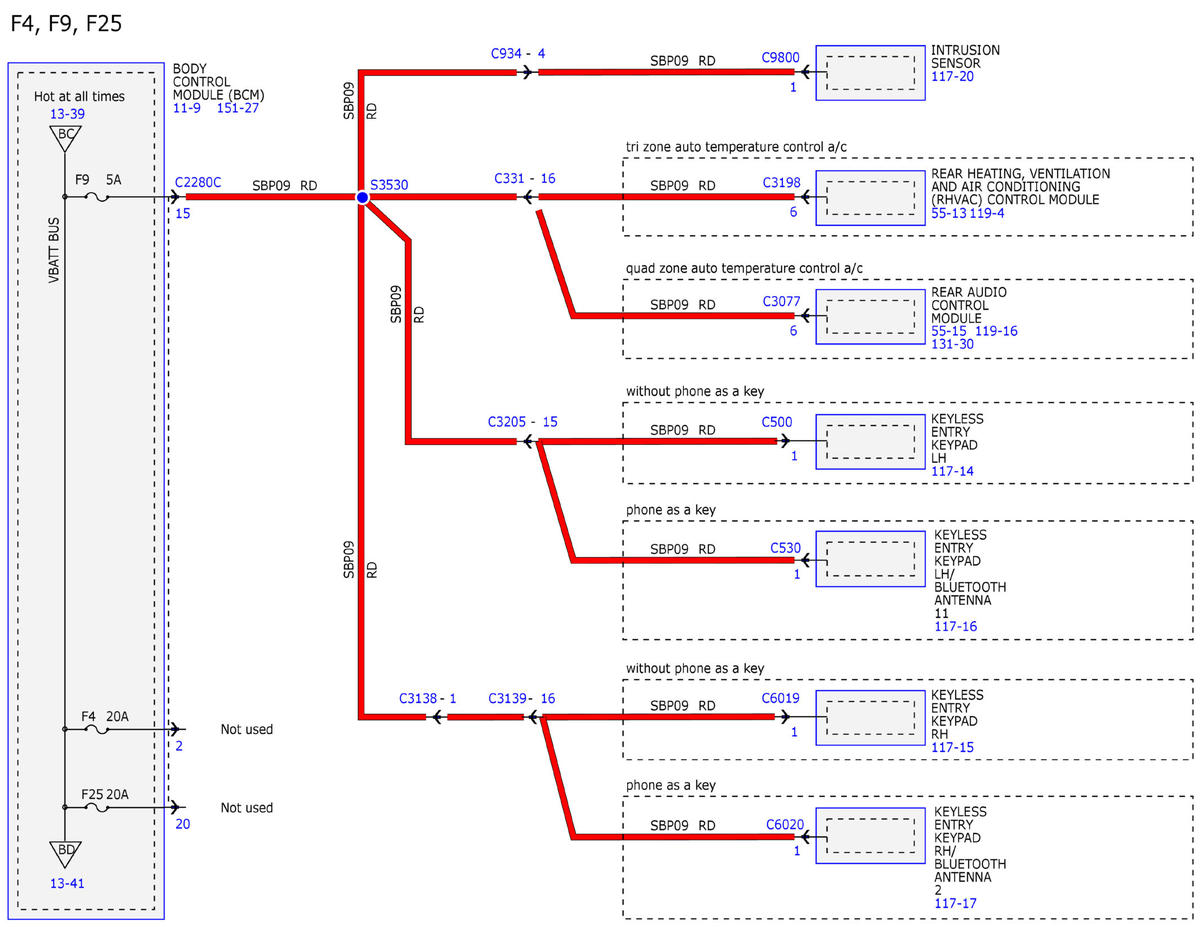

Fig 9: Power Distribution Wiring Diagram (9 Of 69)

GFDWR111069

Courtesy of FORD MOTOR COMPANY

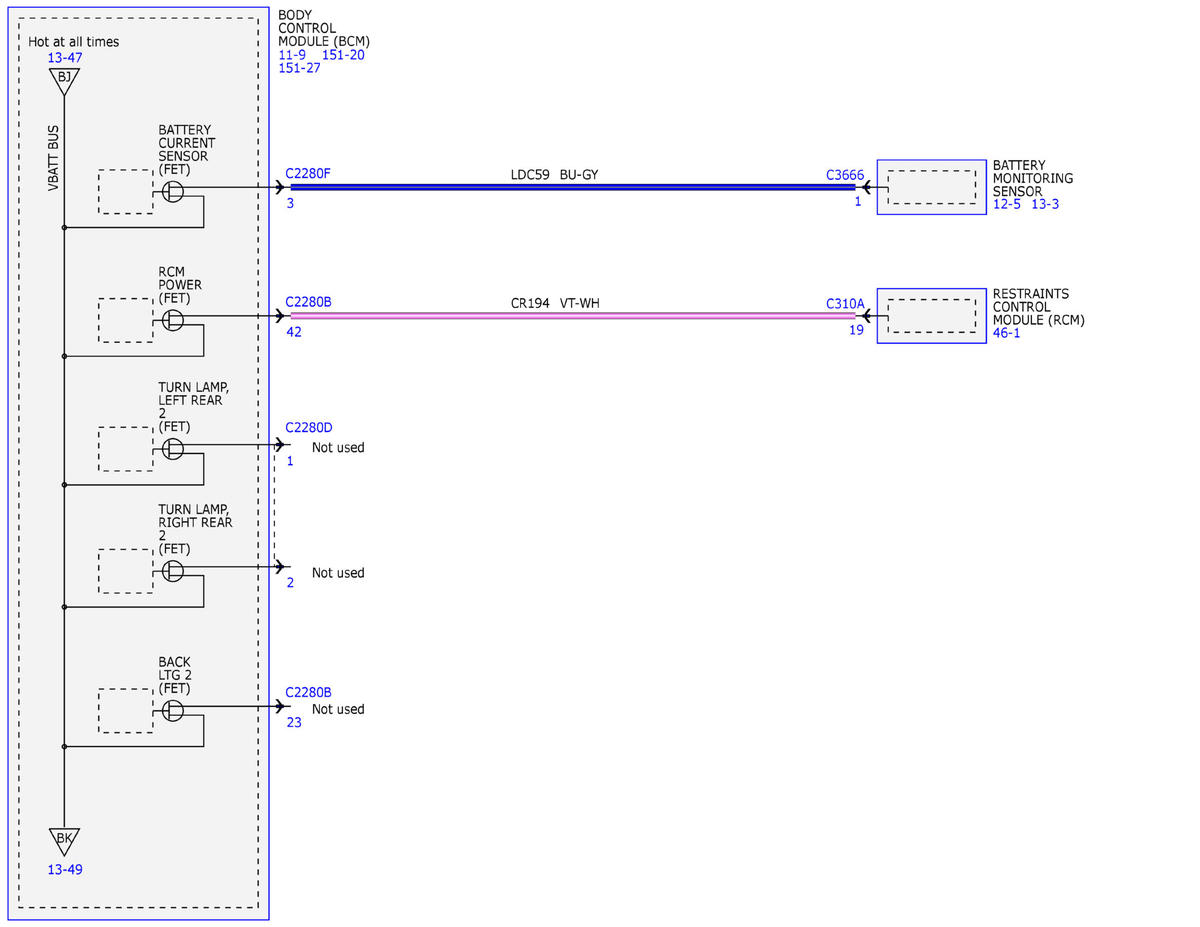

Fig 10: Power Distribution Wiring Diagram (10 Of 69)

GFDWR111070

Courtesy of FORD MOTOR COMPANY

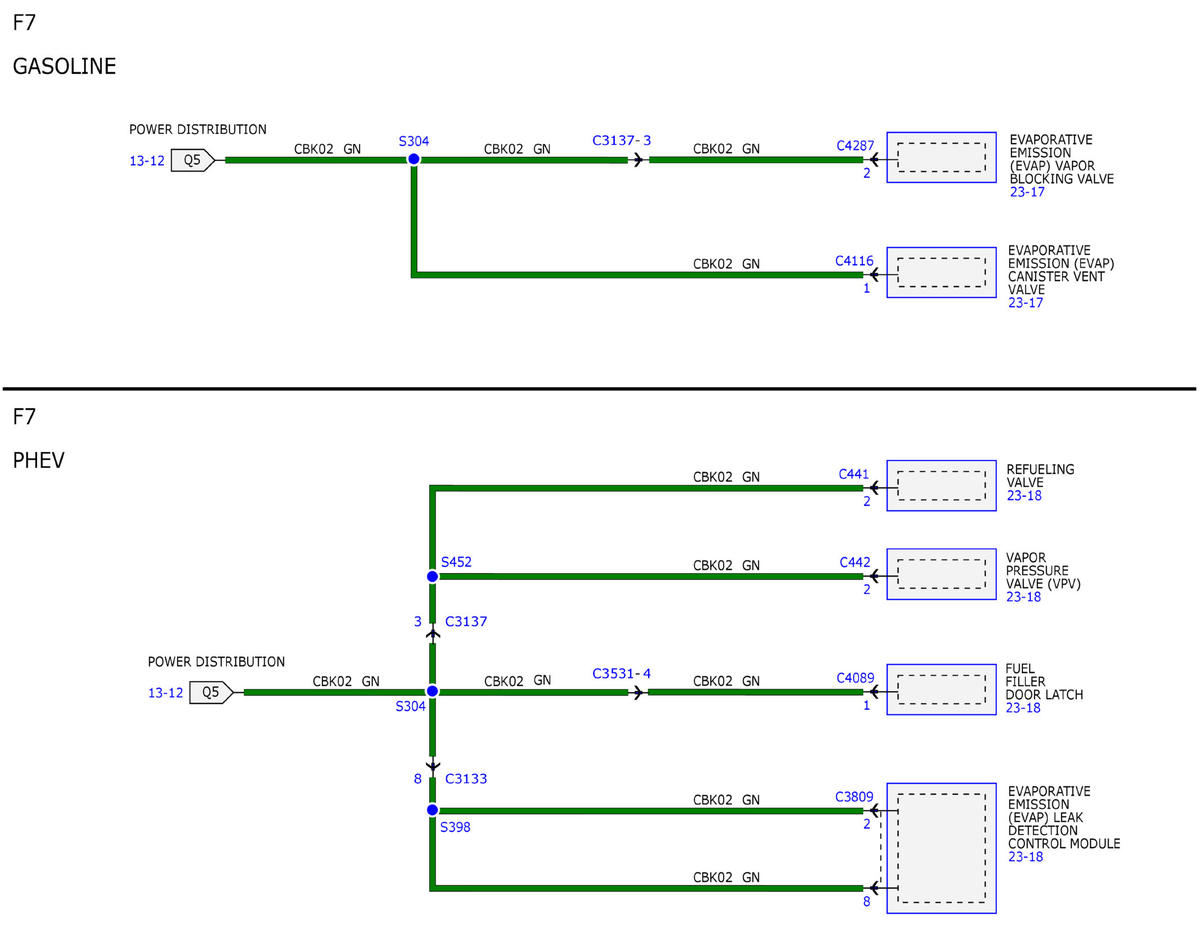

Fig 11: Power Distribution Wiring Diagram (11 Of 69)

GFDWR111071

Courtesy of FORD MOTOR COMPANY

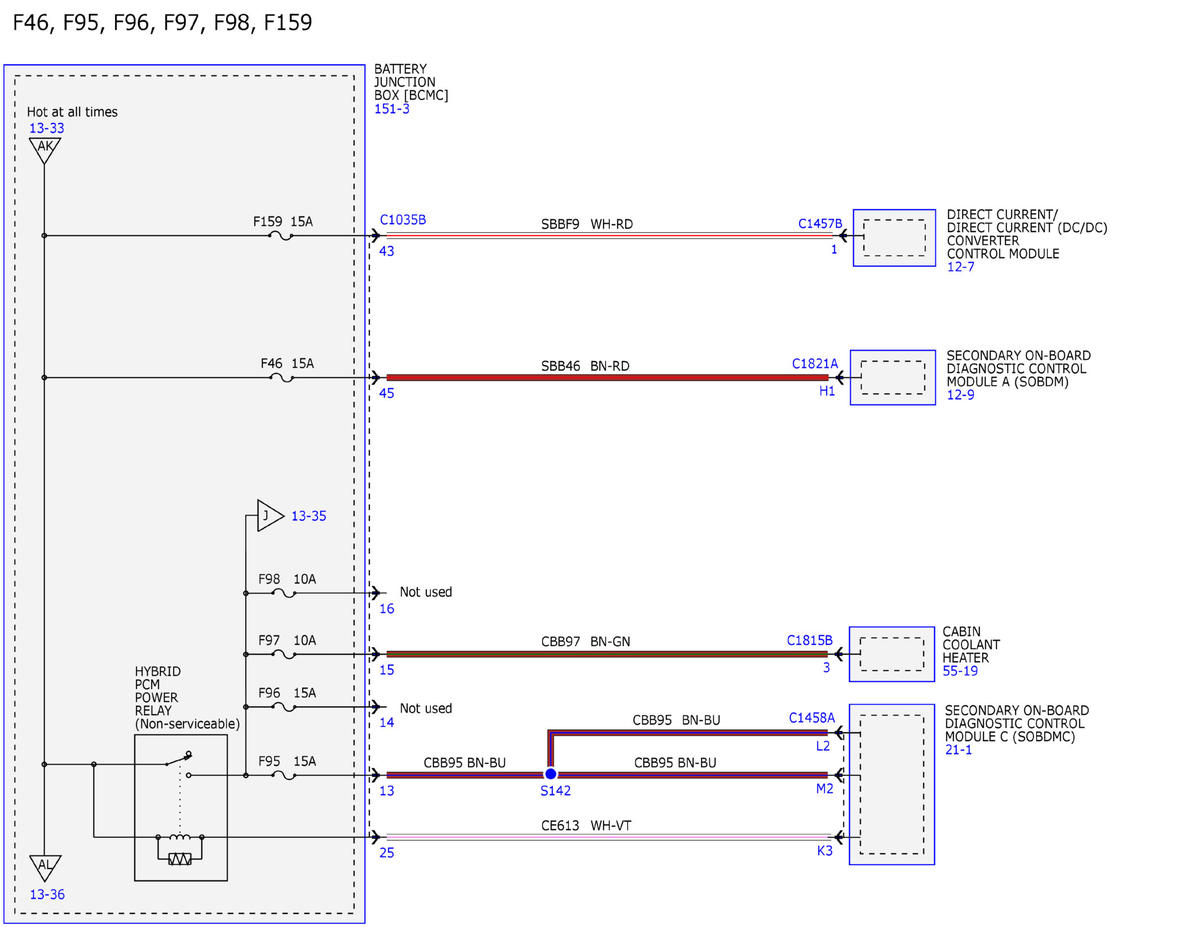

Fig 12: Power Distribution Wiring Diagram (12 Of 69)

GFDWR111072

Courtesy of FORD MOTOR COMPANY

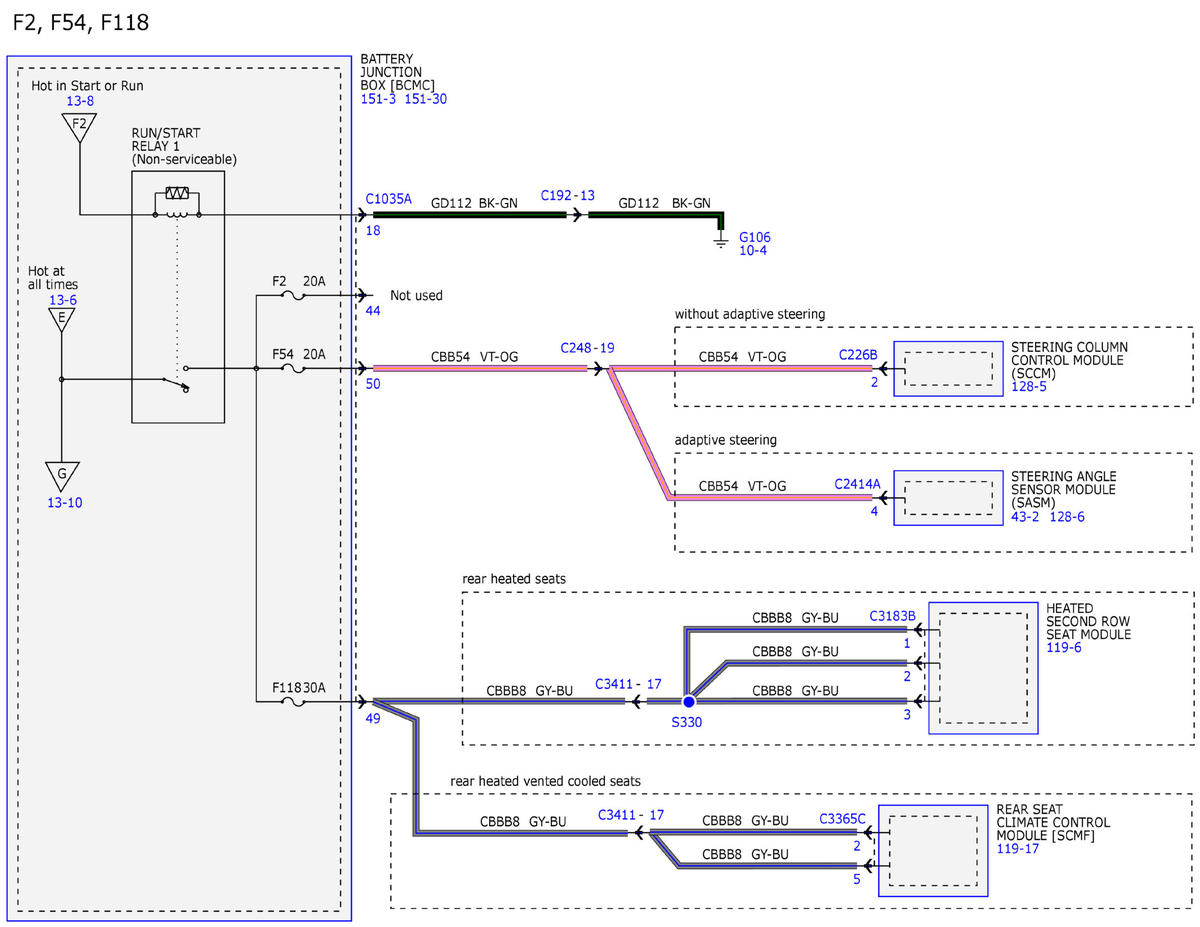

Fig 13: Power Distribution Wiring Diagram (13 Of 69)

GFDWR111073

Courtesy of FORD MOTOR COMPANY

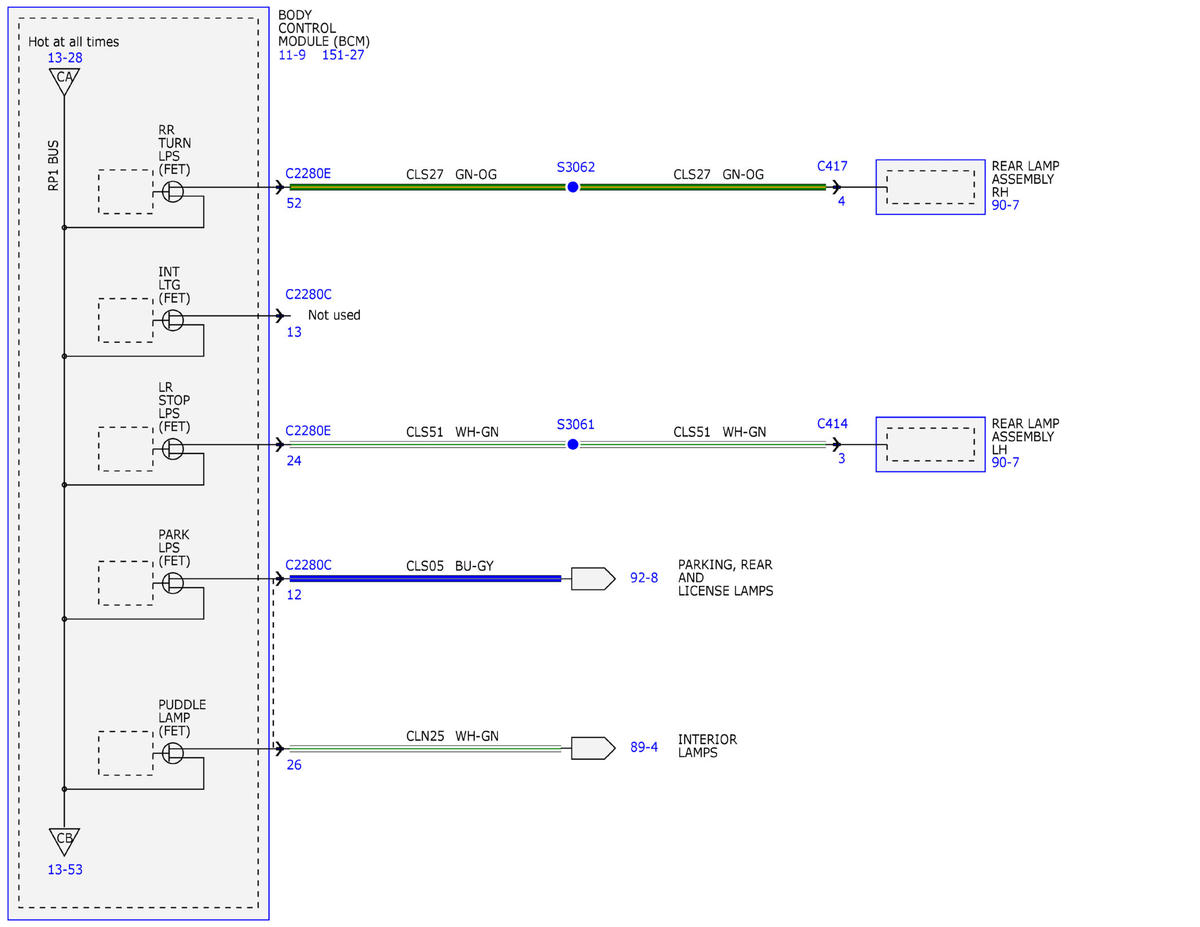

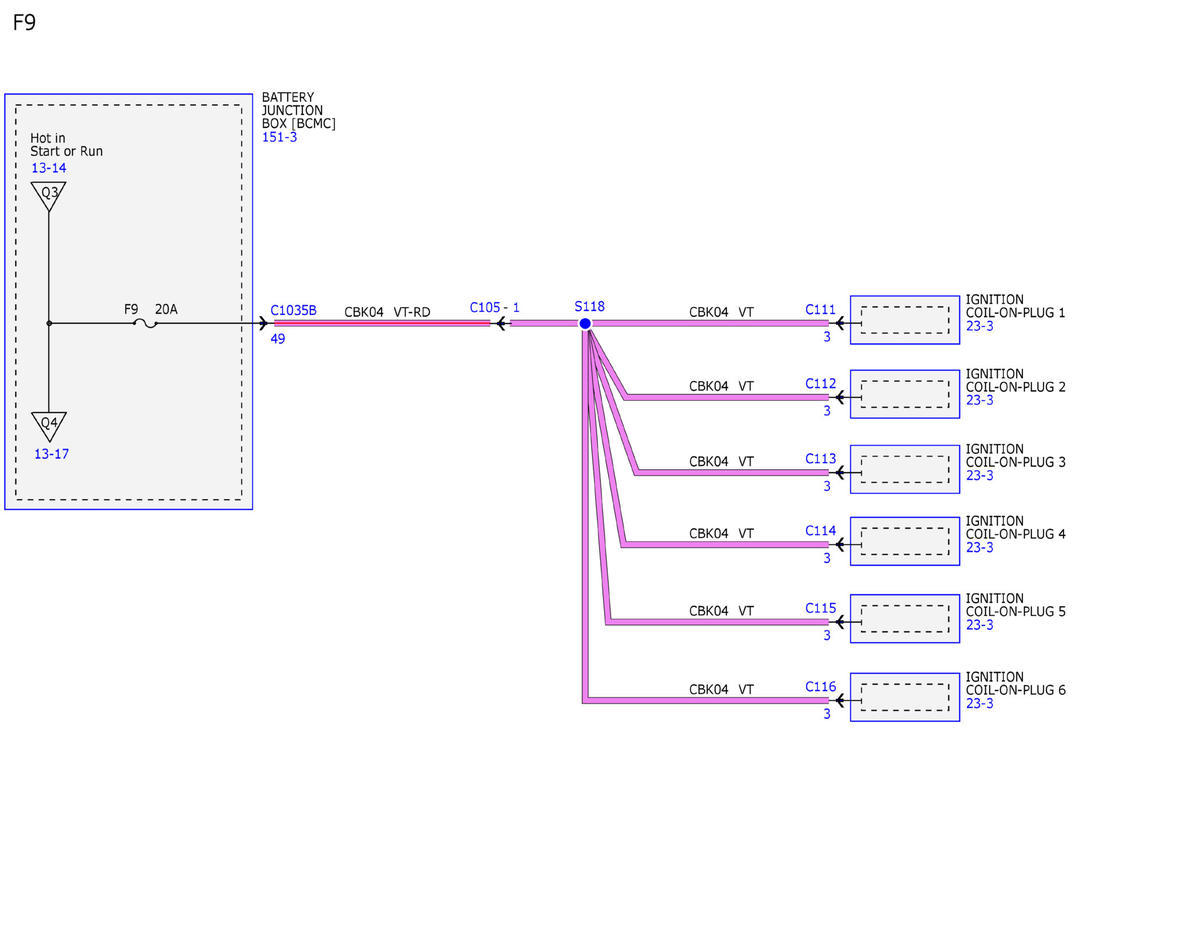

Fig 14: Power Distribution Wiring Diagram (14 Of 69)

GFDWR111074

Courtesy of FORD MOTOR COMPANY

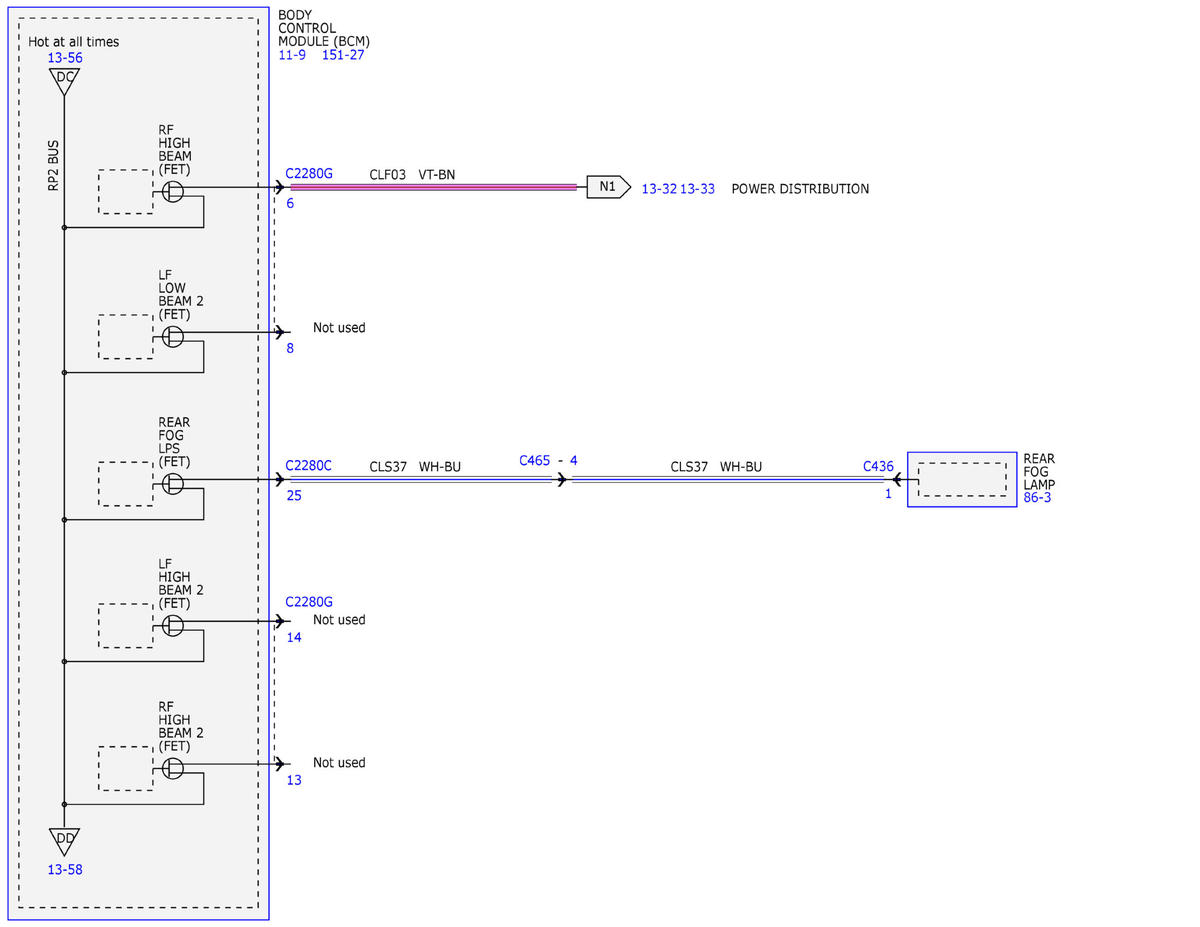

Fig 15: Power Distribution Wiring Diagram (15 Of 69)

GFDWR111075

Courtesy of FORD MOTOR COMPANY

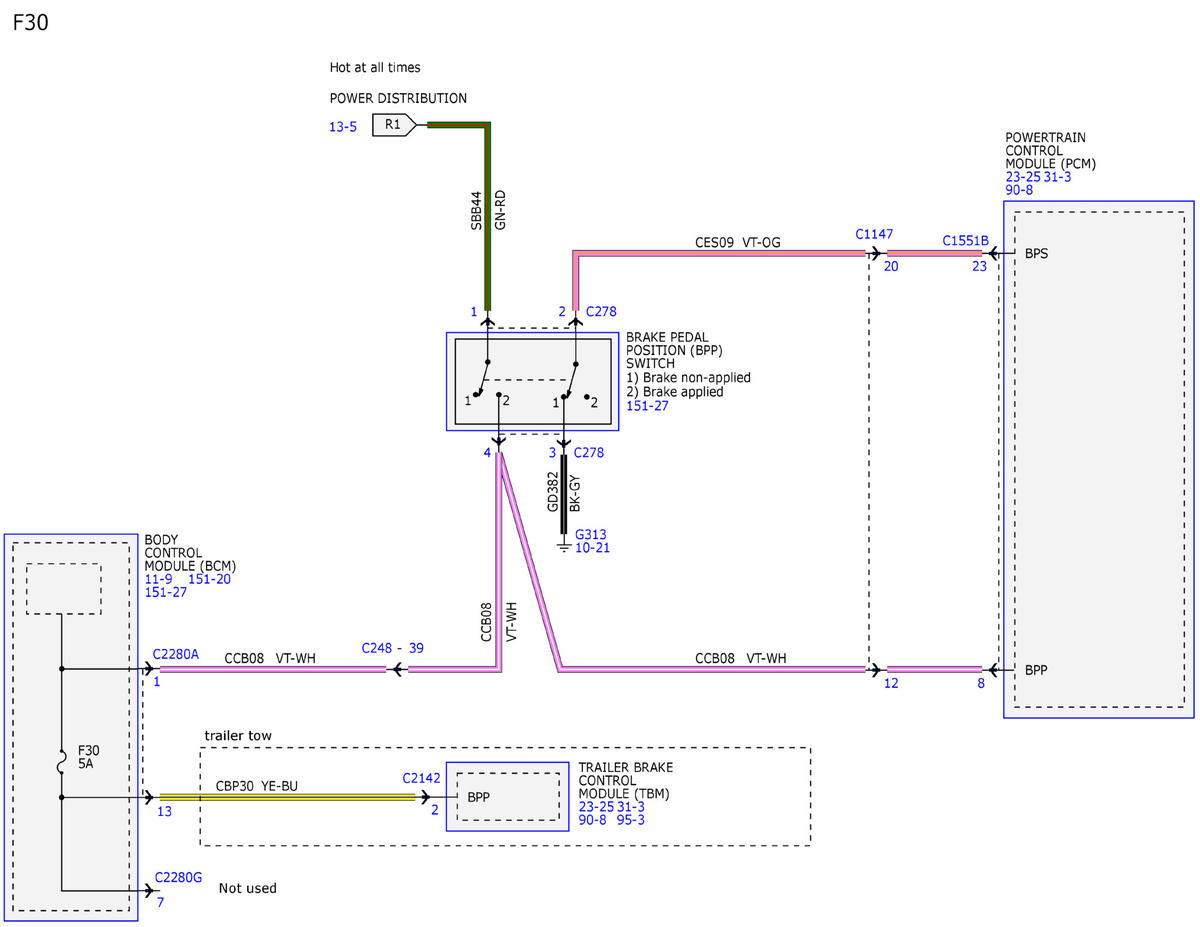

Fig 16: Power Distribution Wiring Diagram (16 Of 69)

GFDWR111076

Courtesy of FORD MOTOR COMPANY

Fig 17: Power Distribution Wiring Diagram (17 Of 69)

GFDWR111077

Courtesy of FORD MOTOR COMPANY

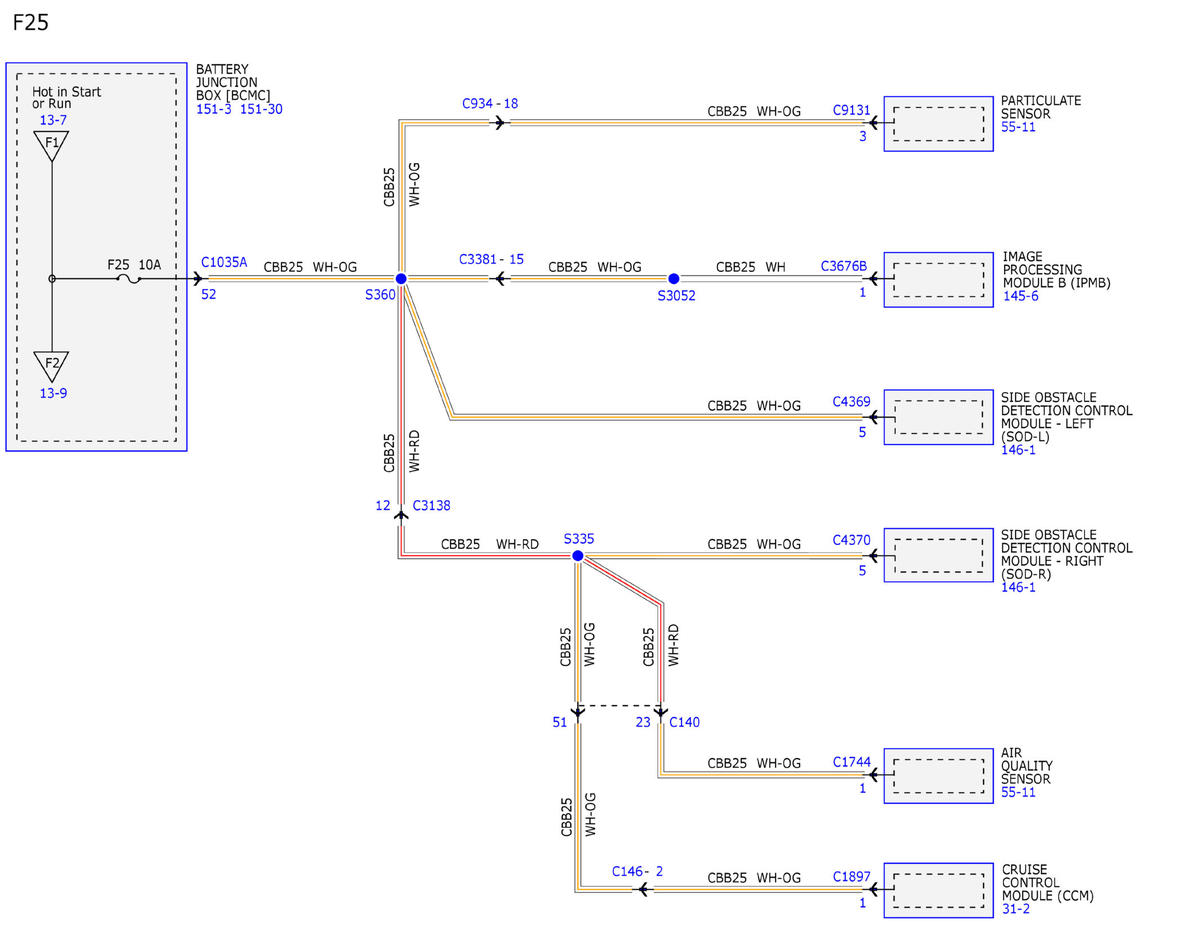

Fig 18: Power Distribution Wiring Diagram (18 Of 69)

GFDWR111078

Courtesy of FORD MOTOR COMPANY

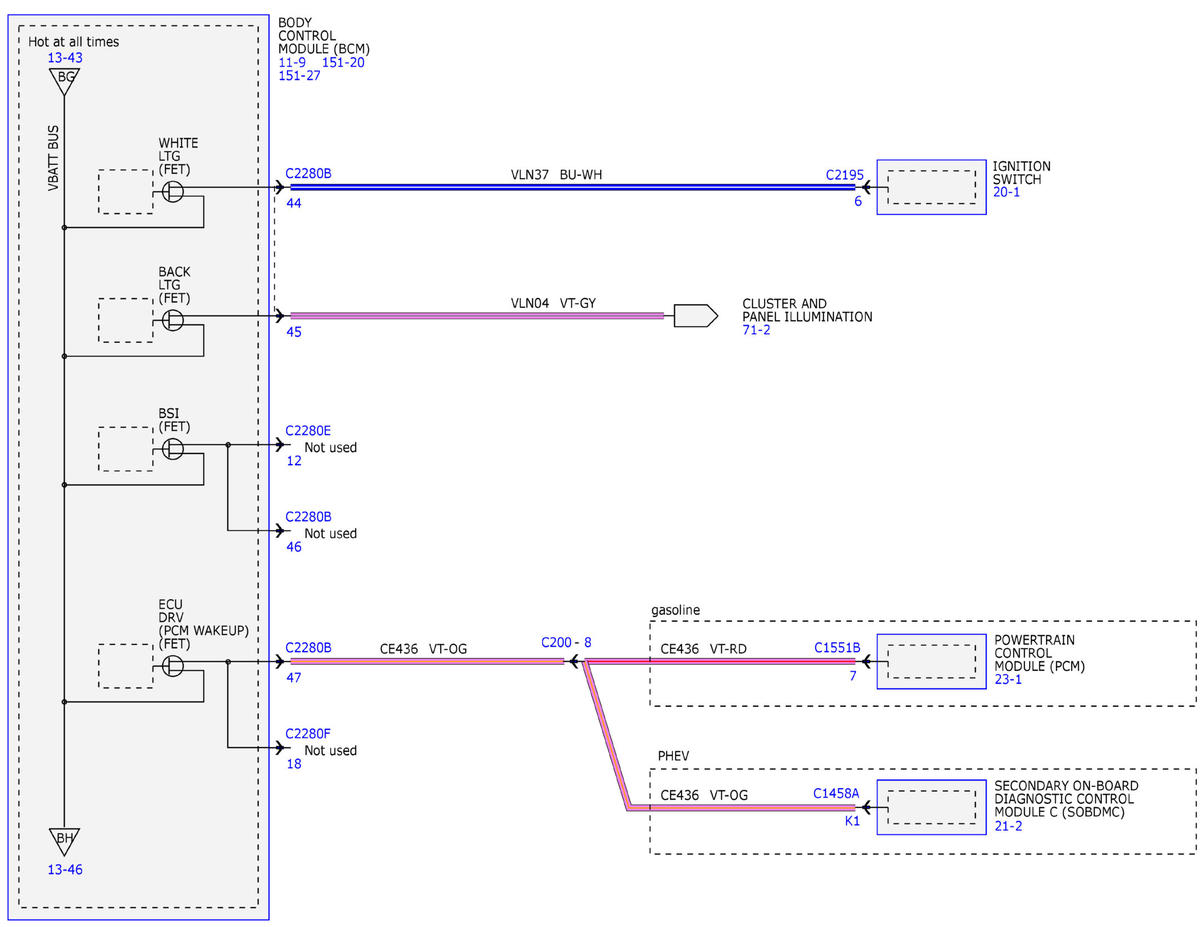

Fig 19: Power Distribution Wiring Diagram (19 Of 69)

GFDWR111079

Courtesy of FORD MOTOR COMPANY

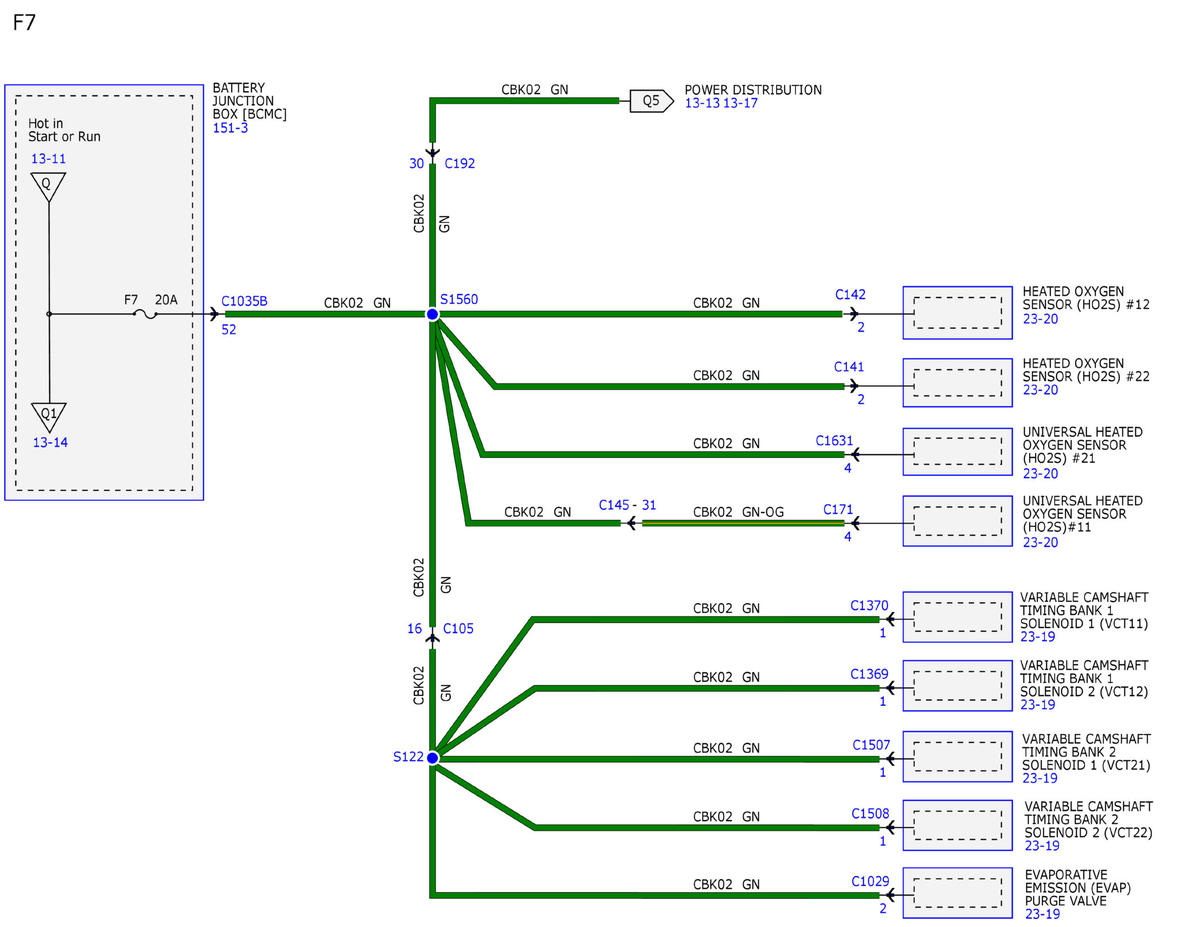

Fig 20: Power Distribution Wiring Diagram (20 Of 69)

GFDWR111080

Courtesy of FORD MOTOR COMPANY

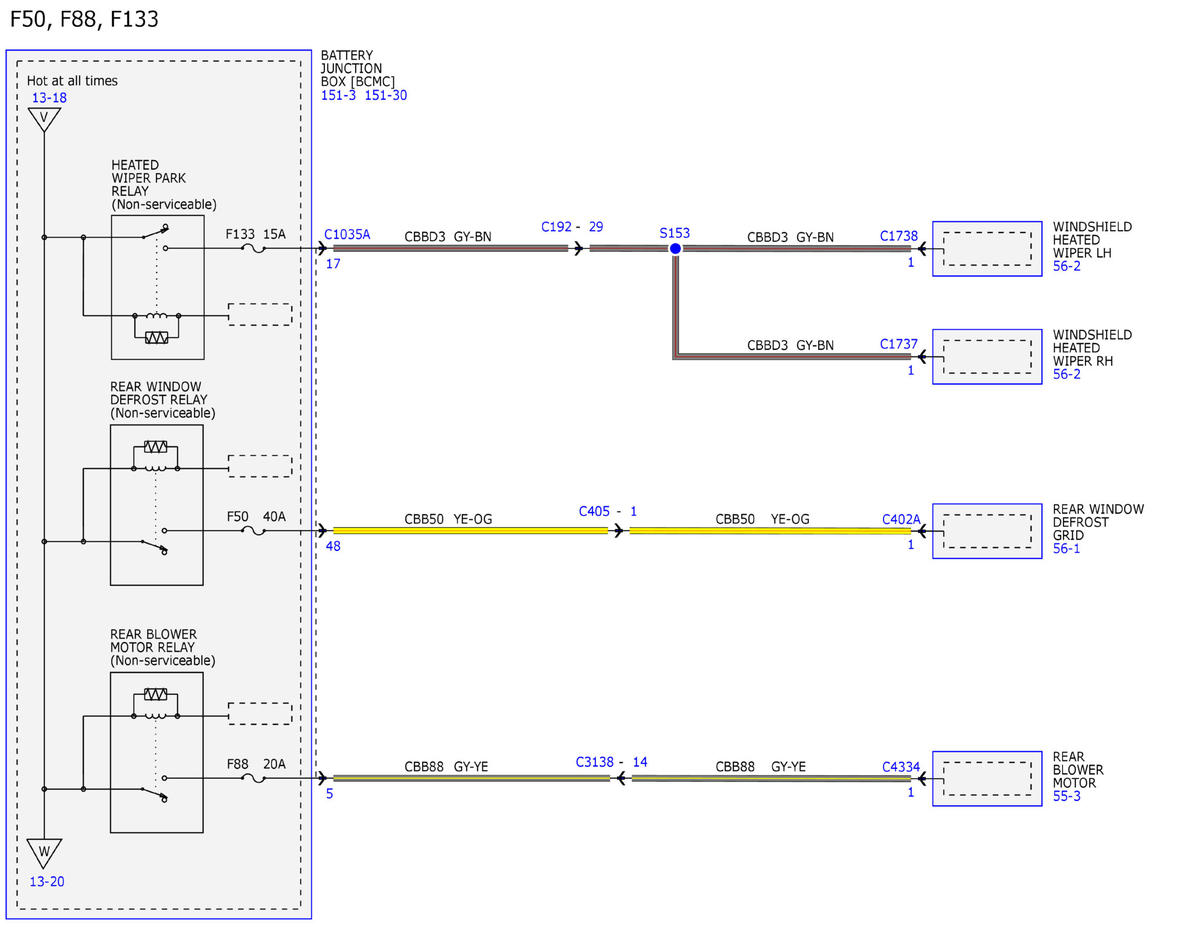

Fig 21: Power Distribution Wiring Diagram (21 Of 69)

GFDWR111081

Courtesy of FORD MOTOR COMPANY

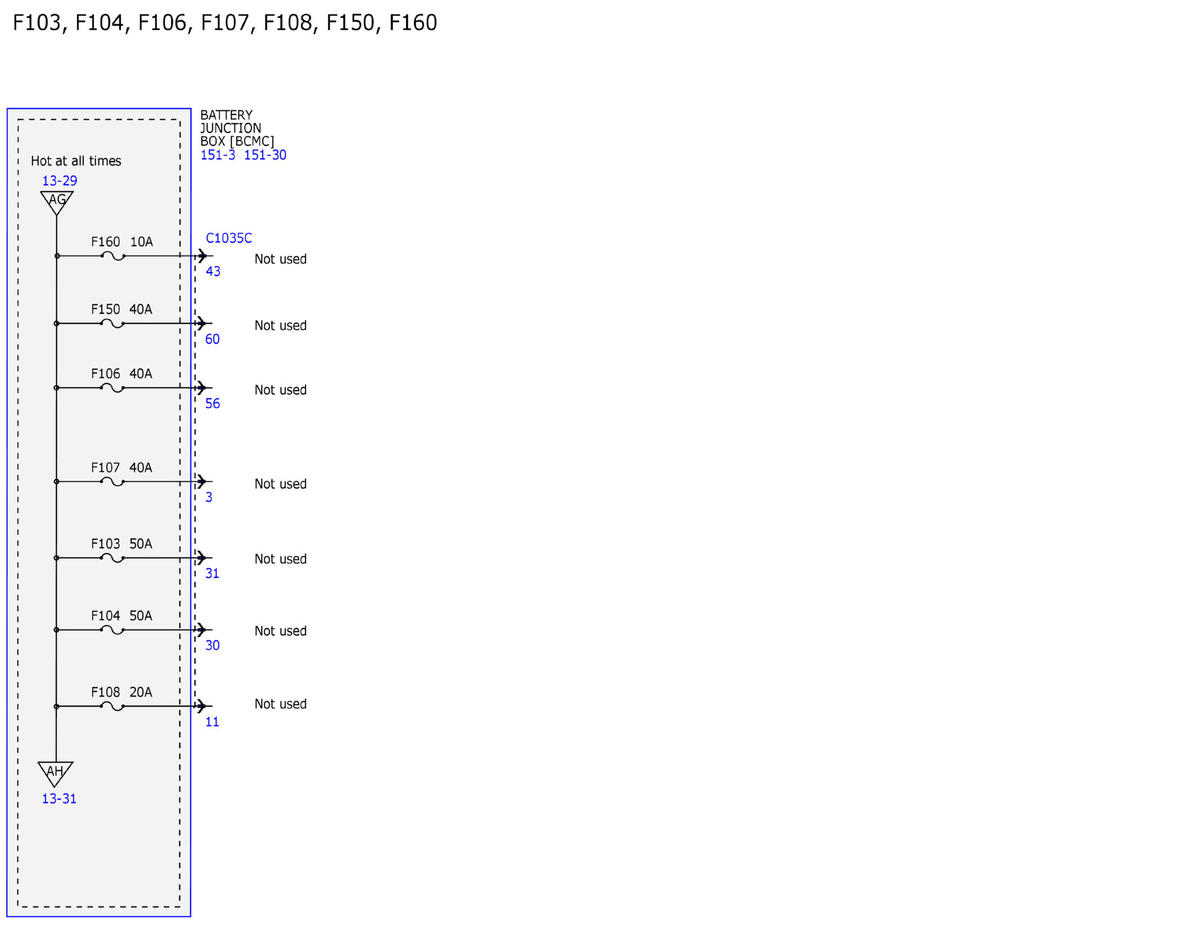

Fig 22: Power Distribution Wiring Diagram (22 Of 69)

GFDWR111082

Courtesy of FORD MOTOR COMPANY

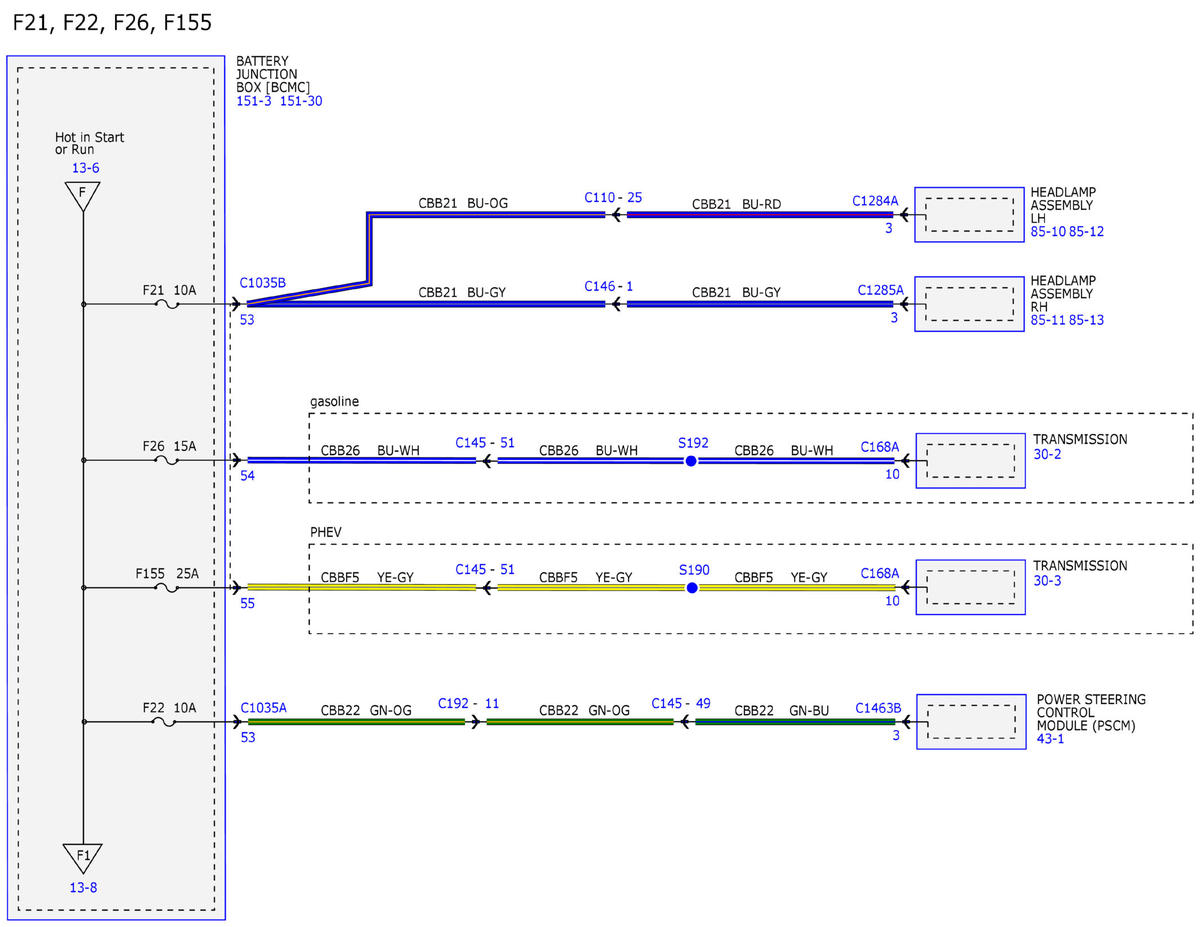

Fig 23: Power Distribution Wiring Diagram (23 Of 69)

GFDWR111083

Courtesy of FORD MOTOR COMPANY

Fig 24: Power Distribution Wiring Diagram (24 Of 69)

GFDWR111084

Courtesy of FORD MOTOR COMPANY

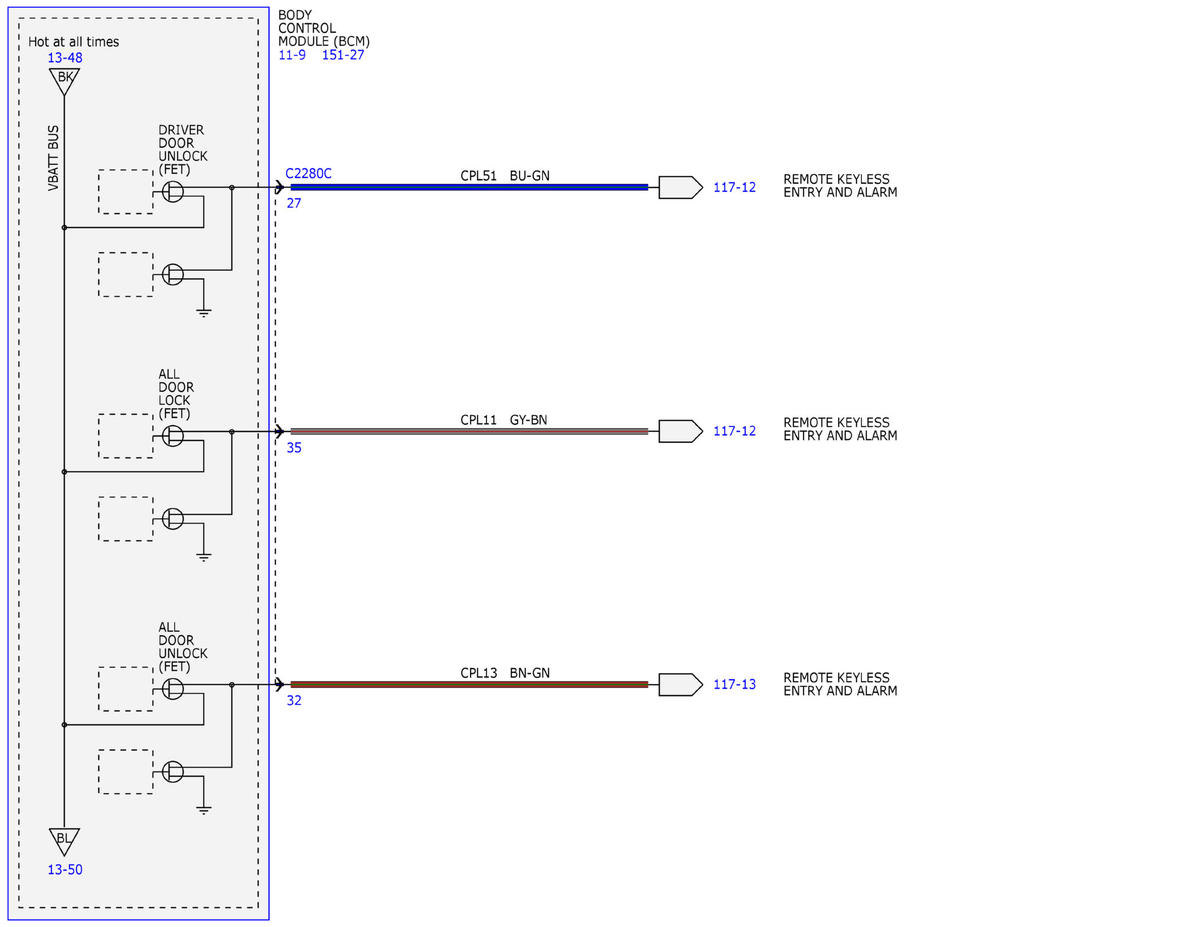

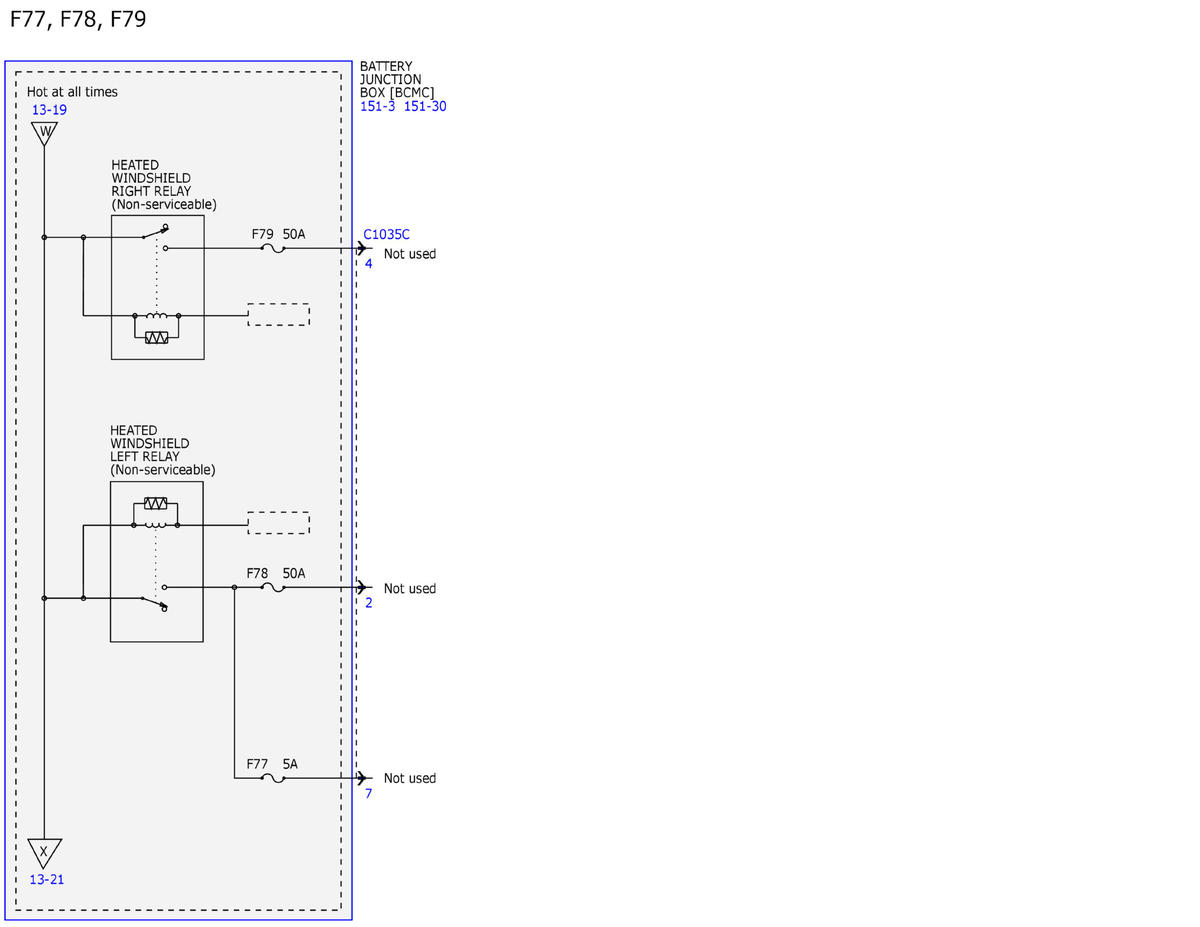

Fig 25: Power Distribution Wiring Diagram (25 Of 69)

GFDWR111085

Courtesy of FORD MOTOR COMPANY

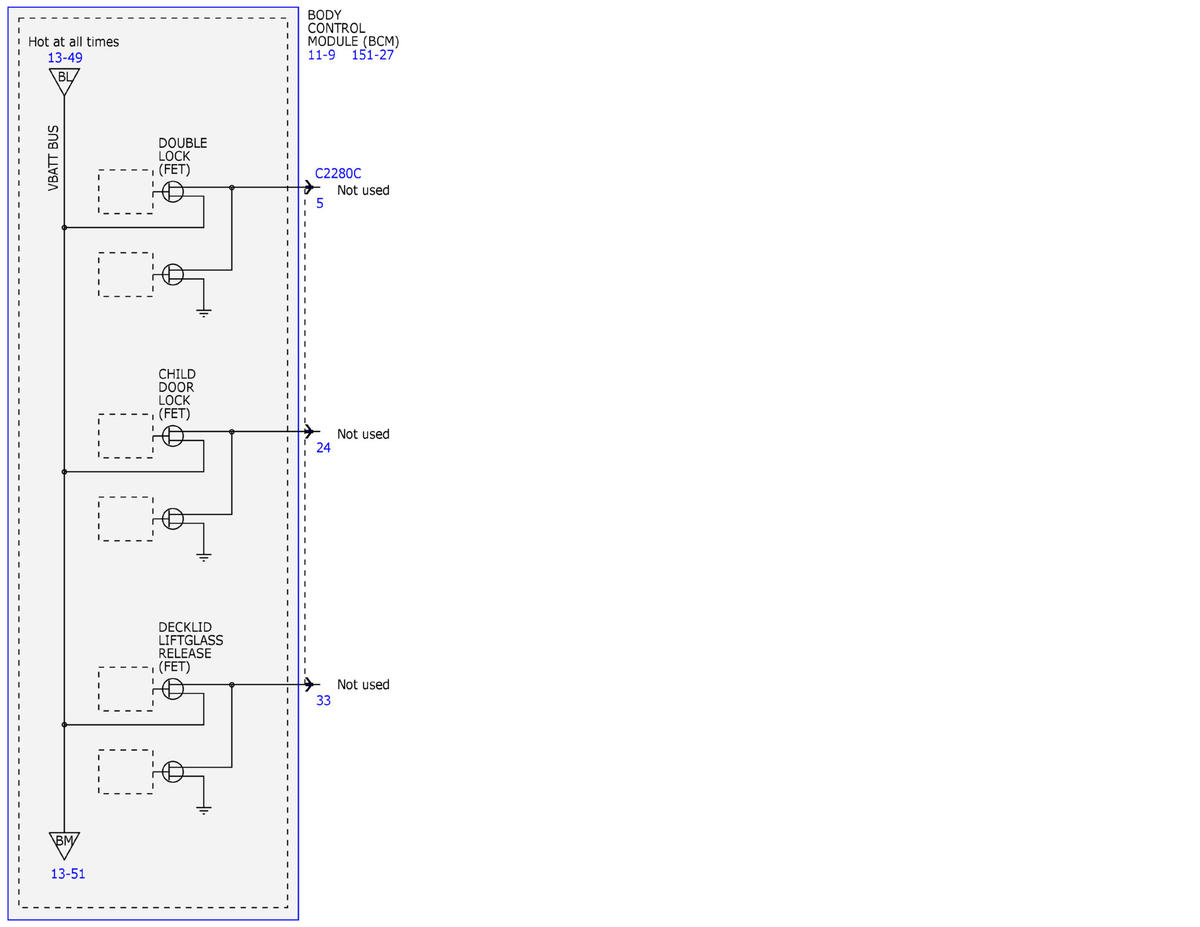

Fig 26: Power Distribution Wiring Diagram (26 Of 69)

GFDWR111086

Courtesy of FORD MOTOR COMPANY

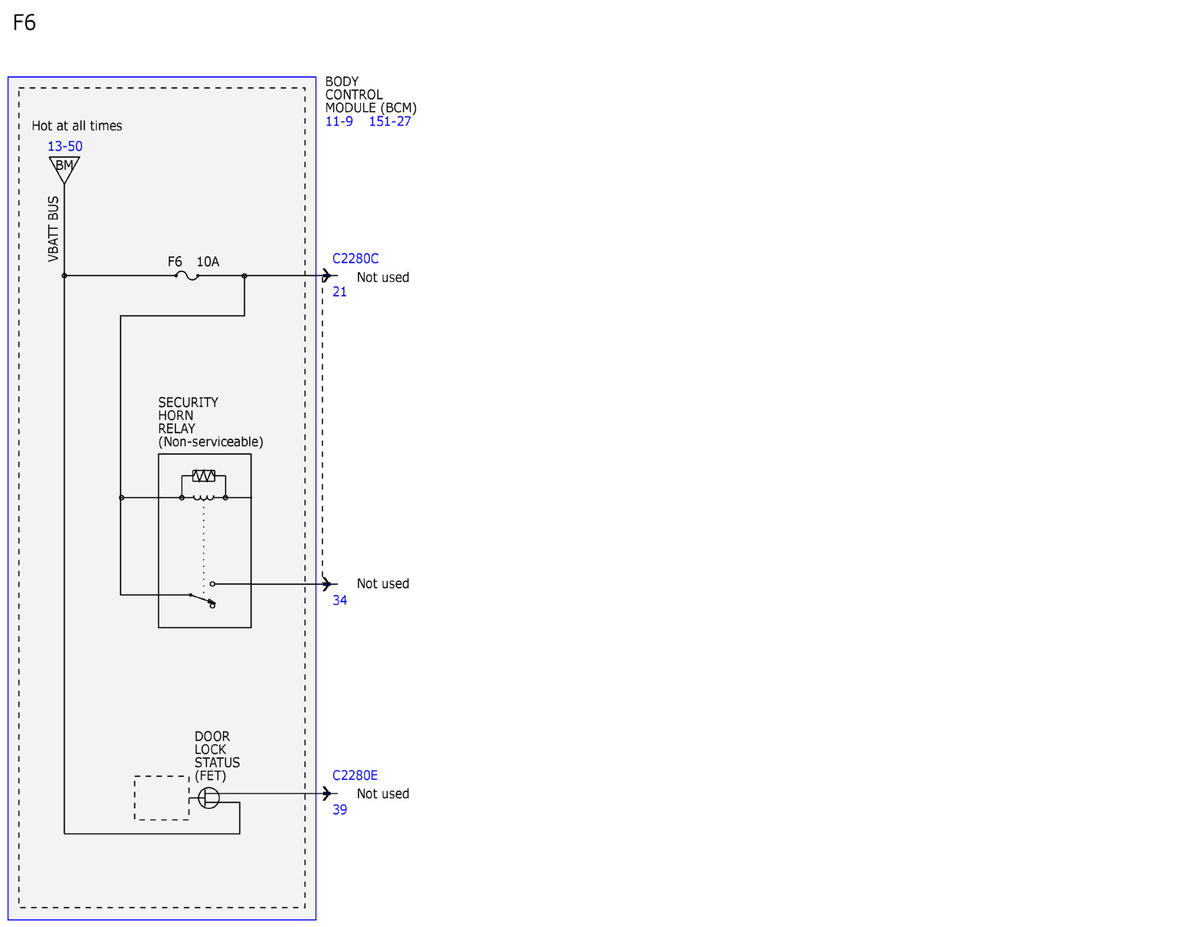

Fig 27: Power Distribution Wiring Diagram (27 Of 69)

GFDWR111087

Courtesy of FORD MOTOR COMPANY

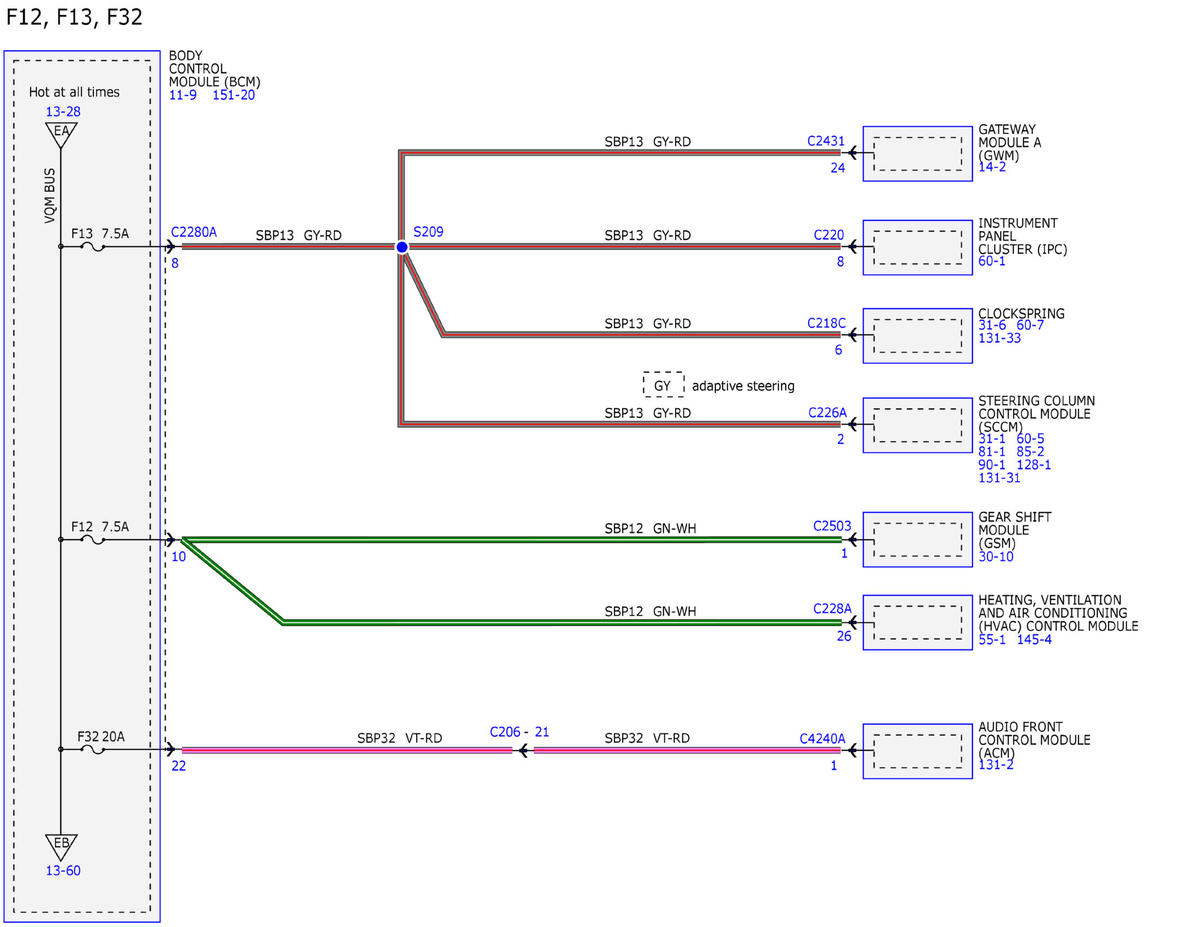

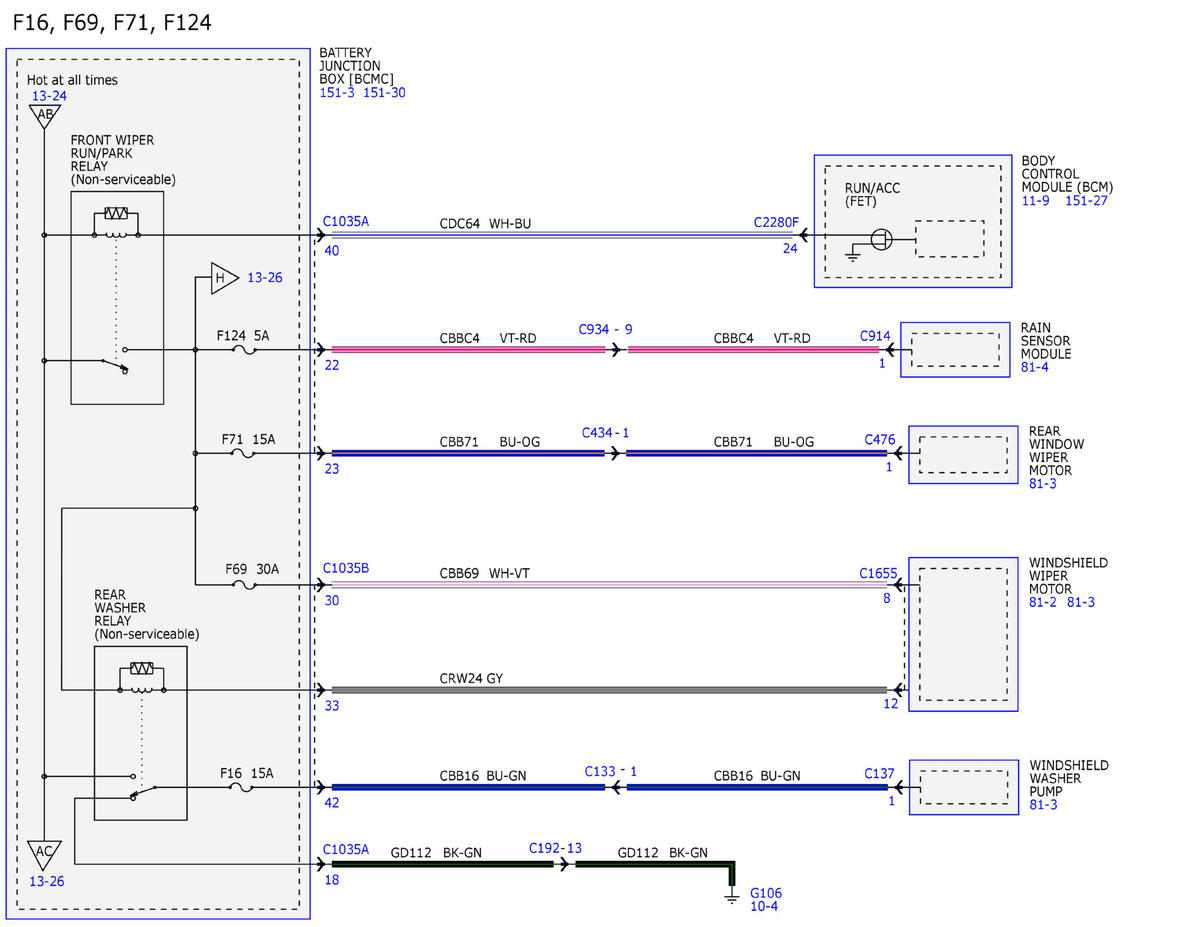

Fig 28: Power Distribution Wiring Diagram (28 Of 69)

GFDWR111088

Courtesy of FORD MOTOR COMPANY

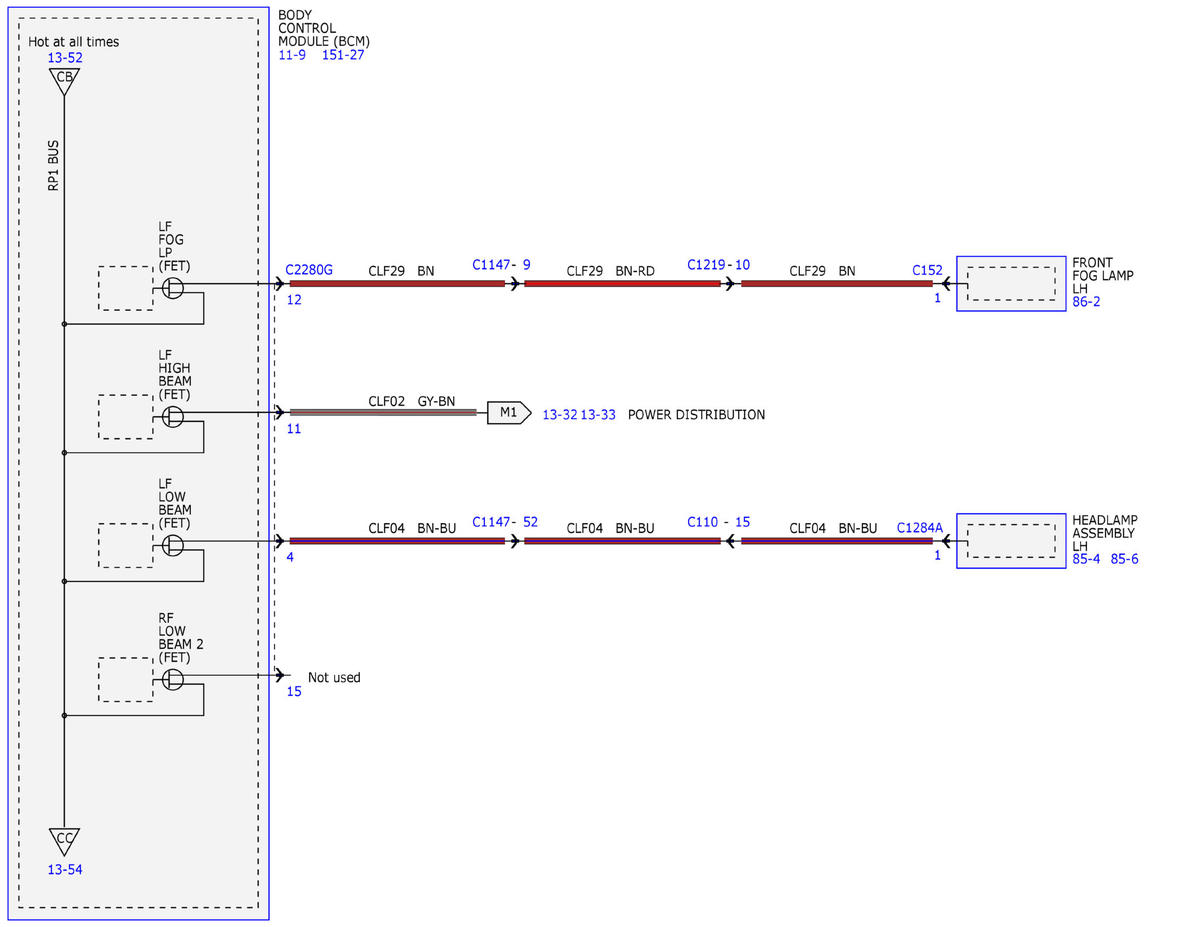

Fig 29: Power Distribution Wiring Diagram (29 Of 69)

GFDWR111089

Courtesy of FORD MOTOR COMPANY

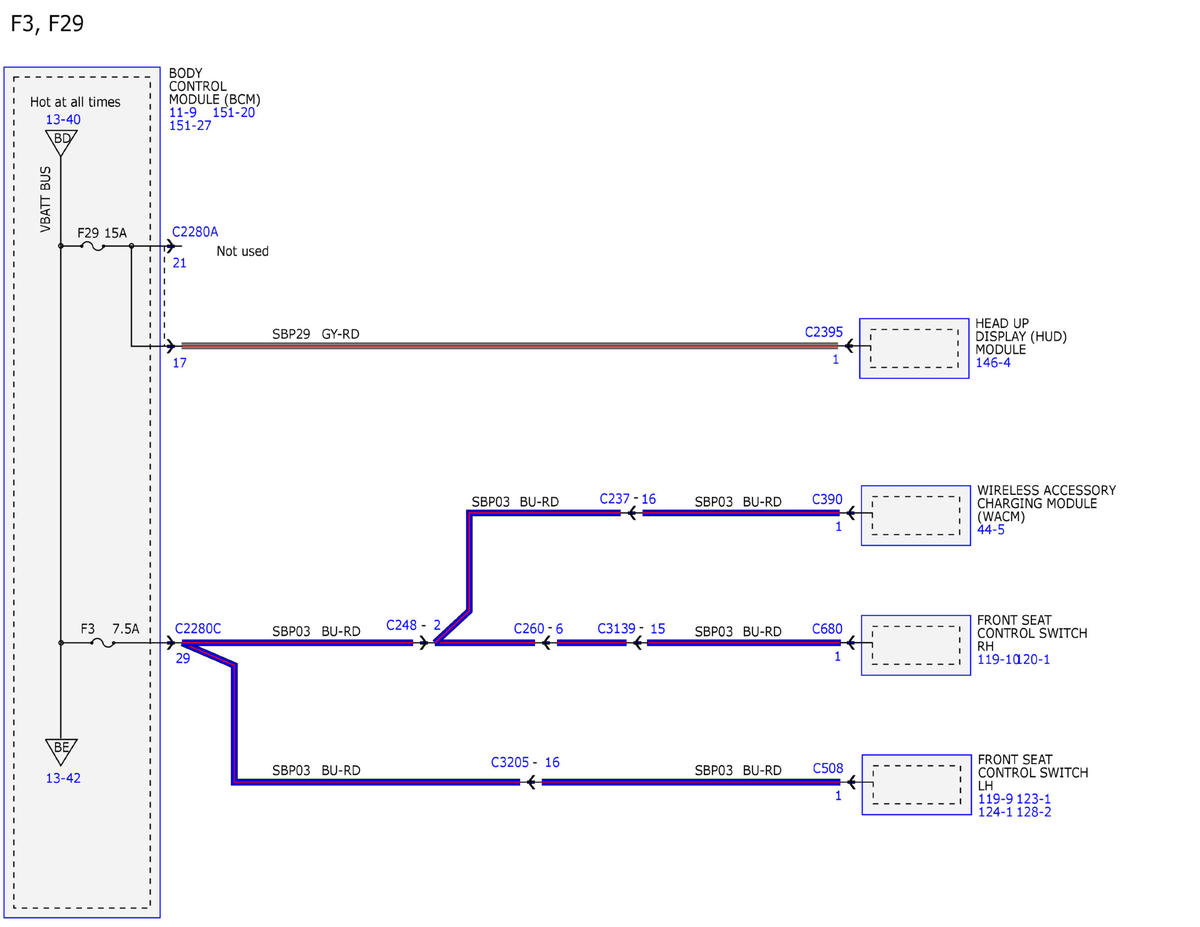

Fig 30: Power Distribution Wiring Diagram (30 Of 69)

GFDWR111090

Courtesy of FORD MOTOR COMPANY

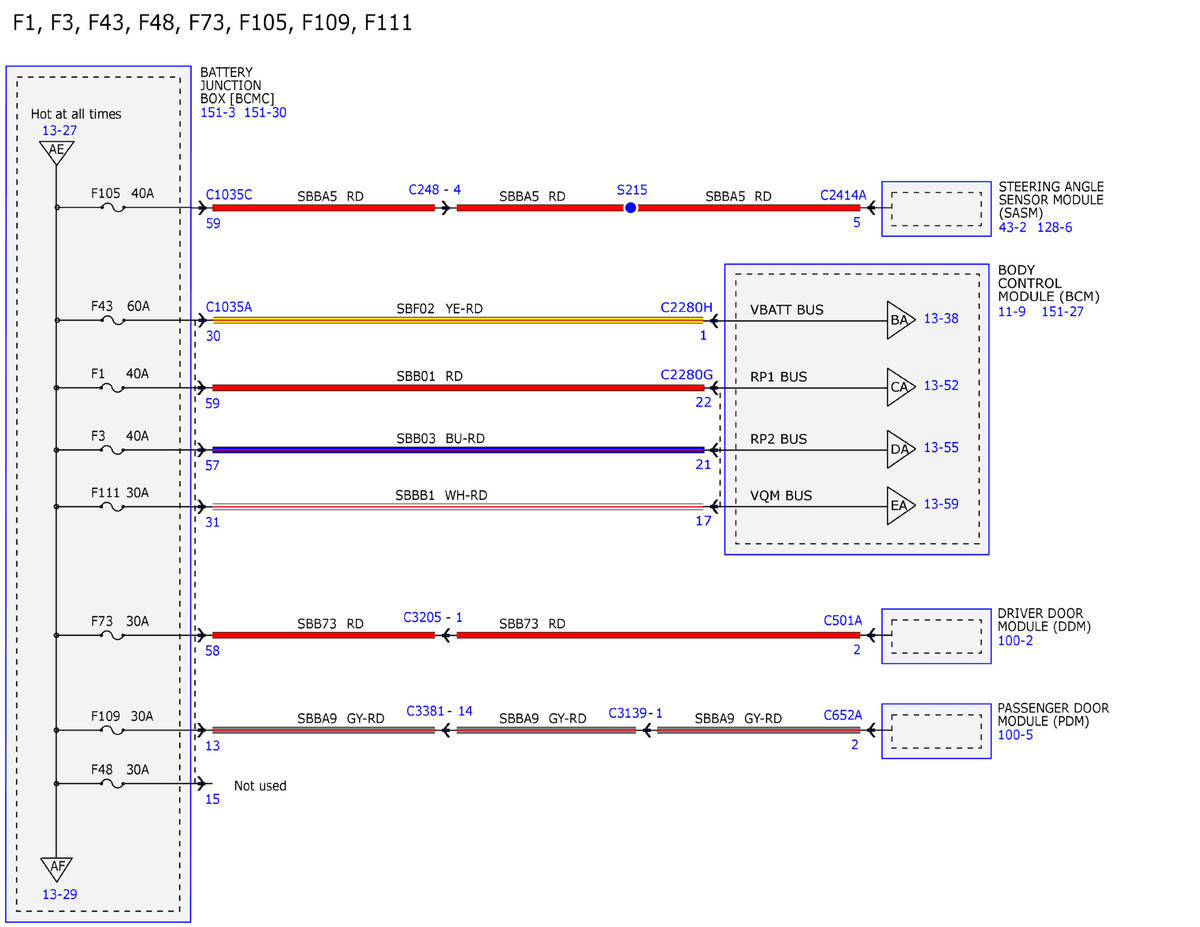

Fig 31: Power Distribution Wiring Diagram (31 Of 69)

GFDWR111091

Courtesy of FORD MOTOR COMPANY

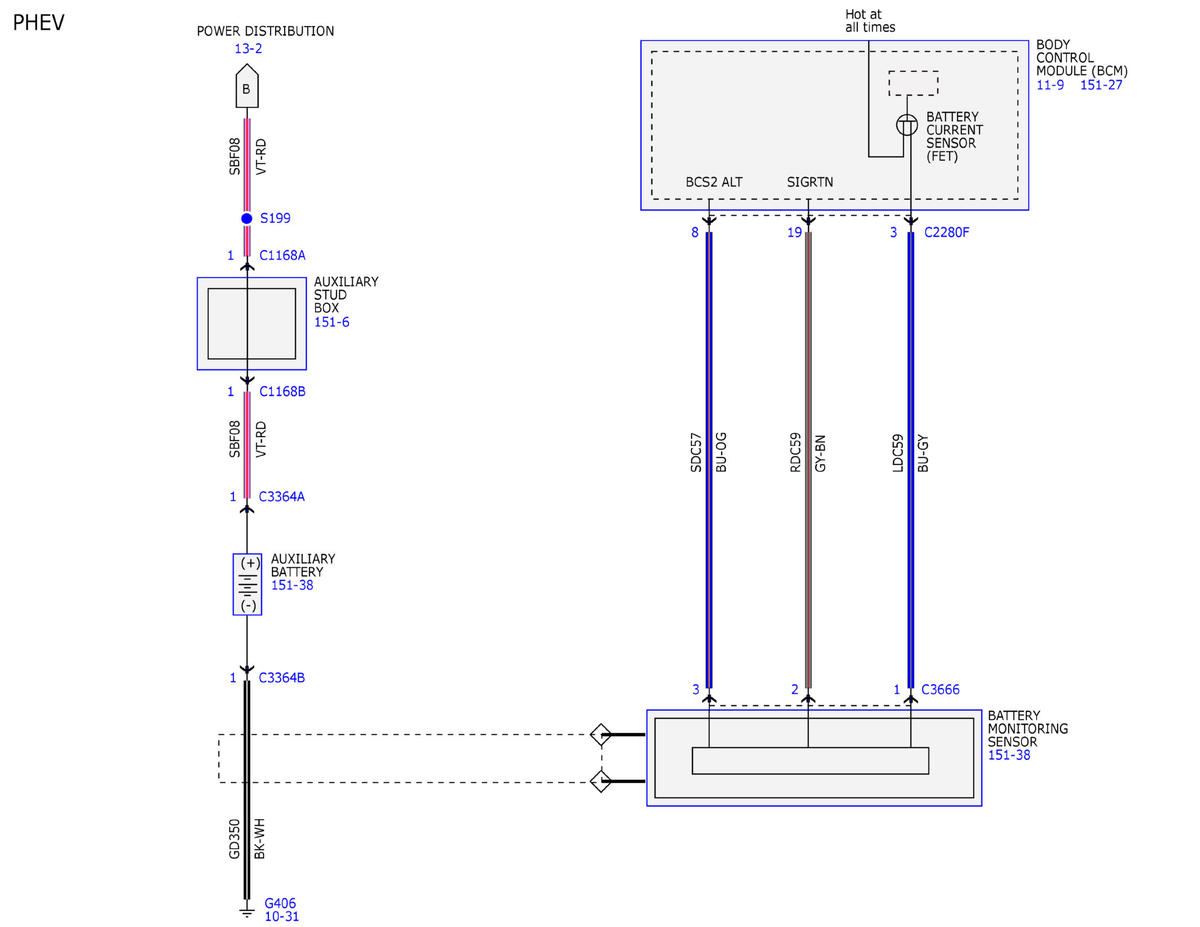

Fig 32: Power Distribution Wiring Diagram (32 Of 69)

GFDWR111092

Courtesy of FORD MOTOR COMPANY

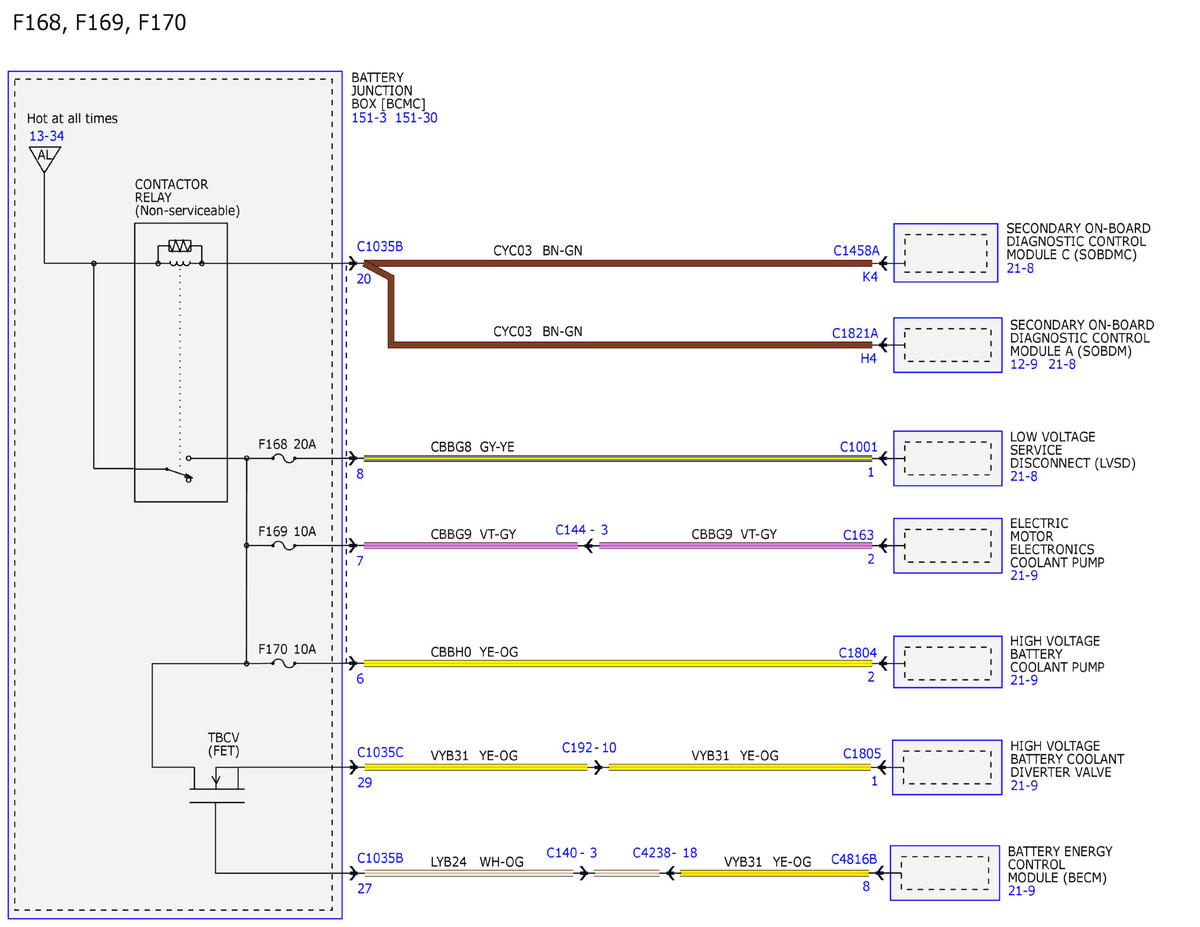

Fig 33: Power Distribution Wiring Diagram (33 Of 69)

GFDWR111093

Courtesy of FORD MOTOR COMPANY

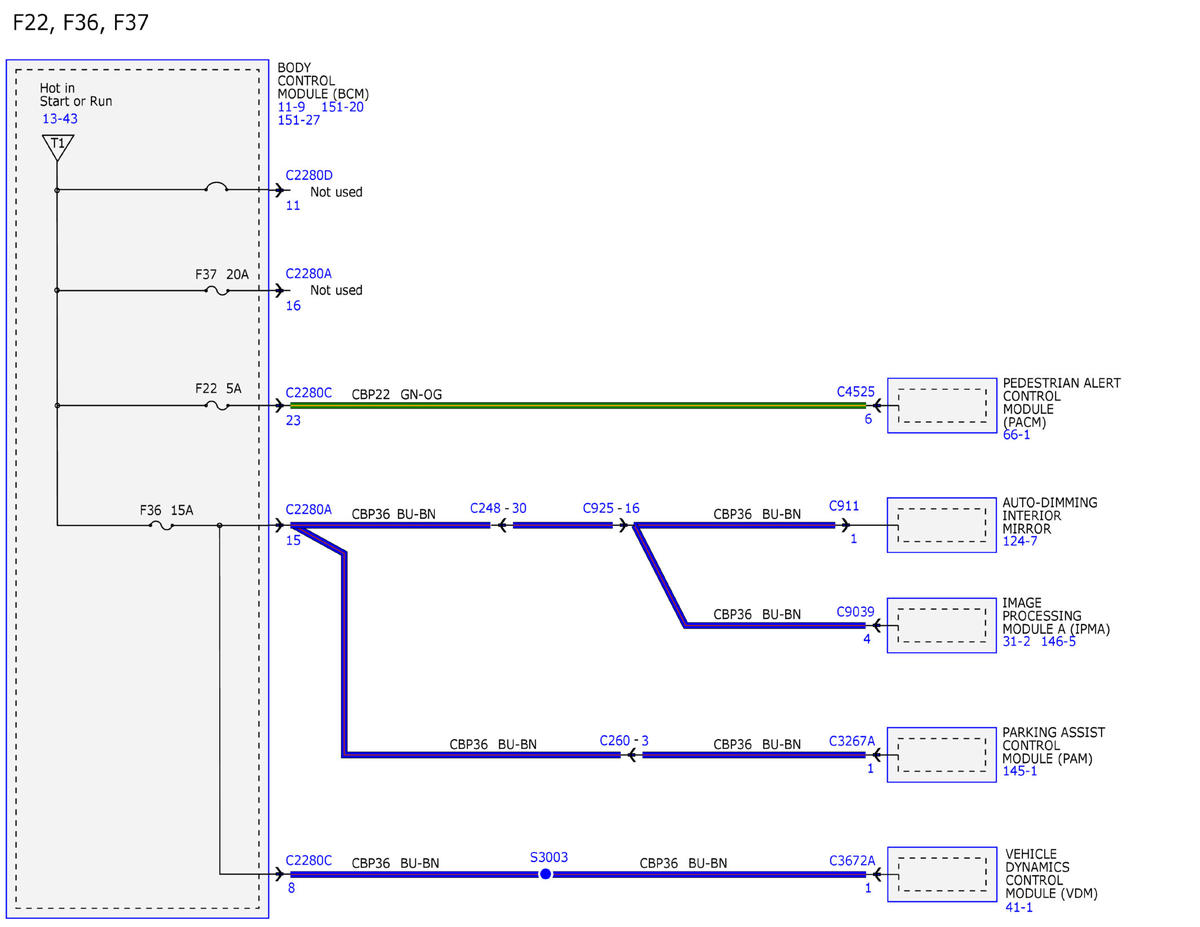

Fig 34: Power Distribution Wiring Diagram (34 Of 69)

GFDWR111094

Courtesy of FORD MOTOR COMPANY

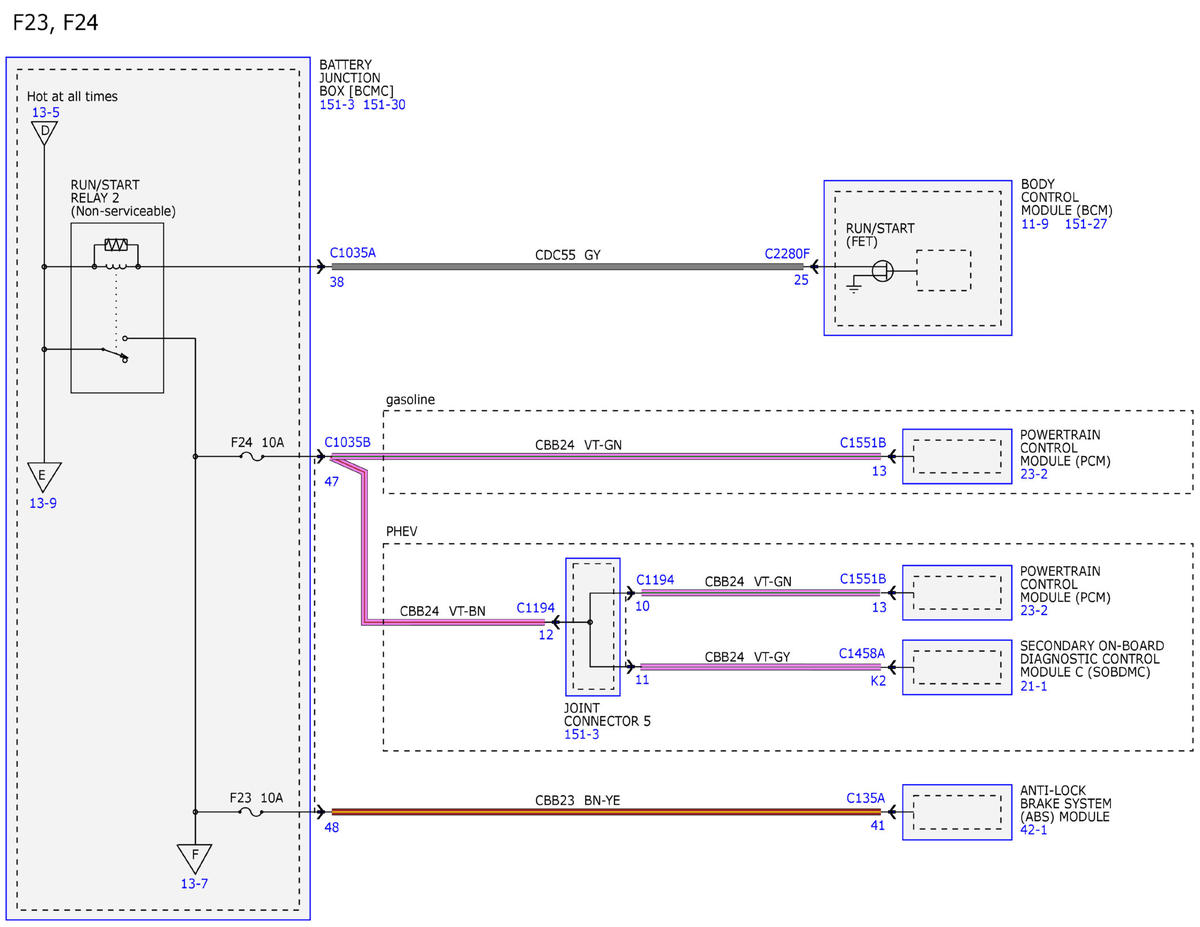

Fig 35: Power Distribution Wiring Diagram (35 Of 69)

GFDWR111095

Courtesy of FORD MOTOR COMPANY

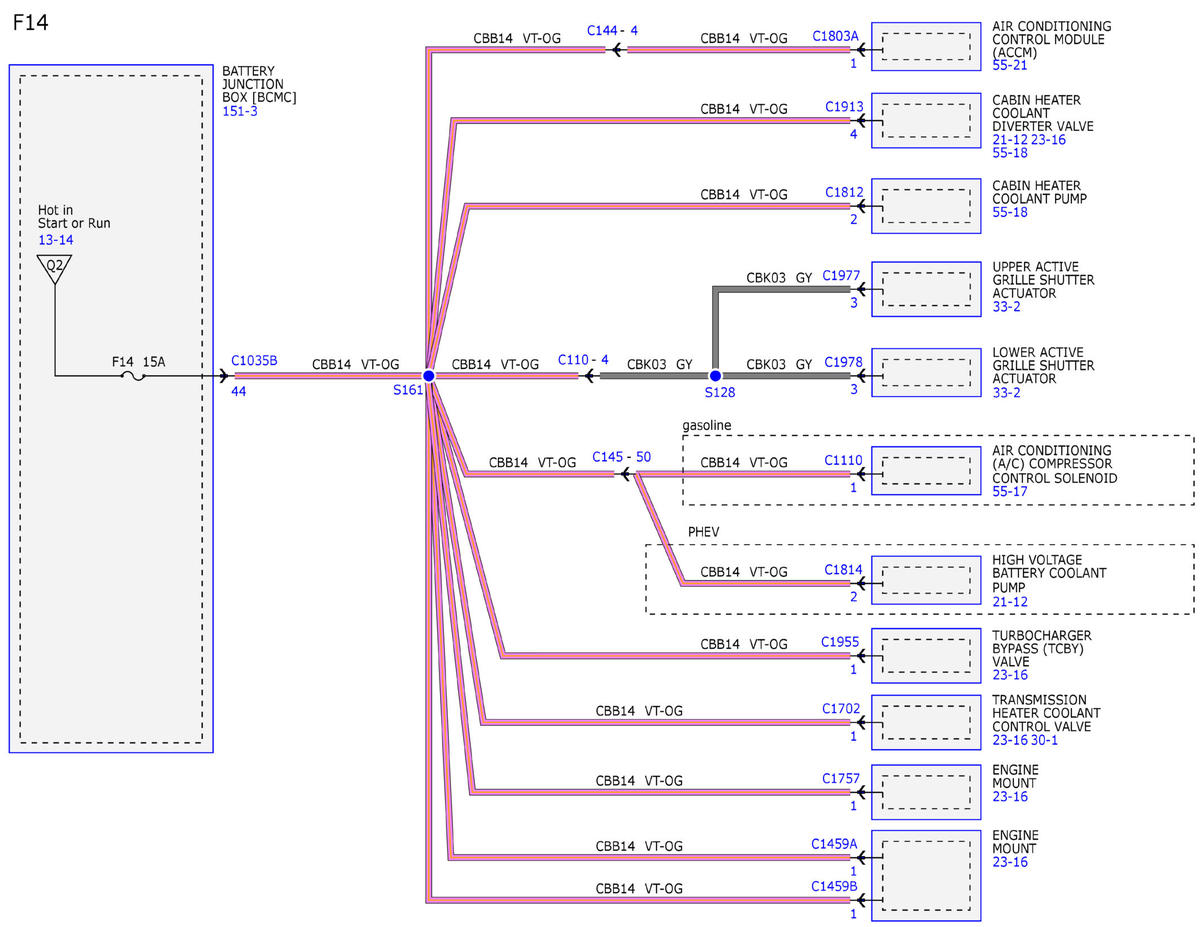

Fig 36: Power Distribution Wiring Diagram (36 Of 69)

GFDWR111096

Courtesy of FORD MOTOR COMPANY

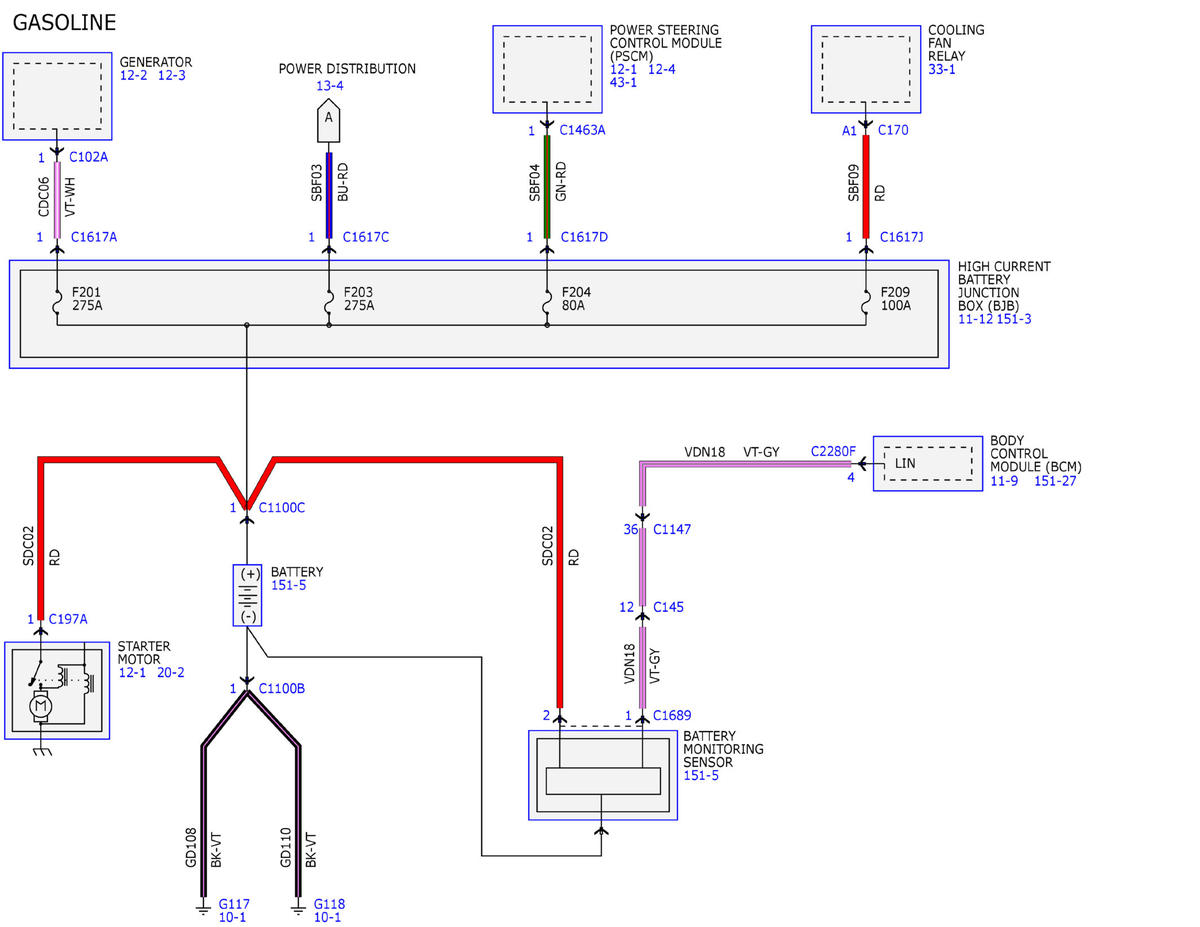

Fig 37: Power Distribution Wiring Diagram (37 Of 69)

GFDWR111097

Courtesy of FORD MOTOR COMPANY

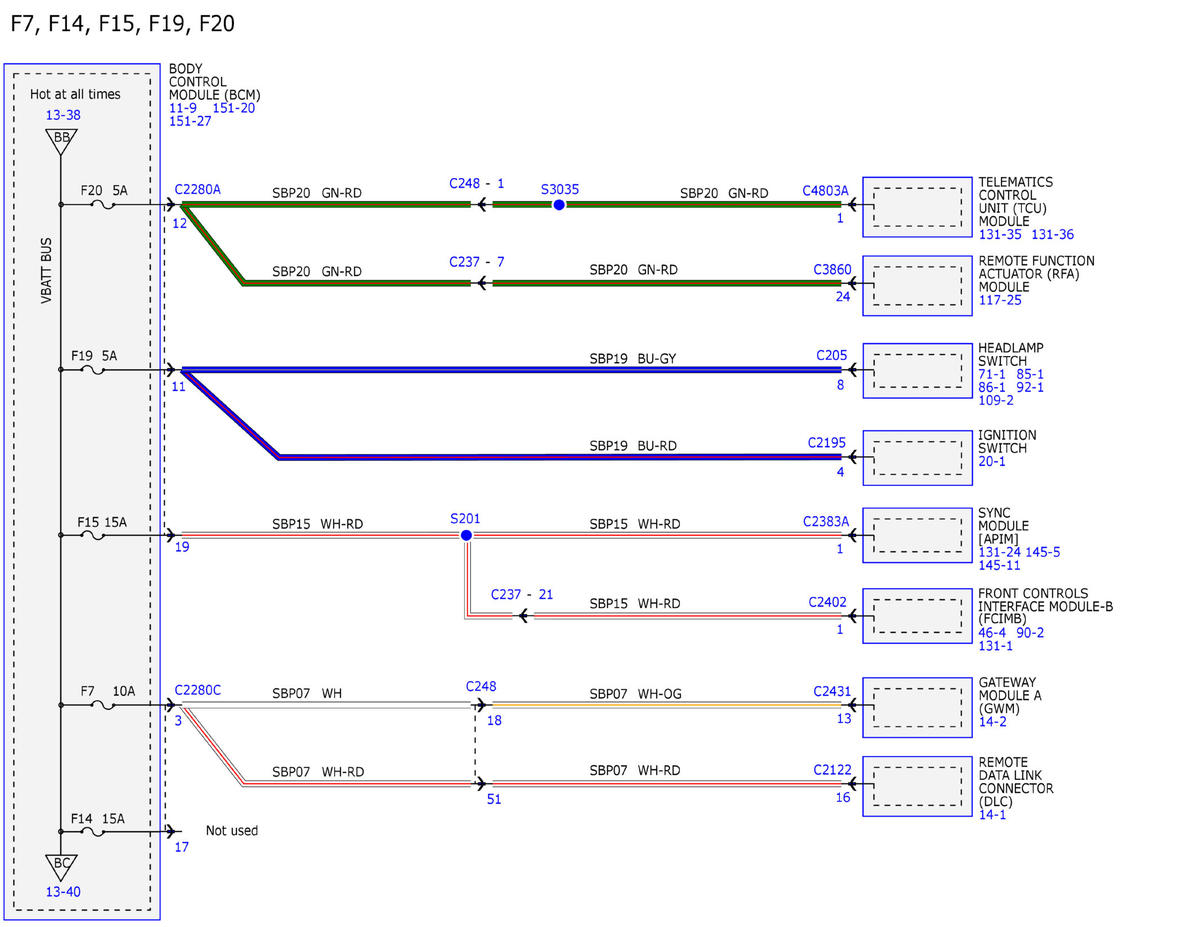

Fig 38: Power Distribution Wiring Diagram (38 Of 69)

GFDWR111098

Courtesy of FORD MOTOR COMPANY

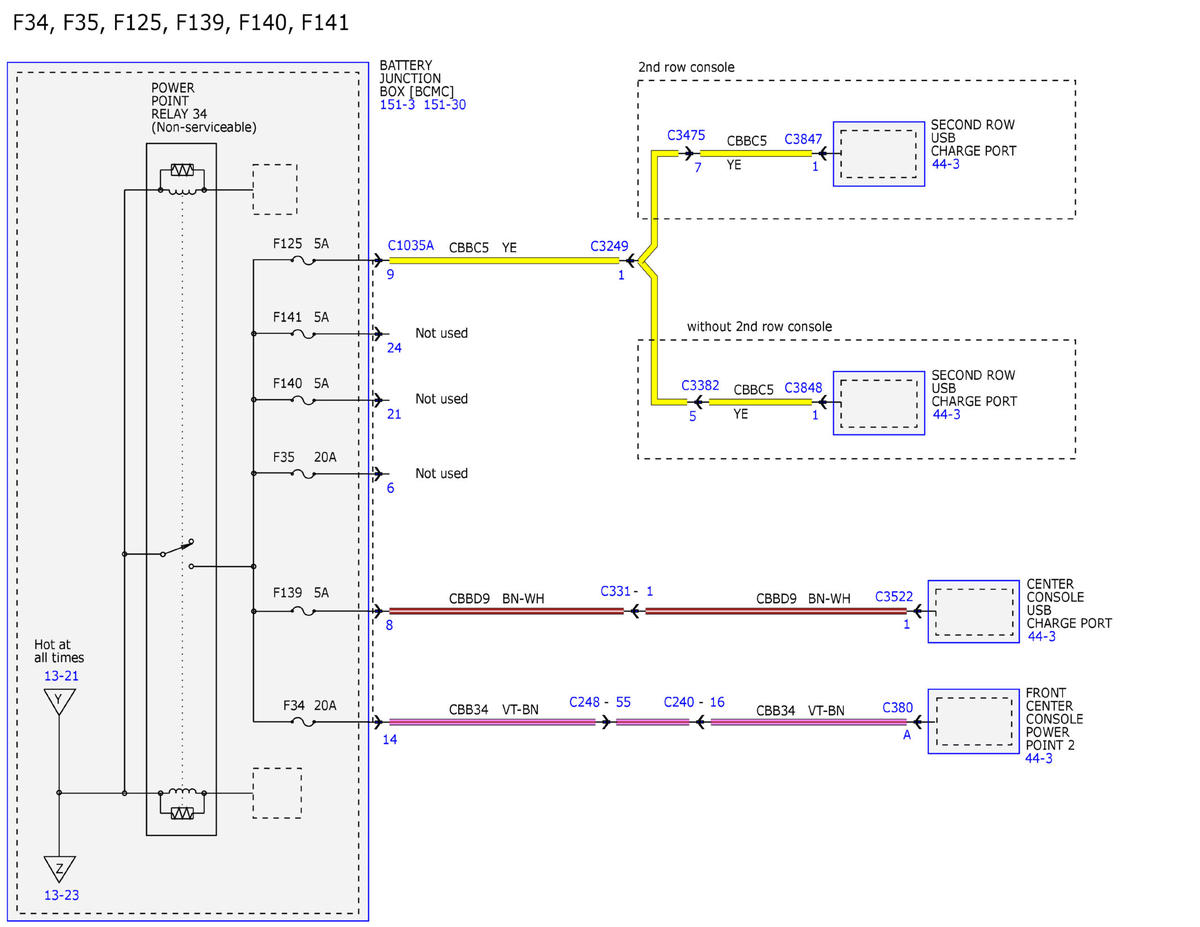

Fig 39: Power Distribution Wiring Diagram (39 Of 69)

GFDWR111099

Courtesy of FORD MOTOR COMPANY

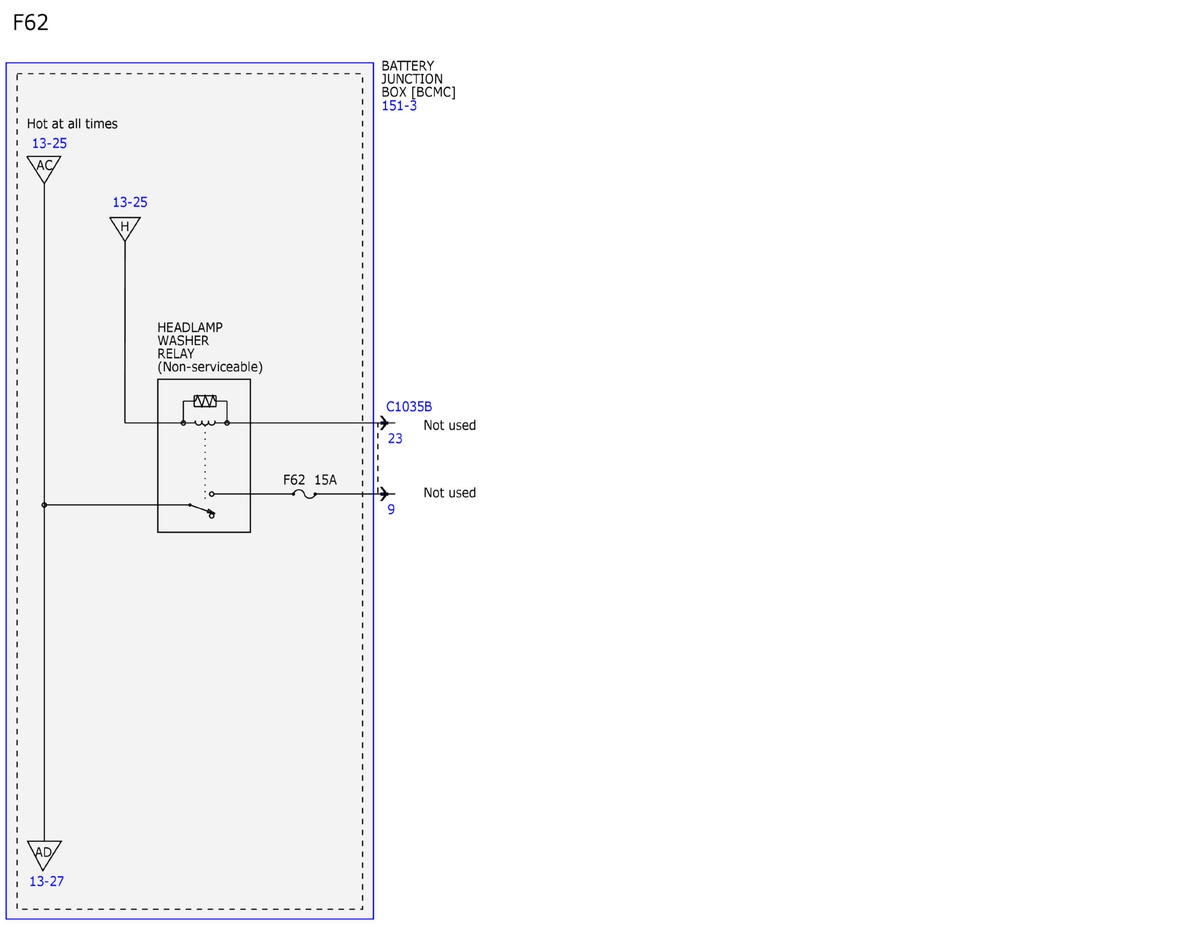

Fig 40: Power Distribution Wiring Diagram (40 Of 69)

GFDWR111100

Courtesy of FORD MOTOR COMPANY

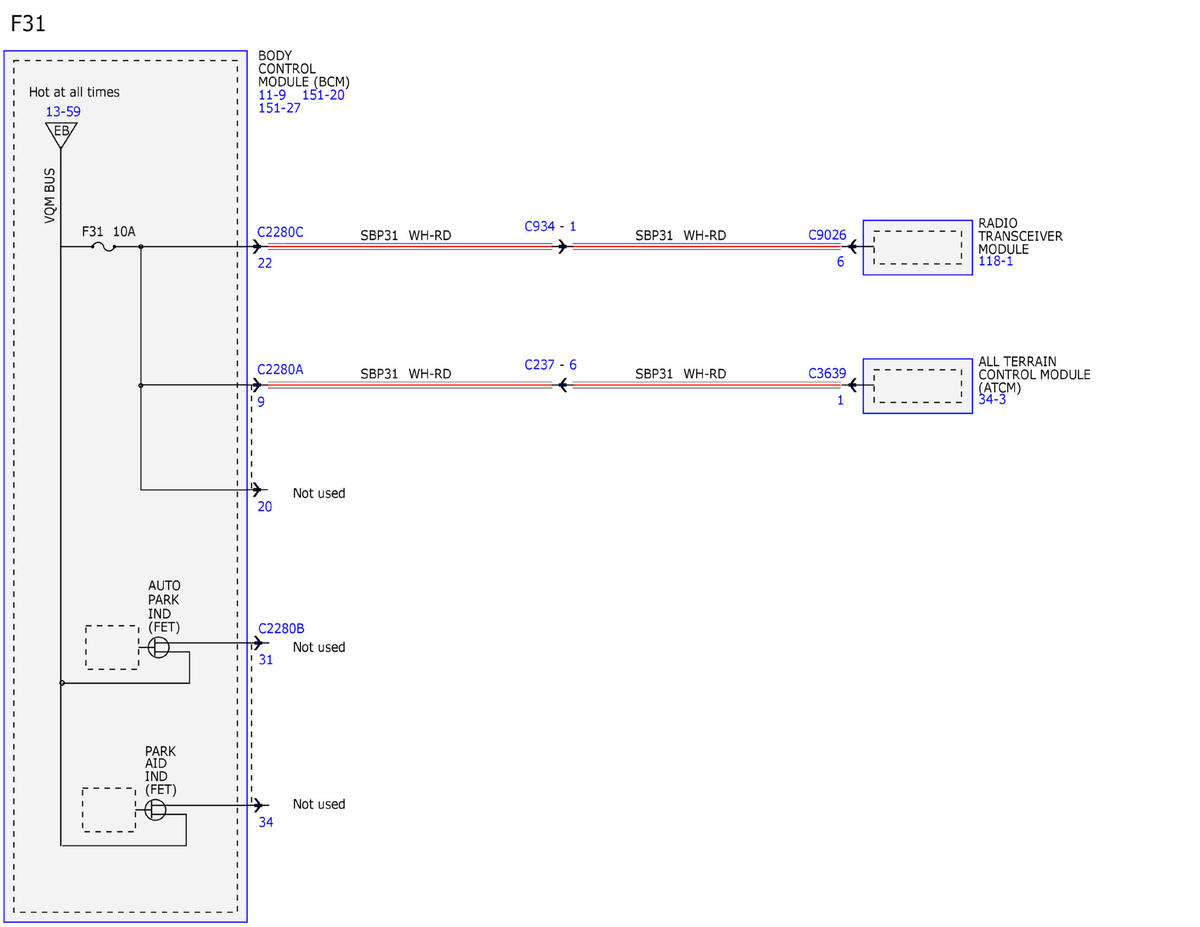

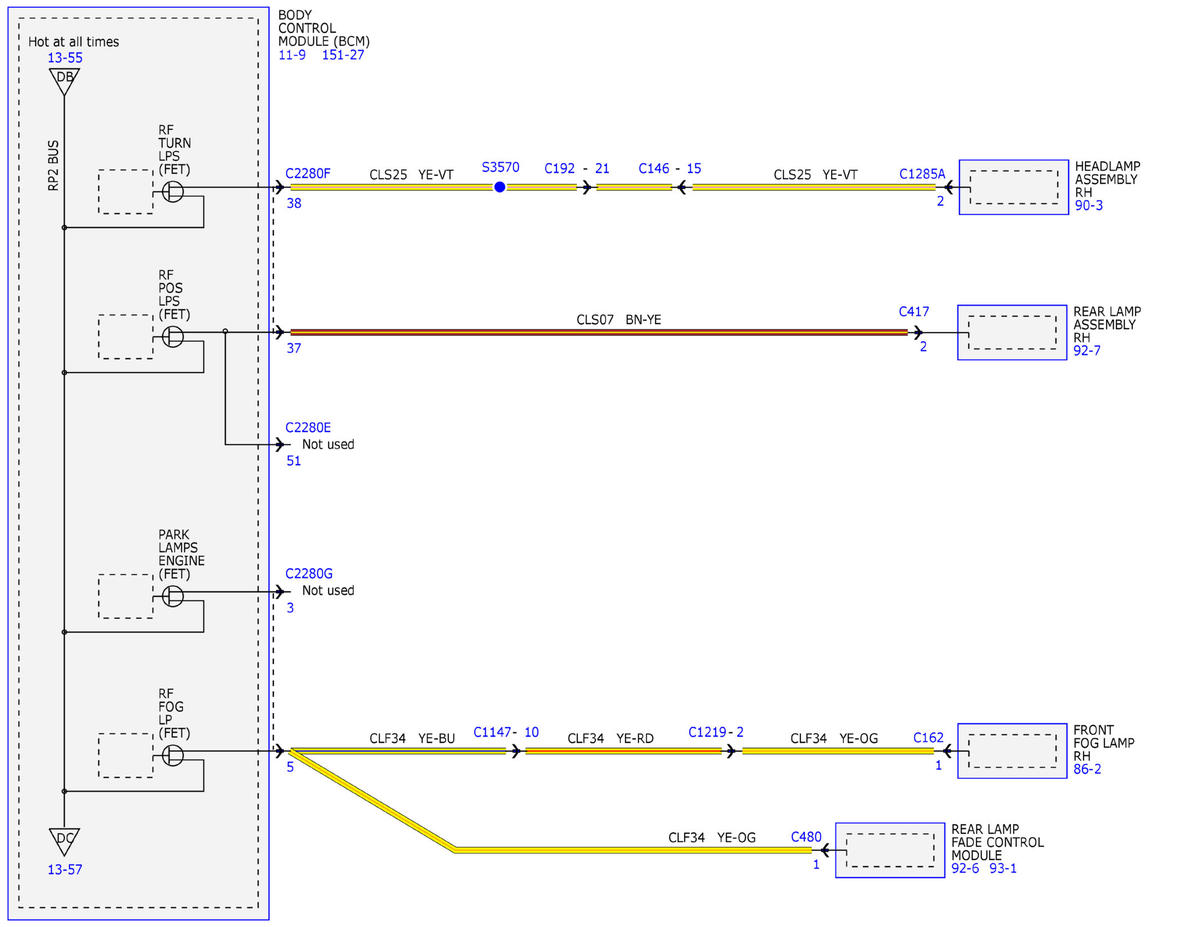

Fig 41: Power Distribution Wiring Diagram (41 Of 69)

GFDWR111101

Courtesy of FORD MOTOR COMPANY

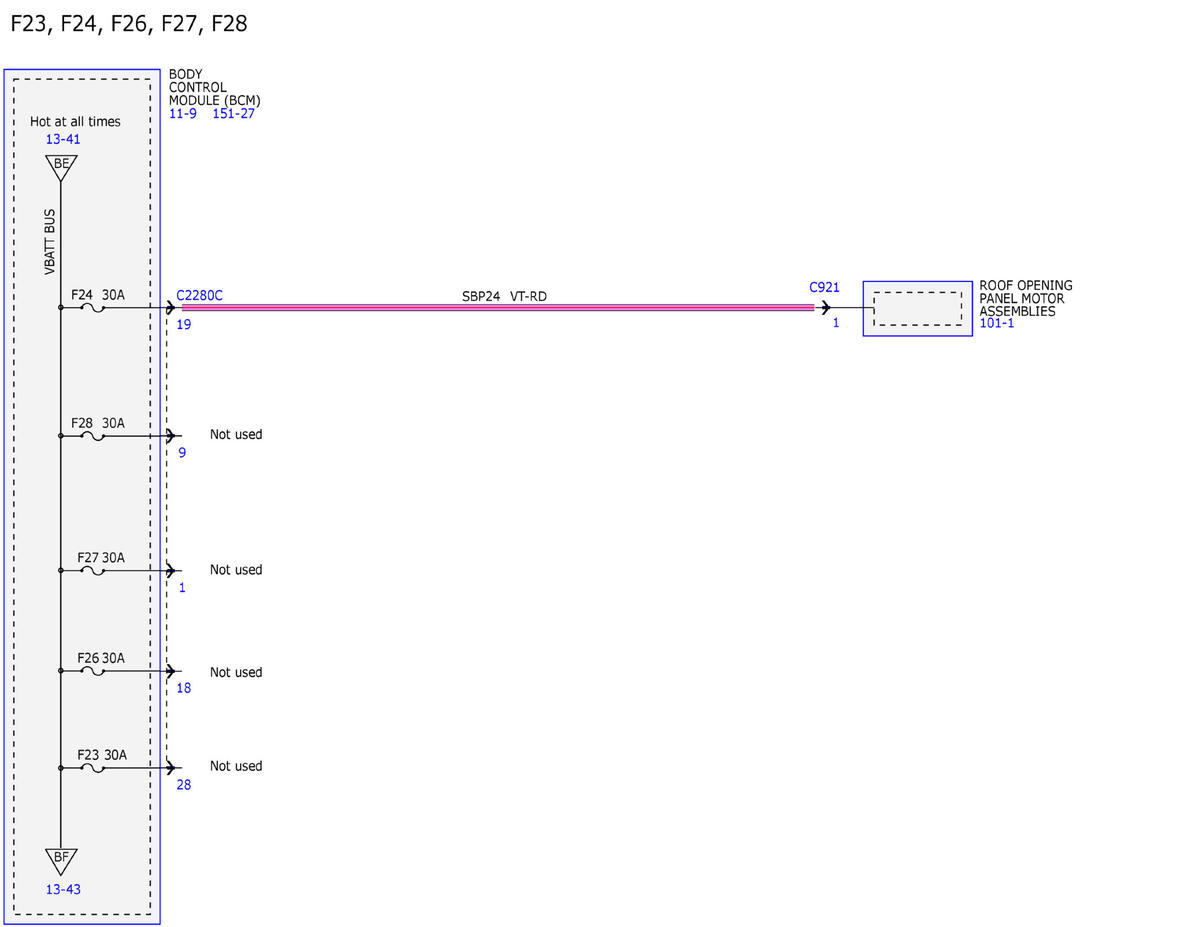

Fig 42: Power Distribution Wiring Diagram (42 Of 69)

GFDWR111102

Courtesy of FORD MOTOR COMPANY

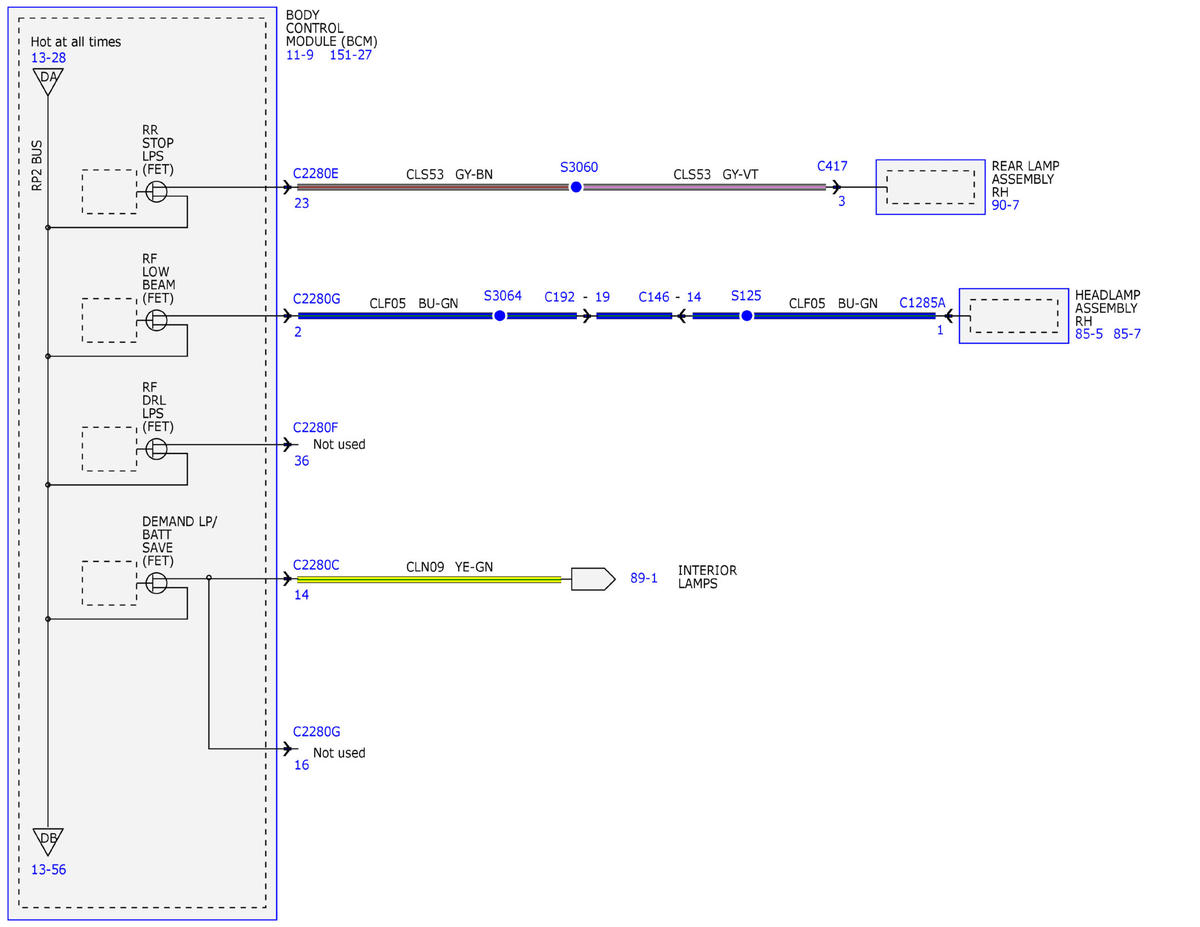

Fig 43: Power Distribution Wiring Diagram (43 Of 69)

GFDWR111103

Courtesy of FORD MOTOR COMPANY

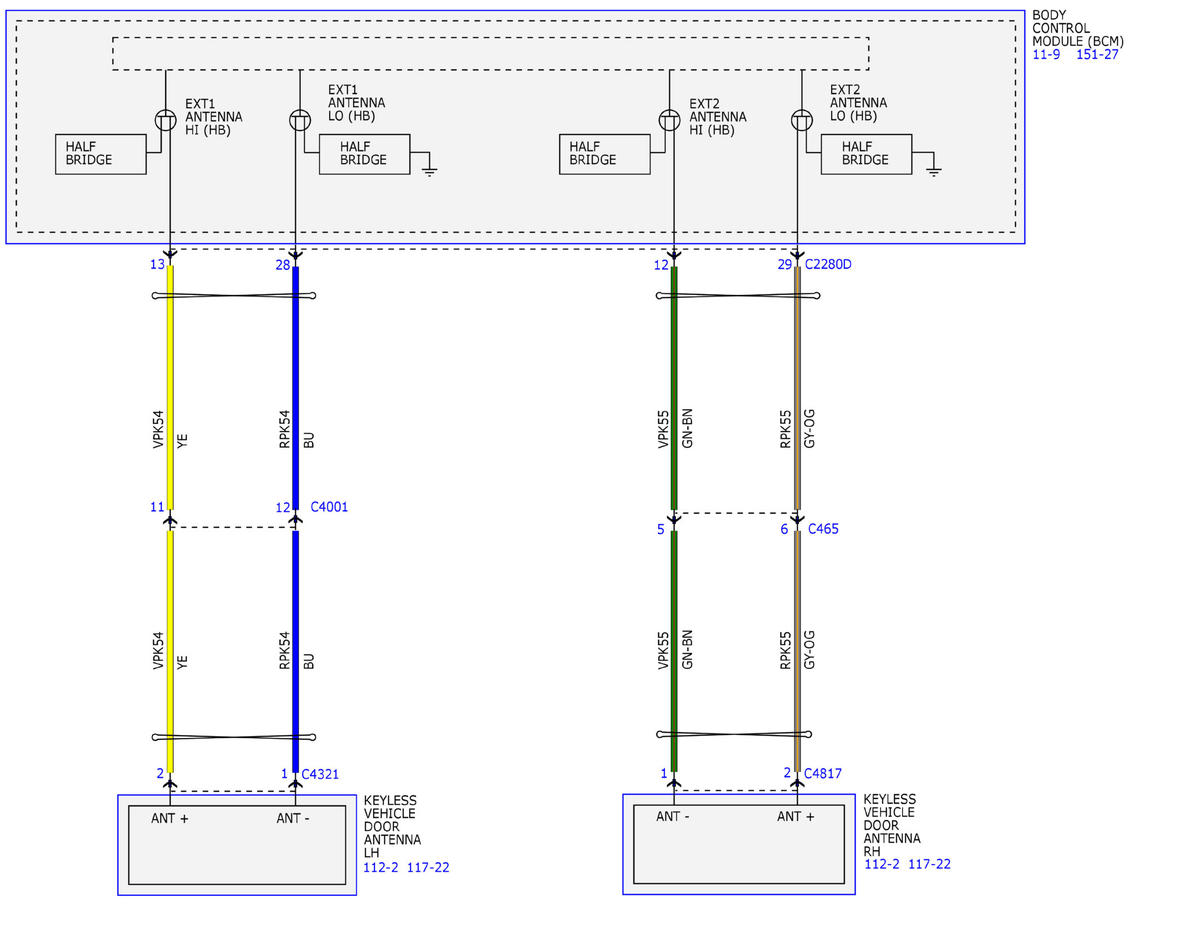

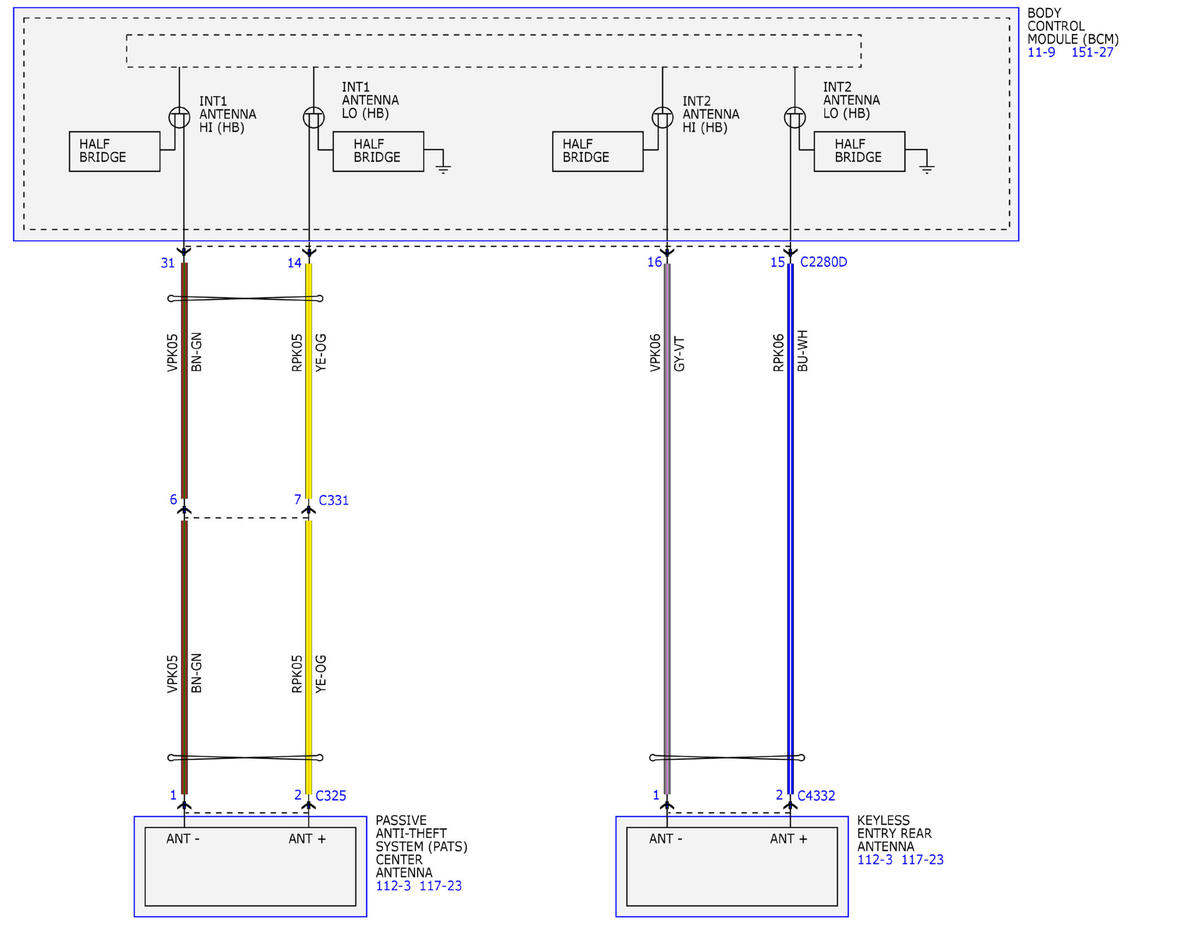

Fig 44: Power Distribution Wiring Diagram (44 Of 69)

GFDWR111104

Courtesy of FORD MOTOR COMPANY

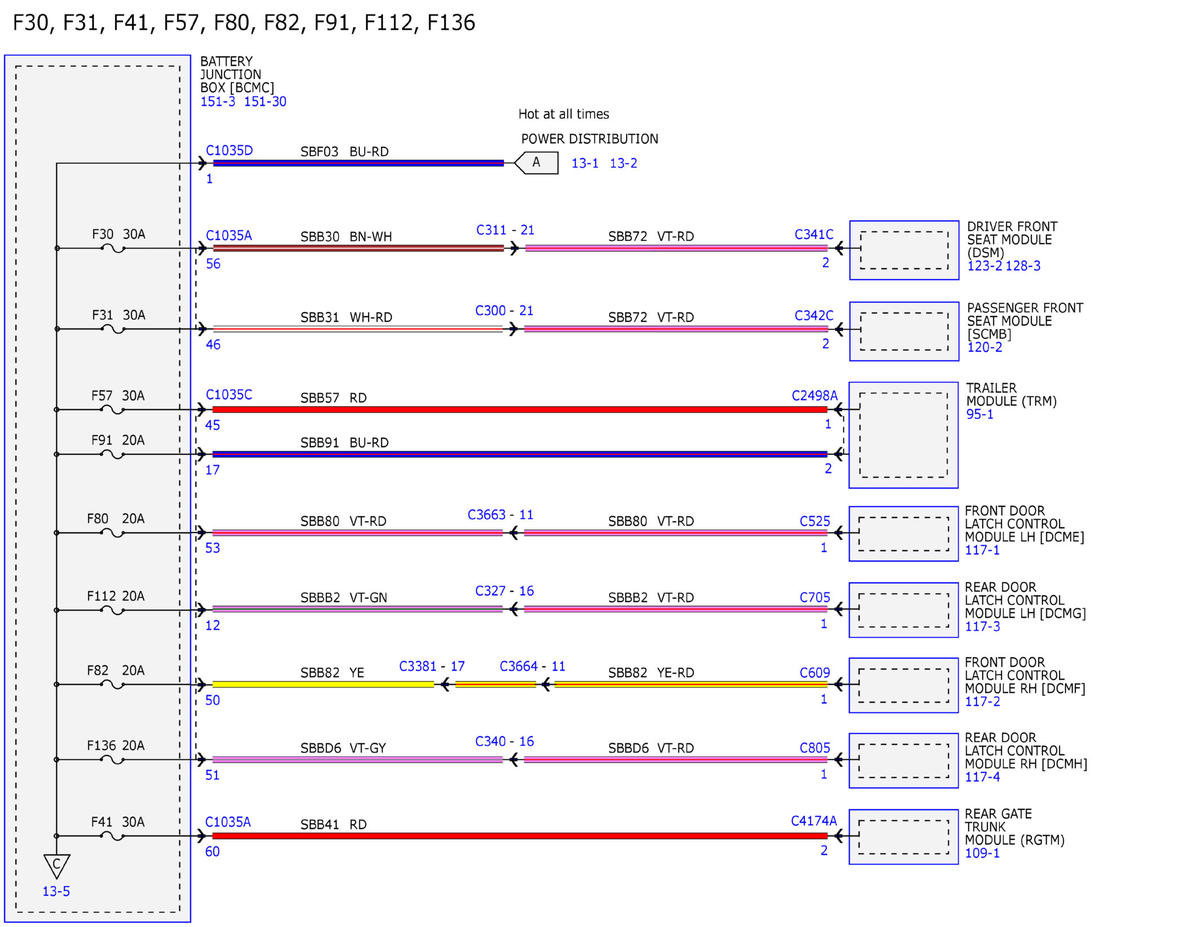

Fig 45: Power Distribution Wiring Diagram (45 Of 69)

GFDWR111105

Courtesy of FORD MOTOR COMPANY

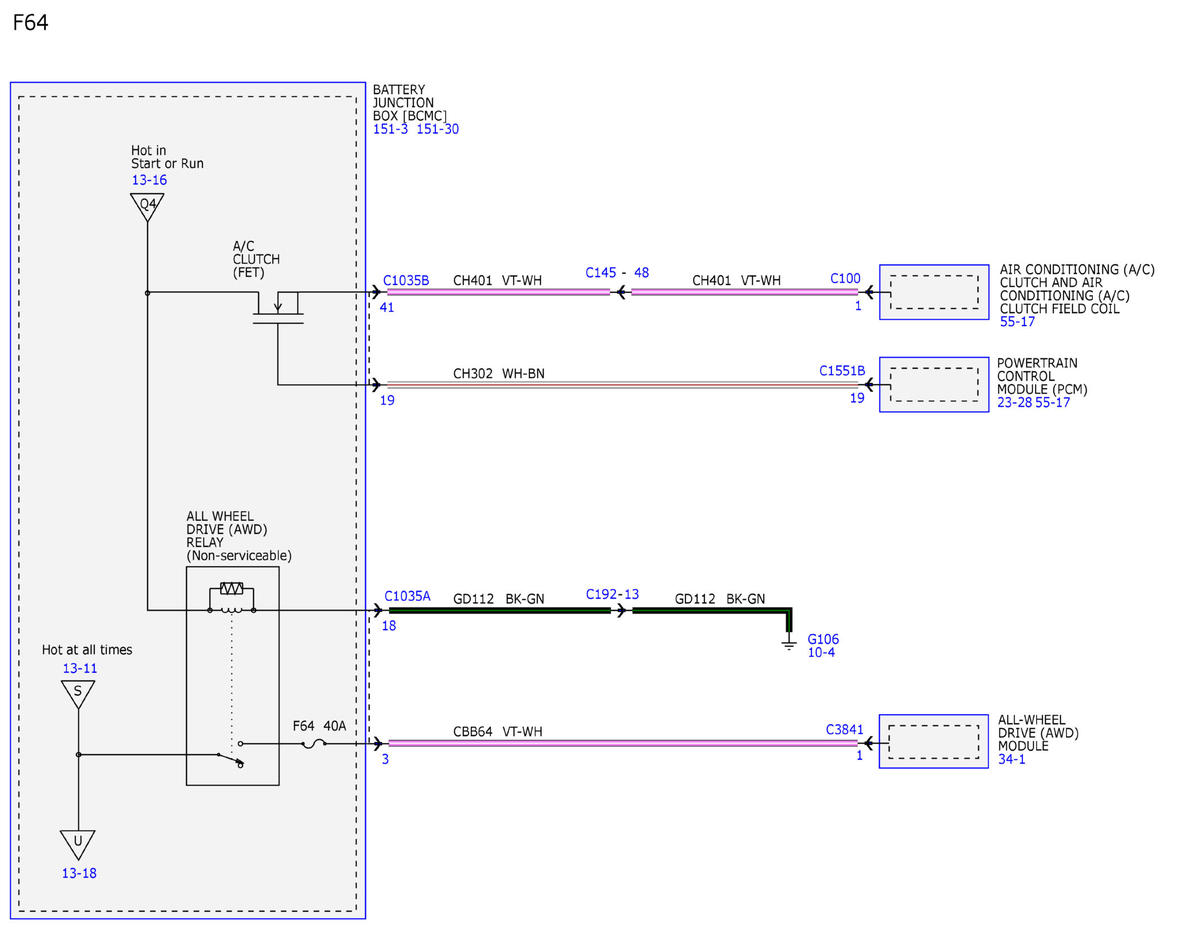

Fig 46: Power Distribution Wiring Diagram (46 Of 69)

GFDWR111106

Courtesy of FORD MOTOR COMPANY

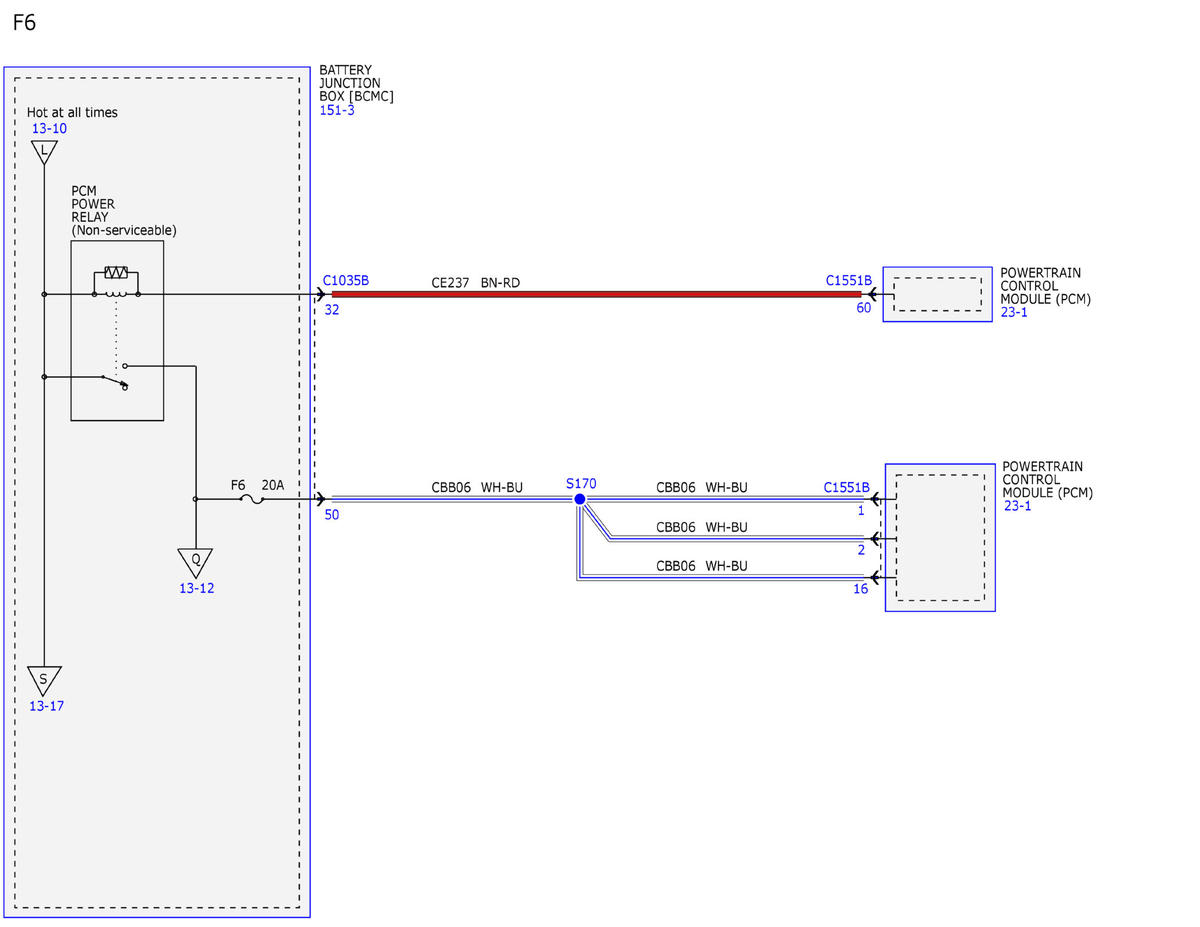

Fig 47: Power Distribution Wiring Diagram (47 Of 69)

GFDWR111107

Courtesy of FORD MOTOR COMPANY

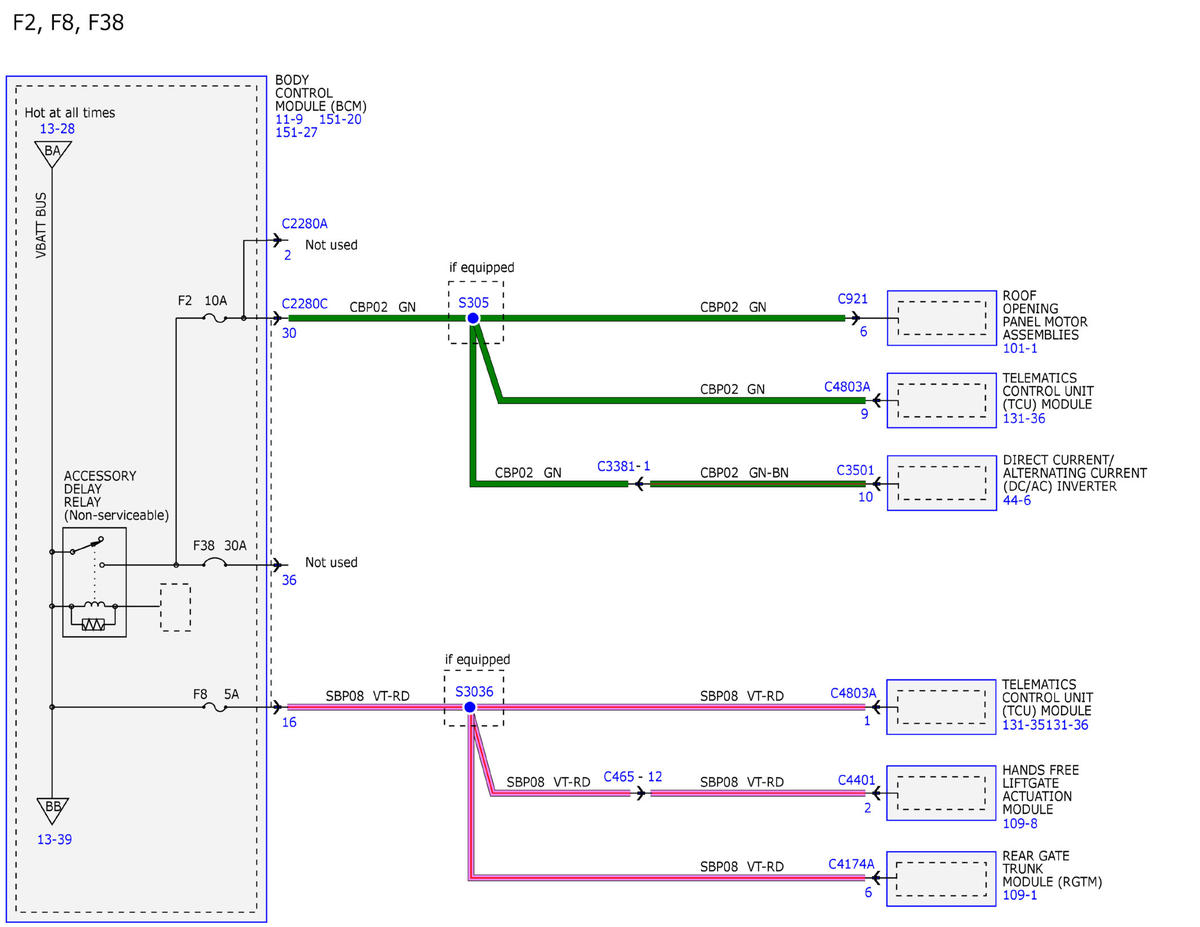

Fig 48: Power Distribution Wiring Diagram (48 Of 69)

GFDWR111108

Courtesy of FORD MOTOR COMPANY

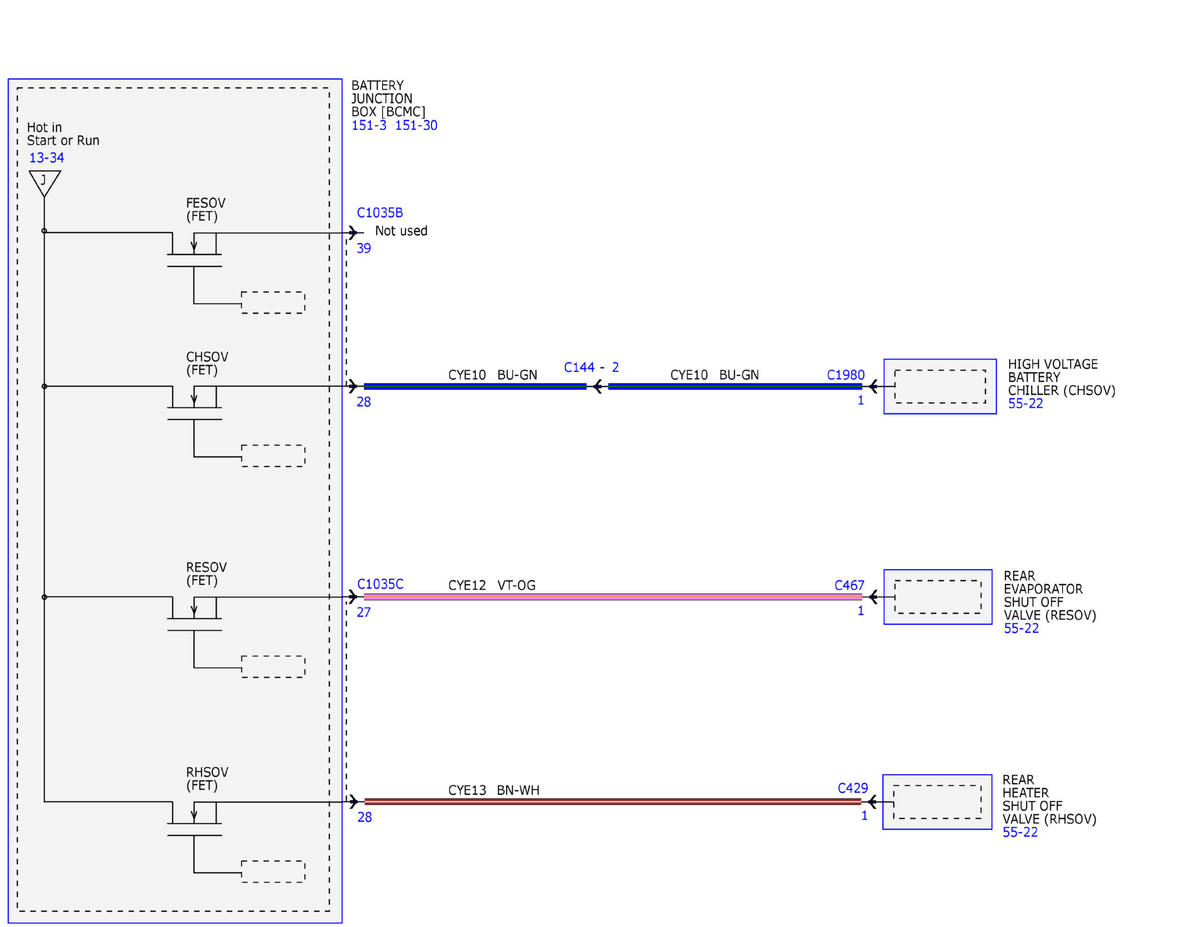

Fig 49: Power Distribution Wiring Diagram (49 Of 69)

GFDWR111109

Courtesy of FORD MOTOR COMPANY

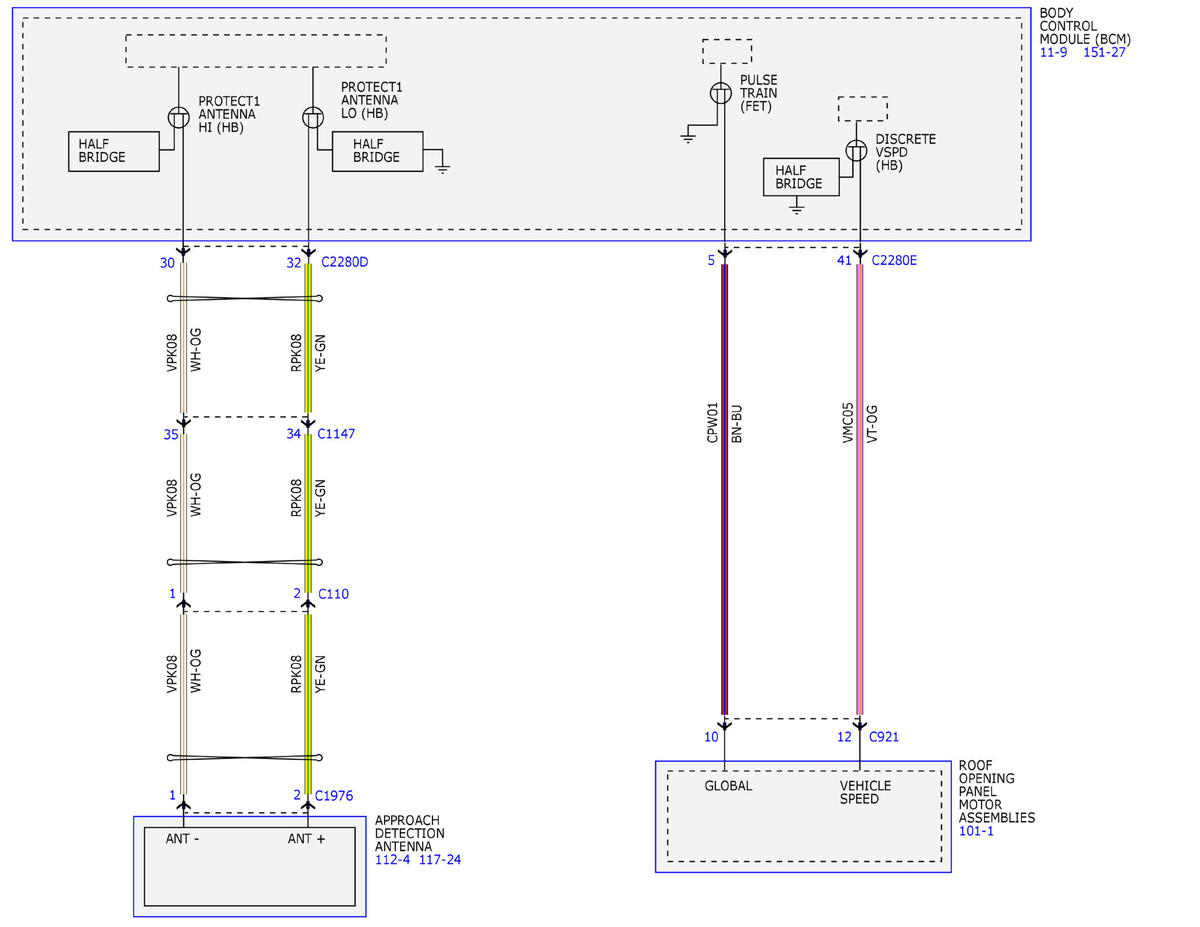

Fig 50: Power Distribution Wiring Diagram (50 Of 69)

GFDWR111110

Courtesy of FORD MOTOR COMPANY

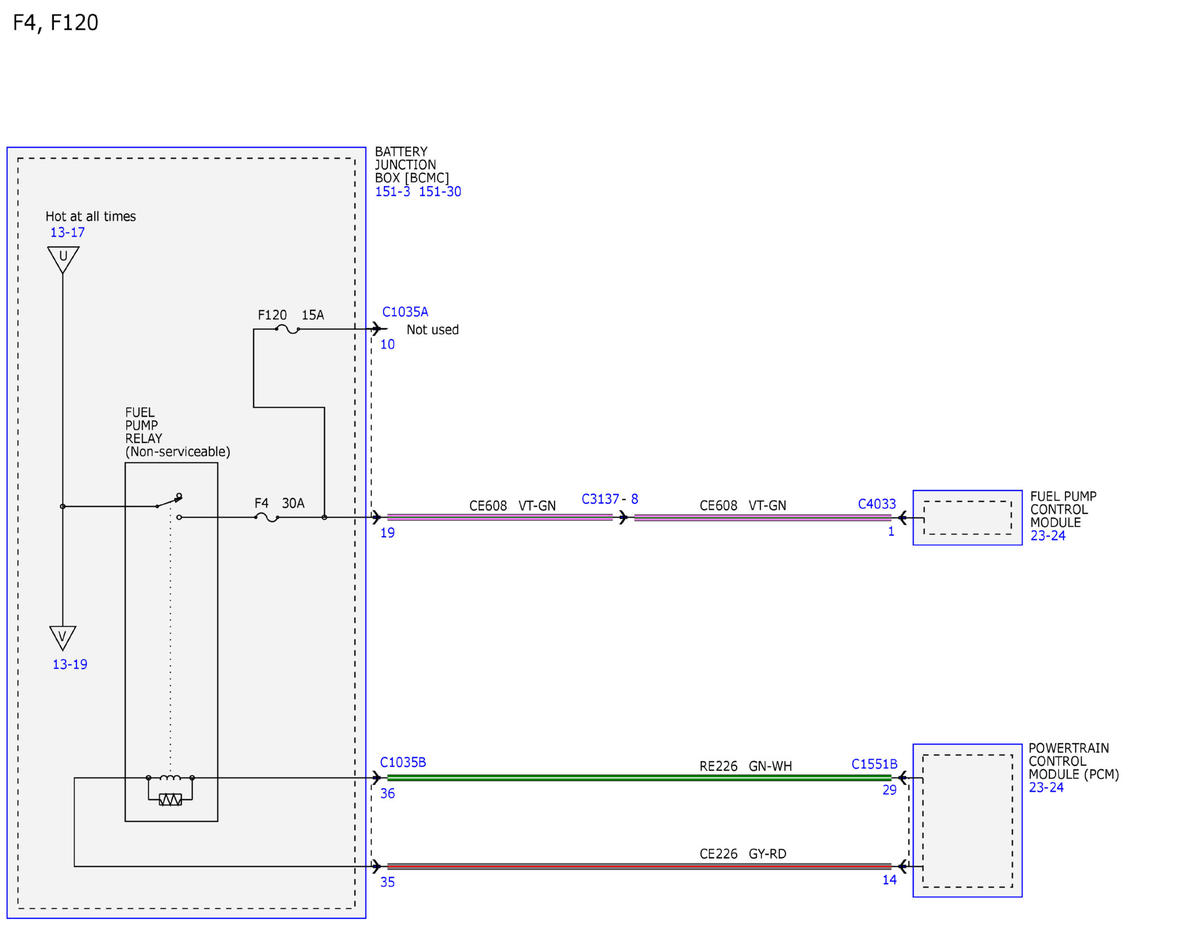

Fig 51: Power Distribution Wiring Diagram (51 Of 69)

GFDWR111111

Courtesy of FORD MOTOR COMPANY

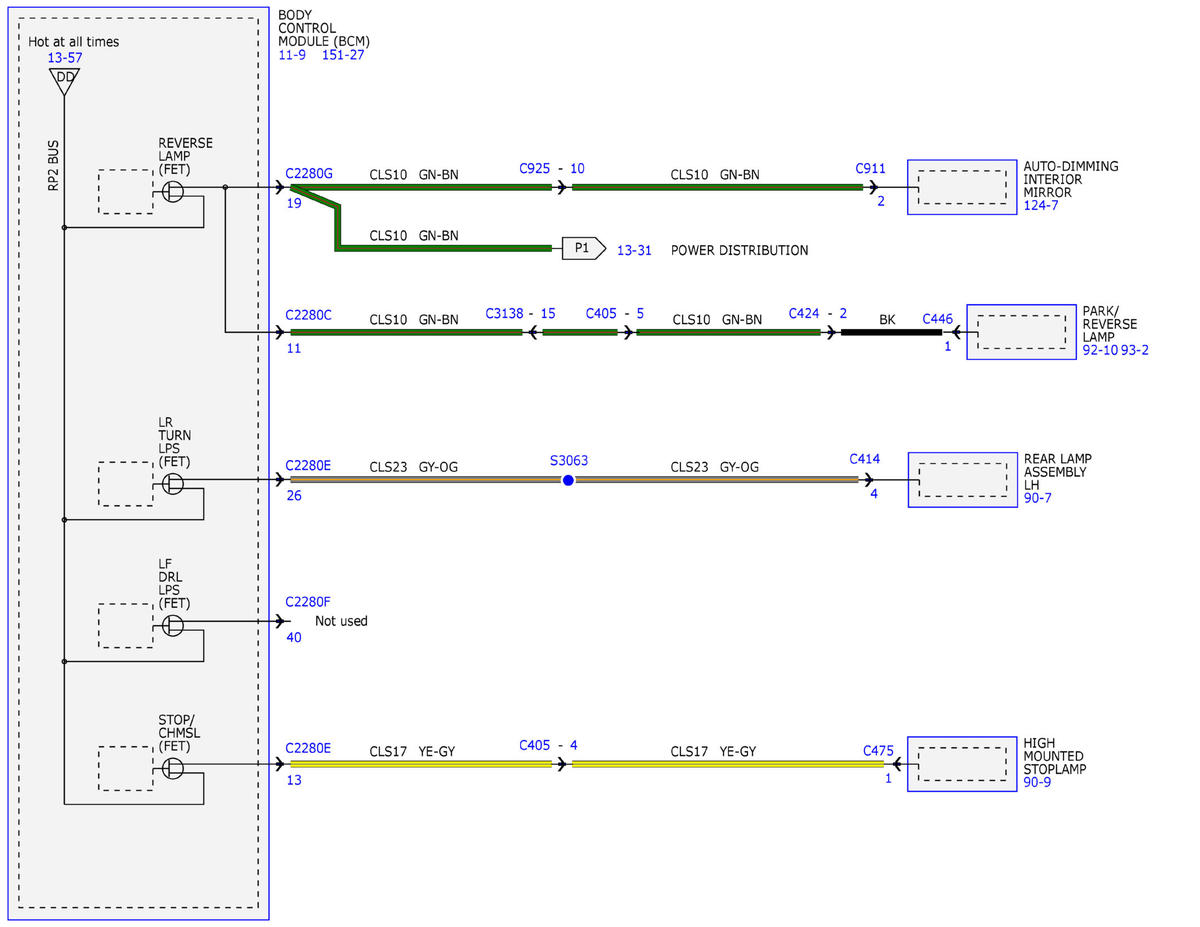

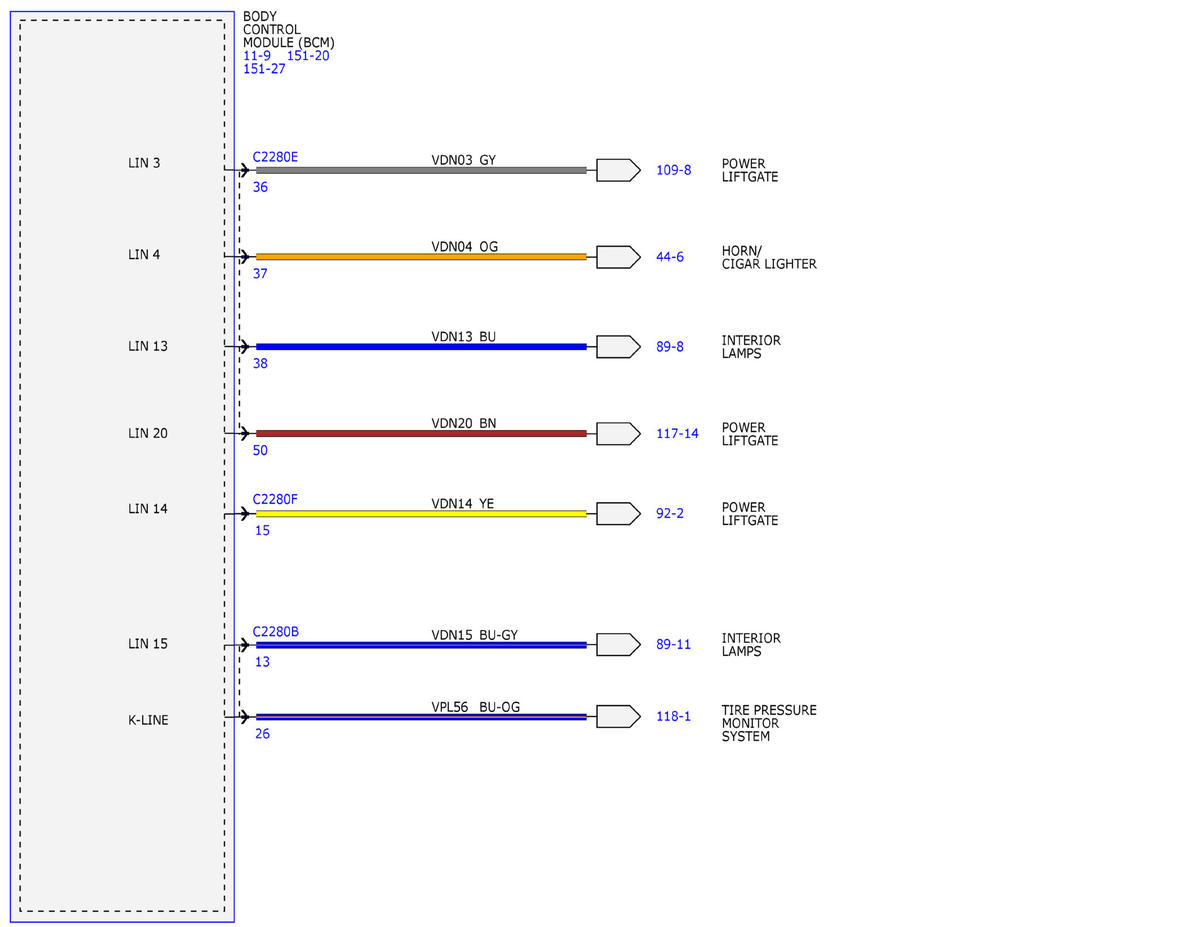

Fig 52: Power Distribution Wiring Diagram (52 Of 69)

GFDWR111112

Courtesy of FORD MOTOR COMPANY

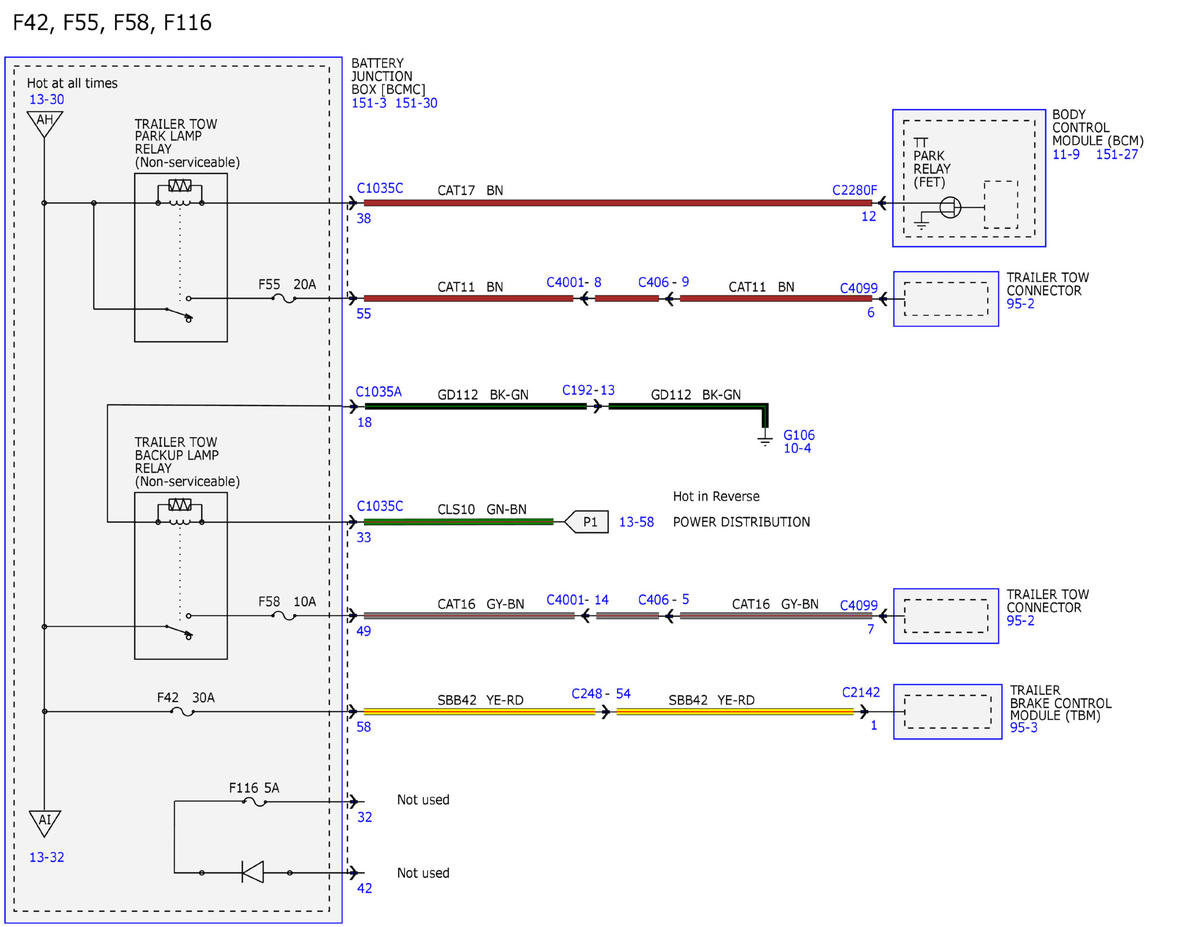

Fig 53: Power Distribution Wiring Diagram (53 Of 69)

GFDWR111113

Courtesy of FORD MOTOR COMPANY

Fig 54: Power Distribution Wiring Diagram (54 Of 69)

GFDWR111114

Courtesy of FORD MOTOR COMPANY

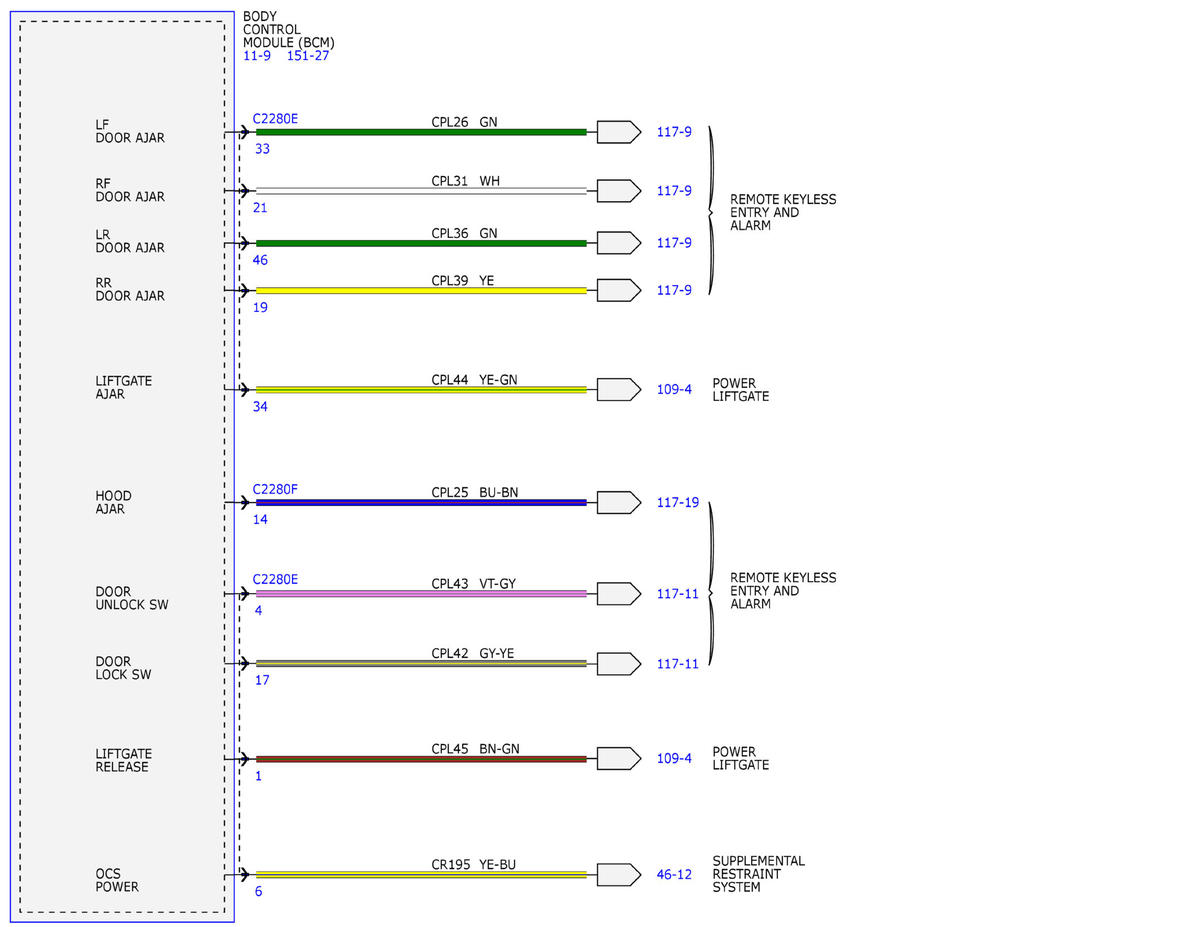

Fig 55: Power Distribution Wiring Diagram (55 Of 69)

GFDWR111115

Courtesy of FORD MOTOR COMPANY

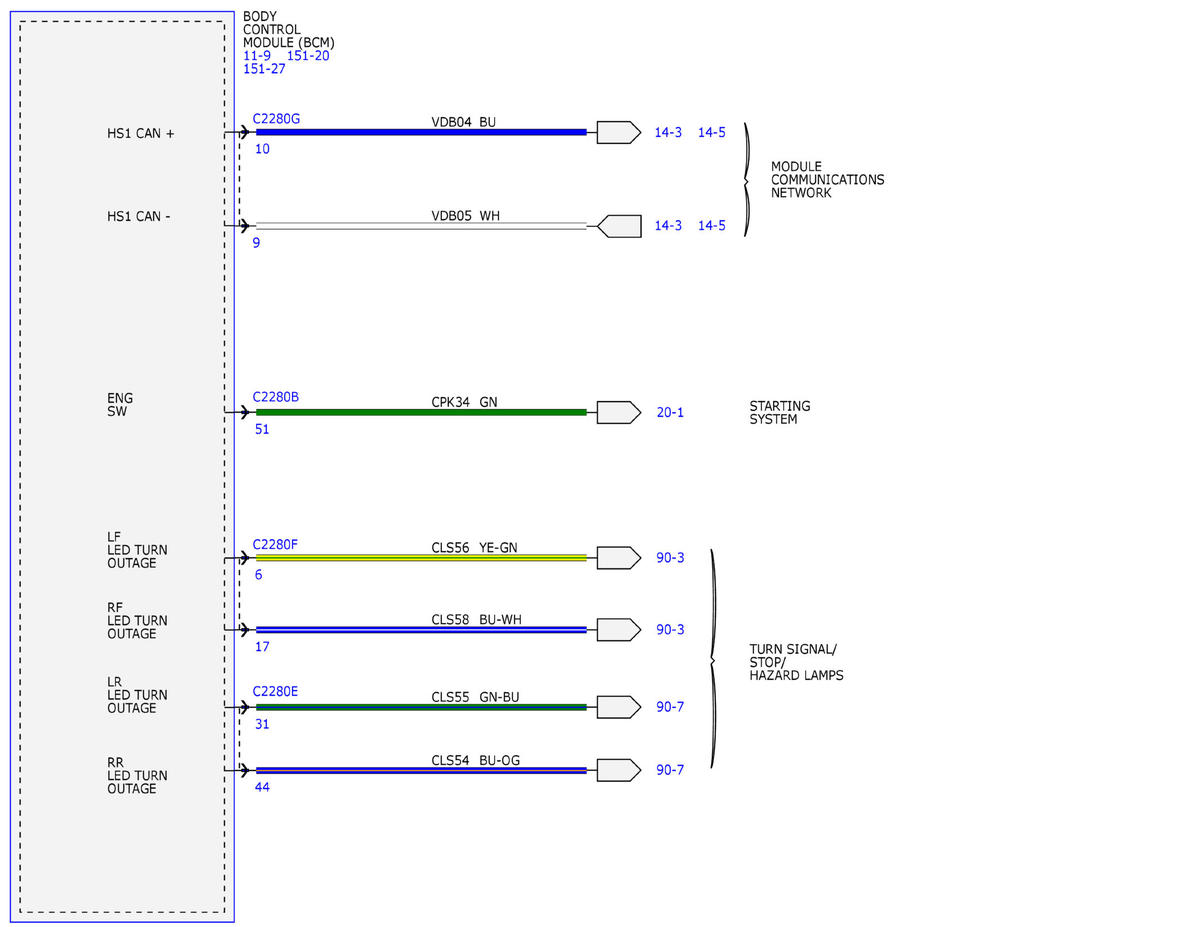

Fig 56: Power Distribution Wiring Diagram (56 Of 69)

GFDWR111116

Courtesy of FORD MOTOR COMPANY

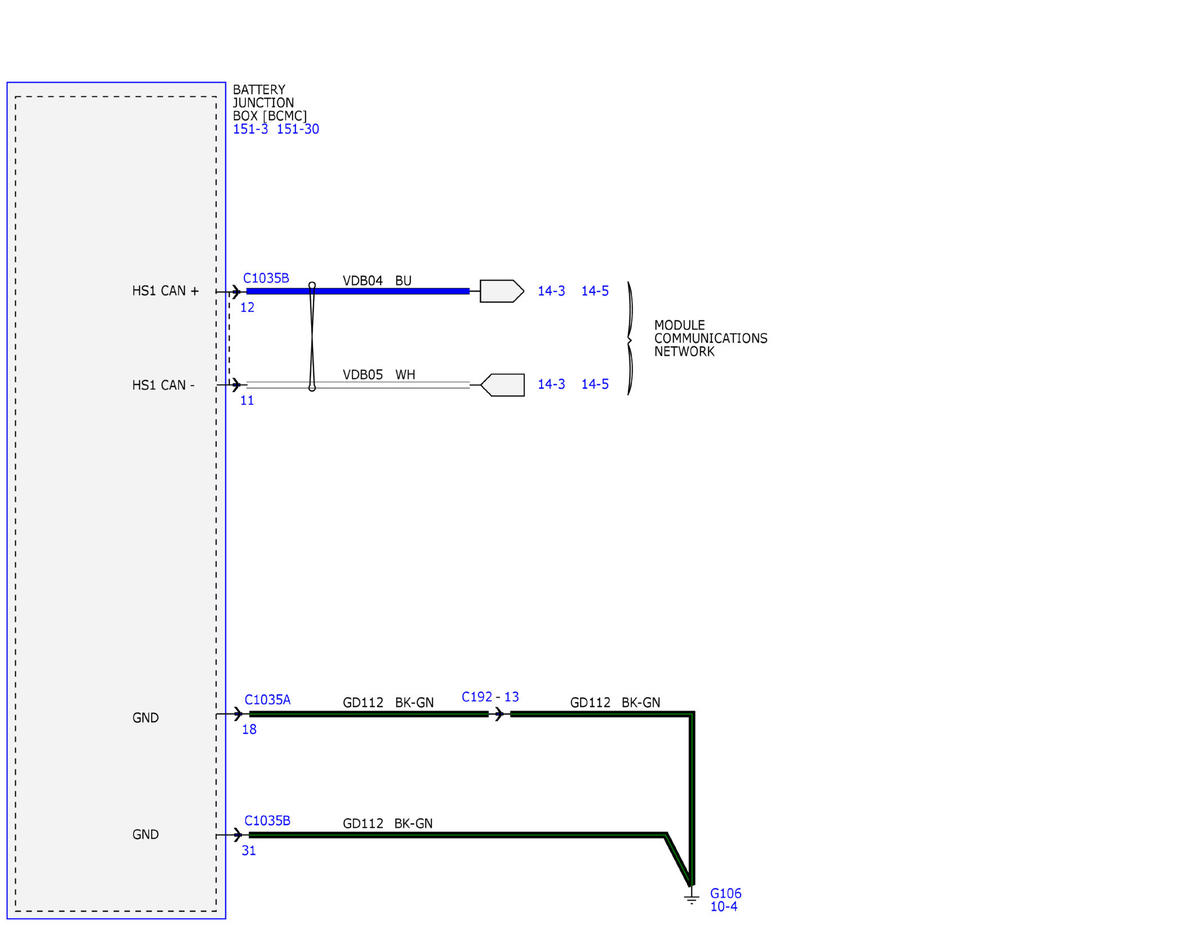

Fig 57: Power Distribution Wiring Diagram (57 Of 69)

GFDWR111117

Courtesy of FORD MOTOR COMPANY

Fig 58: Power Distribution Wiring Diagram (58 Of 69)

GFDWR111118

Courtesy of FORD MOTOR COMPANY

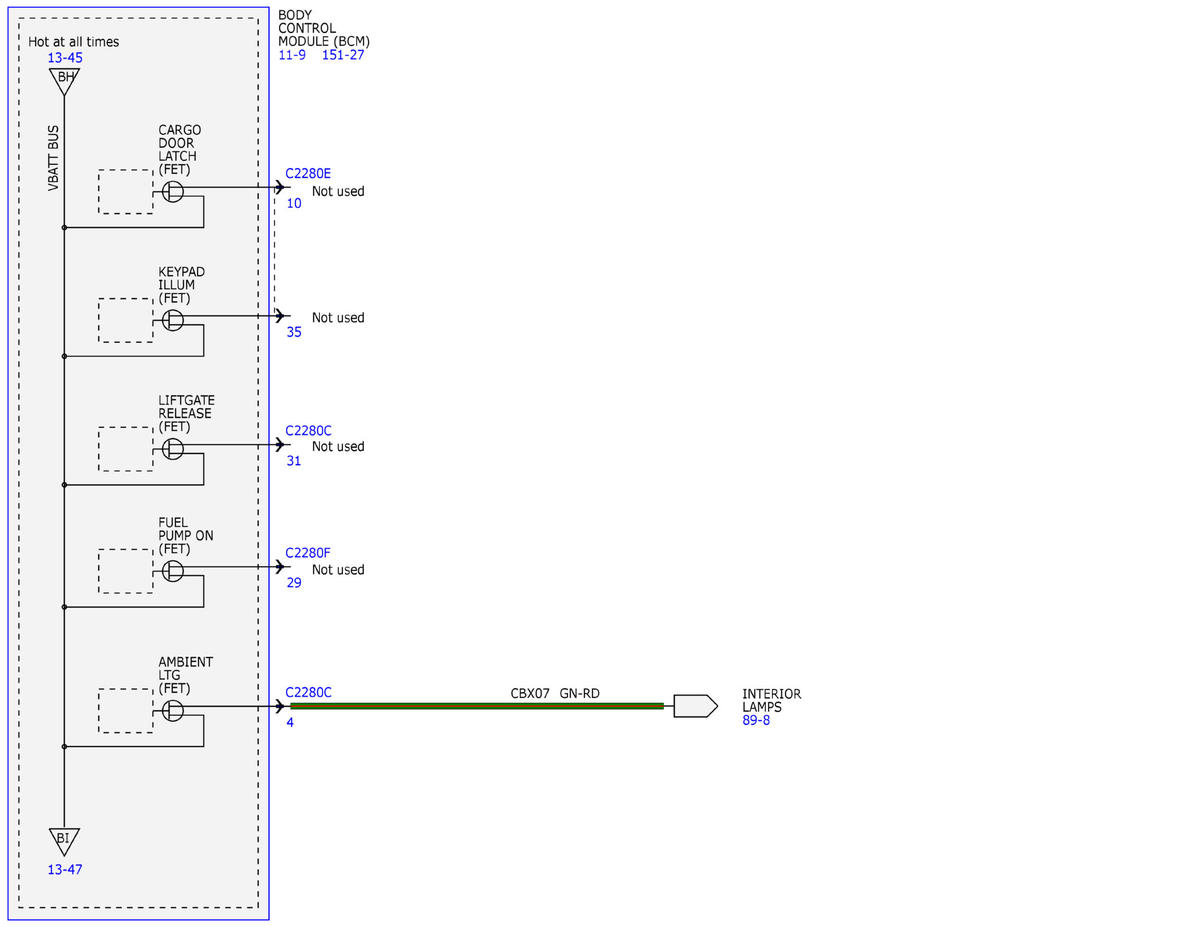

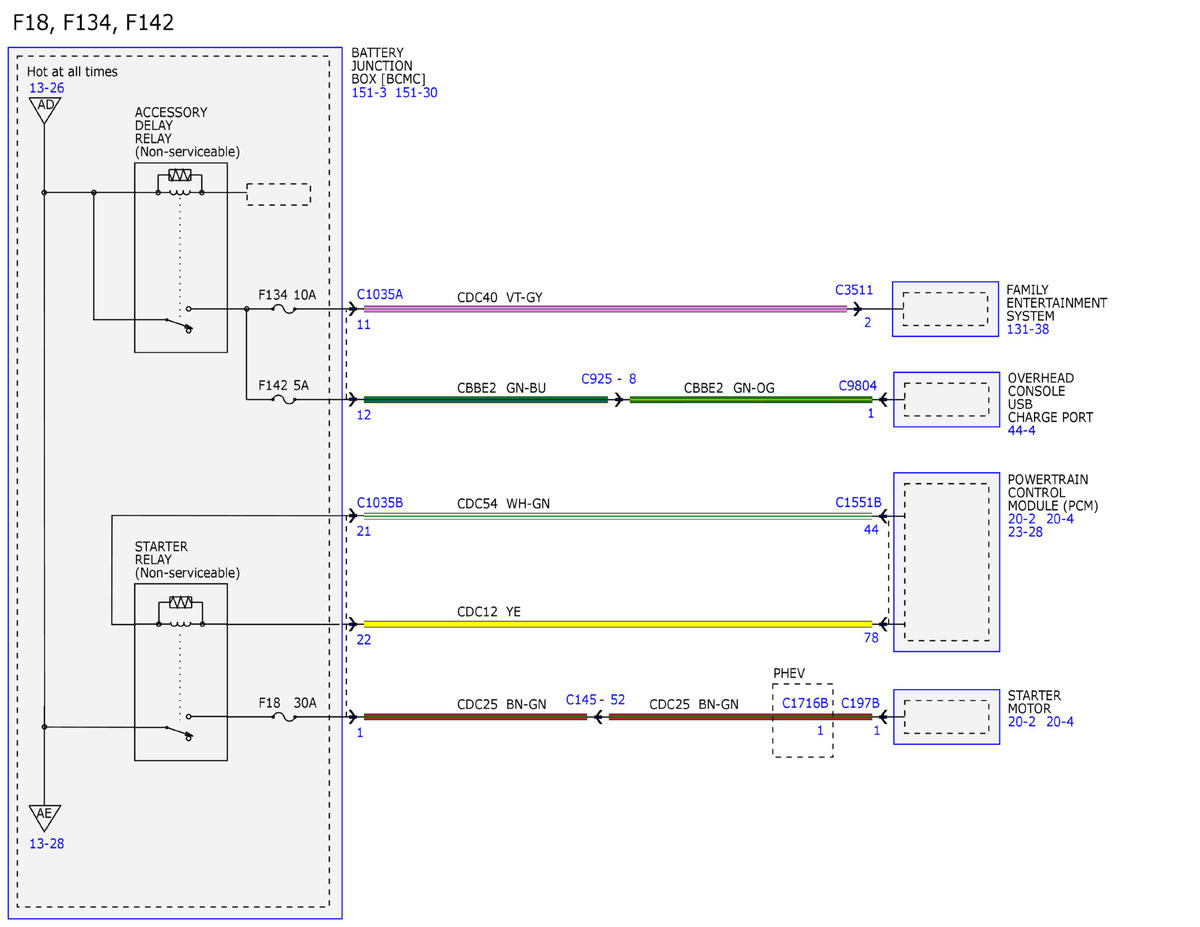

Fig 59: Power Distribution Wiring Diagram (59 Of 69)

GFDWR111119

Courtesy of FORD MOTOR COMPANY

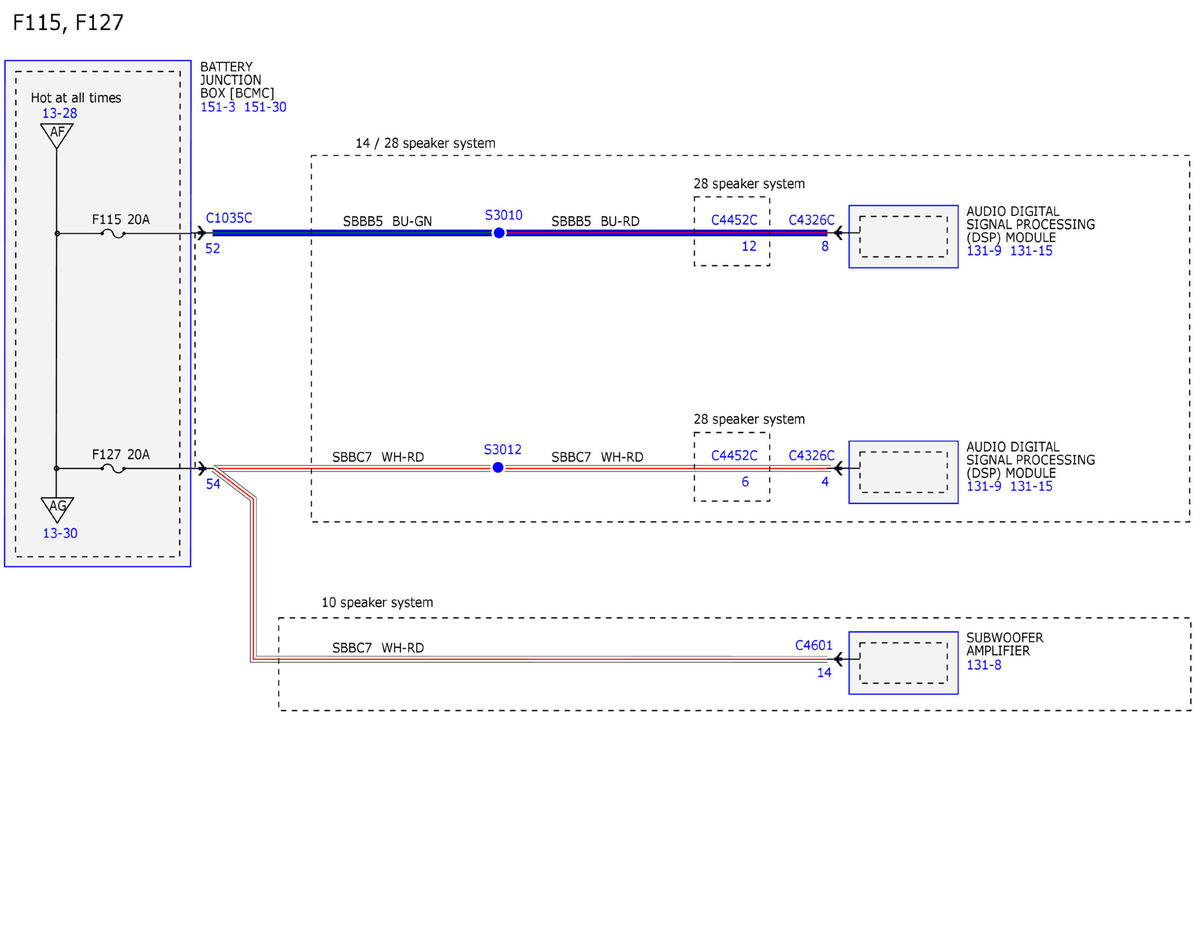

Fig 60: Power Distribution Wiring Diagram (60 Of 69)

GFDWR111120

Courtesy of FORD MOTOR COMPANY

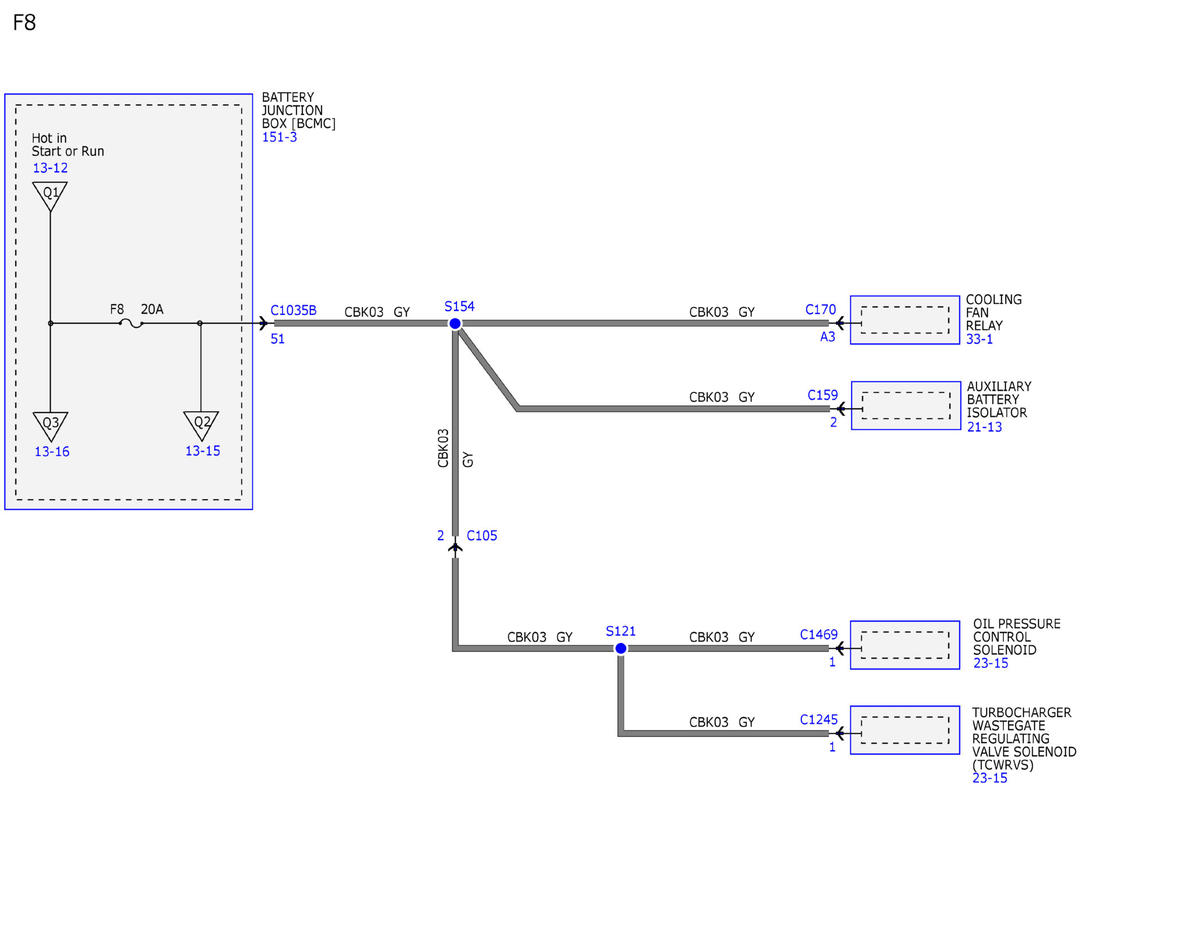

Fig 61: Power Distribution Wiring Diagram (61 Of 69)

GFDWR111121

Courtesy of FORD MOTOR COMPANY

Fig 62: Power Distribution Wiring Diagram (62 Of 69)

GFDWR111122

Courtesy of FORD MOTOR COMPANY

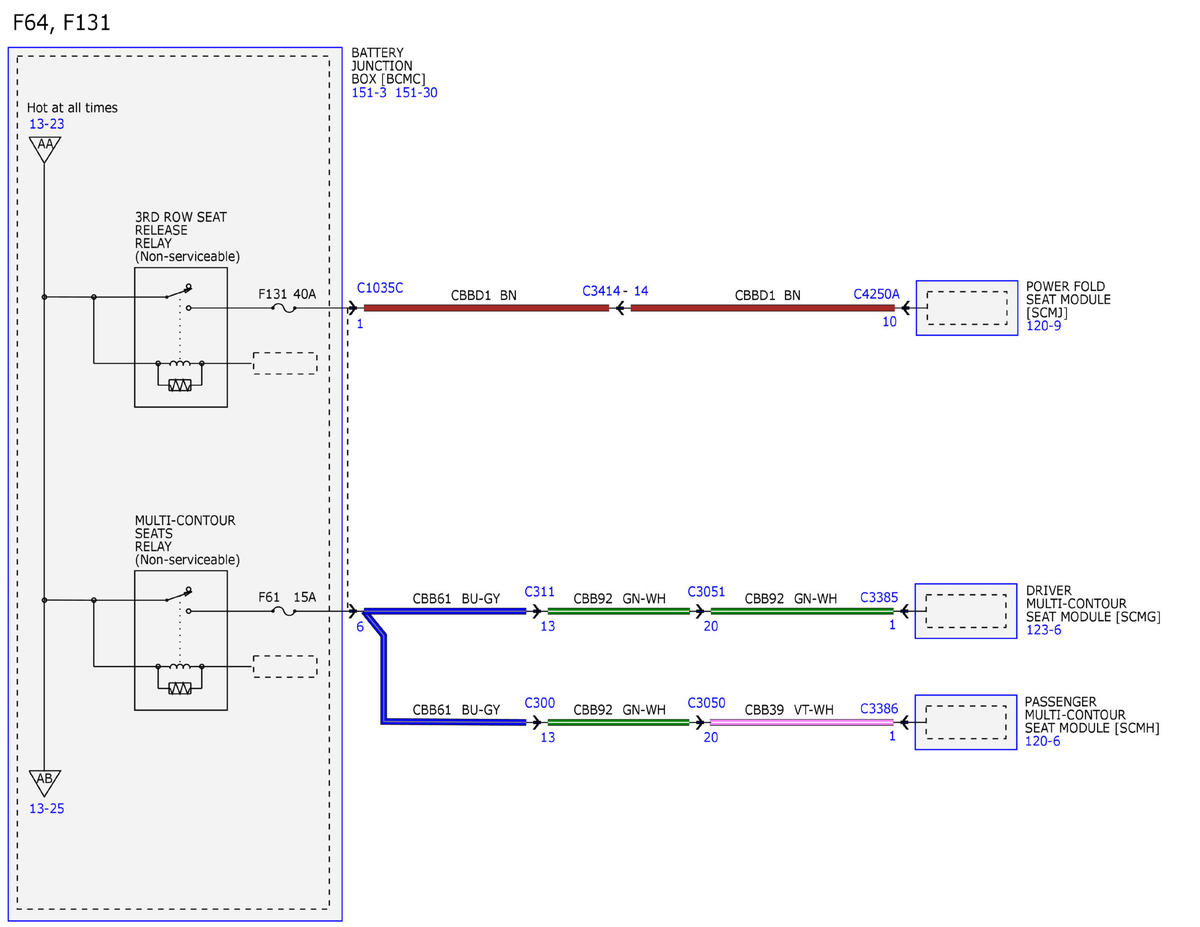

Fig 63: Power Distribution Wiring Diagram (63 Of 69)

GFDWR111123

Courtesy of FORD MOTOR COMPANY

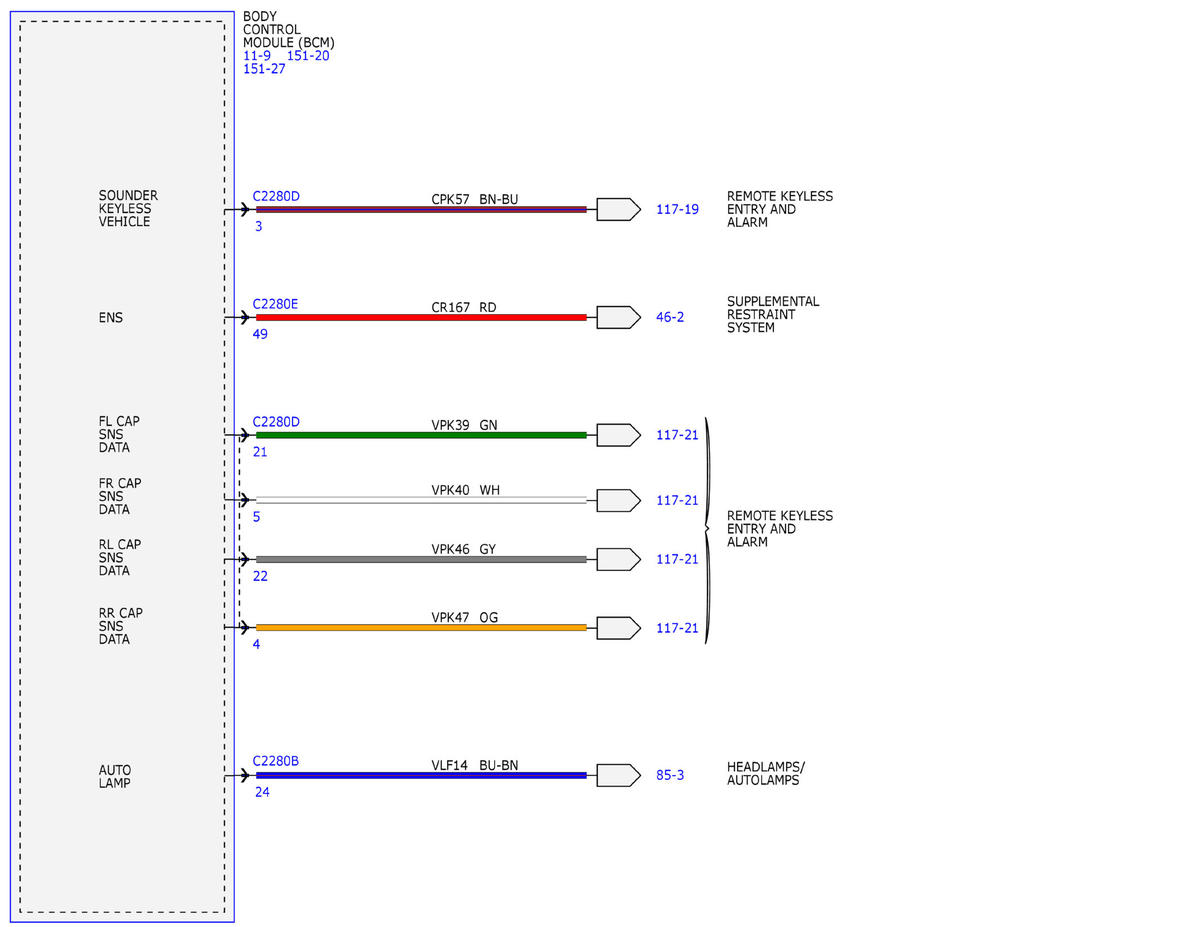

Fig 64: Power Distribution Wiring Diagram (64 Of 69)

GFDWR111124

Courtesy of FORD MOTOR COMPANY

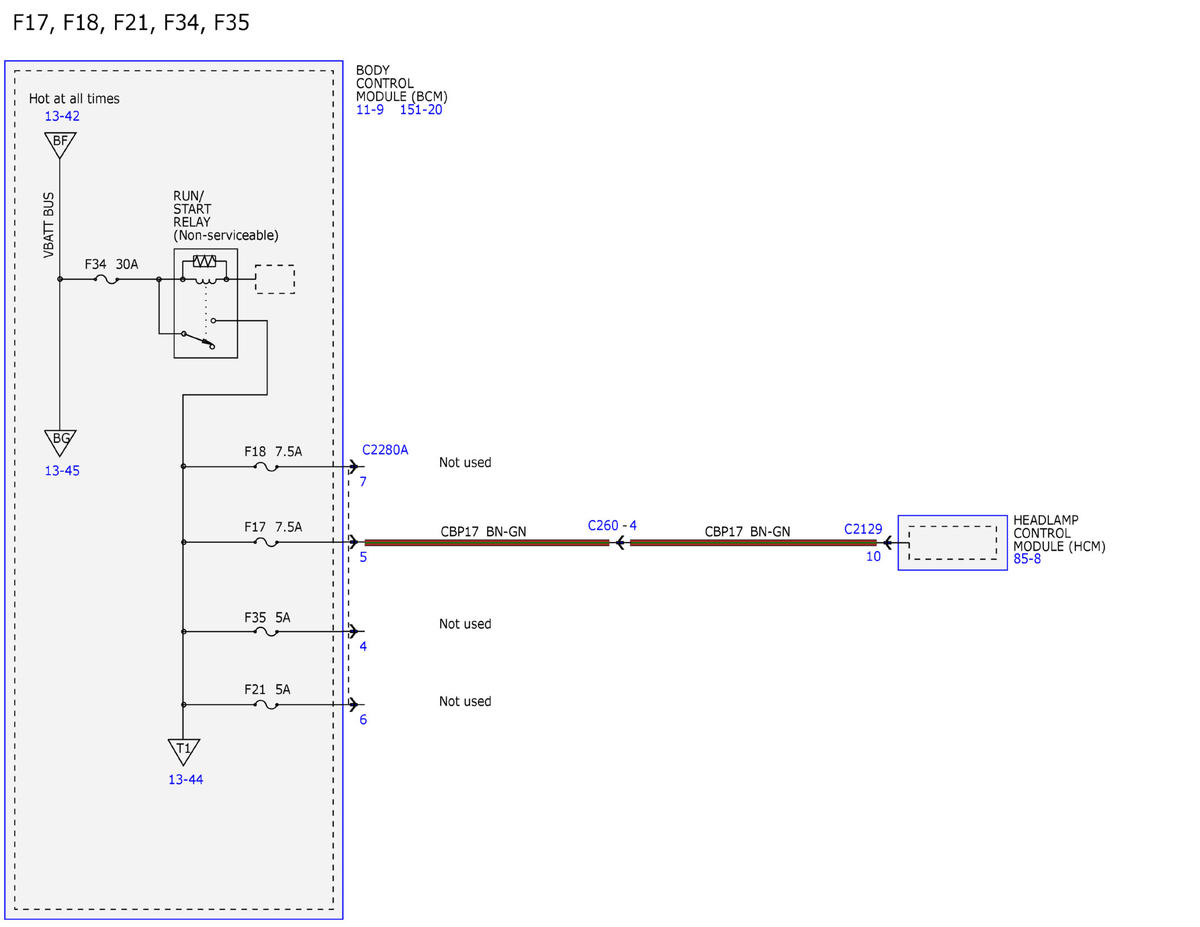

Fig 65: Power Distribution Wiring Diagram (65 Of 69)

GFDWR111125

Courtesy of FORD MOTOR COMPANY

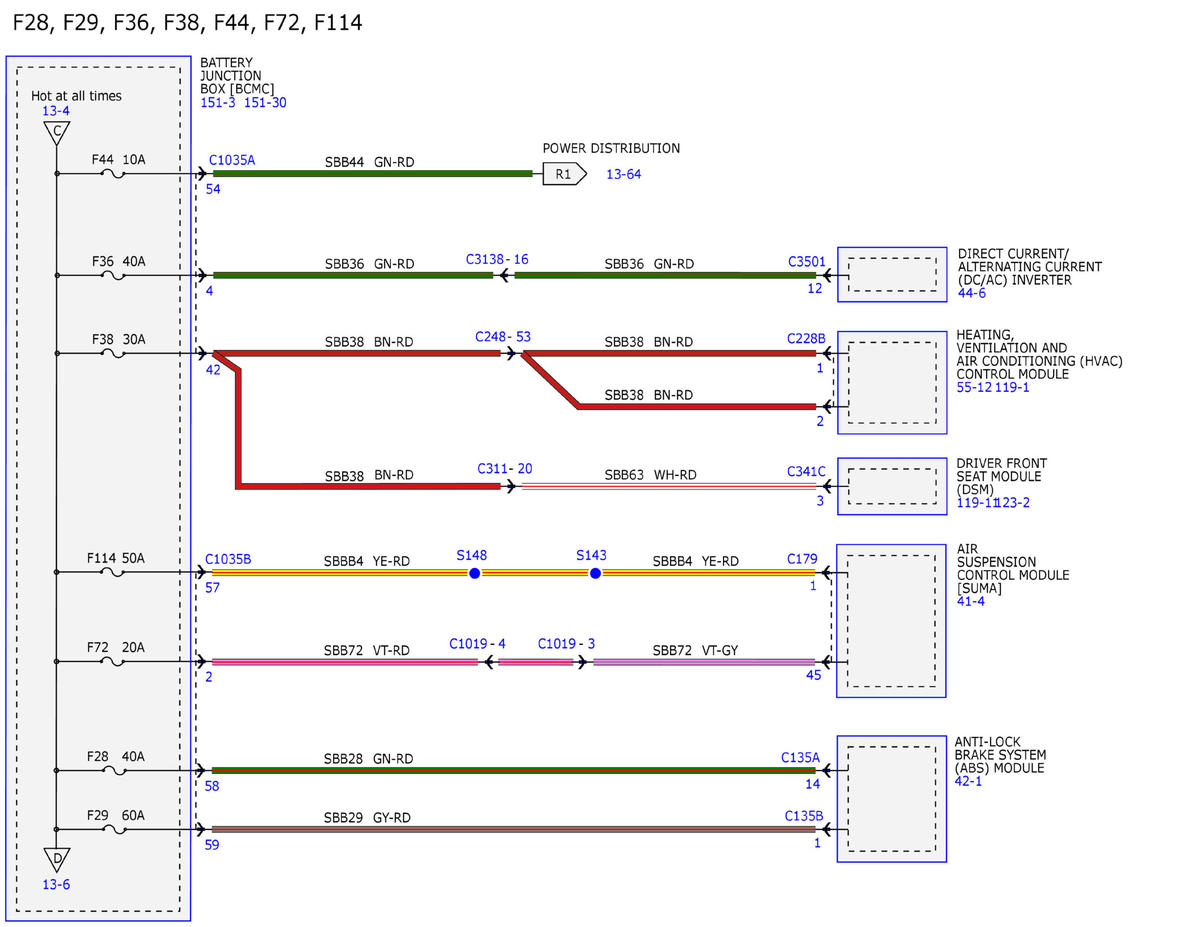

Fig 66: Power Distribution Wiring Diagram (66 Of 69)

GFDWR111126

Courtesy of FORD MOTOR COMPANY

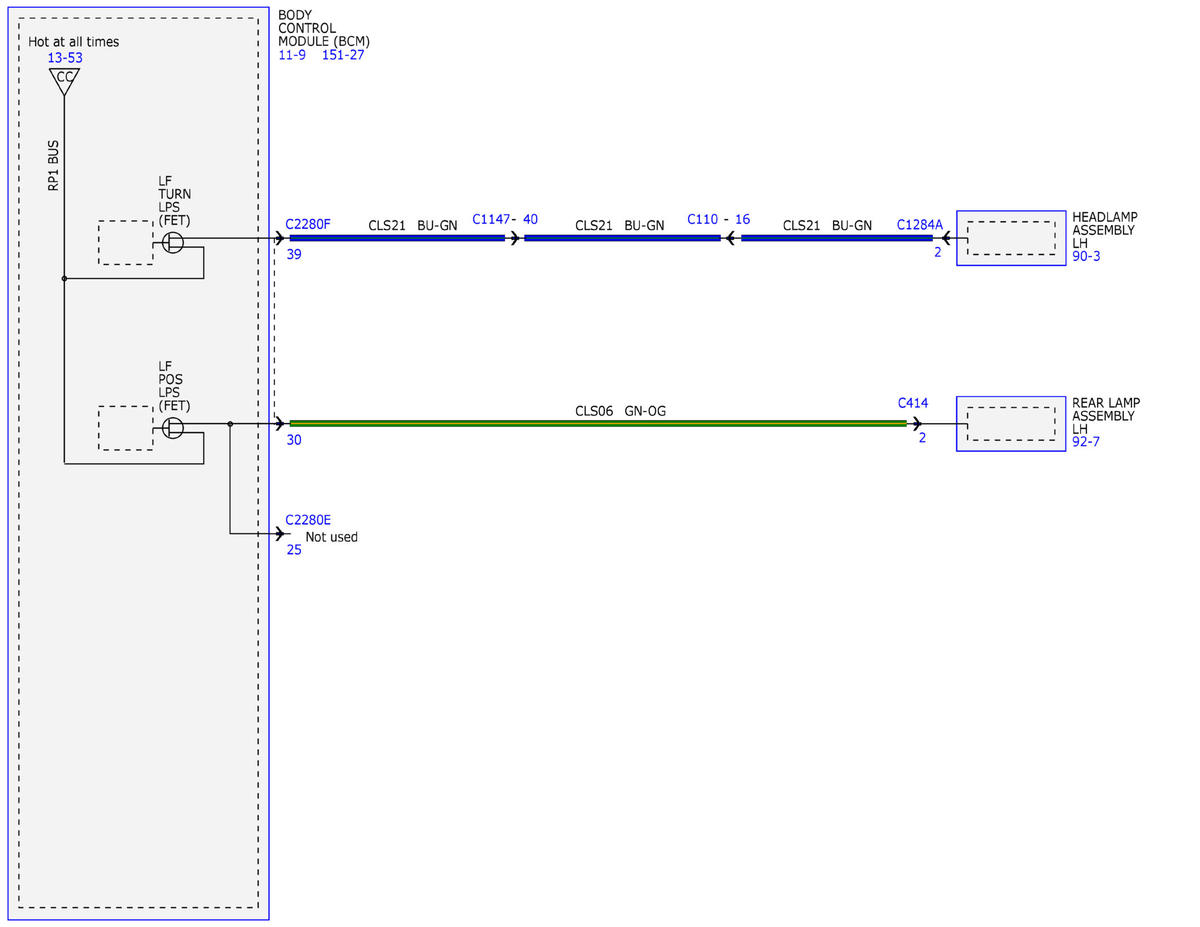

Fig 67: Power Distribution Wiring Diagram (67 Of 69)

GFDWR111127

Courtesy of FORD MOTOR COMPANY

Fig 68: Power Distribution Wiring Diagram (68 Of 69)

GFDWR111128

Courtesy of FORD MOTOR COMPANY

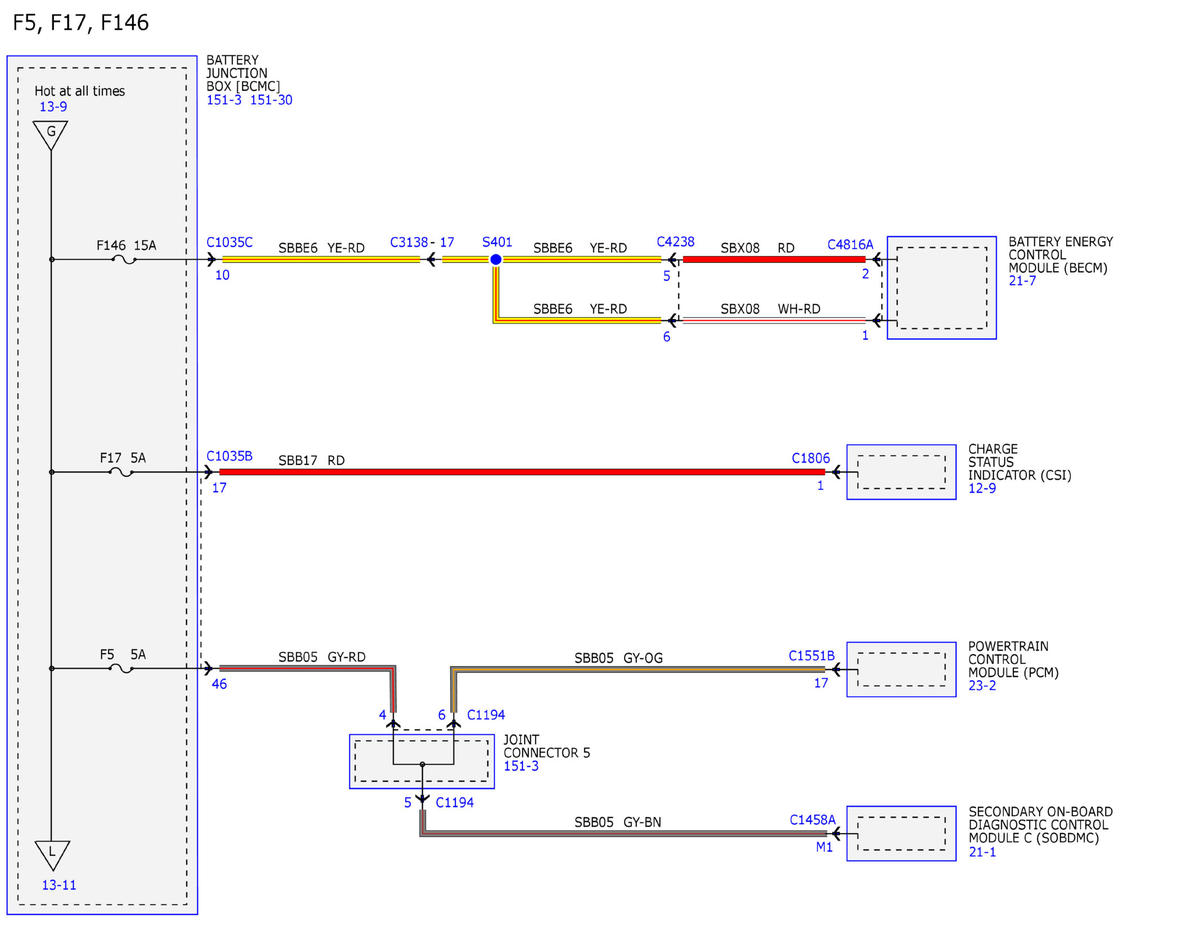

Fig 69: Power Distribution Wiring Diagram (69 Of 69)

GFDWR111129
