Engine Mount LH: Installation

NOTE: Early build shown, late build similar.

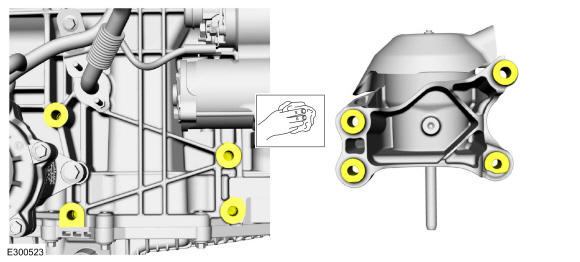

Clean the engine mount-to-cylinder block mating surfaces of any dirt or foreign material prior to installation.

Courtesy of FORD MOTOR COMPANY
NOTE: Early build shown, late build similar.

Install the LH engine mount, the new bolts finger-tight and then tighten in sequence.

Torque: 46 lb. ft (63 Nm)

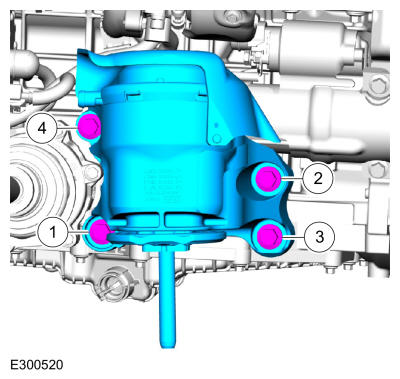

Fig 1: LH Engine Mount Tightening Sequence
Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the LH and RH engine mount studs are in the subframe when raised.

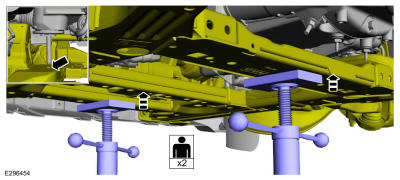

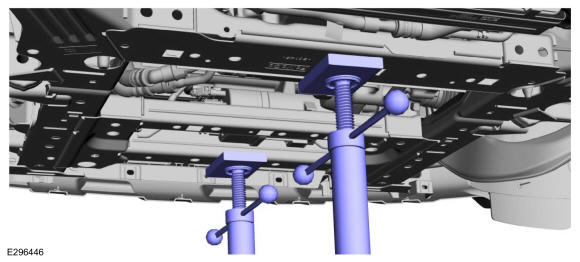

With the aid of an assistant, raise the front and rear jack stand evenly.

Courtesy of FORD MOTOR COMPANY
Install the new front subframe bolts finger tight.

Courtesy of FORD MOTOR COMPANY
Install the new middle subframe bolts finger tight.

Courtesy of FORD MOTOR COMPANY

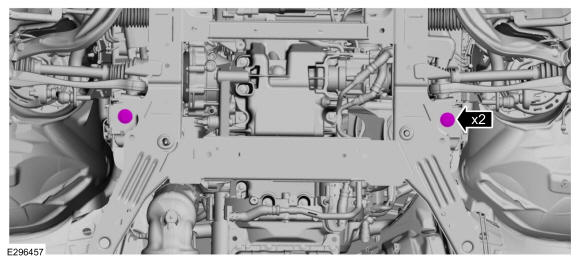

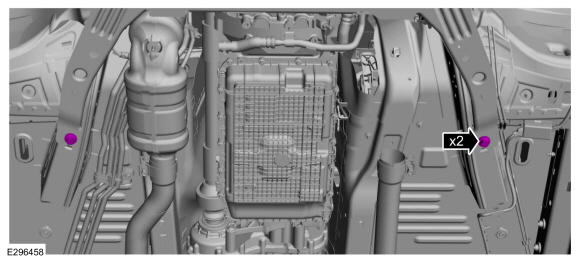

Install the new rear subframe bolts finger tight.

Courtesy of FORD MOTOR COMPANY

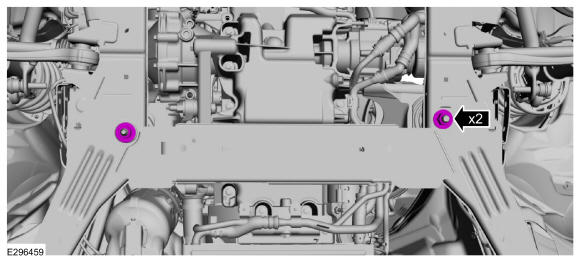

Tighten the front subframe bolts.
Torque: 195 lb. ft (265 Nm)

Courtesy of FORD MOTOR COMPANY
Tighten the middle subframe bolts.
Torque: 195 lb. ft (265 Nm)

Courtesy of FORD MOTOR COMPANY
Tighten the rear subframe bolts.
Torque: 52 lb. ft (70 Nm)

Courtesy of FORD MOTOR COMPANY
Remove adjustable jack stands.

Courtesy of FORD MOTOR COMPANY

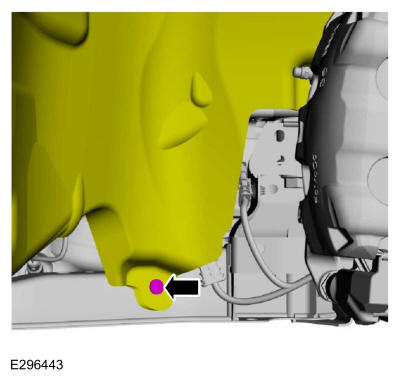

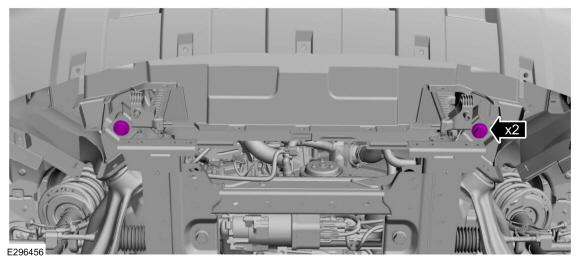

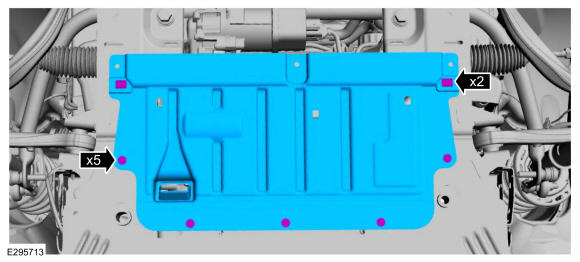

Position the LH underbody shield and install the bolt.
Torque: 22 lb. in (2. 5 Nm)

Courtesy of FORD MOTOR COMPANY

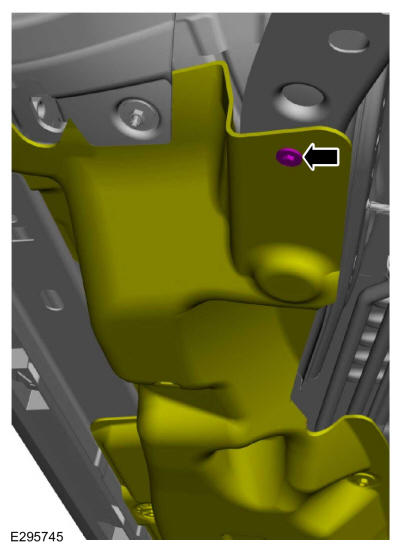

Position the RH underbody shield and install the bolt.
Torque: 22 lb. in (2. 5 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Only use hand tools when removing the engine mount nuts or damage to the engine mount can occur.

Install the new LH and RH engine mount nuts.

Torque: 184 lb. ft (250 Nm)

Courtesy of FORD MOTOR COMPANY
If equipped, attach the air suspension tube retainers.

Courtesy of FORD MOTOR COMPANY

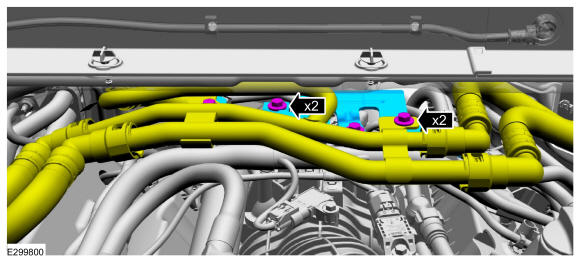

Position the coolant tubes and install the bolt.
Torque: 71 lb. in (8 Nm)

Courtesy of FORD MOTOR COMPANY

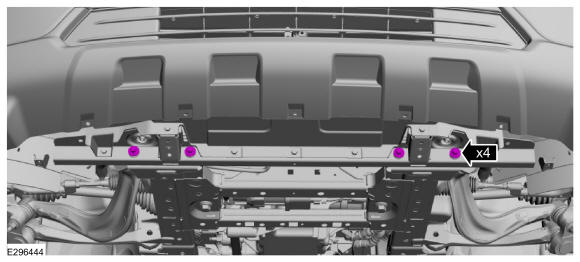

Install the front radiator support bar bolts.
Torque: 46 lb. ft (63 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped.

NOTE: Single vacuum tube system shown, dual vacuum tube system similar.

Connect the vacuum tube(s).

Courtesy of FORD MOTOR COMPANY

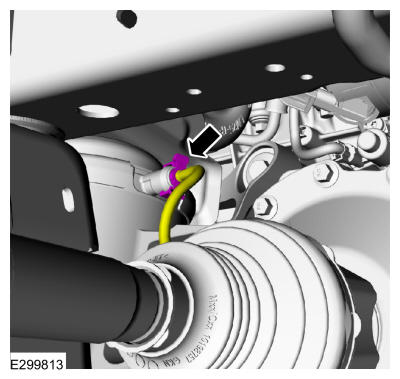

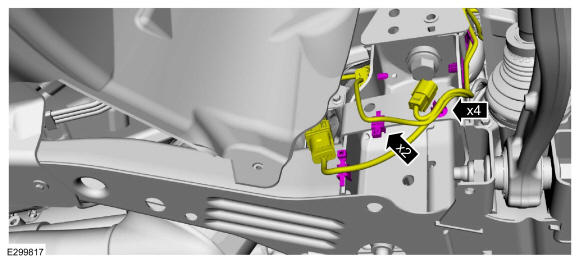

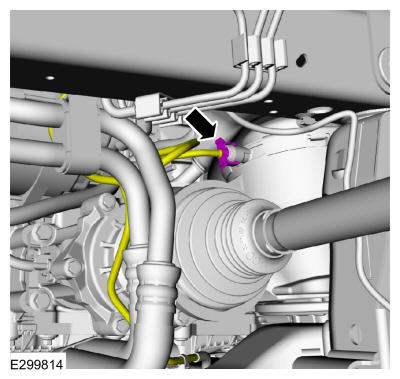

Attach the HO2S wiring harness retainers to LH subframe.

Courtesy of FORD MOTOR COMPANY
Position the splash shield and install the pin-type retainer to the LH subframe.

Courtesy of FORD MOTOR COMPANY
Install the steering shield pin-type retainers to the LH subframe.

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped.

NOTE: Single vacuum tube system shown, dual vacuum tube system similar.

Connect the vacuum tube(s).

Courtesy of FORD MOTOR COMPANY

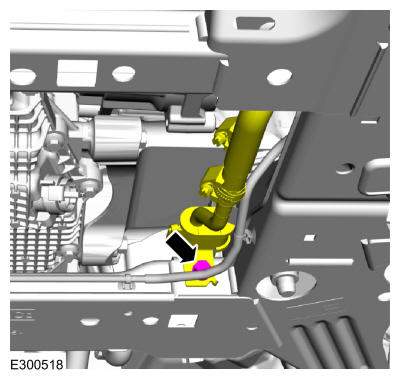

Attach the HO2S wiring harness retainers to the RH subframe.

Courtesy of FORD MOTOR COMPANY
Install the splash shield pin-type retainer to the RH subframe.

Courtesy of FORD MOTOR COMPANY
Install the steering shield pin-type retainers to the RH subframe.

Courtesy of FORD MOTOR COMPANY

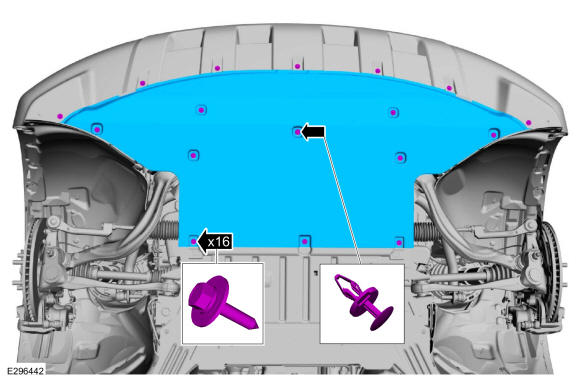

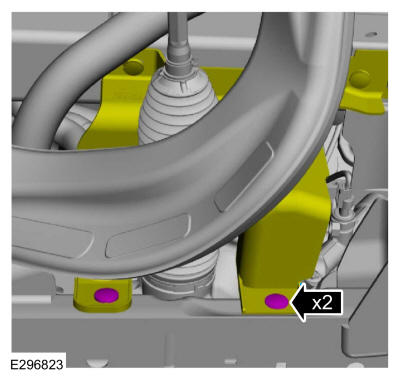

Install the rear underbody shield, bolts and the pin-type retainers.
Torque: 22 lb. in (2. 5 Nm)

Courtesy of FORD MOTOR COMPANY
- Install the underbody shield and the bolts.
  Torque: 22 lb. in (2. 5 Nm)
- Install pin-type retainer.
Courtesy of FORD MOTOR COMPANY

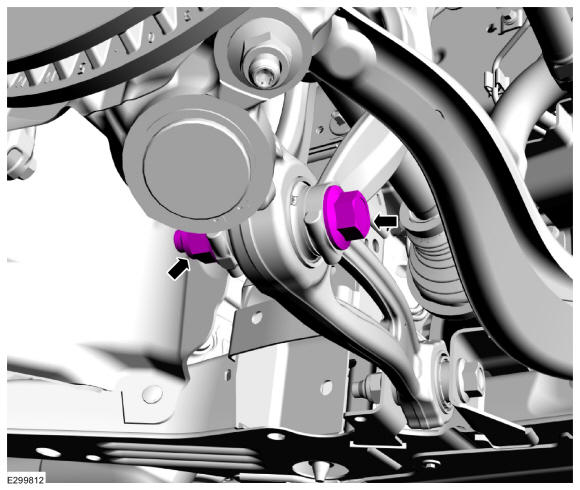

Install new RH strut nut and bolt.
Torque: 210 lb. ft (285 Nm)

Courtesy of FORD MOTOR COMPANY

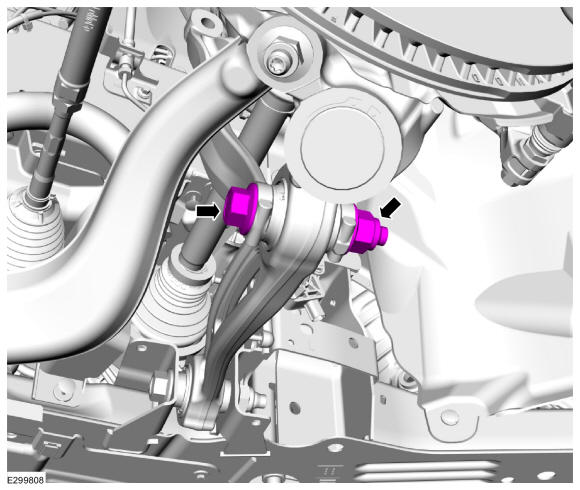

NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.

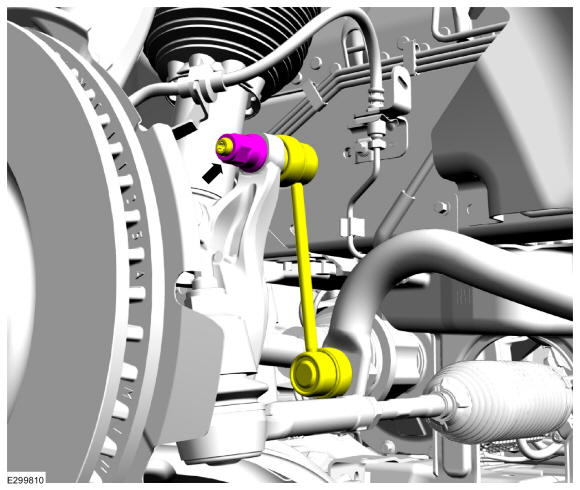

Position the RH sway bar link and install the new nut.

Torque: 129 lb. ft (175 Nm)

Courtesy of FORD MOTOR COMPANY
Install new LH strut nut and bolt.
Torque: 210 lb. ft (285 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.

Position the LH sway bar link and install the new nut.

Torque: 129 lb. ft (175 Nm)

Courtesy of FORD MOTOR COMPANY
Install the following items:
1. LH catalytic converter. Refer to: Catalytic Converter LH .
2. Front suspension height sensors. Refer to: Front Suspension Height Sensor .

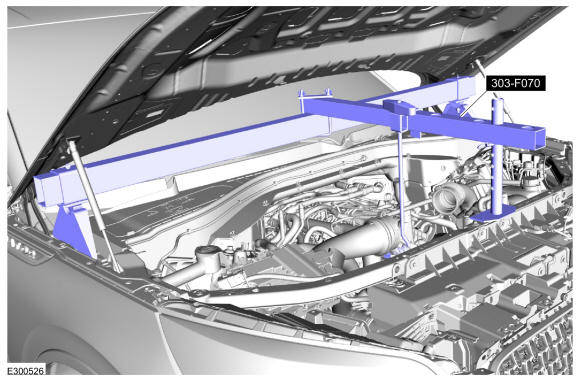

Remove Special Service Tool: 303-F070 Support Bar, Engine.

Courtesy of FORD MOTOR COMPANY

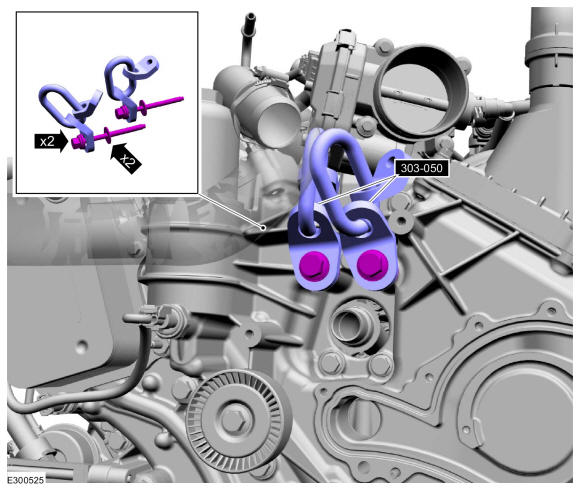

Remove the two M8 x 1. 25 x 105 mm bolts, two washers, and the special tools. Remove Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.

Courtesy of FORD MOTOR COMPANY

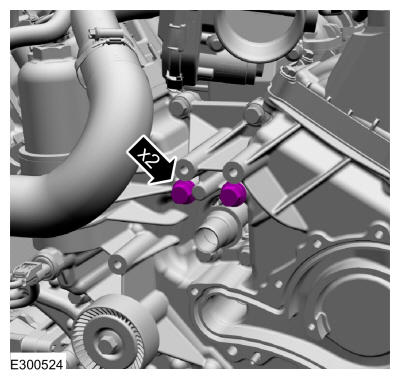

Install the engine front cover bolts.
Torque: Stage 1: 177 lb. in (20 Nm) Stage 2: 45°

Courtesy of FORD MOTOR COMPANY
Install the new steering shaft bolt.
Torque: 22 lb. ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped.
- Connect the vacuum tubes.
- Attach the vacuum tube retainer.
Courtesy of FORD MOTOR COMPANY
- Position the coolant pipe.
- Install the coolant pipe bolts.
  Torque: 97 lb. in (11 Nm)
- Attach the wiring harness retainers.
Courtesy of FORD MOTOR COMPANY

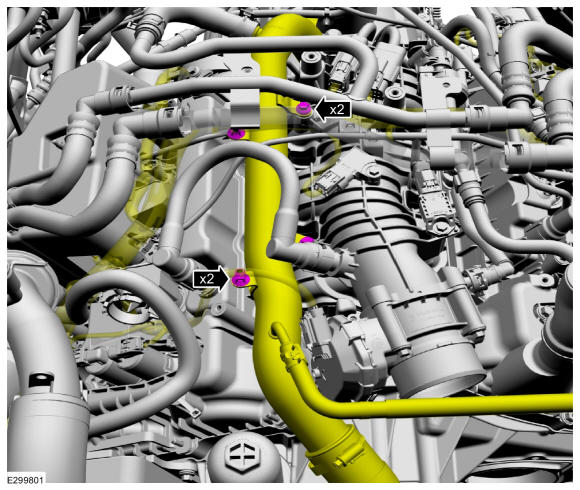

- Install the intake manifold bracket and bolts.
  Torque: 97 lb. in (11 Nm)
- Install the coolant pipe bracket retaining bolts.
  Torque: 97 lb. in (11 Nm)
Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Coolant pump. Refer to: Coolant Pump .
2. Charge air cooler outlet pipe. Refer to: Charge Air Cooler (CAC) Outlet Pipe .
Install the suspension support bar and the bolts.
Torque: 22 lb. ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
Install the upper radiator panel and the retainers.

Courtesy of FORD MOTOR COMPANY
Remove the holding device.

Courtesy of FORD MOTOR COMPANY
Start and check the exhaust system for leaks.
