Engine Mount RH: Installation

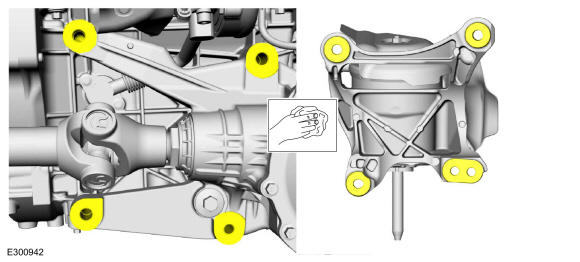

  1. NOTE: Early build shown, late build similar.

    Clean the engine mount-to-cylinder block mating surfaces of any dirt or foreign material prior to installation.

    GFD531040Courtesy of FORD MOTOR COMPANY

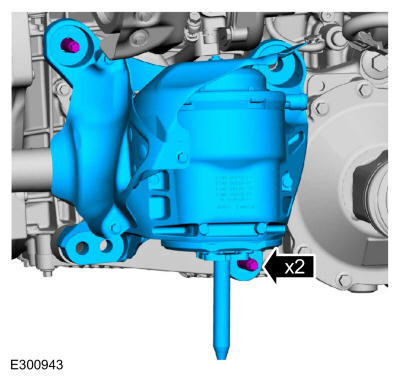

  2. NOTE: Early build shown, late build similar.

    Position the RH engine mount and install the new studs.

    Torque: 35 lb. ft (48 Nm)

    GFD530913Courtesy of FORD MOTOR COMPANY
  3. NOTE: Early build shown, late build similar.

    Install the new bolts and nuts finger-tight and then tighten in sequence.

    Torque: Stage 1: 66 lb. ft (90 Nm) Stage 2: 90°

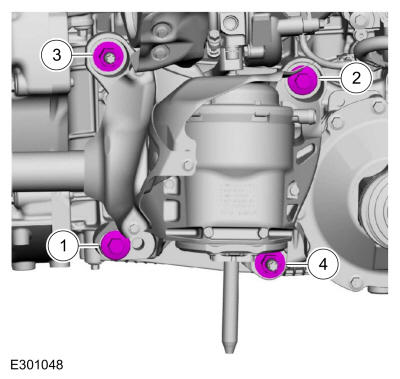

    Fig 1: RH Engine Mount Tightening Sequence
    GFD530914Courtesy of FORD MOTOR COMPANY

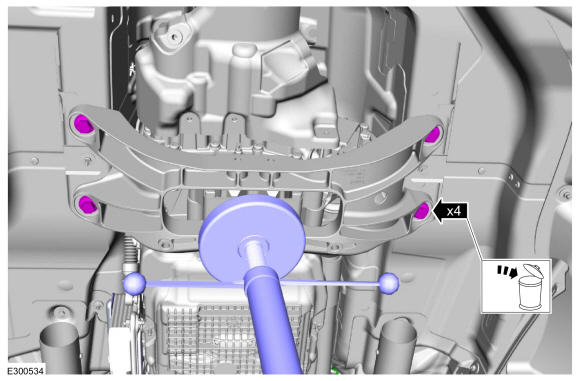

  4. Remove and discard the transmission crossmember bolts.
    GFD530990Courtesy of FORD MOTOR COMPANY
  5. Lower the jack stand 32 mm (1. 25 in).
    GFD530881Courtesy of FORD MOTOR COMPANY
    • If removed, install new studs.

      Torque: 18 lb. ft (25 Nm)

    • Install the new gasket.

    GFD530991Courtesy of FORD MOTOR COMPANY

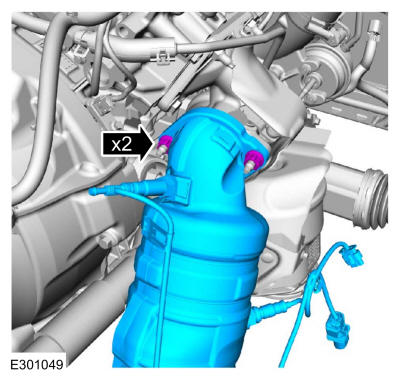

  6. NOTE: Body of vehicle removed from graphic for clarity.

    Install the RH catalytic converter and the new nuts.

    Torque: 35 lb. ft (48 Nm)

    GFD530992Courtesy of FORD MOTOR COMPANY

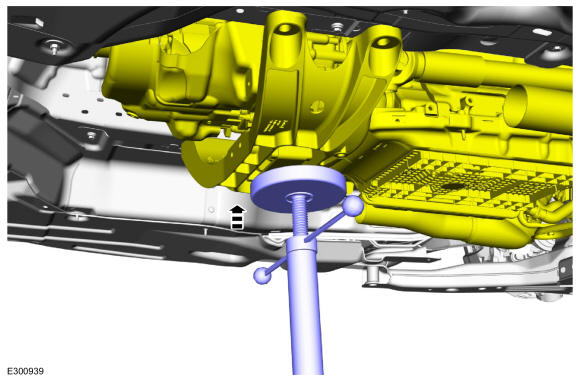

  7. Raise the jack stand.
    GFD530886Courtesy of FORD MOTOR COMPANY

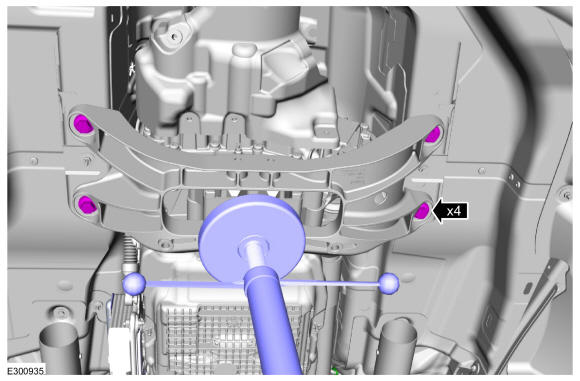

  8. Install the new transmission crossmember bolts.

    Torque: 76 lb. ft (103 Nm)

    GFD530880Courtesy of FORD MOTOR COMPANY

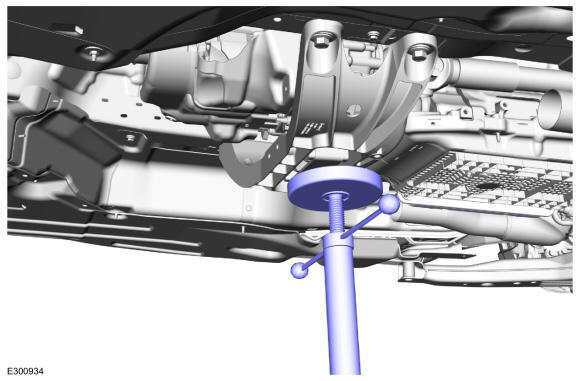

  9. Remove the adjustable jack stand.
    GFD530879Courtesy of FORD MOTOR COMPANY

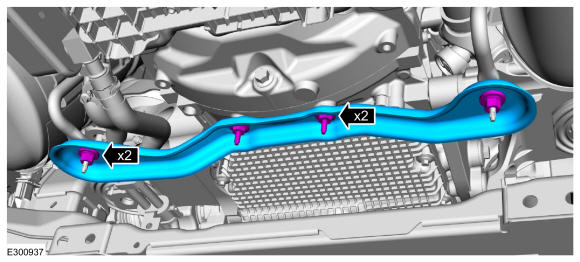

  10. Install the exhaust crossmember and the fasteners.

    Torque: 18 lb. ft (25 Nm)

    GFD530870Courtesy of FORD MOTOR COMPANY
  11. NOTE: Make sure that the LH and RH engine mount studs are in the subframe when raised.

    With the aid of an assistant, raise the front and rear jack stand evenly.

    GFD530923Courtesy of FORD MOTOR COMPANY
  12. Install the new front subframe bolts finger tight.
    GFD530924Courtesy of FORD MOTOR COMPANY
  13. Install the new middle subframe bolts finger tight.
    GFD530925Courtesy of FORD MOTOR COMPANY
  14. Install the new rear subframe bolts finger tight.
    GFD530926Courtesy of FORD MOTOR COMPANY
  15. Tighten the front subframe bolts.

    Torque: 195 lb. ft (265 Nm)

    GFD530924Courtesy of FORD MOTOR COMPANY
  16. Tighten the middle subframe bolts.

    Torque: 195 lb. ft (265 Nm)

    GFD530925Courtesy of FORD MOTOR COMPANY
  17. Tighten the rear subframe bolts.

    Torque: 52 lb. ft (70 Nm)

    GFD530926Courtesy of FORD MOTOR COMPANY
  18. Remove adjustable jack stands.
    GFD530927Courtesy of FORD MOTOR COMPANY
  19. Position the LH underbody shield and install the bolt.

    Torque: 22 lb. in (2. 5 Nm)

    GFD531025Courtesy of FORD MOTOR COMPANY
  20. Position the RH underbody shield and install the bolt.

    Torque: 22 lb. in (2. 5 Nm)

    GFD531024Courtesy of FORD MOTOR COMPANY
  21. NOTE: Only use hand tools when removing the engine mount nuts or damage to the engine mount can occur.

    Install the new LH and RH engine mount nuts.

    Torque: 184 lb. ft (250 Nm)

    GFD531031Courtesy of FORD MOTOR COMPANY
  22. If equipped, attach the air suspension tube retainers.
    GFD531022Courtesy of FORD MOTOR COMPANY
  23. Position the coolant tubes and install the bolt.

    Torque: 71 lb. in (8 Nm)

    GFD531021Courtesy of FORD MOTOR COMPANY
  24. Install the front radiator support bar bolts.

    Torque: 46 lb. ft (63 Nm)

    GFD531020Courtesy of FORD MOTOR COMPANY
  25. NOTE: If equipped.
    NOTE: Single vacuum tube system shown, dual vacuum tube system similar.

    Connect the vacuum tube(s).

    GFD531016Courtesy of FORD MOTOR COMPANY
  26. Attach the HO2S wiring harness retainers to LH subframe.
    GFD531019Courtesy of FORD MOTOR COMPANY
  27. Position the splash shield and install the pin-type retainer to the LH subframe.
    GFD531018Courtesy of FORD MOTOR COMPANY
  28. Install the steering shield pin-type retainers to the LH subframe.
    GFD531017Courtesy of FORD MOTOR COMPANY
  29. NOTE: If equipped.
    NOTE: Single vacuum tube system shown, dual vacuum tube system similar.

    Connect the vacuum tube(s).

    GFD531032Courtesy of FORD MOTOR COMPANY
    • Connect the HO2S and catalyst monitor sensor electrical connectors.

    • Attach the wiring harness retainers.

    GFD531039Courtesy of FORD MOTOR COMPANY
  30. Install the splash shield pin-type retainer to the RH subframe.
    GFD531014Courtesy of FORD MOTOR COMPANY
  31. Install the steering shield pin-type retainers to the RH subframe.
    GFD531013Courtesy of FORD MOTOR COMPANY
  32. Install the rear underbody shield, bolts and the pin-type retainers.

    Torque: 22 lb. in (2. 5 Nm)

    GFD531012Courtesy of FORD MOTOR COMPANY
    • Install the underbody shield and the bolts.

      Torque: 22 lb. in (2. 5 Nm)

    • Install pin-type retainer.

    GFD531033Courtesy of FORD MOTOR COMPANY
  33. Install new RH strut nut and bolt.

    Torque: 210 lb. ft (285 Nm)

    GFD531034Courtesy of FORD MOTOR COMPANY
  34. NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.

    Position the RH sway bar link and install the new nut.

    Torque: 129 lb. ft (175 Nm)

    GFD531035Courtesy of FORD MOTOR COMPANY
  35. Install new LH strut nut and bolt.

    Torque: 210 lb. ft (285 Nm)

    GFD531036Courtesy of FORD MOTOR COMPANY
  36. NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.

    Position the LH sway bar link and install the new nut.

    Torque: 129 lb. ft (175 Nm)

    GFD530231Courtesy of FORD MOTOR COMPANY
  37. Install the following items:

    1. LH and RH exhaust flexible pipes. Refer to: Exhaust Flexible Pipe .
    2. Front suspension height sensors. Refer to: Front Suspension Height Sensor .

  38. Remove Special Service Tool: 303-F070 Support Bar, Engine.
    GFD530928Courtesy of FORD MOTOR COMPANY
  39. Remove the two M8 x 1. 25 x 105 mm bolts, two washers, and the special tools. Remove Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.
    GFD531008Courtesy of FORD MOTOR COMPANY
  40. Install the engine front cover bolts.

    Torque: Stage 1: 177 lb. in (20 Nm) Stage 2: 45°

    GFD531007Courtesy of FORD MOTOR COMPANY
  41. Install the new steering shaft bolt.

    Torque: 22 lb. ft (30 Nm)

    GFD531037Courtesy of FORD MOTOR COMPANY
  42. NOTE: If equipped.

    • Connect the vacuum tubes.

    • Attach the vacuum tube retainer.

    GFD531005Courtesy of FORD MOTOR COMPANY
    • Position the coolant pipe.

    • Install the coolant pipe bolts.

      Torque: 97 lb. in (11 Nm)

    • Attach the wiring harness retainers.

    GFD531004Courtesy of FORD MOTOR COMPANY
    • Install the intake manifold bracket and bolts.

      Torque: 97 lb. in (11 Nm)

    • Install the coolant pipe bracket retaining bolts.

      Torque: 97 lb. in (11 Nm)

    GFD531003Courtesy of FORD MOTOR COMPANY
  43. Install the following items:

    1. Coolant pump. Refer to: Coolant Pump .
    2. Charge air cooler outlet pipe. Refer to: Charge Air Cooler (CAC) Outlet Pipe .

  44. Install the suspension support bar and the bolts.

    Torque: 22 lb. ft (30 Nm)

    GFD531002Courtesy of FORD MOTOR COMPANY
  45. Install the upper radiator panel and the retainers.
    GFD531001Courtesy of FORD MOTOR COMPANY
  46. Remove the holding device.
    GFD531000Courtesy of FORD MOTOR COMPANY
  47. Start and check the exhaust system for leaks.
