Timing Chain: Removal

RH and LH timing chains

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.

Remove the engine front cover.
NOTE: Rotate the crankshaft utilizing only the original crankshaft pulley bolt. Failure to follow this direction may cause damage to the crankshaft and result in engine failure.

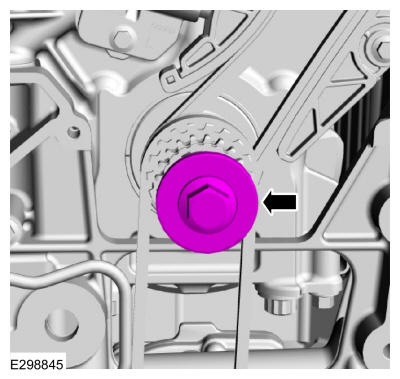

Install the original crankshaft pulley bolt.

Courtesy of FORD MOTOR COMPANY
NOTE: The VCT units have 2 timing marks on them, a triangle and a circle. For removal and installation of the RH side the triangle marks are used.
1. Rotate the crankshaft clockwise.
2. Position the crankshaft sprocket keyway at the 11 o'clock position.
3. Verify the triangle timing marks on the VCT units are at the 2 o'clock (intake) and 11 o'clock (exhaust) positions. If the circle timing marks are at these positions the crankshaft must be turned clockwise one revolution (360 degrees).
Courtesy of FORD MOTOR COMPANY
Remove the bolts and the RH timing chain tensioner.

Courtesy of FORD MOTOR COMPANY
Remove the RH timing chain tensioner arm.

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the RH timing chain guide.

Courtesy of FORD MOTOR COMPANY
Remove the RH timing chain.

Courtesy of FORD MOTOR COMPANY
Remove the original crankshaft pulley bolt.

Courtesy of FORD MOTOR COMPANY
Remove the timing chain sprocket.

Courtesy of FORD MOTOR COMPANY

LH timing chain
Install the original crankshaft pulley bolt.

Courtesy of FORD MOTOR COMPANY
NOTE: The crankshaft must be rotated clockwise one revolution (360 degrees). Failure to do so will result in incorrect camshaft timing.

NOTE: The VCT units have 2 timing marks on them, a triangle and a circle. For removal and installation of the LH side the circle marks are used.
1. Rotate the crankshaft clockwise one revolution (360 degrees).
2. Position the crankshaft sprocket keyway at the 11 o'clock position.
3. The circle timing marks on the VCT units will be at the 10 o'clock (intake) and 12: 30 (exhaust) positions.
Courtesy of FORD MOTOR COMPANY
Remove the original crankshaft pulley bolt.

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the splash shield.

Courtesy of FORD MOTOR COMPANY
Slide the oil pump drive belt off of the crankshaft sprocket and remove the belt.

Courtesy of FORD MOTOR COMPANY
Remove the crankshaft sprocket.

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the LH timing chain tensioner.

Courtesy of FORD MOTOR COMPANY
Remove the LH timing chain tensioner arm.

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the LH timing chain guide.

Courtesy of FORD MOTOR COMPANY
Remove the LH timing chain.

Courtesy of FORD MOTOR COMPANY
Remove the timing chain sprocket.

Courtesy of FORD MOTOR COMPANY
