Fuel Charging and Controls - Component Location

3.0L EcoBoost

GFD531636Courtesy of FORD MOTOR COMPANY
Item Description
1 Throttle body
2 High-pressure fuel pump
3 High-pressure fuel pump drive unit
4 Direct injection fuel rail
5 Direct injection fuel injector

Fuel Pump Driver Module

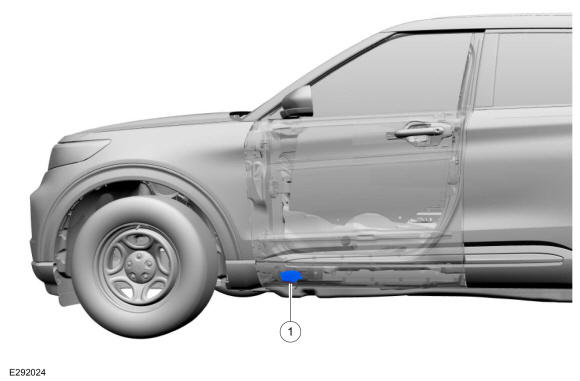

GFD531637Courtesy of FORD MOTOR COMPANY
Item Description
1 Fuel pump driver module
