Fuel Tank Draining

For information on Ford Color Coded Illustrations refer to OEM Color Coding

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	292-00004 Fuel Tanker 100 GPM

Draining

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

1. WARNING: Before beginning any service procedure in this information, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.

   Refer to: Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety Precautions .

2. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting .
3. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

4. Courtesy of FORD MOTOR COMPANY

   Courtesy of FORD MOTOR COMPANY

   NOTE: Only use the specified general equipment.
   NOTE: Be prepared to collect escaping fluid

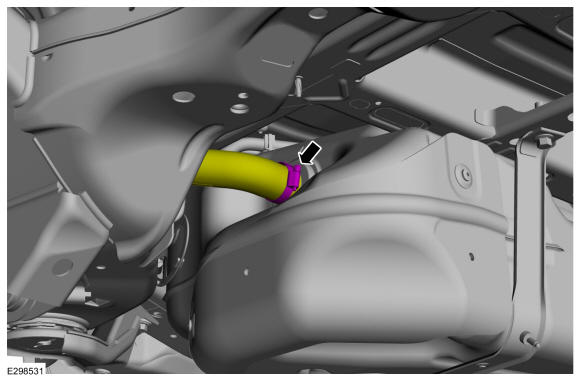

   Loosen the clamp and disconnect the hose. Position the hose aside.

   Torque: 28 lb.in (3.2 Nm)

   Courtesy of FORD MOTOR COMPANY

5. NOTE: Use suitable paper to absorb any escaping fluid.
   NOTE: Some residual fuel may remain in the fuel tank filler pipe. Carefully drain into a suitable container.

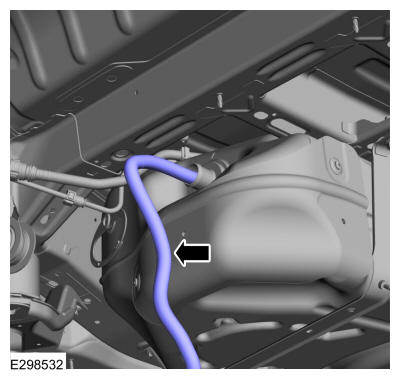

   Insert the hose from the fuel storage tanker and siphon the fuel through the hose.

   Use Special Service Tool: 292-00004 Fuel Tanker 100 GPM.

Courtesy of FORD MOTOR COMPANY
