WARNING: This page is about a different car, the 2019 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

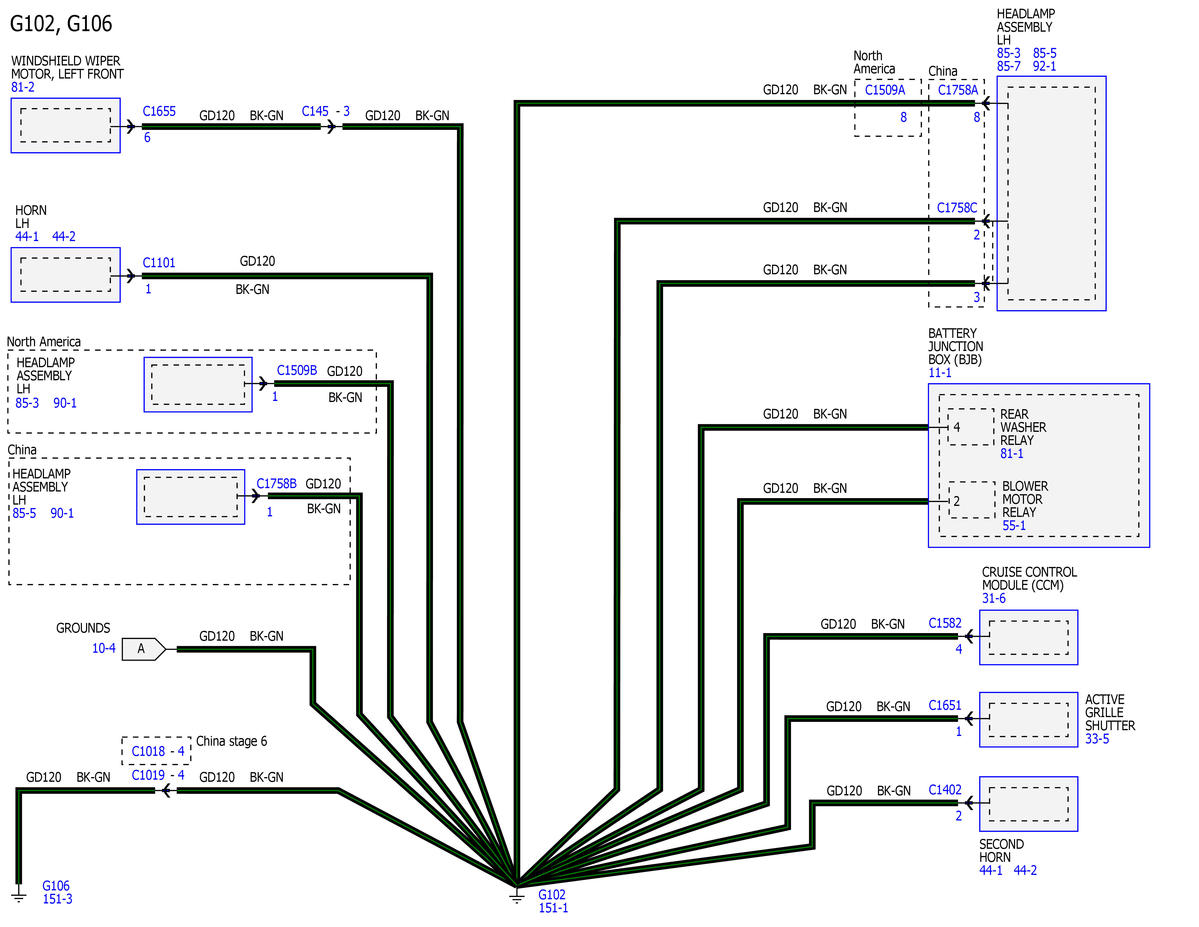

Fig 1: Ground Distribution Wiring Diagram - G102, G106
Courtesy of FORD MOTOR COMPANY

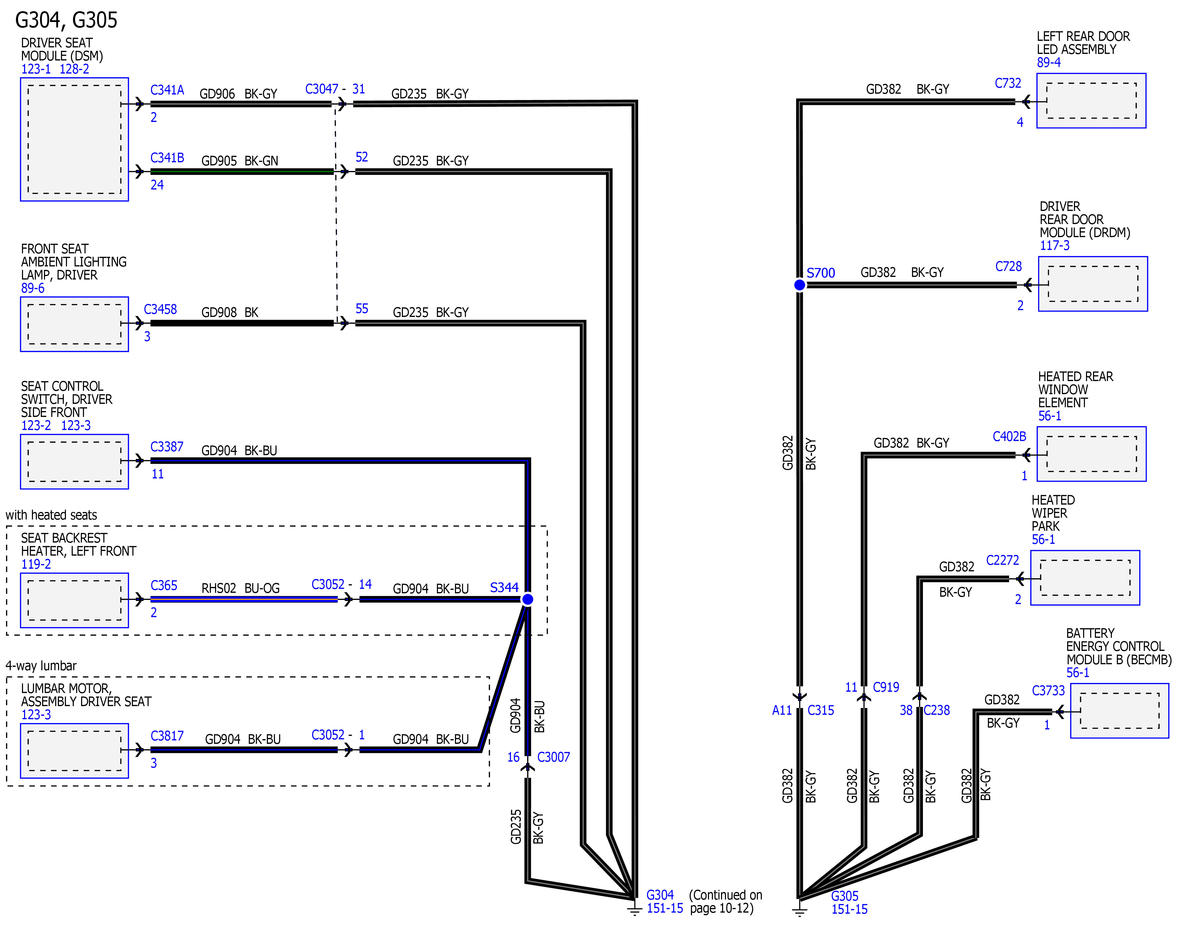

Fig 2: Ground Distribution Wiring Diagram - G304, G305
Courtesy of FORD MOTOR COMPANY

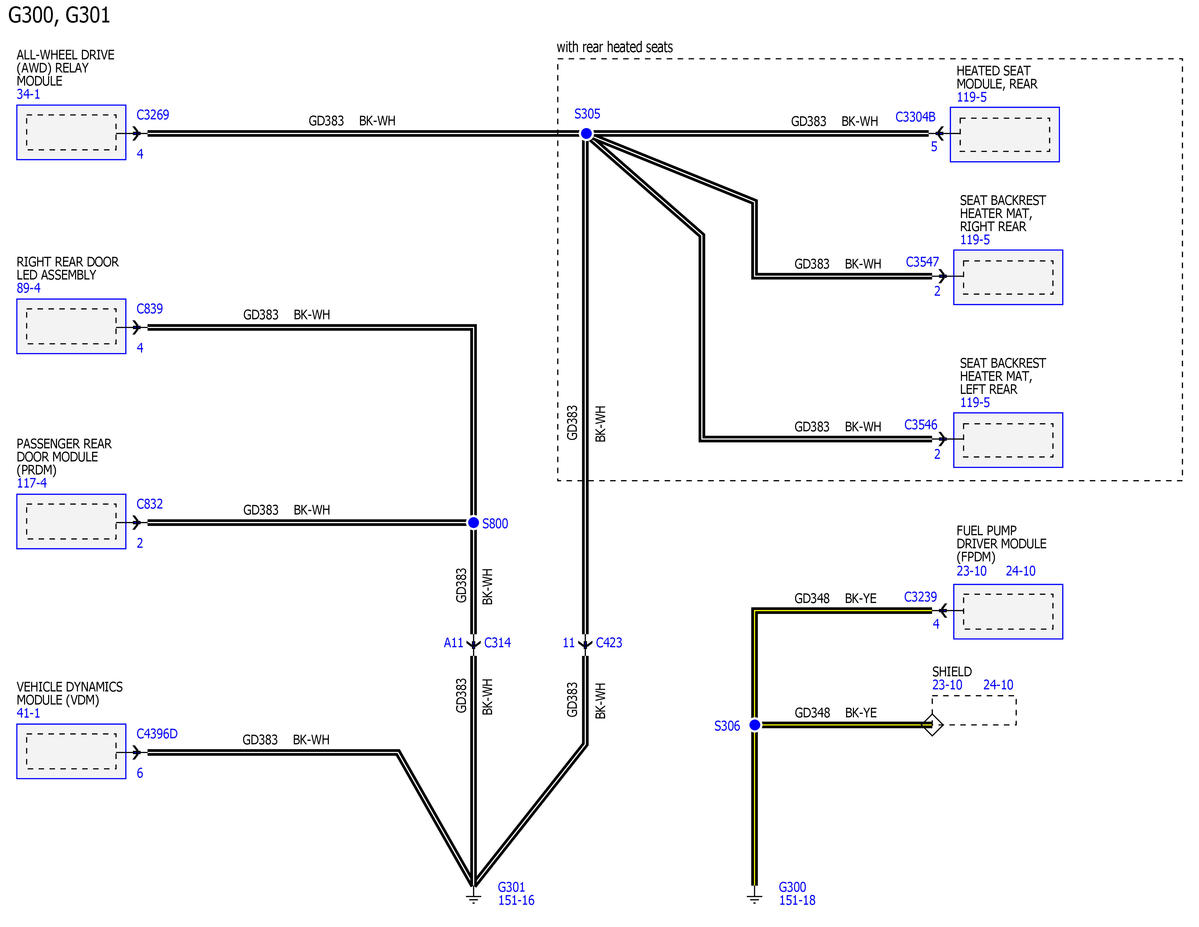

Fig 3: Ground Distribution Wiring Diagram - G300, G301
Courtesy of FORD MOTOR COMPANY

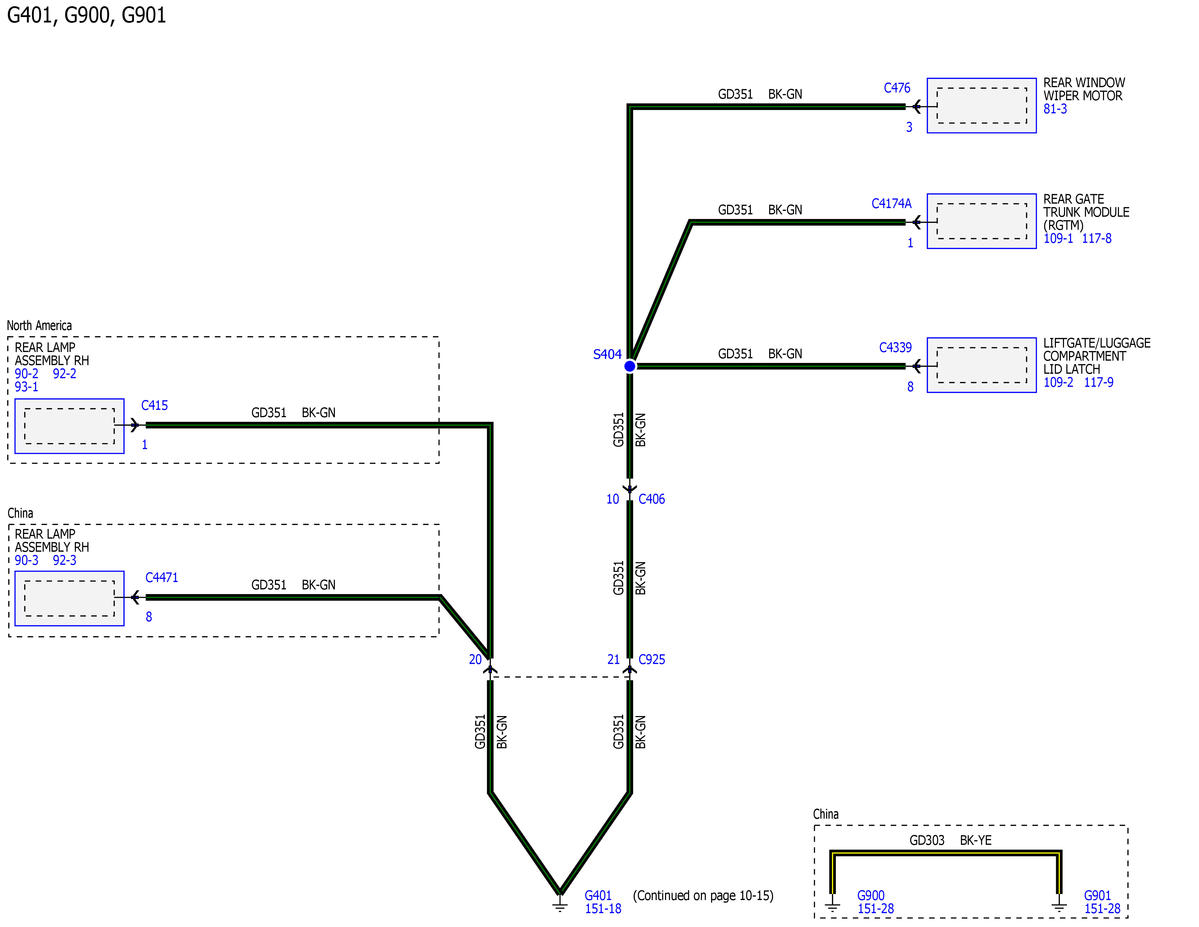

Fig 4: Ground Distribution Wiring Diagram - G401, G900, G901
Courtesy of FORD MOTOR COMPANY

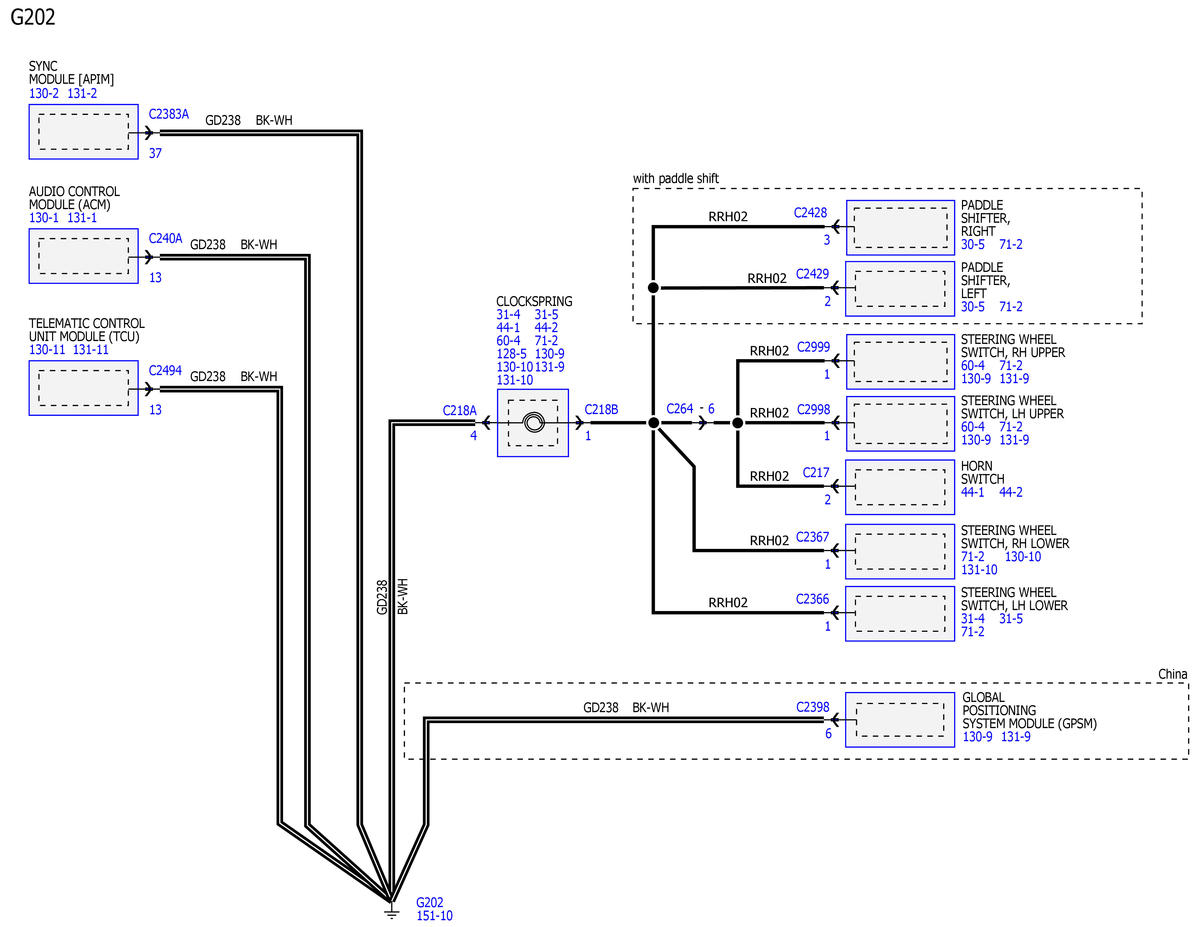

Fig 5: Ground Distribution Wiring Diagram - G202
Courtesy of FORD MOTOR COMPANY

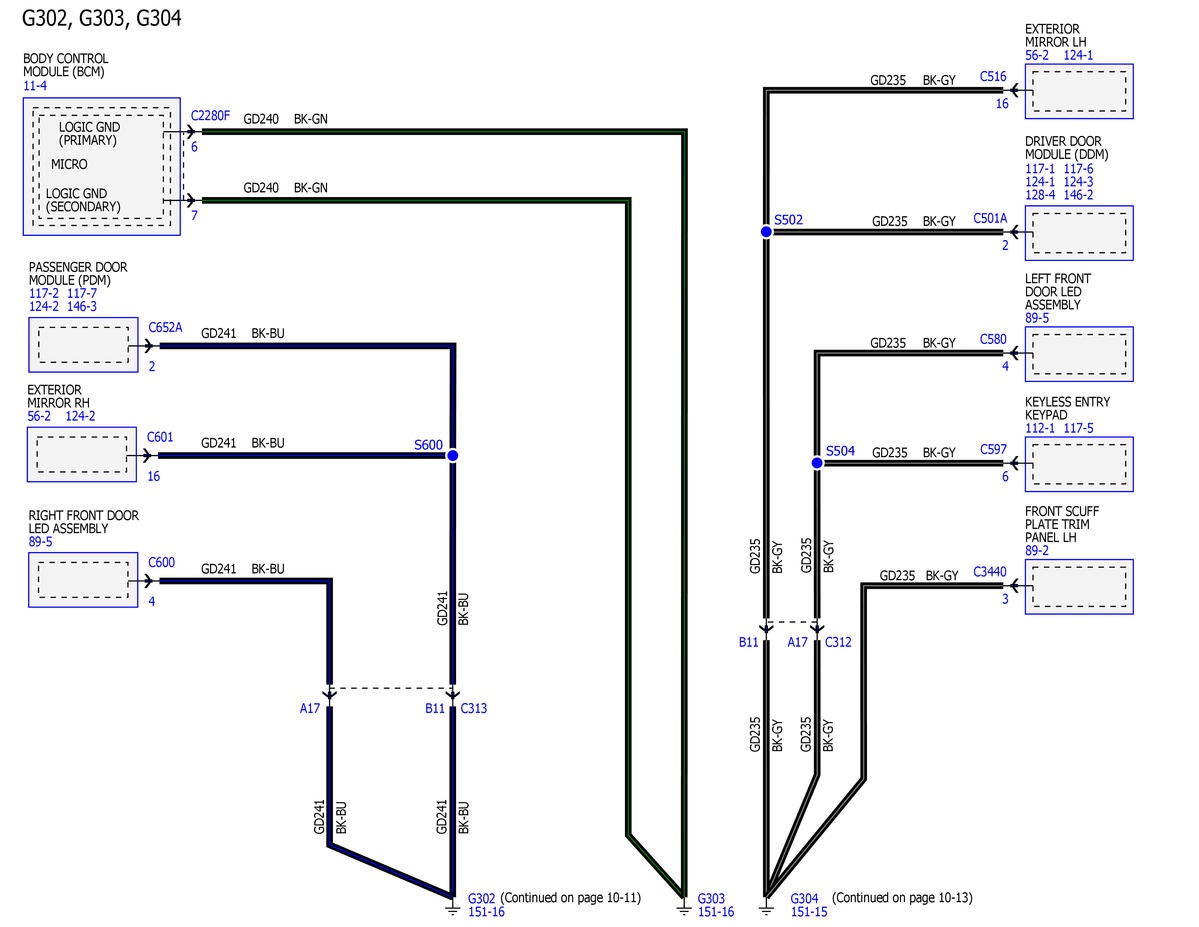

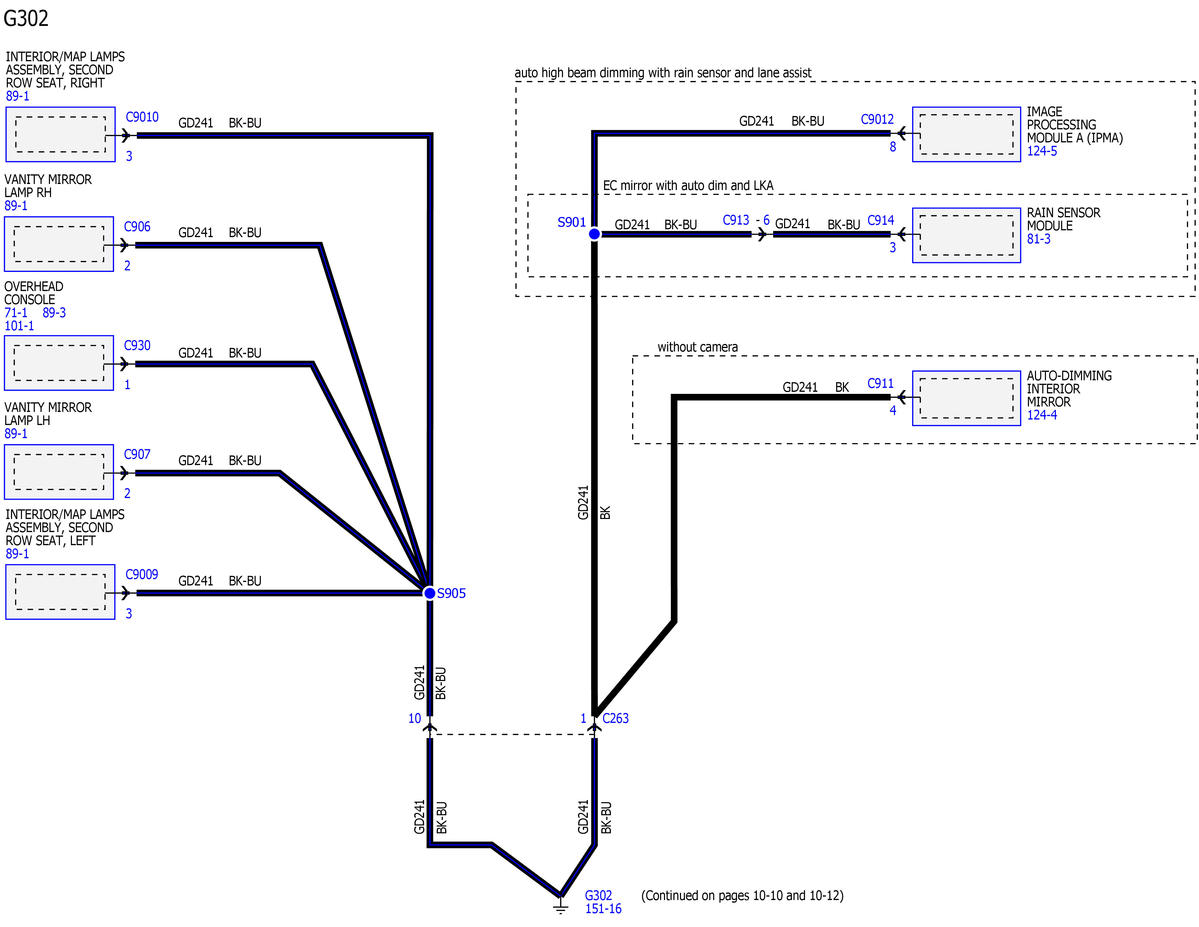

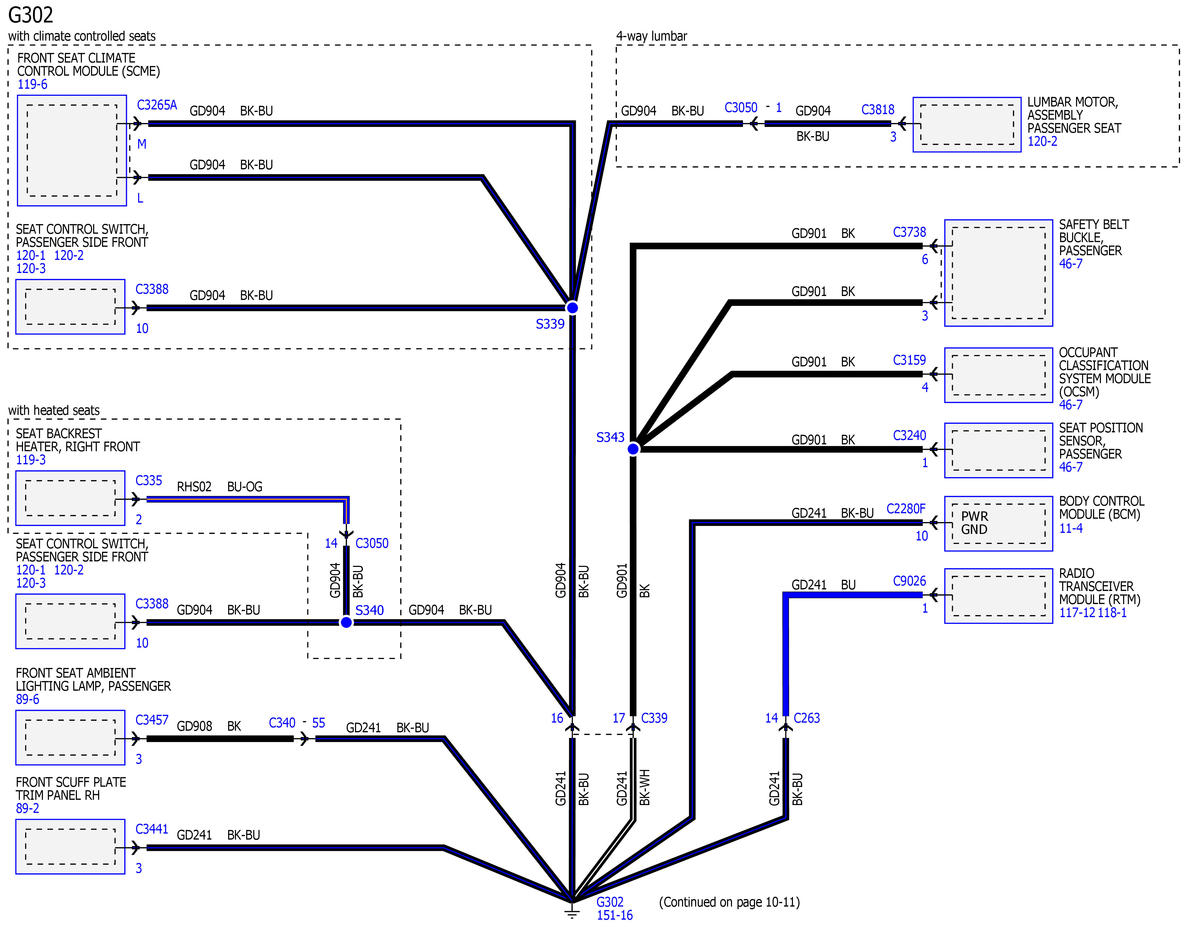

Fig 6: Ground Distribution Wiring Diagram - G302, G303, G304
Courtesy of FORD MOTOR COMPANY

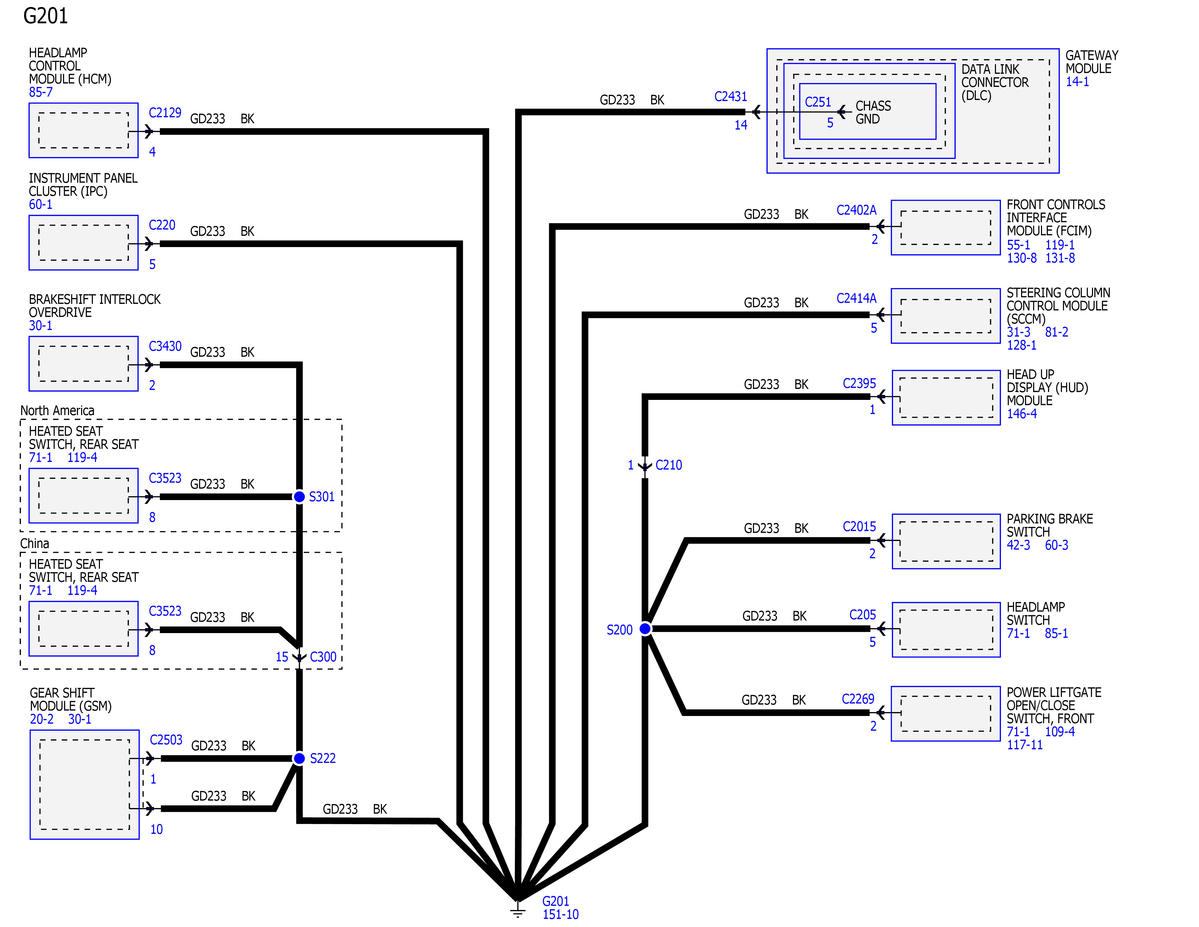

Fig 7: Ground Distribution Wiring Diagram - G201
Courtesy of FORD MOTOR COMPANY

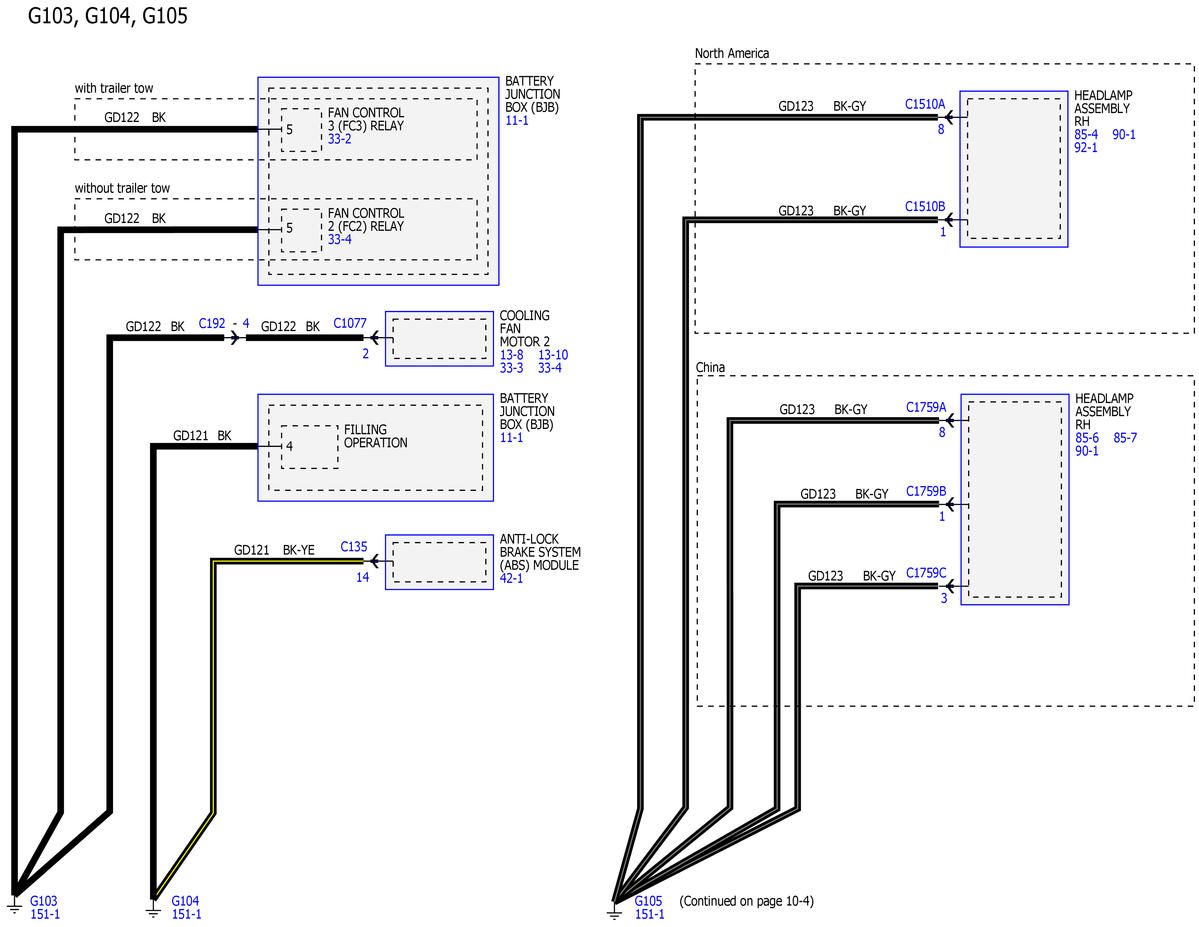

Fig 8: Ground Distribution Wiring Diagram - G103, G104, G105
Courtesy of FORD MOTOR COMPANY

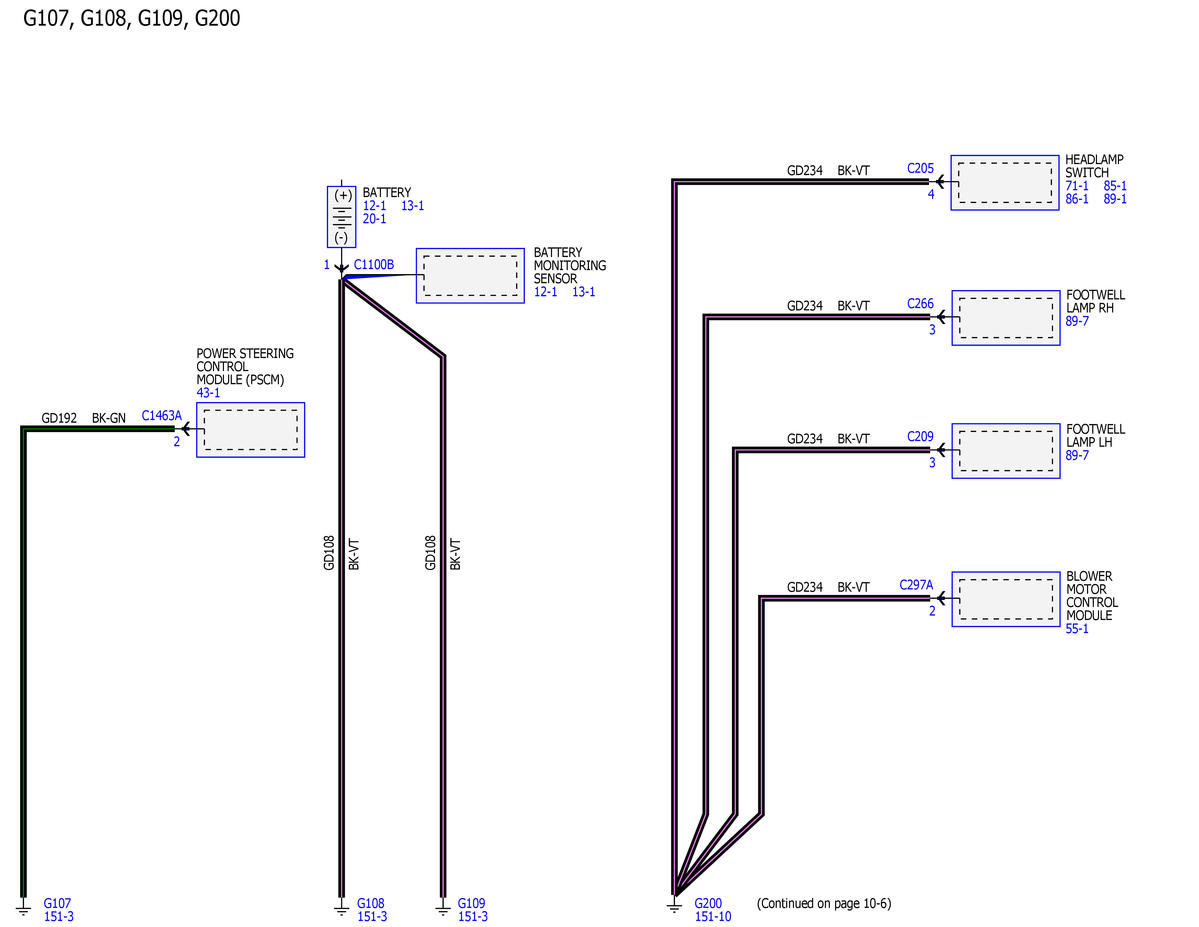

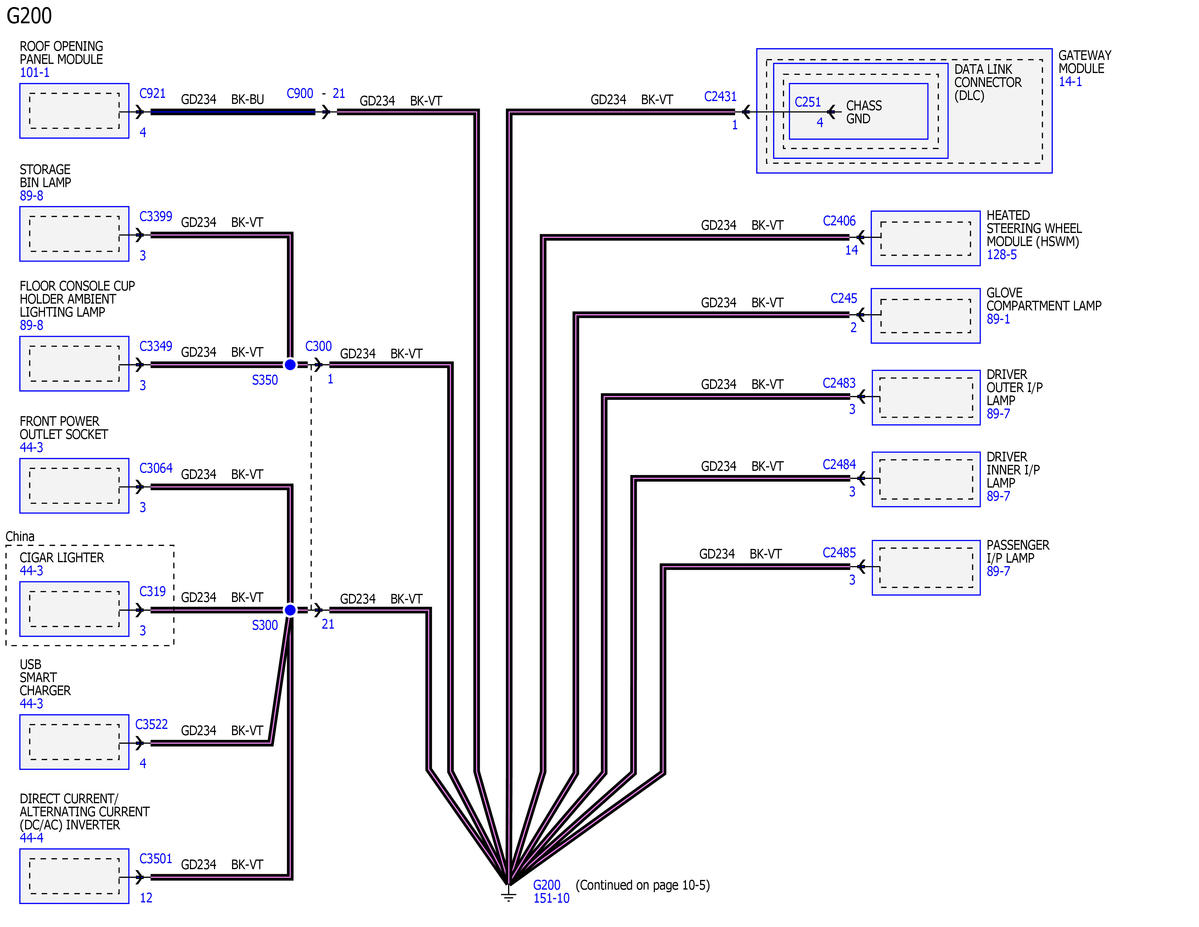

Fig 9: Ground Distribution Wiring Diagram - G200
Courtesy of FORD MOTOR COMPANY

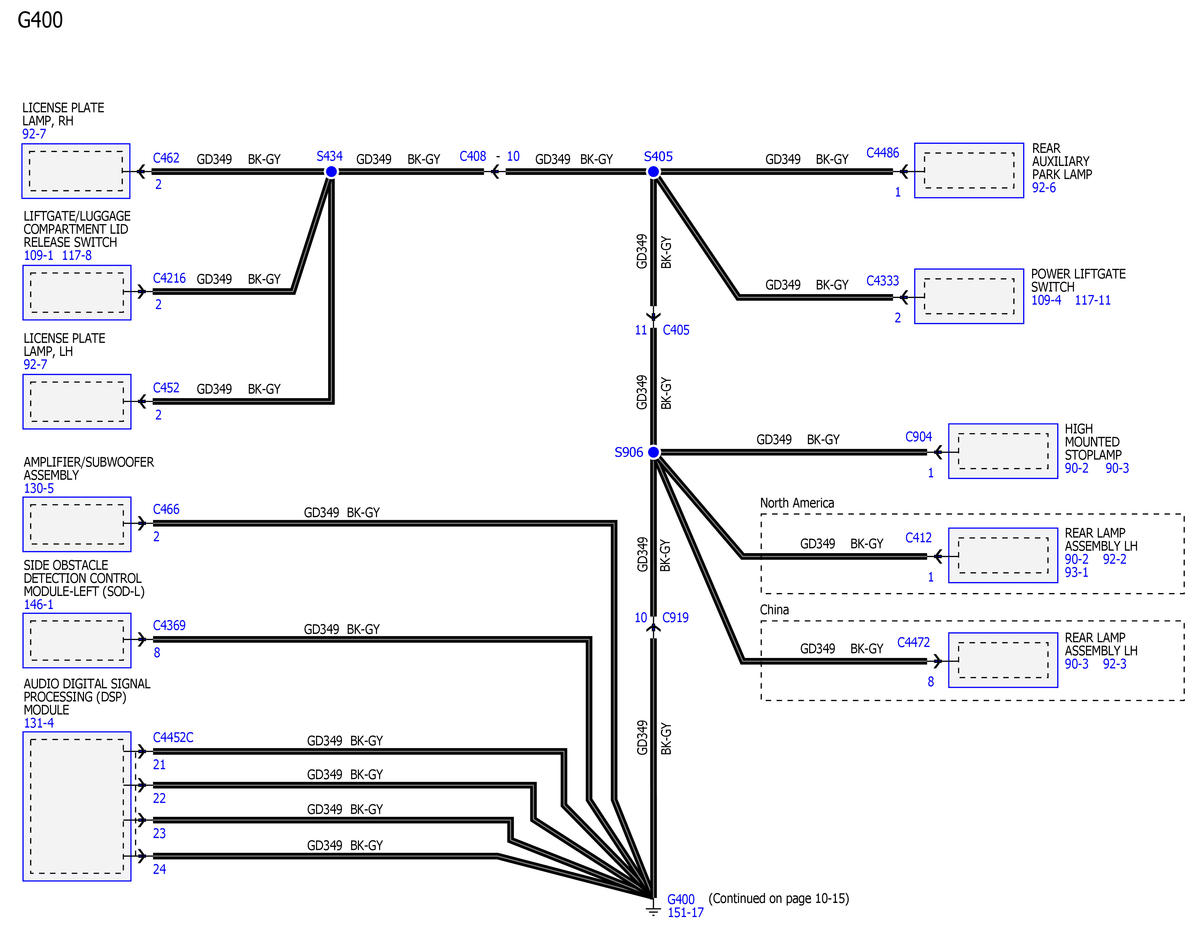

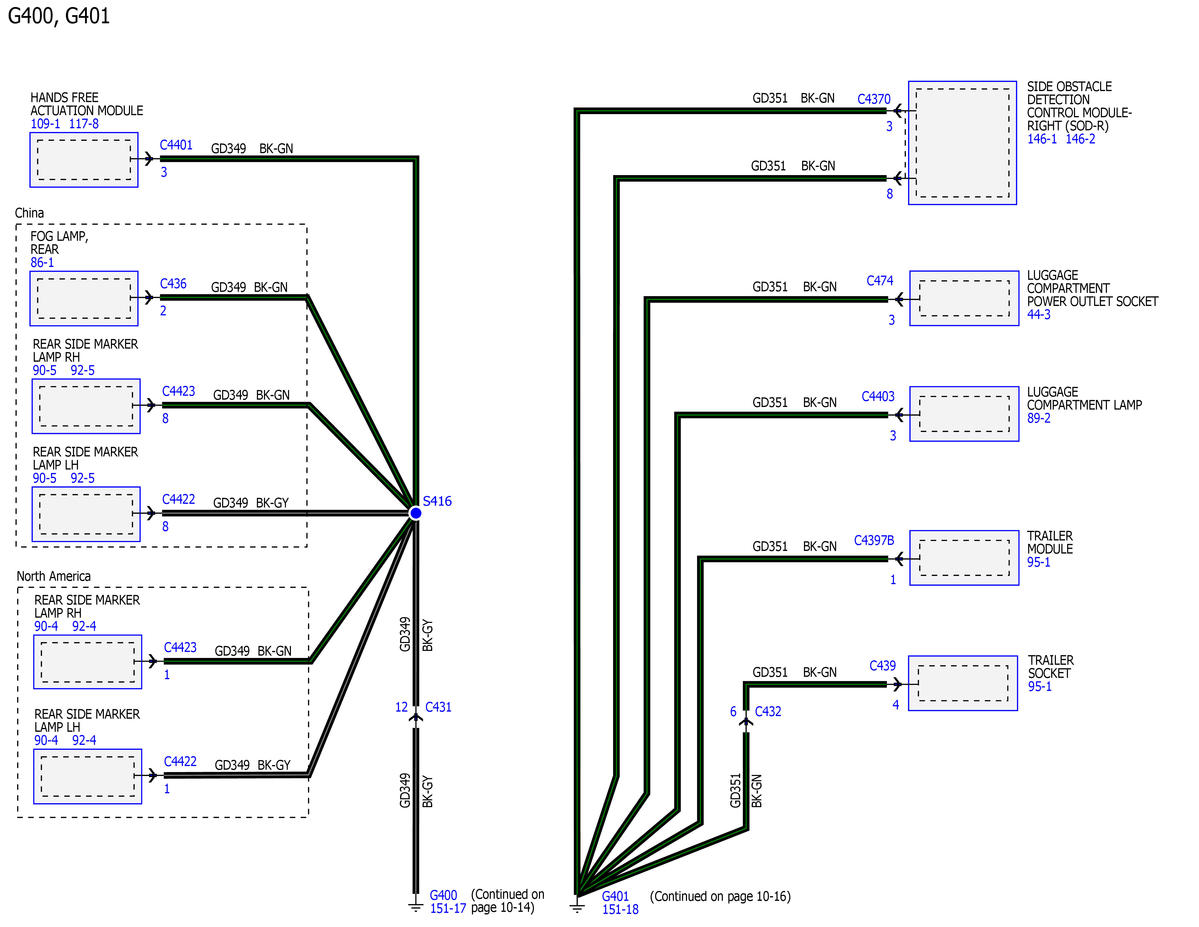

Fig 10: Ground Distribution Wiring Diagram - G400, G401
Courtesy of FORD MOTOR COMPANY

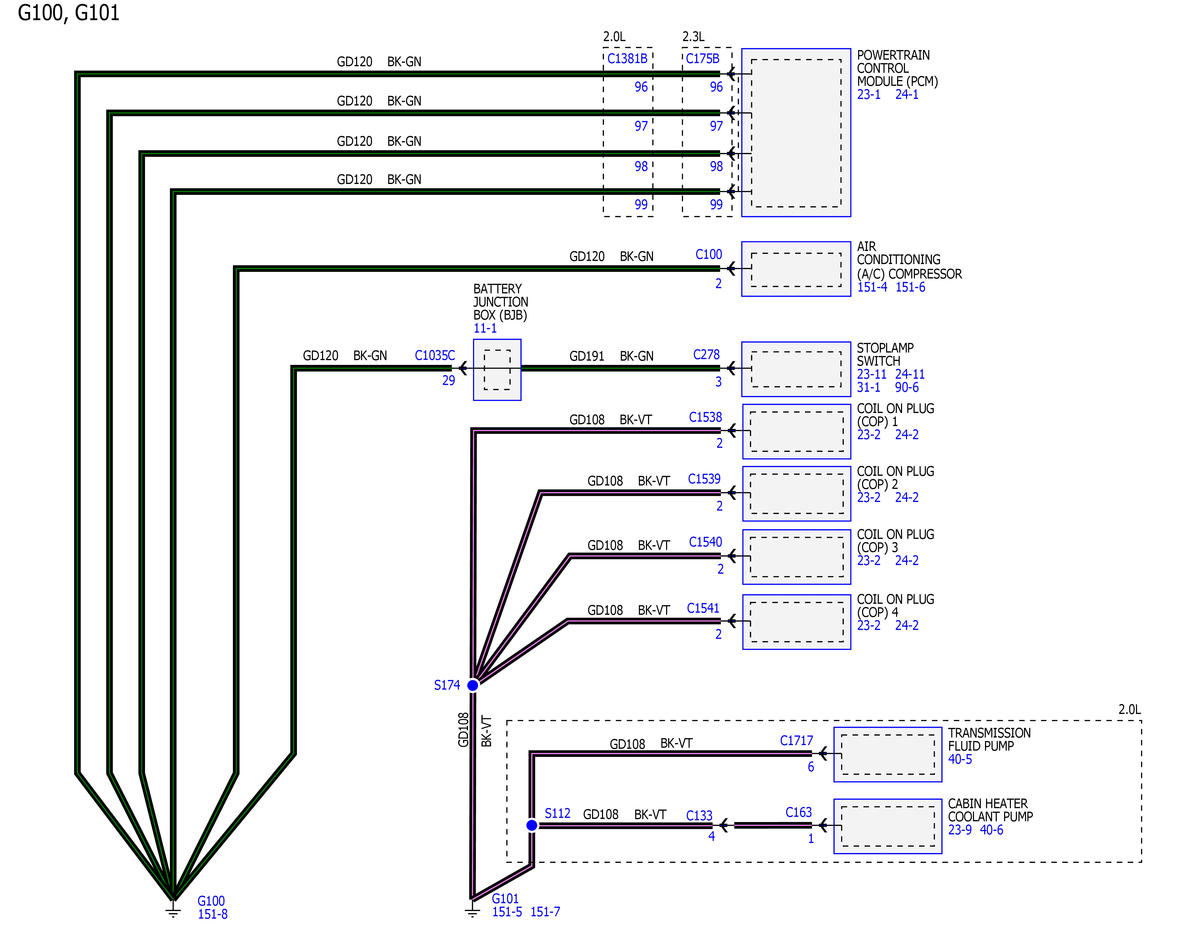

Fig 11: Ground Distribution Wiring Diagram - G100, G101
Courtesy of FORD MOTOR COMPANY

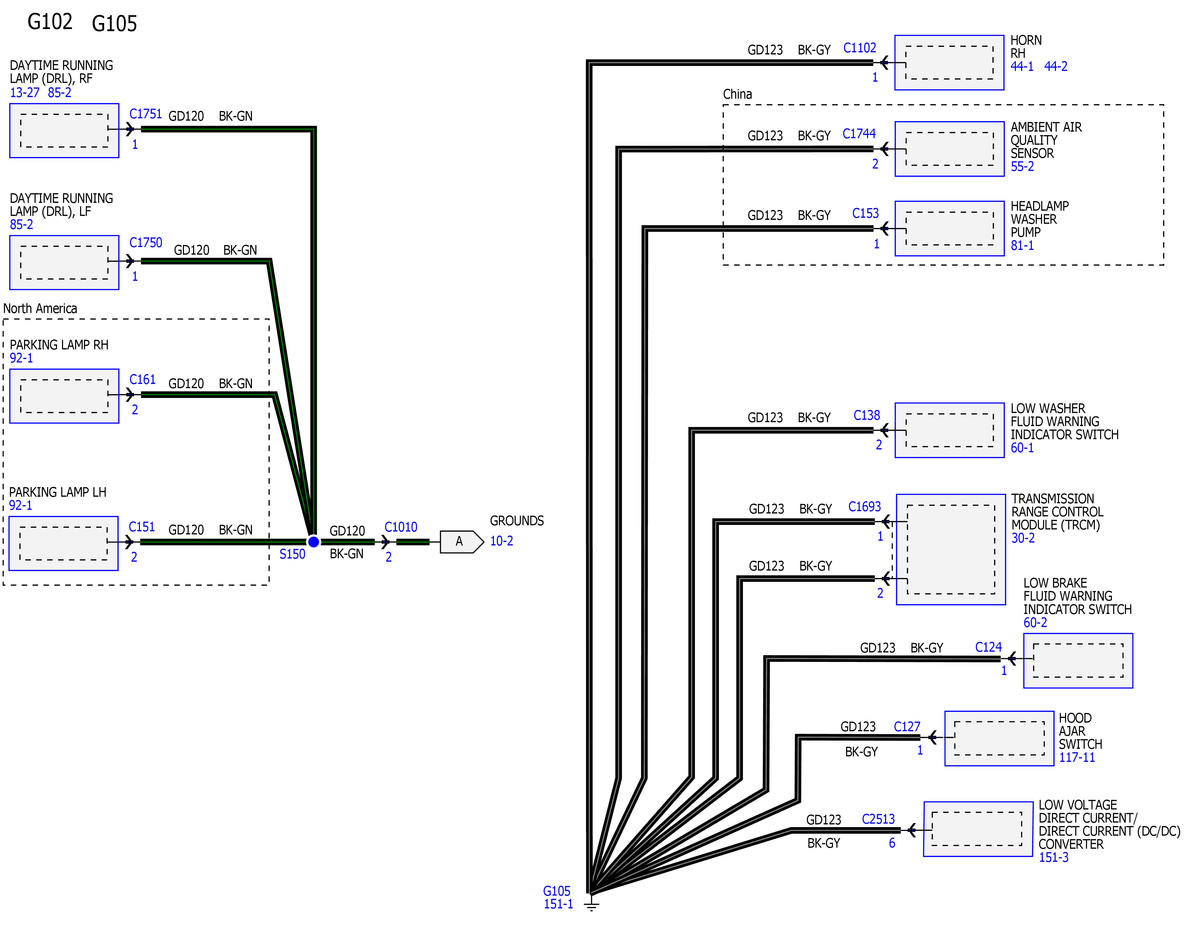

Fig 12: Ground Distribution Wiring Diagram - G102, G105
