Front Wheel Speed Sensor: Removal
WARNING: This page is about a different car, the 2019 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding .
NOTE:
Removal steps in this procedure may contain installation details.
- Refer to: Wheel and Tire .
-

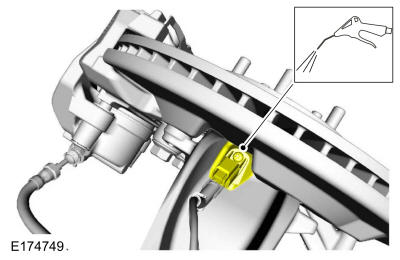

NOTE: Make sure that the sensor housing area is clean and free of foreign material before the sensor is removed.
- Torque
: 42 lb.in (4.8 Nm)
