Cruise Control Module (CCM): Removal

WARNING: This page is about a different car, the 2019 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

NOTE: The vertical and horizontal alignment procedures need to be carried out to align the sensor.

NOTE: Removal steps in this procedure may contain installation details.

Cruise control module (CCM)

NOTE: If installing a new CCM, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new CCM after installation.

Using a diagnostic scan tool, begin the PMI process for the CCM following the onscreen instructions.
Remove the front bumper cover. Refer to: Front Bumper Cover .

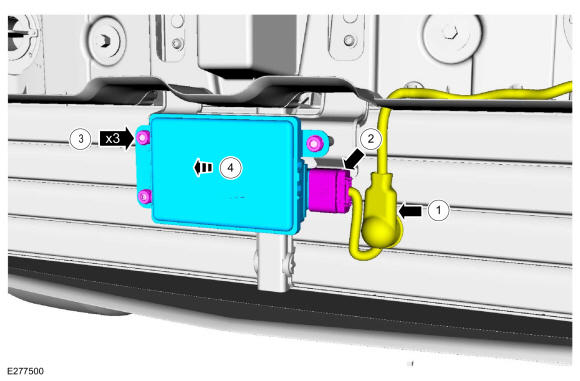

1. Position back the connector cover.
2. Disconnect the electrical connector.
3. Detach the CCM grommets from the CCM bracket studs by pulling outward.
4. Remove the CCM.
Courtesy of FORD MOTOR COMPANY
NOTE: Replace any damaged CCM grommets.

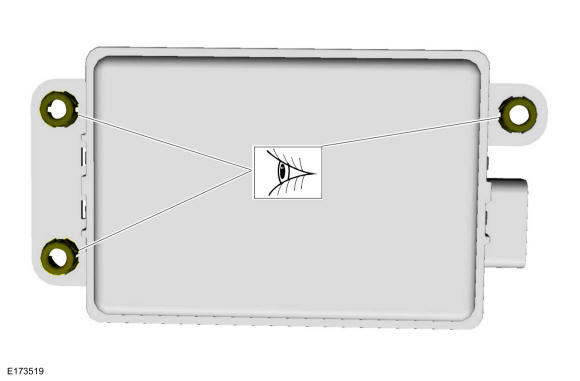

Inspect CCM grommets for damage.

Courtesy of FORD MOTOR COMPANY

CCM bracket
Remove the front bumper cover. Refer to: Front Bumper Cover .
1. Position back the connector cover.
2. Disconnect the electrical connector.
3. Detach the CCM grommets from the CCM bracket studs by pulling outward.
4. Remove the CCM.
Courtesy of FORD MOTOR COMPANY
NOTE: Replace any damaged CCM grommets.

Inspect CCM grommets for damage.

Courtesy of FORD MOTOR COMPANY

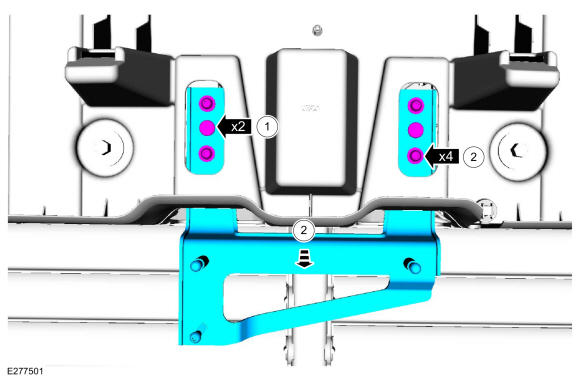

1. Remove the CCM bracket trim pins.
2. Remove the CCM bracket bolts and the CCM bracket.
  Torque: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY
