Rear Door Alignment

WARNING: This page is about a different car, the 2019 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations, refer to OEM COLOR CODING

Inspection

Check rear door to body dimensions. Refer to: Body and Frame .

Adjustment

NOTE: LH shown, RH similar.

All alignments

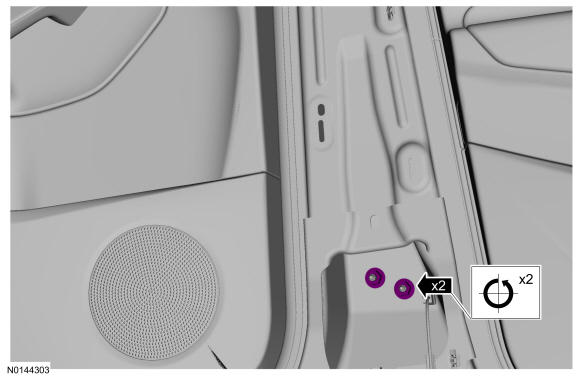

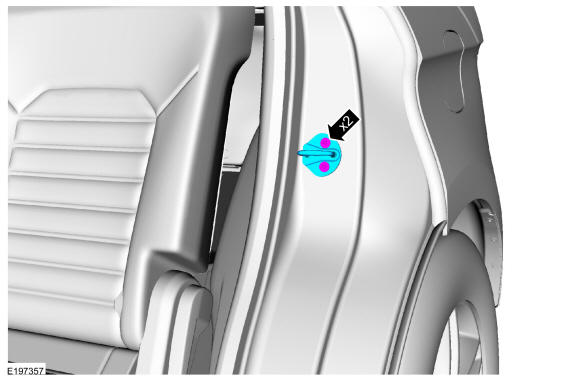

Remove the bolts and the striker assembly.

Courtesy of FORD MOTOR COMPANY

Rear door in and out, up and down alignment

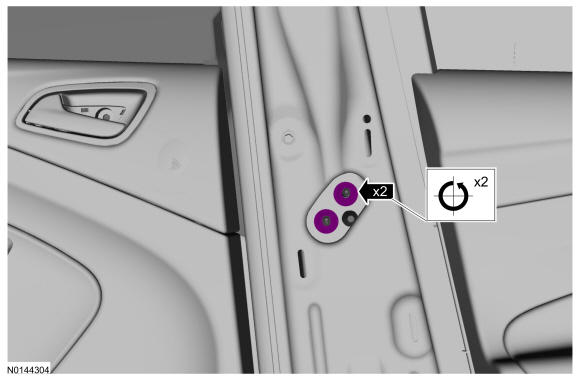

Loosen the bolts to permit movement of the door.
Torque: 35 lb.ft (47 Nm)

Courtesy of FORD MOTOR COMPANY

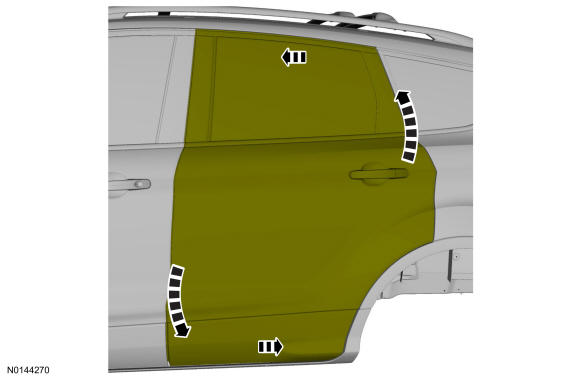

Adjust door to specification. Refer to: Body and Frame .

Courtesy of FORD MOTOR COMPANY

Rear door fore, aft and tilt alignment

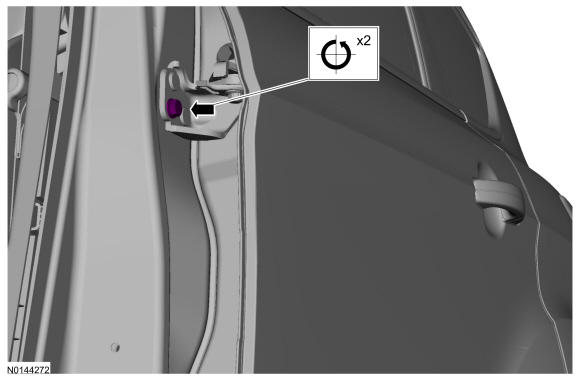

Loosen the bolt to permit movement of the door.
Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
Refer to: Seatbelt Retractor and Pretensioner .

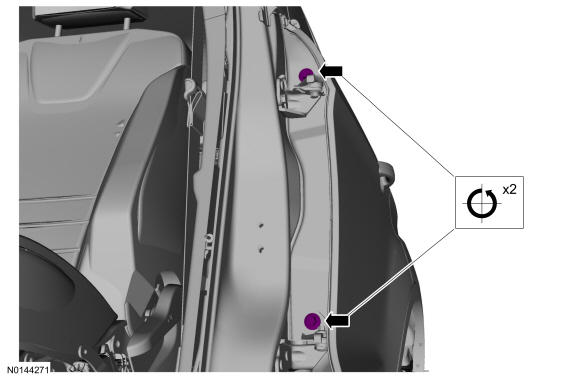

Loosen the nuts to permit movement of the door.
Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
Loosen the nuts to permit movement of the door.

Courtesy of FORD MOTOR COMPANY
Adjust door to specification. Refer to: Body and Frame .

Courtesy of FORD MOTOR COMPANY

All alignments
Install the striker assembly.
Torque: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY
Check body to rear door dimensions. Refer to: Body and Frame .
Install the removed components.
