Image Processing Module A (IPMA): Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

If a new IPMA is being installed, using a diagnostic scan tool, begin the PMI process for the IPMA following the on-screen instructions.

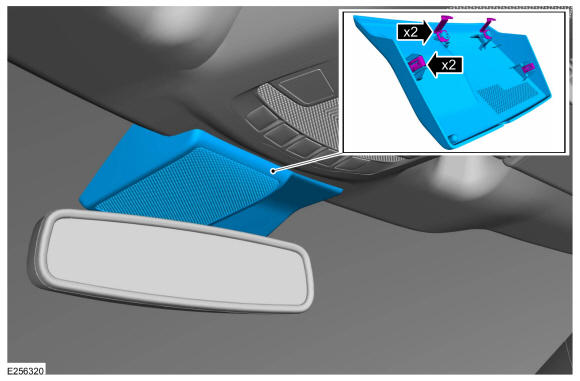

Remove the clips and the IPMA cover.

Courtesy of FORD MOTOR COMPANY

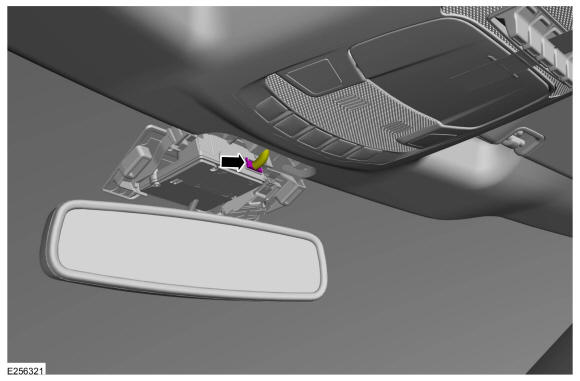

Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY

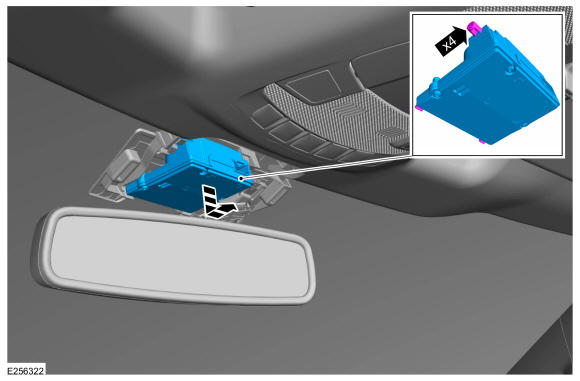

Release the tabs, remove the IPMA.

Courtesy of FORD MOTOR COMPANY
