Vehicle Dynamics Control Module (VDM): Removal

WARNING: This page is about a different car, the 2020 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

NOTE: Removal steps in this procedure may contain installation details.

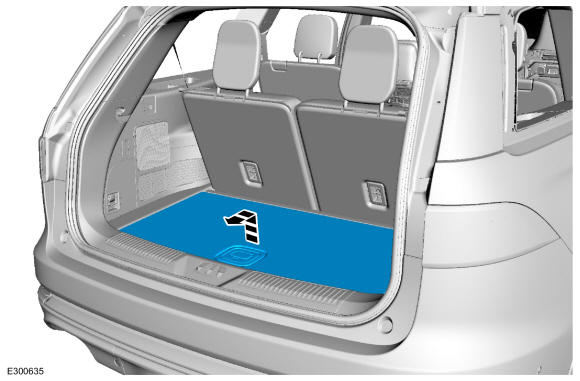

Remove the luggage compartment floor covering.

Courtesy of FORD MOTOR COMPANY

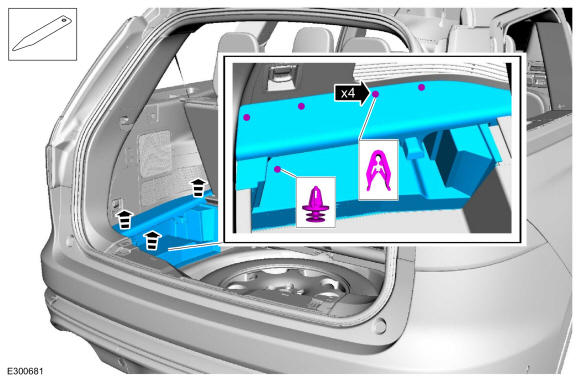

Release the clips and remove the luggage compartment side trim panel.. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

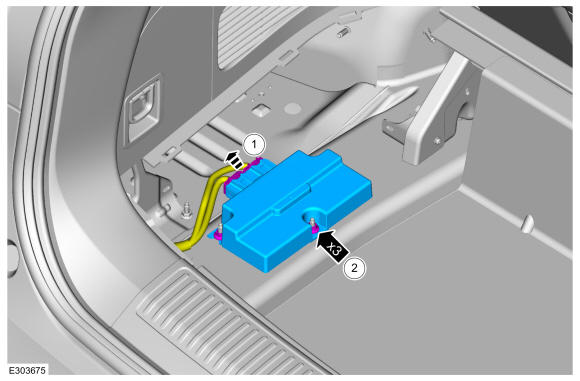

Remove the VDM.
1. Disconnect the VDM electrical connectors.
2. Remove the retainers and the VDM.
  Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY
