Pedestrian Alert Control Module (PACM): Removal

WARNING: This page is about a different car, the 2020 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

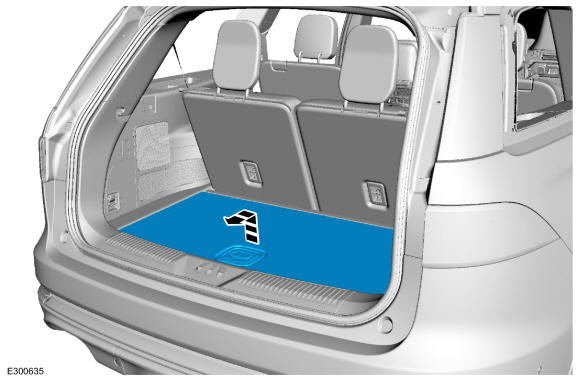

  1. Remove the luggage compartment floor cover.
    GFD533724Courtesy of FORD MOTOR COMPANY

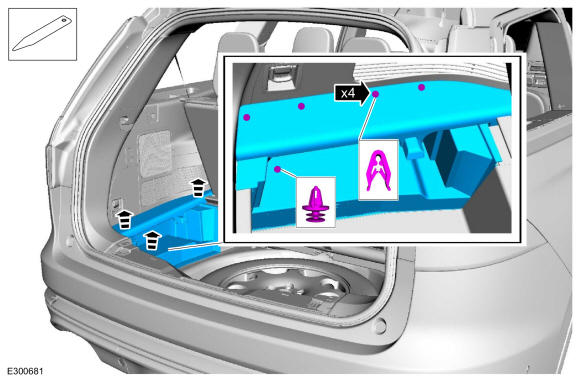

  2. Release the clips and the luggage compartment side trim panel. Use the General Equipment: Interior Trim Remover
    GFD533725Courtesy of FORD MOTOR COMPANY

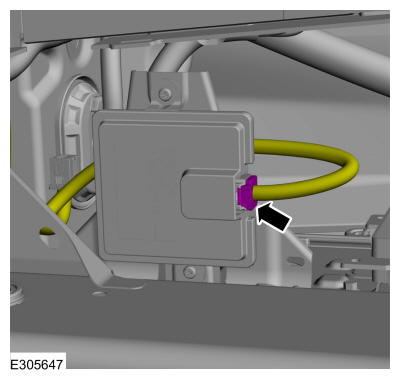

  3. Disconnect the electrical connectors and position the wiring harness aside.
    GFD533726Courtesy of FORD MOTOR COMPANY

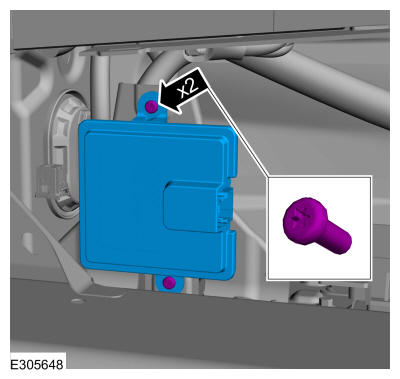

  4. Remove the screws and the PACM.
GFD533727Courtesy of FORD MOTOR COMPANY
