Head Up Display (HUD) Module: Removal

WARNING: This page is about a different car, the 2020 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer toOEM Color Coding

NOTE: Removal steps in this procedure may contain installation details.

Remove the instrument panel upper section. Refer to: Instrument Panel Upper Section .

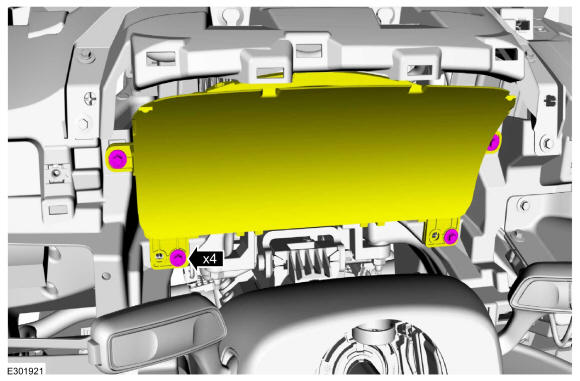

Remove the bolts and position out the IPC.

Courtesy of FORD MOTOR COMPANY

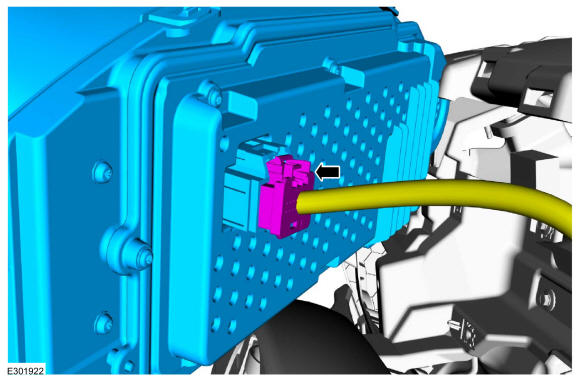

Disconnect the electrical connector and remove the IPC.

Courtesy of FORD MOTOR COMPANY

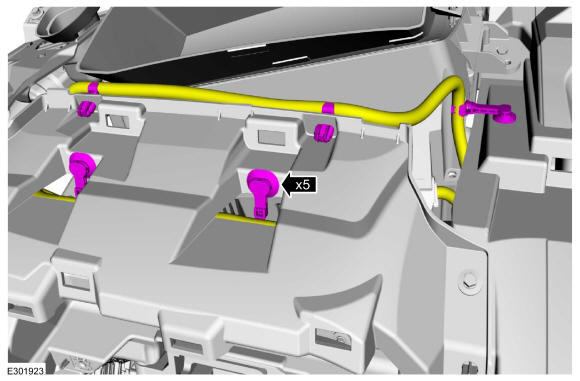

Detach the instrument panel wiring harness retainers.

Courtesy of FORD MOTOR COMPANY

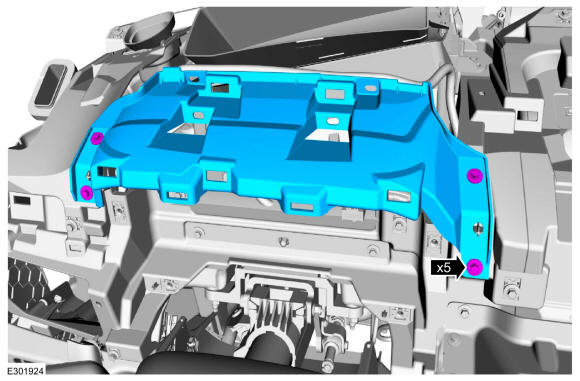

Remove the bolts and the IPC support bracket.

Courtesy of FORD MOTOR COMPANY

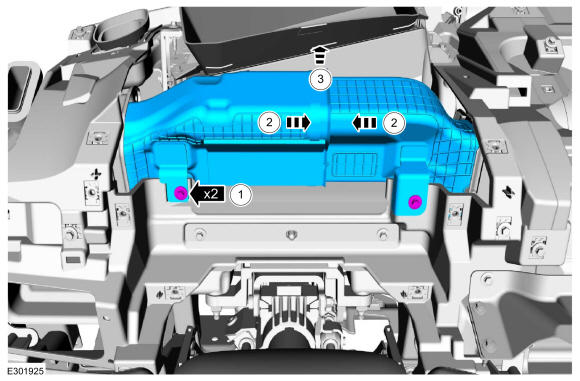

Remove the air duct.
1. Remove the air duct bolts.
2. Gently collapse the air duct.
3. Remove the air duct.
Courtesy of FORD MOTOR COMPANY

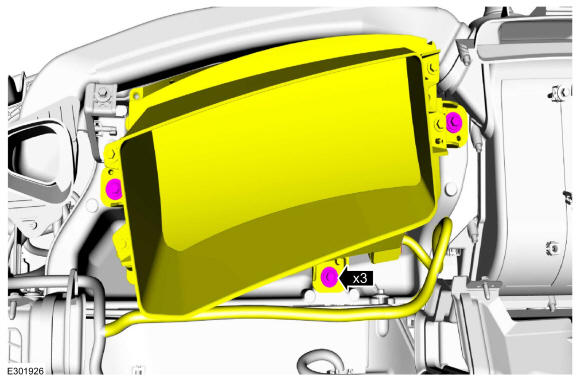

Remove the bolts and position aside the HUD module.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

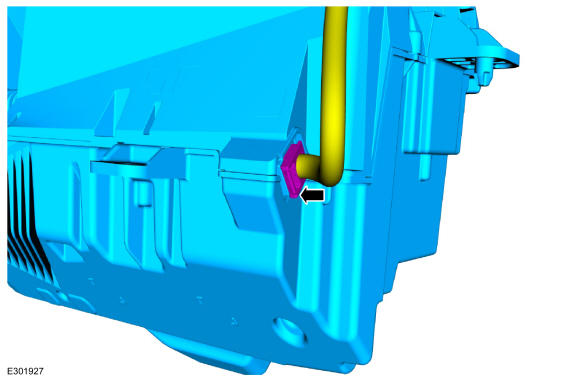

Disconnect the electrical connector and remove the HUD module.

Courtesy of FORD MOTOR COMPANY
