Side Obstacle Detection Control Module: Removal

WARNING: This page is about a different car, the 2020 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH side shown, RH side is similar.

Remove the rear bumper cover. Refer to: Side Obstacle Detection Control Module .
NOTE: This step is only necessary if the SODL or SODR is being replaced.

NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

NOTE: If the SODL or SODR did not respond to the diagnostic scan tool, As-Built Data may need to be entered as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the SODL or SODR following the on-screen instructions.

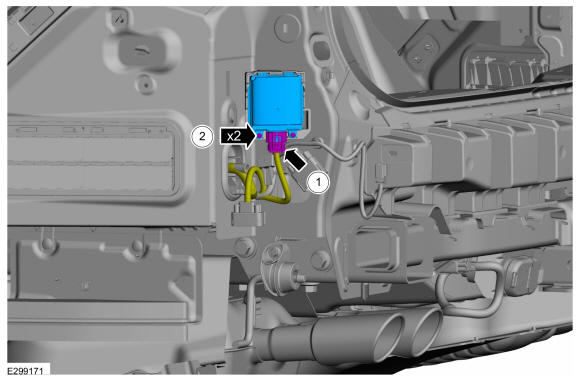

Remove the SODL.
1. Disconnect the SODL electrical connector.
2. Remove the SODL screws.
Courtesy of FORD MOTOR COMPANY

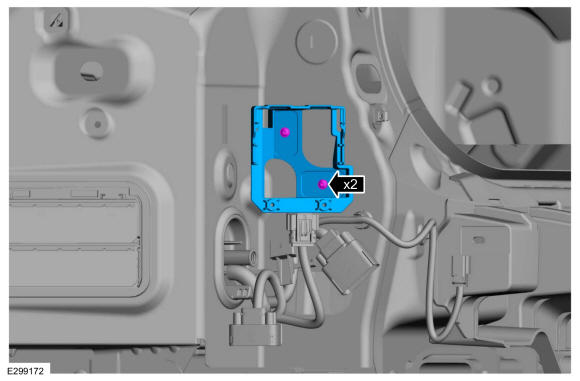

If required. Remove the screws and the SODL bracket.

Courtesy of FORD MOTOR COMPANY
