Hands-Free Liftgate Actuation Module: Removal
WARNING: This page is about a different car, the 2020 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the rear bumper cover. Refer to: Rear Bumper Cover .

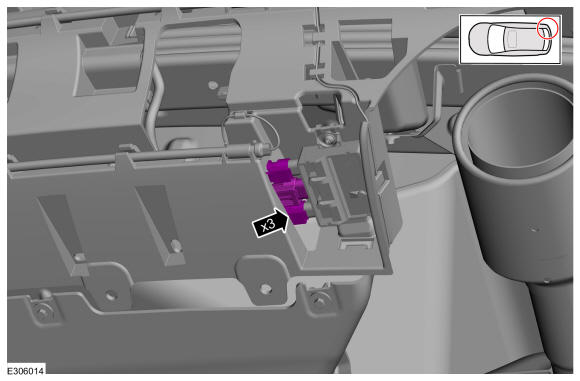

- Disconnect the hands-free liftgate actuation module electrical connectors.
- Remove the following items:

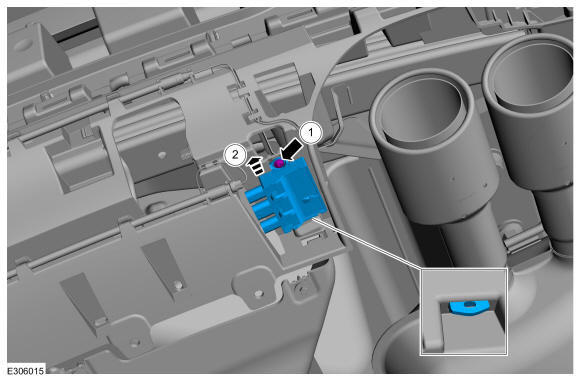

- Remove the bolt.
Torque: 19 lb.in (2.2 Nm)
- Remove the hands-free liftgate actuation module.
- Remove the bolt.
