Transfer Case Clutch Actuator: Installation

NOTE: This step is not necessary when installing a new transfer case clutch actuator.

NOTE: Lubricate the "O" ring surface with oil before installing.

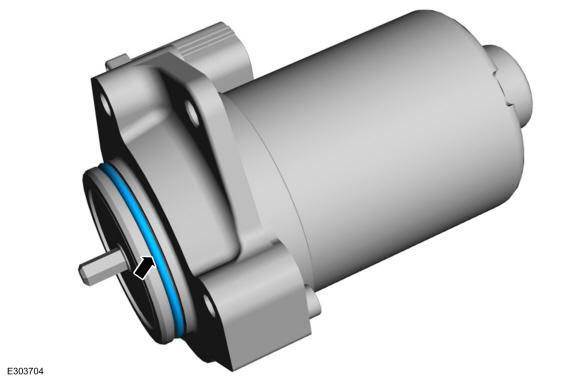

Insert the "O"-ring seal on the transfer case clutch actuator.

Material: Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (WSS-M2C938-A) (MERCON® LV,)

Courtesy of FORD MOTOR COMPANY

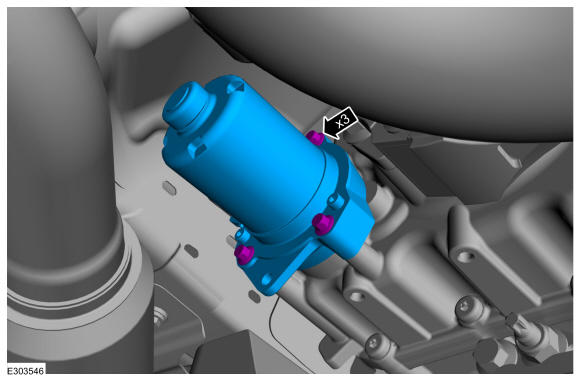

Install the transfer case clutch actuator and bolts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

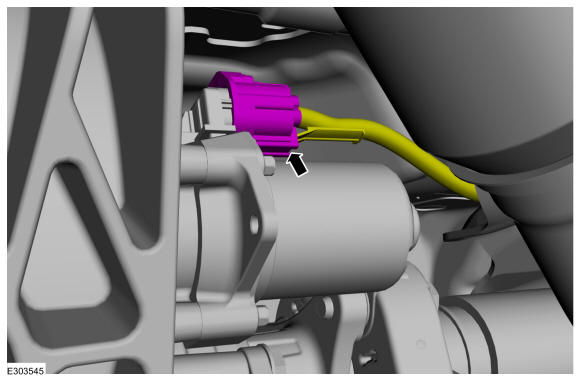

Connect the harness connector.

Courtesy of FORD MOTOR COMPANY
Install the transfer case heat shield (if equipped).
Torque: 21 lb.ft (28 Nm)

Courtesy of FORD MOTOR COMPANY
