Axle Assembly: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the front driveshaft. Refer to: Front Driveshaft .
- Drain the front differential fluid. Refer to: Differential Draining and Filling .
- Remove the front RH halfshaft only. Refer to: Halfshaft .
- Remove the engine mount RH. Refer to: Engine Mount RH .
- Disconnect the front drive axle speed sensor electrical connector and position the wiring harness aside.
- Disconnect the tie strap, detach and position the front axle breather hose aside.
-

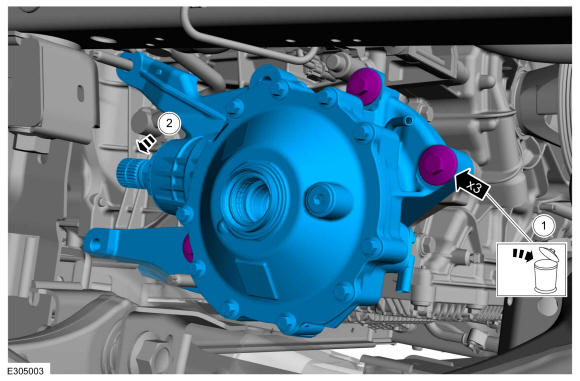

- Remove and discard the front axle assembly bolts.
- Remove the front axle assembly.

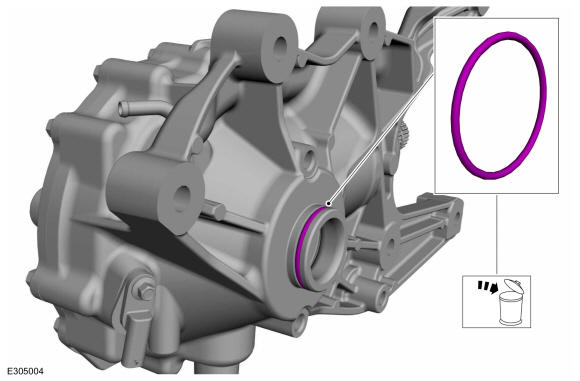

- Remove and discard the O-ring.
