Driver Door Window Control Switch: Removal

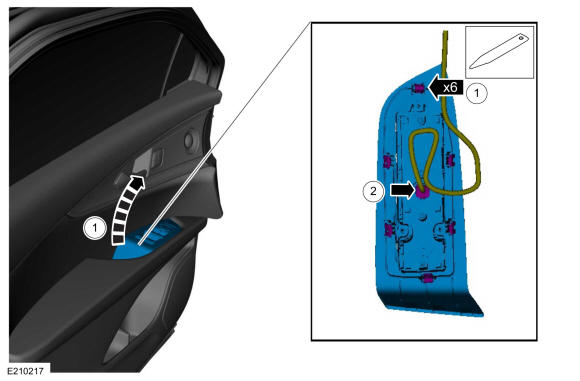

  1. Remove the driver door window control switch.

    1. Remove the driver door window control switch and the bezel assembly.
    2. Disconnect the driver door window control switch electrical connector.

    GFD622223Courtesy of FORD MOTOR COMPANY
  2. NOTE: This step is only necessary when installing a new component.

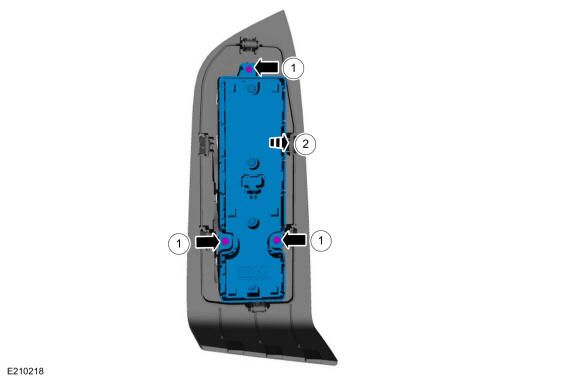

    Remove the driver door window control switch.

    1. Remove the retainers.
    2. Remove the driver door window control switch from the bezel.

GFD622224Courtesy of FORD MOTOR COMPANY
