Generator Current Sensor: Removal

NOTE: Removal steps in this procedure may contain installation details.

Disconnect the battery cable from the negative battery post. Refer to: Battery Disconnect and Connect .

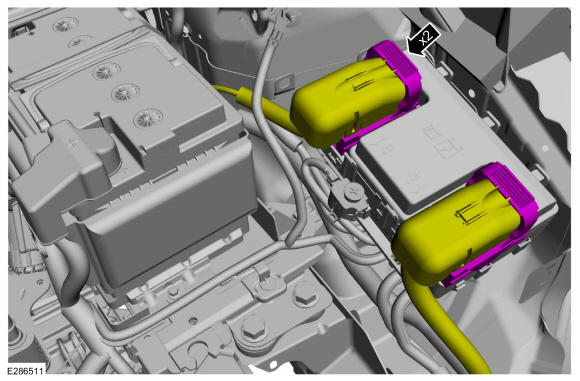

Disconnect the electrical connectors from the BJB.

Courtesy of FORD MOTOR COMPANY

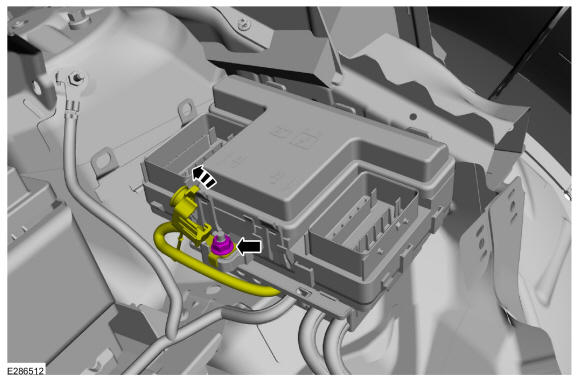

Position the terminal cover aside, remove the nut and position the wire aside from the BJB.
Torque

: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY

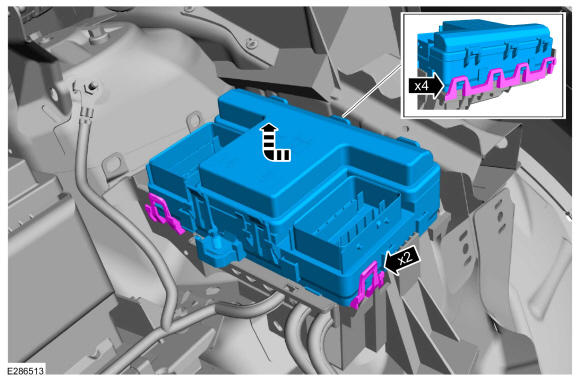

Release the front and side retainers and remove the BJB.

Courtesy of FORD MOTOR COMPANY

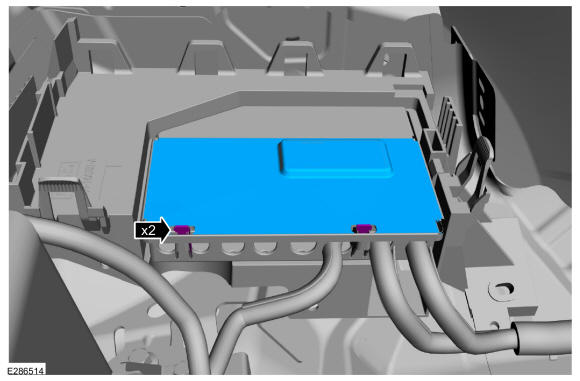

Release the retainers and remove the high current BJB cover.

Courtesy of FORD MOTOR COMPANY

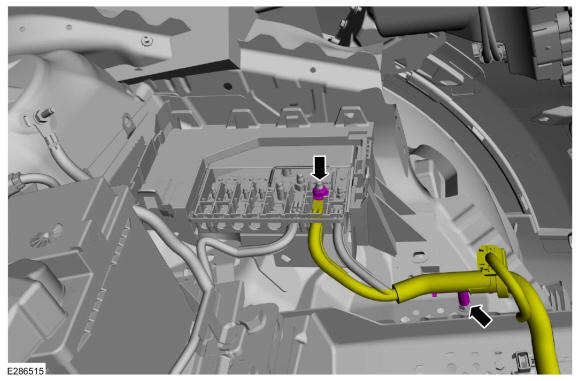

Remove the nut and the wire from the high current BJB. Detach the retainer and position the wire harness aside.
Torque

: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: The generator current sensor must be installed in the proper position and orientation to function correctly. Note the orientation and position of the generator current sensor tape tab.

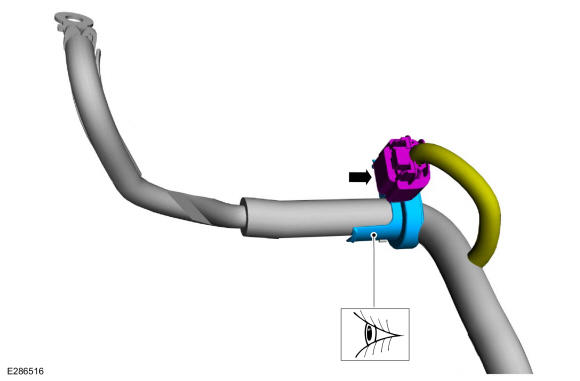

Disconnect the generator current sensor electrical connector. Index-mark the battery cable at the generator current sensor. Remove and discard the tape securing the generator current sensor to the battery cable and remove the generator current sensor.
