Driver Side Driver Status Monitor LED: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

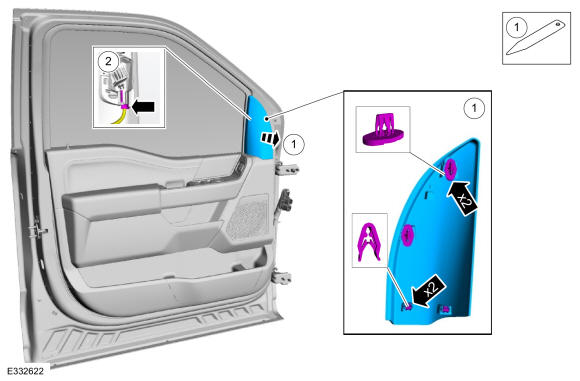

- Remove the sail panel trim cover.
- Release the clips. Use the General Equipment: Interior Trim Remover
- Disconnect the driver side driver status monitor LED electrical connector.
-
NOTE: During installation, align the 2 upper clips first then seat the bottom clip.

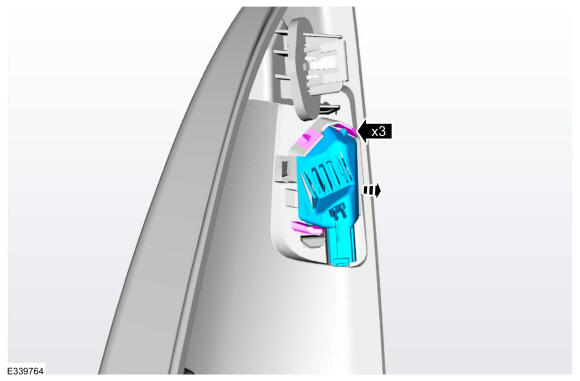

Release the clips and remove the driver side driver status monitor LED from the sail panel.
