Harsh/Delayed Engagement And/Or Harsh/Delayed Shift (25-2132)
Publication date: 2025-04-16Reference number: 25-2132
Supersedes refnos: 23-2350, 24-2046, 24-2101, 25-2023
HARSH/DELAYED ENGAGEMENT AND/OR HARSH/DELAYED SHIFT
TECHNICAL SERVICE BULLETIN
Reference Number(s): 25-2132, Date of Issue:
April 16, 2025
Superceded Bulletin(s): 25-2023, Date of Issue:
April 16, 2025
| FORD: | 2018-2021 Expedition |
| LINCOLN: | 2018-2021 Navigator |
NOTE:
This bulletin supersedes 25-2023. Reason for update: update the Part List and Service Procedure
ISSUE
Some of the vehicles listed in the Model statement above may exhibit at least one of the following conditions:
- Harsh engagement
- Delayed engagement
- Harsh shift
- Delayed shift
- Illuminated MIL with DTCs P0751, P0752, P0756, P0757, P0761, P0762, P0766, P0767, P0771, P0772, P2700, P2701, P2702, P2703, P2704, P2705, P2707, P2708, P0729, P0731, P0732, P0733, P0734, P0735, P0736, P076F, P07D9, P07F6 and/or P07F7 stored in the PCM or TCM .
This may be due to axial movement of the CDF clutch cylinder sleeve causing hydraulic circuit leaks.
NOTE:
If internal transmission service is required to address a concern detected with the CDF clutch cylinder following this article, technicians should carefully inspect and replace other transmission components and flush transmission fluid cooler only as necessary to confirm proper function. Add a new line to the repair order to document any additional repairs needed. M-time can be claimed on the additional repair line to cover labor. Refer to Warranty and Policy Manual for additional information. A thorough understanding of transmission description and operation will assist the technician with proper diagnosis, inspection, and successful repair of the customer concern.
NOTE:
The Pressure Vacuum Transducer (PVT) Kit (Rotunda 164-R9833) and VCMM
Transmission Extension Kit (Rotunda 164-R9534) recommended to perform this article are no longer included with the VCMM
Advanced Kit (Rotunda 164-R9823) since July 2023. Supply of the PVT Kit (Rotunda 164-R9833) and VCMM
Transmission Extension Kit (Rotunda 164-R9534) have been sold out. Ford has confirmed a high percentage (80%) of Dealers have this equipment available. Alternatively, Ford has tested suitable transmission fluid pressure gauges and developed procedures which reliably enable the capability to perform this article. Refer to Table 1 in the Service Procedure. In addition, VCMM.
Universal Probe Tip Adapter (Rotunda 164-R9834, or equivalent) is needed to perform this article. The Probe Tip Adapters are included in VCMM
Advanced Kit (Rotunda 164-R9823).
ACTION
For vehicles that meet all of the criteria in the Issue and Model statements, follow the Service Procedure to verify hydraulic circuit leakage and, if instructed, replace the CDF clutch cylinder and the clutch and planetary container cylinder.
PARTS - CDF CYLINDER REPLACEMENT
PARTS INFORMATION
| Service Part Number | Claim Quantity | Package Order Quantity | Number in Package | Description |
|---|---|---|---|---|
| HL3Z-7A248-A | 1 | 1 | 1 | Torque Converter Seal |
| JL3Z-7N134-A | 12 | 12 | 1 | Front Support Bolts |
| LC3Z-7H223-A | 12 | 12 | 1 | Front Support Bolt Seals |
| HL3Z-7A248-G | 1 | 1 | 1 | Front Support To Case Seal |
| HL3Z-7G091-F | 5 | 5 | 1 | Input Shaft Seals (F2) |
| HL3Z-7B399-C | 4 | 4 | 1 | Sun Gear No. 3 Shaft Seals (F7) |
| HL3Z-7C099-A | 1 | 1 | 1 | C Clutch Balance Dam Inner Seal |
| HL3Z-7A548-B | 2 | 2 | 1 | C Clutch Balance Dam And Piston Outer Seal |
| HL3Z-7D404-A | 2 | 2 | 1 | C Clutch Piston Inner Seal |
| HL3Z-7A262-C | 1 | 1 | 1 | D Clutch Balance Dam |
| HL3Z-7D403-A | 1 | 1 | 1 | D Clutch Piston Outer Seal |
| HL3Z-7A548-G | 2 | 2 | 1 | F Clutch Balance Dam And Piston Outer Seal |
| HL3Z-7A548-A | 2 | 2 | 1 | F Clutch Balance Dam And Piston Inner Seal |
| HL3Z-7G091-G | 5 | 5 | 1 | Input Shaft To Sun Gear No. 3 Shaft Seals (F8) |
| HL3Z-7G091-C | 1 | 1 | 1 | Input Shaft Seal (F9) |
| JL3Z-7H351-B | 1 | 1 | 1 | CDF Cylinder |
| PC3Z-7B177-A | 1 | 1 | 1 | Clutch And Planetary Container Cylinder |
PARTS - CDF CYLINDER REPLACEMENT - PARTS TO INSPECT AND REPLACE ONLY IF NECESSARY
PARTS INFORMATION
| Service Part Number | Claim Quantity | Package Order Quantity | Number in Package | Description |
|---|---|---|---|---|
| HL3Z-7A191-B | Only If Necessary (1 Possible) | Only If Necessary (1 Possible) | 1 | Fluid Pan Gasket |
| HL3Z-7A098-A | Only If Necessary (1 Possible) | Only If Necessary (1 Possible) | 1 | Fluid Filter |
| 7T4Z-7Z302-A | Only If Necessary (1 Possible) | Only If Necessary (1 Possible) | 1 | Transmission Fluid Filter Seal |
| HL3Z-7J227-A | Only If Necessary (1 Possible) | Only If Necessary (1 Possible) | 1 | Auxiliary Pump Tube O-ring (If Equipped) |
| HL3Z-7G199-A | Only If Necessary (1 Possible) | Only If Necessary (1 Possible) | 1 | Auxiliary Pump Tube Seal (If Equipped) |
| HL3Z-7B066-AB | Only If Necessary (1 Possible) | Only If Necessary (1 Possible) | 1 | A Pressure Plate |
| HL3Z-7B164-E | Only If Necessary (3 Possible) | Only If Necessary (3 Possible) | 1 | A Clutch Friction Plates |
| HL3Z-7F220-A | Only If Necessary (2 Possible) | Only If Necessary (2 Possible) | 1 | A Clutch Steel Plates |
| HL3Z-7B442-F | Only If Necessary (5 Possible) | Only If Necessary (5 Possible) | 1 | C Clutch Steel Plates |
| HL3Z-7B164-A | Only If Necessary (5 Possible) | Only If Necessary (5 Possible) | 1 | C Clutch Friction Plate |
| ML3Z-7B477-A | Only If Necessary (1 Possible) | Only If Necessary (1 Possible) | 1 | C Clutch Pressure Plate |
| HL3Z-7B442-D | Only If Necessary (6 Possible) | Only If Necessary (6 Possible) | 1 | D Clutch Steel Plates |
| HL3Z-7B164-C | Only If Necessary (6 Possible) | Only If Necessary (6 Possible) | 1 | D Clutch Friction Plates |
| HL3Z-7B066-E | Only If Necessary (1 Possible) | Only If Necessary (1 Possible) | 1 | D Clutch Pressure Plate |
| HL3Z-7B164-G | Only If Necessary (4 Possible) | Only If Necessary (4 Possible) | 1 | F Clutch Steel Plates |
| HL3Z-7B164-D | Only If Necessary (4 Possible) | Only If Necessary (4 Possible) | 1 | F Clutch Friction Plates |
| HL3Z-7B066-A | Only If Necessary (1 Possible) | Only If Necessary (1 Possible) | 1 | F Clutch Pressure Plate |
PARTS - ALL VEHICLES - CDF CYLINDER REPLACEMENT - SELECT ONE OF THE FOLLOWING IF NEEDED
PARTS INFORMATION
| Service Part Number | Claim Quantity | Package Order Quantity | Number in Package | Description |
|---|---|---|---|---|
| HL3Z-7B066-AA | Only If Necessary | Only If Necessary | 1 | A Clutch Apply Plate 4.1 - 4.3 mm Selective |
| HL3Z-7B066-Z | Only If Necessary | Only If Necessary | 1 | A Clutch Apply Plate 4.4 - 4.6 mm Selective |
| HL3Z-7B066-Y | Only If Necessary | Only If Necessary | 1 | A Clutch Apply Plate 4.7 - 4.9 mm Selective |
| HL3Z-7B066-X | Only If Necessary | Only If Necessary | 1 | A Clutch Apply Plate 5.0 - 5.2 mm Selective |
| HL3Z-7B066-W | Only If Necessary | Only If Necessary | 1 | A Clutch Apply Plate 5.3 - 5.5 mm Selective |
| HL3Z-7H032-C | Only If Necessary | Only If Necessary | 1 | T-3 Bearing (Replace If T-3 Shim Is Replaced) |
| HL3Z-7A527-Q | Only If Necessary | Only If Necessary | 1 | T-3 Shim 3.05-3.15 mm Selective |
| HL3Z-7A527-P | Only If Necessary | Only If Necessary | 1 | T-3 Shim 3.2-3.3 mm Selective |
| HL3Z-7A527-R | Only If Necessary | Only If Necessary | 1 | T-3 Shim 3.35-3.45 mm Selective |
| HL3Z-7A527-K | Only If Necessary | Only If Necessary | 1 | T-3 Shim 3.5-3.6 mm Selective |
| HL3Z-7A527-L | Only If Necessary | Only If Necessary | 1 | T-3 Shim 3.65-3.75 mm Selective |
| HL3Z-7A527-M | Only If Necessary | Only If Necessary | 1 | T-3 Shim 3.8-3.9 mm Selective |
| HL3Z-7A527-S | Only If Necessary | Only If Necessary | 1 | T-3 Shim 3.95-4.05 mm Selective |
| HL3Z-7A527-T | Only If Necessary | Only If Necessary | 1 | T-3 Shim 4.1-4.2 mm Selective |
| HL3Z-7A527-N | Only If Necessary | Only If Necessary | 1 | T-3 Shim 4.25-4.35 mm Selective |
| HL3Z-7D483-A | Only If Necessary | Only If Necessary | 1 | D Clutch Snap Ring 1.8 mm Selective |
| HL3Z-7D483-B | Only If Necessary | Only If Necessary | 1 | D Clutch Snap Ring 2.0 mm Selective |
| HL3Z-7D483-C | Only If Necessary | Only If Necessary | 1 | D Clutch Snap Ring 2.2 mm Selective |
| HL3Z-7D483-D | Only If Necessary | Only If Necessary | 1 | D Clutch Snap Ring 2.4 mm Selective |
| HL3Z-7D483-E | Only If Necessary | Only If Necessary | 1 | D Clutch Snap Ring 2.6 mm Selective |
| HL3Z-7D483-F | Only If Necessary | Only If Necessary | 1 | D Clutch Snap Ring 2.8 mm Selective |
| HL3Z-7C122-A | Only If Necessary | Only If Necessary | 1 | C Clutch Snap Ring 1.5 mm Selective |
| HL3Z-7C122-B | Only If Necessary | Only If Necessary | 1 | C Clutch Snap Ring 1.7 mm Selective |
| HL3Z-7C122-C | Only If Necessary | Only If Necessary | 1 | C Clutch Snap Ring 1.9 mm Selective |
| HL3Z-7C122-D | Only If Necessary | Only If Necessary | 1 | C Clutch Snap Ring 2.1 mm Selective |
| HL3Z-7C122-E | Only If Necessary | Only If Necessary | 1 | C Clutch Snap Ring 2.3 mm Selective |
| HL3Z-7C122-F | Only If Necessary | Only If Necessary | 1 | C Clutch Snap Ring 2.5 mm Selective |
| HL3Z-7H365-C | Only If Necessary | Only If Necessary | 1 | F Clutch Snap Ring 1.5 mm Selective |
| HL3Z-7H365-D | Only If Necessary | Only If Necessary | 1 | F Clutch Snap Ring 1.7 mm Selective |
| HL3Z-7H365-E | Only If Necessary | Only If Necessary | 1 | F Clutch Snap Ring 1.9 mm Selective |
| HL3Z-7H365-F | Only If Necessary | Only If Necessary | 1 | F Clutch Snap Ring 2.1 mm Selective |
| HL3Z-7H365-G | Only If Necessary | Only If Necessary | 1 | F Clutch Snap Ring 2.3 mm Selective |
PARTS - TRANSMISSION REMOVAL AND INSTALLATION
PARTS INFORMATION
| Service Part Number | Claim Quantity | Package Order Quantity | Number in Package | Description | Note |
|---|---|---|---|---|---|
| 7L1Z-4B496-C | 2 | 2 | 1 | CV Joint-To-Pinion Flange Cup Bolts And Retaining Straps (4WD) | |
| 7L1Z-4B496-D | 3 | 3 | 1 | CV Joint-To-Transfer Case Flange Cup Bolts & Retaining Straps (4WD) | |
| JL1Z-7N134-A | 1 | 1 | 1 | Park Override Lever Bolt (Non-Column Shift) | |
| W520514-S440 | 4 | 4 | 1 | Left And Right Catalytic Converter Nuts | |
| W520113-S440 | 4 | 1 | 4 | Stabilizer Bar Bracket Nuts | |
| W520114-S442 | 4 | 1 | 4 | Transmission Support Crossmember Nuts | |
| W709771-S440 | 2 | 2 | 1 | Transmission Mount Nuts | |
| W711140-S901 | 3 | 3 | 1 | Transmission Insulator Bolts And Washers (RWD) | |
| W714418-S439 | 4 | 1 | 4 | Transmission Support Crossmember Bolts | |
| W715131-S442 | 1 | 1 | 4 | Transmission Fluid Cooler Tube Bolt | |
| W715618-S437 | 4 | 1 | 4 | Torque Converter Nuts | |
| W716375-S900 | 9 | 2 | 5 | Transfer Case Bolts (4WD) | |
| W718353-S900 | 4 | 1 | 4 | Transmission Insulator Bolts (4WD) | |
| W500635-S439 | 1 | 1 | 1 | Driveshaft Center Bearing Bolt (If Equipped With Two Piece Driveshaft) | |
| W713095-S437 | 1 | 1 | 4 | Driveshaft Center Bearing Nut (If Equipped With Two Piece Driveshaft) | |
| W719738-S439 | 1 | 1 | 4 | Driveshaft Center Bearing Bracket Mounting Stud (If Equipped With Two Piece Driveshaft) | |
| N811880-S100 | 4 Or 8 (Flange Dependent) | 1 Or 2 | 4 | Driveshaft Flange To Flange Bolts | |
| VC-13DL-G | As Needed | As Needed | Motorcraft® Yellow Prediluted Antifreeze/Coolant (All Markets Except Canada) | ||
| CVC-13DL-G | As Needed | As Needed | Motorcraft® Yellow Prediluted Antifreeze/Coolant (Canada Only) | ||
| XL-5-A | As Needed | As Needed | Motorcraft® Multi-Purpose Grease Spray | ||
| XT-10-QLVC | As Needed | As Needed | Motorcraft® MERCON® LV Automatic Transmission Fluid (4WD) (All Markets Except Canada) | Transfer Case | |
| CXT-10-LV6 | As Needed | As Needed | Motorcraft® MERCON® LV Automatic Transmission Fluid (4WD) (Canada Only) | Transfer Case | |
| XT-12-QULV | As Needed | As Needed | Motorcraft® MERCON® ULV Automatic Transmission Fluid |
PARTS - TRANSMISSION REMOVAL AND INSTALLATION - PARTS TO INSPECT AND REPLACE ONLY IF NECESSARY SERVICE PART NUMBER
PARTS INFORMATION
| Service Part Number | Claim Quantity | Package Order Quantity | Number in Package | Description |
|---|---|---|---|---|
| 5L7Z-7D285-A | Only If Necessary (2 Possible) | Only If Necessary (1 Possible) | 2 | Transmission Fluid Cooler Tube Seals |
| 5L7Z-7J324-A | Only If Necessary (2 Possible) | Only If Necessary (1 Possible) | 2 | Transmission Fluid Cooler Tube Backing Rings |
| W718758-S300 | Only If Necessary (2 Possible) | Only If Necessary (1 Possible) | 4 | Engine Block Dowel Pins |
Service part numbers and "number in package" quantity may change after publication, thus also affecting the "package order quantity". Refer to the parts catalog for the latest information.
Claim Quantity refers to the total number of individual pieces required to repair the vehicle.
Package Order Quantity refers to the amount of the service part number package(s) required to repair the vehicle.
Number In Package refers to the number of individual pieces included in a service part number package.
As Needed indicates the part is necessary but amount of the part may vary and/or is not a whole number. Parts can be billed out as non-whole numbers, including less than 1.
Only If Necessary indicates the part is not mandatory. Refer to the Service Procedure to determine the inspection/inclusion criteria.
Warranty Status: Eligible under provisions of New Vehicle Limited Warranty (NVLW)/Service Part Warranty (SPW)/Service Part New Vehicle (SPNV)/Extended Service Plan (ESP) coverage. Limits/policies/prior approvals are not altered by a TSB. NVLW/SPW/SPNV/ESP coverage limits are determined by the identified causal part and verified using the OASIS part coverage tool.
LABOR TIMES
LABOR TIMES
| Description | Operation No. | Time |
|---|---|---|
| 2018-2021 Expedition/Navigator 4X2/4X4: Follow The Service Procedure To Verify Hydraulic Circuit Leakage (Pass) (Do Not Use With Any Other Labor Operations)2018-2021 Expedition/Navigator 4X2/4X4: Follow The Service Procedure To Verify Hydraulic Circuit Leakage (Pass) (Do Not Use With Any Other Labor Operations) | 252132A | 1.0 Hrs. |
| 2018-2021 Expedition 4X2: Follow The Service Procedure To Verify Hydraulic Circuit Leakage (Fail) Replace The CDF Clutch Cylinder (Do Not Use With Any Other Labor Operations) | 252132B | 11.5 Hrs. |
| 2018-2021 Expedition 4X4: Follow The Service Procedure To Verify Hydraulic Circuit Leakage (Fail) Replace The CDF Clutch Cylinder (Do Not Use With Any Other Labor Operations) | 252132C | 12.7 Hrs. |
| 2018-2021 Navigator 4X2: Follow The Service Procedure To Verify Hydraulic Circuit Leakage (Fail) Replace The CDF Clutch Cylinder (Do Not Use With Any Other Labor Operations) | 252132D | 11.5 Hrs. |
| 2018-2021 Navigator 4X4: Follow The Service Procedure To Verify Hydraulic Circuit Leakage (Fail) Replace The CDF Clutch Cylinder (Do Not Use With Any Other Labor Operations) | 252132E | 12.7 Hrs. |
REPAIR/CLAIM CODING
REPAIR/CLAIM CODING
| Causal Part: | 7H351 |
| Condition Code: | 42 |
SERVICE PROCEDURE

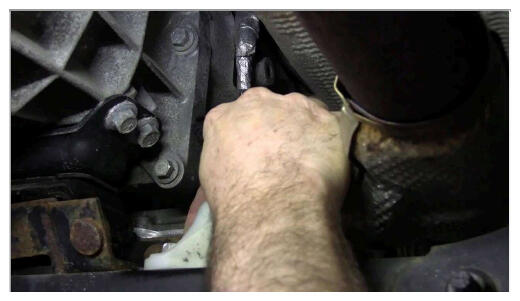

How to back probe (Ranger shown, others similar)
- Is a VCMM
PVT available?
- Yes - proceed to "DIAGNOSTIC PROCEDURE A - VCMM PVT IS AVAILABLE ".
- No - proceed to "DIAGNOSTIC PROCEDURE B - NO VCMM PVT AVAILABLE ".
DIAGNOSTIC PROCEDURE A - VCMM PVT IS AVAILABLE
- Install the VCMM
PVT to the transmission line pressure port. (Figure 1)NOTE: The line pressure port Is an M 10X1.0 thread. Do not use a National Pipe Thread (NPT) fitting when Installing pressure reading equipment If an NPT fitting Is used, damage to the transmission case will occur.NOTE: The transmission extension hose kit requires a 1/4 In. Joint Industry Council (JIC) male adapter.NOTE: All NPT fittings must be assembled with polytetrafluoroethylene (PTFE) tape or paste to prevent leaks.
- VCMM
Transmission Extension Kit

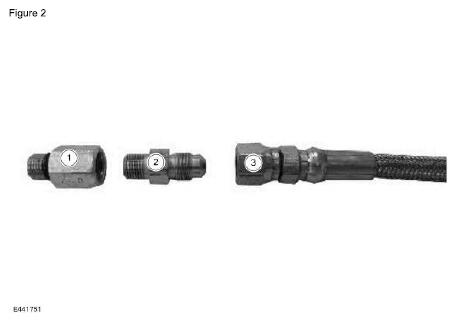

- Locally obtain the necessary adapter fittings to connect the VCMM pressure transducer to the transmission line pressure port (Figure 2)
ITEM DESCRIPTIONItem Description 1 M10X1.0 male to 1/8 in. FNPT female 2 1/8 in. NPT male to 1/4 in. JIC male 3 Extension hose - VCMM
Transmission Extension Kit

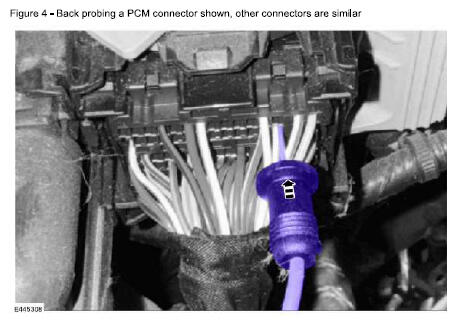

- Prepare the transmission LPC
solenoid circuit CET50 to be back probed at either the TCM
/PCM
connector or at the transmission electrical connector by removing the connector cover. Access to the LPC
solenoid circuit CET50, WH-OG wire is required in a later step. Refer to Wiring. Cell 029 Transmission Controls and the video link at the start of the Service Procedure in this article.NOTE: Back probing the LPC solenoid circuit will set a DTC and Illuminate the powertrain malfunction (wrench) Indicator.
- Using the latest software level of the FDRS and VCMM , start a session.
- Does the vehicle exhibit harsh/delayed engagement and/or harsh/delayed shift symptoms only when TFT
is at 49°C (121°F) or below?
- Yes - when prompted in Step 5. choose the FDRS option for the transmission shift concern occurs when the TFT is at or below 49°C (121°F).
- No - when prompted in Step 5, choose the FDRS option for the transmission shift concern occurs when the TFT is at or above 50°C (122°F).
- Select and run the FDRS
Transmission Clutch Circuit Leak Test, follow FDRS
screen prompts and directions to proceed.
- When prompted, choose the transmission fluid temperature identified in Step 4.

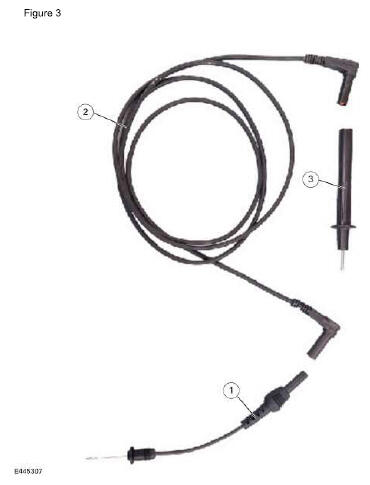

- When prompted, ground the LPC circuit using a VCMM Universal Probe Tip Adapter (Rotunda 164-R9834. or equivalent) along with a suitable multimeter lead wire and probe (Figure 3) to back probe and ground the VCMM solenoid circuit CET50. (Figure 4) Once line pressure has elevated and stabilized, the ground probe is no longer needed to maintain elevated line pressure.
ITEM DESCRIPTIONItem Description 1 VCMM universal probe adapter 2 Multimeter lead wire 3 Multimeter lead wire probe - Test is complete. Release control of all parameters then turn ignition off.
- Remove back probe from the LPC circuit connector and reinstall the connector cover.
- Turn Ignition on (KOEO ) and clear all CMDTC s.
- Turn ignition off.
- Did the transmission test results pass?
- Yes - this article does not apply. Refer to WSM , Section 307-01 for normal diagnostics.
- No - (field displays red) - proceed to "REPAIR PROCEDURE " in this article.
DIAGNOSTIC PROCEDURE B - NO VCMM PVT AVAILABLE
- Install a suitable transmission fluid pressure gauge that measures at least 300 PSI (2,000 kPa) with vibration dampening to the line pressure port (Figure 1) Refer to Table 1.NOTE: The line pressure port Is an M10X1.0 thread. Do not use a National Pipe Thread (NPT) fitting when Installing pressure reading equipment If an NPT fitting Is used, damage to the transmission case will occur.NOTE: All NPT fittings must be assembled with polytetrafluoroethylene (PTFE) tape or paste to prevent leaks.TABLE 1 - FORD TESTED SUITABLE TRANSMISSION FLUID PRESSURE GAUGES, OTHER SUITABLE GAUGES MAY BE USED
Description Source Part Number Ashcroft 0-300PSI Vibration Dampened Grainger 351009SW02LXLL300 Lang Instruments Model 5TUL8 (requires piston-type pressure gauge snubber) - Rotunda RTTP
- Grainger
- Gauge: STATU 16A
- Snubber: 5TUL8
Snap-On 0-500PSI Gauge and Boot Snap-On EEPV5-500G Waekon Digital Pressure Gauge Rotunda RTTP WAE48165 Pressure Pro PC 5000 Rotunda RTTP 300-WAE48365 - Prepare the transmission LPC
solenoid circuit CET50 to be back probed at either the TCM/PCM
connector or at the transmission electrical connector by removing the connector cover. Access to the LPC
solenoid circuit CET50, WH-OG wire is required in a later step. Refer to Wiring, Cell 029 Transmission Controls and the video link at the start of the Service Procedure in this article.NOTE: Back probing the LPC solenoid circuit will set a DTC and illuminate the powertrain malfunction (wrench) indicator.
- Using the latest software level of the FDRS and VCMM , start a session.
- Using FDRS
select the following PIDs
.
- RPM_DSD#
- PVT Pressure (set scale to +/- 3447 kPa)
- TFT
- SSA_AMP#
- SSB_AMP#
- SSC_AMP#
- SSD_AMP#
- SSE_AMP#
- SSF_AMP#
- Does the vehicle exhibit harsh/delayed engagement and/or harsh/delayed shift symptoms only when TFT
is at 49°C (121°F) or below?
- Yes - perform Step 6 while TET is at or below 49°C (121°F).
- No - perform Step 6 with TFT at or above 50°C (122°F).
- Enter Live Display mode. Verify the vehicle is in P, emergency brake applied and TFT
is at the appropriate temperature range identified in Step 5.
- For each step below, highlight the PID to enable it and select #. Then control the PID with up/down arrows.
- Command SSA_AMP #/SSB_AMP #/SSC_AMP #/SSD_AMP #/SSE_AMP #/SSF_AMP # to 0mA.
- Decrease RPM_DSD # between 500-600 rpm.
- Ground the LPC
circuit to elevate line pressure using a VCMM
Universal Probe Tip Adapter (Rotunda 164-R9834, or equivalent) along with a suitable multimeter lead wire and probe (Figure 3) to back probe and ground the LPC
solenoid circuit CET50. (Figure 4) Once line pressure has elevated and stabilized the ground probe is no longer needed to maintain elevated line pressure.NOTE: Figure 4 shows back probing a PCM connector, other connectors are similar.NOTE: Actual line pressure reading is expected to be less than commanded line pressure.
- Record the pressure value observed on the gauge as Pre Ramp.
- Command SSA_AMP # to 1.0A (five quick up arrow clicks).
- Record the pressure value observed on the gauge as Applied A.
- Command SSA_AMP # to 0mA (five quick down arrow clicks).
- Command SSC_AMP # to 1.0A (five quick up arrow clicks).
- Record the pressure value observed on the gauge as Applied C.
- Command SSC_AMP # PID off to 0mA (five quick down arrow clicks).
- Test is complete. Release control of all parameters then turn the ignition off.
- Remove back probe from the LPPC circuit connector and reinstall the connector cover.
- Turn the ignition on (KOEO ) and clear all CMDTC s.
- Turn the ignition off.
- Download the CDF calculator tool.NOTE: The calculator is an ".exe" file type. Make sure the computer firewall is set to allow this type of file to download.
- Click here to download the CDF calculator tool in English.
- Click here to download the CDF calculator tool in Spanish.
- Click here to download the CDF calculator tool in French.
- Enter the value recorded as Pre Ramp into CDF calculator for both fields Pre Ramp Valley and Pre Ramp Peak.
- Enter the value recorded as Applied A into CDF calculator for both fields Applied A Valley and Applied A Peak.
- Enter the value recorded as Applied C into CDF calculator for both fields Applied C Valley and Applied C Peak.
- Refer to CDF calculator results. Does the "A-clutch Leakage Rate %" field display green?
- Yes - proceed to Step 12.
- No (field displays red) - this article does not apply. Refer to WSM , Section 307-01 > Diagnosis and Testing > A Clutch.
- Does the "C-Clutch vs A-Clutch %" field display green?
- Yes - this article does not apply. Refer to WSM , Section 307-01 for normal diagnostics.
- No (field displays red) - proceed to "REPAIR PROCEDURE " in this article.
REPAIR PROCEDURE
- Remove the transmission and mount the transmission to the bench. Refer to WSM , Section 307-01.
- Disassemble the transmission. Perform only the necessary steps to remove the clutch and planetary assembly from the transmission case. Refer to WSM
, Section 307-01.
- It is only necessary to remove the torque converter, transmission fluid pan and gasket, transmission fluid auxiliary pump (if equipped), fluid filter and main control valve body assembly, all 4 speed sensors (intermediate speed sensor A [ISSA], intermediate speed sensor B [ISSB], TSS and OSS ), transmission fluid pump, front support assembly and the clutch and planetary assembly. Refer to WSM , Section 307-01.
- Disassemble the clutch and planetary assembly. Perform only the necessary steps to remove the clutch and planetary container cylinder, the CDF clutch cylinder and the No. 3 sun gear shaft and No. 2 ring gear assembly from the clutch and planetary assembly. Refer to WSM
, Section 307-01.
- It is only necessary to remove the A clutch assembly, the selective shim and T3 thrust bearing, remove and discard the 5-input shaft front seals.
- Remove the No. 1 planetary carrier snap ring, clutch and planetary container cylinder, the No. 4 ring gear snap ring and the No. 4 ring gear from the clutch and planetary container cylinder. Discard the clutch and planetary container cylinder. Refer to WSM , Section 307-01.
- Remove the E clutch and input shaft assembly, the No. 3 planetary carrier and No. 3 sun gear, the No. 3 sun gear shaft and No. 2 ring gear assembly. Refer to WSM , Section 307-01.
- Remove and discard the sun gear No. 3 shaft seals. Install the 4 new sun gear No. 3 shaft seals. Refer to WSM , Section 307-01.
- Disassemble the C, D and F clutch assemblies from the CDF cylinder. Discard the CDF cylinder. Refer to WSM , Section 307-01.
- Assemble the C, D and F clutch assemblies into the new CDF clutch cylinder. Refer to WSM, Section 307-01.
- Perform the C, D and F clutch pack endplay measurements for proper clearance. Refer to WSM , Section 307-01.
- Remove and discard the input shaft-to-sun gear No. 3 shaft seals. Install the 5 new input shaft-to-sun gear No. 3 shaft seals. Refer to WSM , Section 307-01.
- Remove and discard the input shaft seal. Install the new input shaft seal. Refer to WSM , Section 307-01.
- Install the 5 new input shaft front seals. Refer to WSM , Section 307-01.
- Install the No. 4 ring gear and snap ring into a new clutch and planetary container cylinder.
- To reassemble the clutch and planetary assembly, reverse the disassembly procedure. Refer to WSM , Section 307-01.
- Perform the T3 thrust bearing measurement to set transmission front end clearance. Refer to WSM , Section 307-01.
- Reassemble the transmission. Refer to WSM , Section 307-01.
- Install the transmission. Refer to WSM, Section 307-01.
- Perform an adaptive learning drive cycle. Refer to WSM
, Section 307-01.NOTE: Advise the customer that this vehicle is equipped with an adaptive transmission shift strategy which allows the vehicle's computer to learn the transmission's unique parameters and improve shift quality. When the adaptive strategy is reset, the computer will begin a releaming process. This relearning process may result in firmer than normal upshifts and downshifts for several days.
© 2025 Ford Motor Company
All rights reserved.
NOTE:
The information in Technical Service Bulletins is intended for use by trained, professional technicians with the knowledge, tools, and equipment to do the job properly and safely. It informs these technicians of conditions that may occur on some vehicles, or provides information that could assist in proper vehicle service. The procedures should not be performed by "do-it-yourselfers". Do not assume that a condition described affects your car or truck. Contact a Ford or Lincoln dealership to determine whether the Bulletin applies to your vehicle. Warranty Policy and Extended Service Plan documentation determine Warranty and/or Extended Service Plan coverage unless stated otherwise in the TSB article. The information in this Technical Service Bulletin (TSB) was current at the time of printing. Ford Motor Company reserves the right to supersede this information with updates. The most recent information is available through Ford Motor Company's on-line technical resources.
