Transfer Case Draining And Filling: Filling

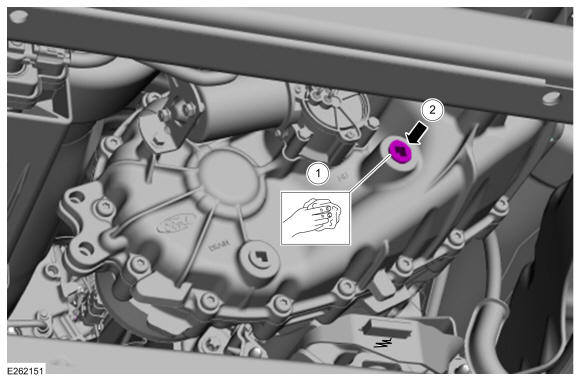

1. Clean the fill plug and the area around fill plug.
2. Remove the fill plug.
Courtesy of FORD MOTOR COMPANY

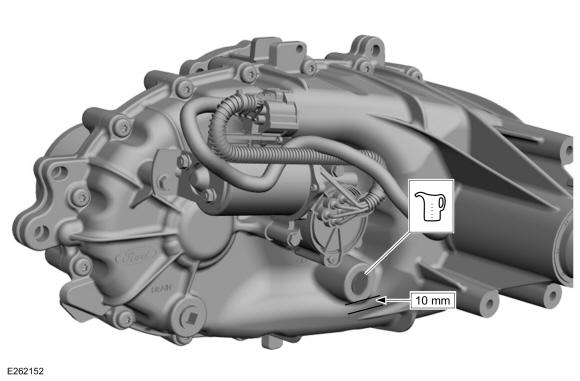

Fill the transfer case with 1.4L (2.9 pt) of clean fluid. The transfer case fluid must be within 10mm (0.393 in) below the fill plug hole.
Material: Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (WSS-M2C938-A) (MERCON® LV,)

Courtesy of FORD MOTOR COMPANY
1. Apply thread sealant to the fill plug threads.
2. Install the fill plug.
  Torque: 133 lb.in (15 Nm)

Courtesy of FORD MOTOR COMPANY
