System Diagram

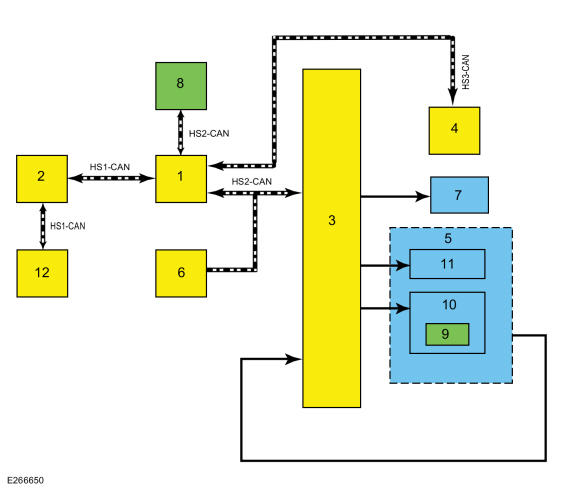

GFD544190Courtesy of FORD MOTOR COMPANY
Item Description
1 GWM
2 PCM
3 TCCM
4 IPC
5 Transfer Case
6 ABS module
7 IWE solenoid
8 ATCM
9 Shift Motor Position Sensors (2-Speed TOD Only)
10 Shift Motor (2-speed TOD only)
11 Clutch Solenoid
12 TCM
