Frame Members-Front Frame Section: Installation

Front Frame Short Section

NOTE: LH side shown, RH side similar.
  1. Verify dimensional accuracy before  performing any welding operations. Refer appropriate service information.
  2. NOTE: Check that the Front End Sheet Metal (FESM) body mount bracket lines up with the sheet metal hole for the body mount bolt.

    Install the front frame section inside the mid front rail of the frame and tack weld at 4 locations. Refer to: JOINING TECHNIQUES . Use the General Equipment: MIG/MAG Welding Equipment Use the General Equipment: Locking Pliers

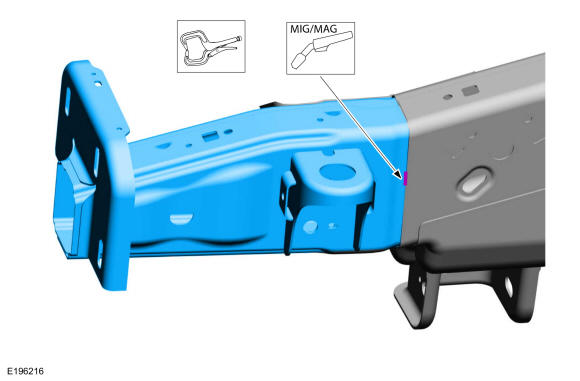

    GFD546705Courtesy of FORD MOTOR COMPANY
  3. Re-check the frame replacement alignment by lowering the body, and then raise it. Weld the joint completely if this alignment is correct. Use the General Equipment: MIG/MAG Welding Equipment

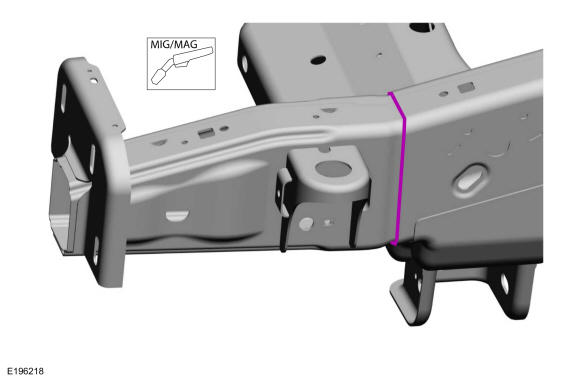

    GFD546706Courtesy of FORD MOTOR COMPANY
  4. Metal finish the repair area using typical metal finishing techniques.
  5. Refinish using a Ford approved paint system.
  6. Restore corrosion protection. Refer to: CORROSION PREVENTION .

    Front Frame Section

  7. With the help of an assistant, position the new front frame section into place on the vehicle.

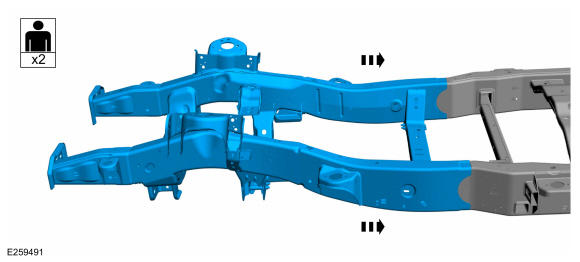

    GFD546707Courtesy of FORD MOTOR COMPANY
  8. Verify dimensional accuracy before  performing any welding operations. Refer to the appropriate service information.
  9. Support the new section, and loosely clamp the replacement section in a preliminary position.

    • Verify correct dimensions, then solid weld the new section to the original on all overlap joints. Refer to: JOINING TECHNIQUES . Refer to: BODY AND FRAME . Use the General Equipment: MIG/MAG Welding Equipment Use the General Equipment: Locking Pliers

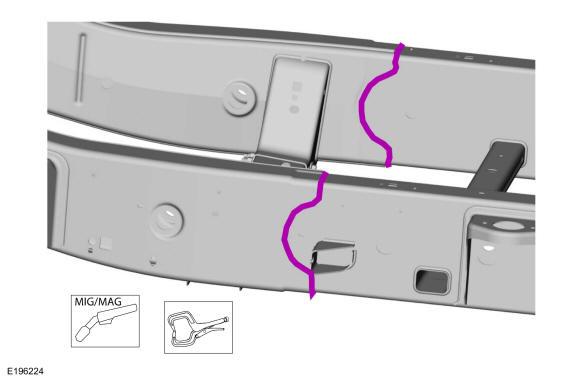

    GFD546708Courtesy of FORD MOTOR COMPANY
  10. Metal finish the repair area using typical metal finishing techniques.
  11. Refinish using a Ford approved paint system.
  12. Restore corrosion protection. Refer to: CORROSION PREVENTION .
  13. Install the following items:

    1. Refer to: Transmission Support Crossmember  .
    2. If equipped. Refer to: Front Driveshaft .
    3. If equipped.
    4. Refer to: Shock Absorber and Spring Assembly 4WD . Refer to: Shock Absorber and Spring Assembly RWD .
    5. Install the lower control arm, if equipped with 2WD. Refer to: Lower Arm RWD .
    6. Install the lower control arm, if equipped with 4WD. Refer to: Lower Arm 4WD .
    7. Install the upper control arm, if equipped with 2WD. Refer to: Upper Arm RWD .
    8. Install the upper control arm, if equipped with 4WD. Refer to: Upper Arm 4WD .
    9. Refer to: Steering Gear .
    10. Reposition the engine and transmission assembly. Refer to: Engine Mount RH 3.5L EcoBoost . Refer to: Engine Mount LH 3.5L EcoBoost .
    11. Reconnect the exhaust system to the engine. Refer to: Catalytic Converter RH 3.5L EcoBoost . Refer to: Catalytic Converter LH 3.5L EcoBoost .

    All vehicles

  14. Install the following items:

    1. Refer to: Front Bumper .
    2. Refer to: Fender .
