Home › Lincoln › 2021 › Navigator Base, RWD › Repair and Diagnosis › Electrical › Wiring Diagrams › OEM Ground Distribution › Grounds

OEM Ground Distribution: Grounds

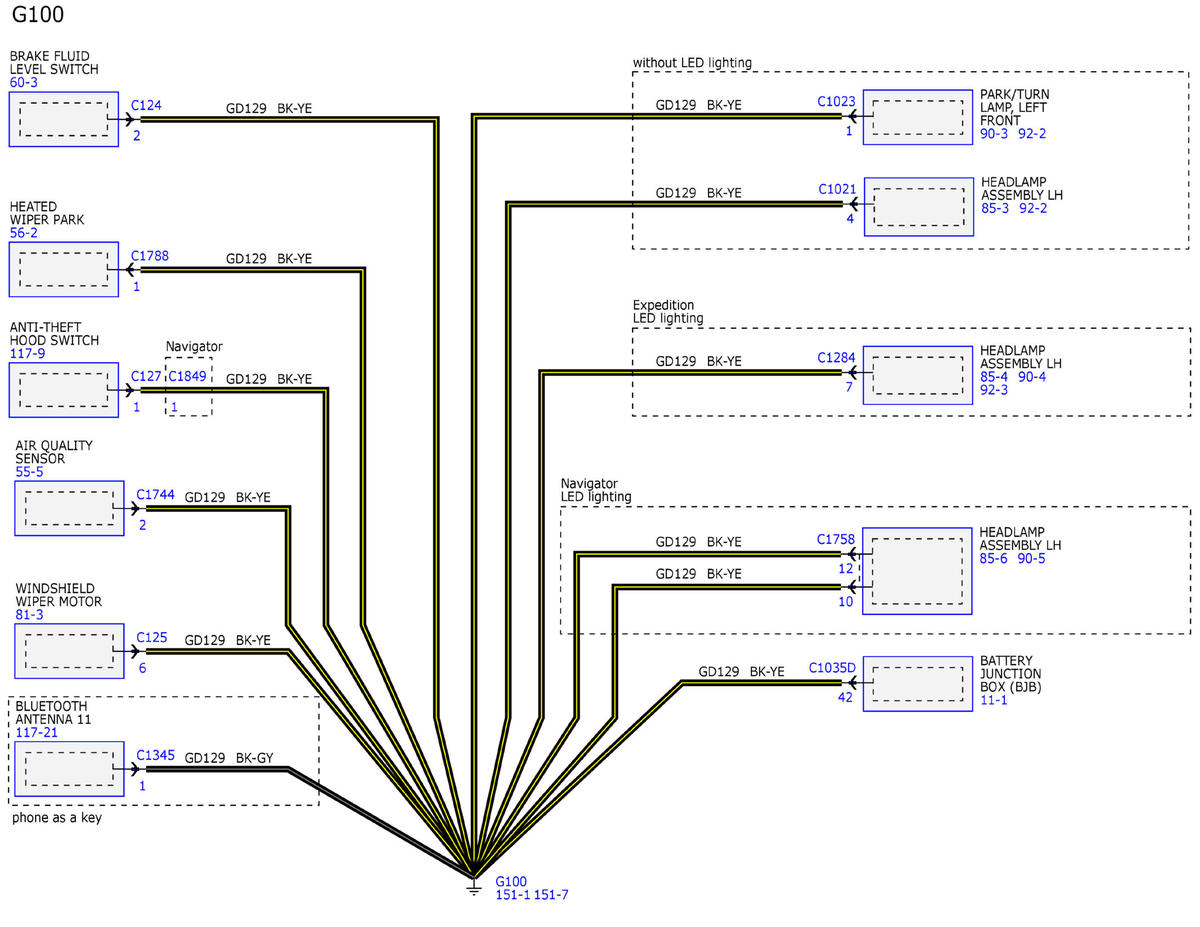

GFDWR115474Courtesy of FORD MOTOR COMPANY

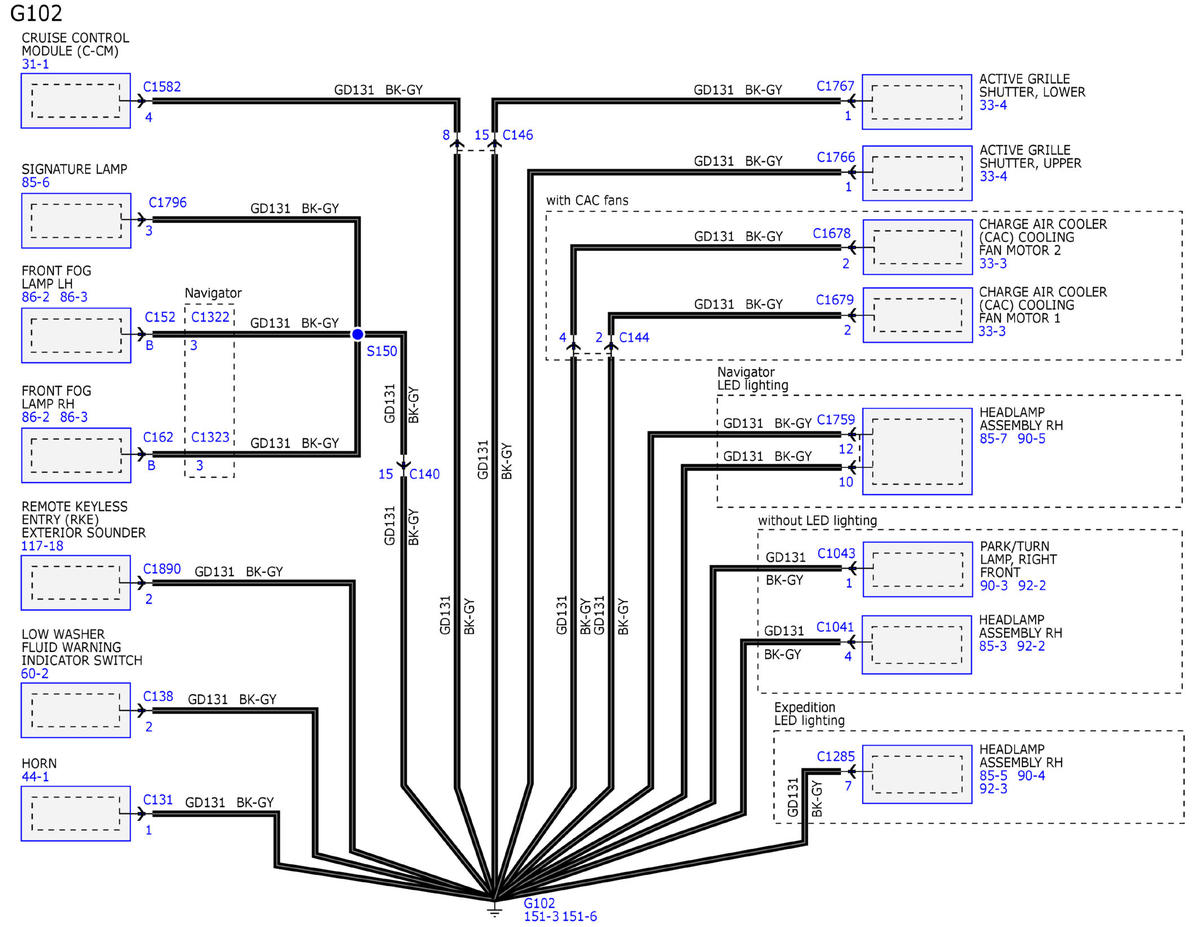

GFDWR115459Courtesy of FORD MOTOR COMPANY

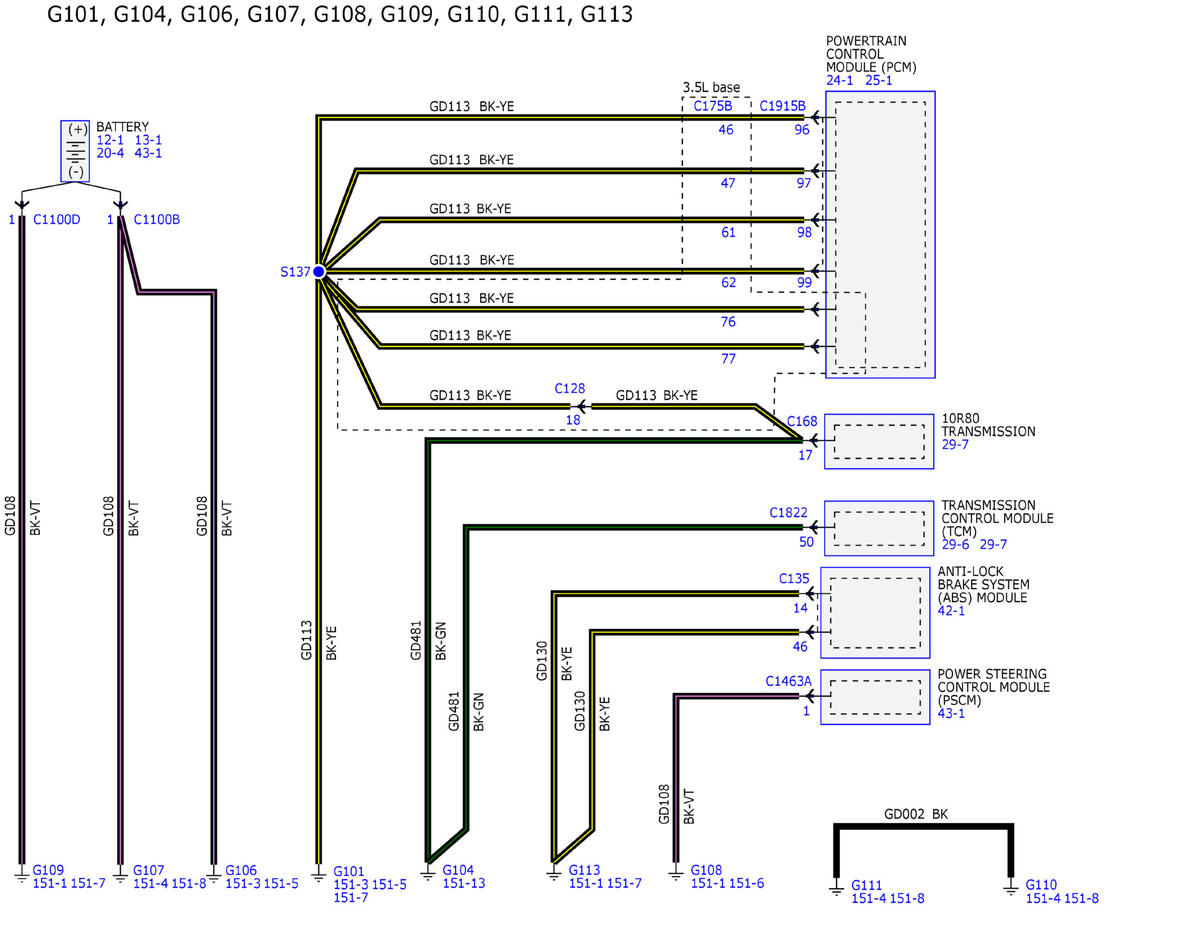

GFDWR115471Courtesy of FORD MOTOR COMPANY

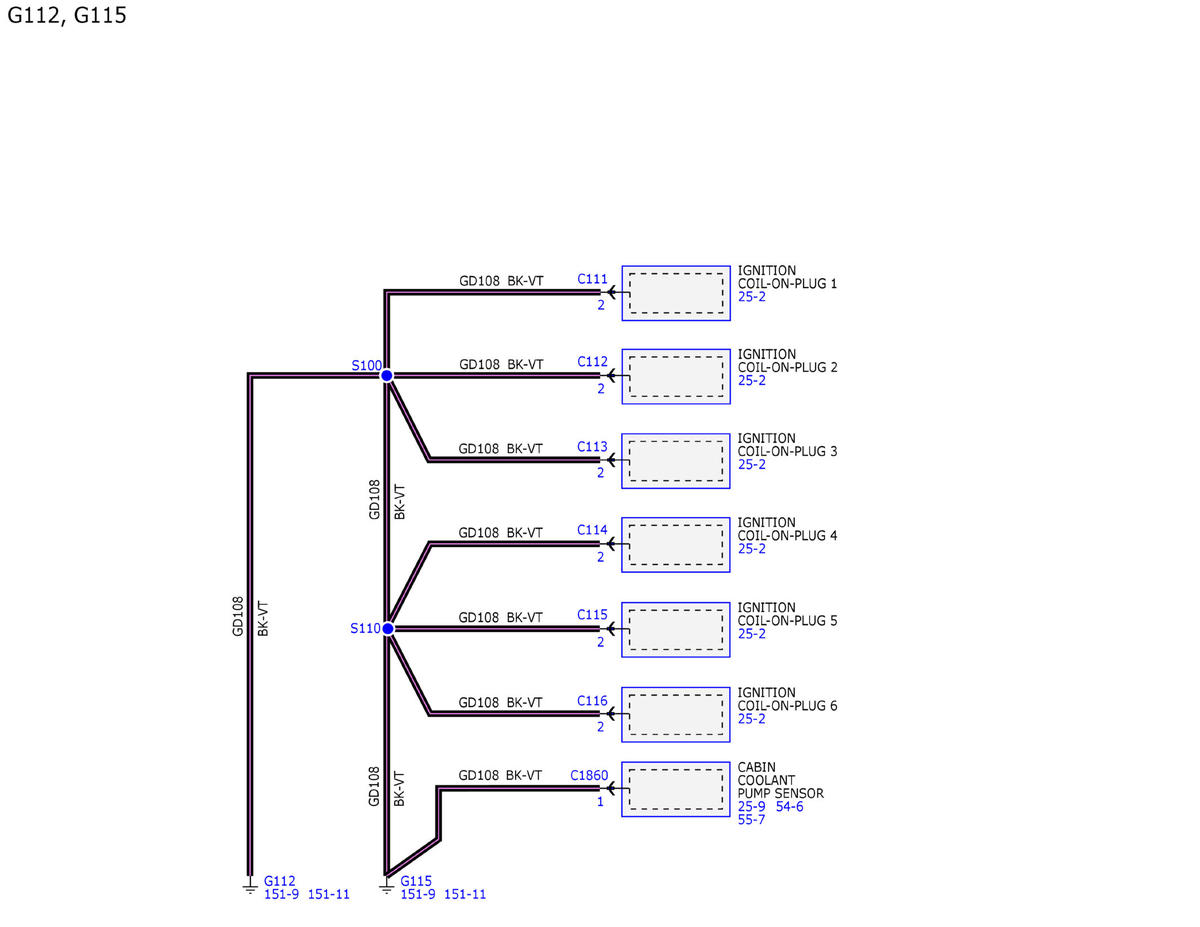

GFDWR115476Courtesy of FORD MOTOR COMPANY

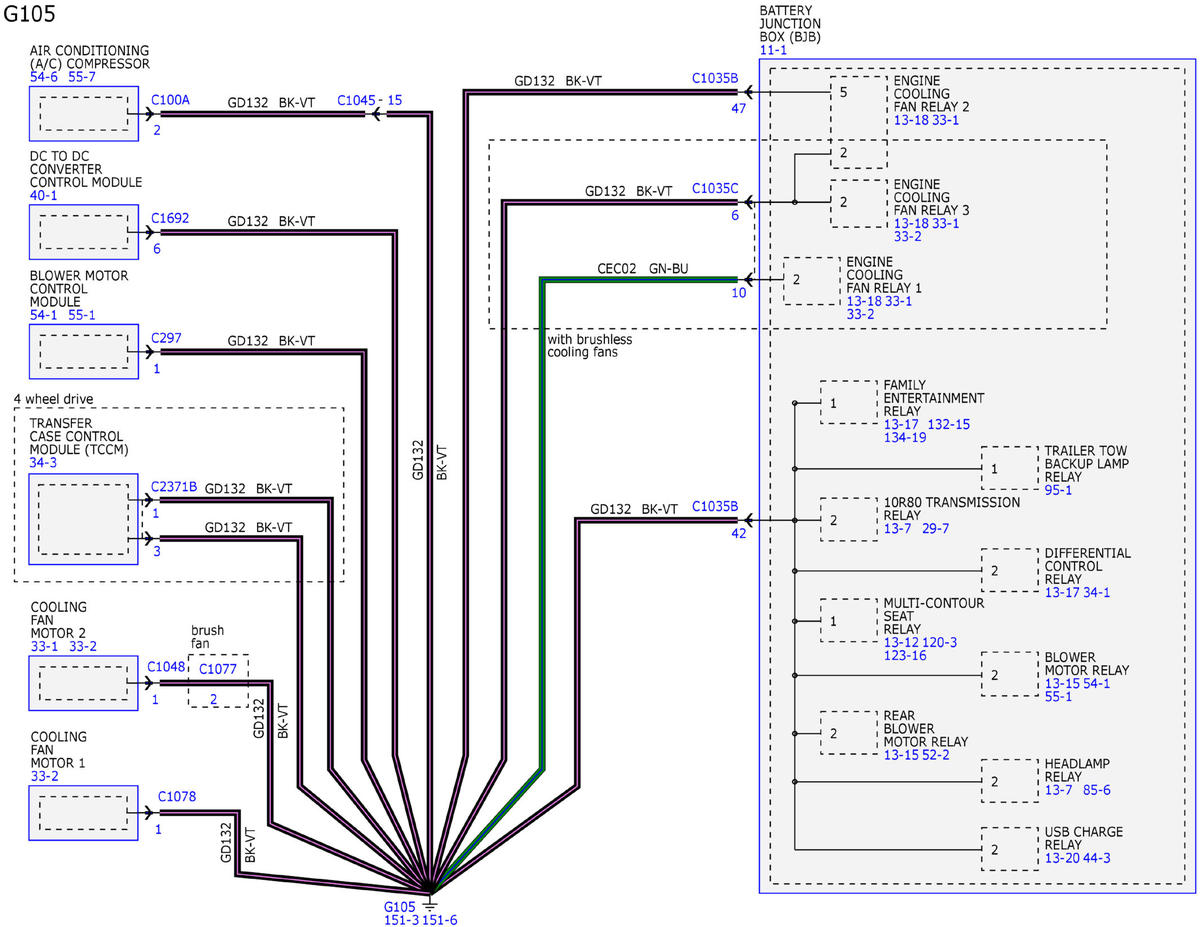

GFDWR115482Courtesy of FORD MOTOR COMPANY

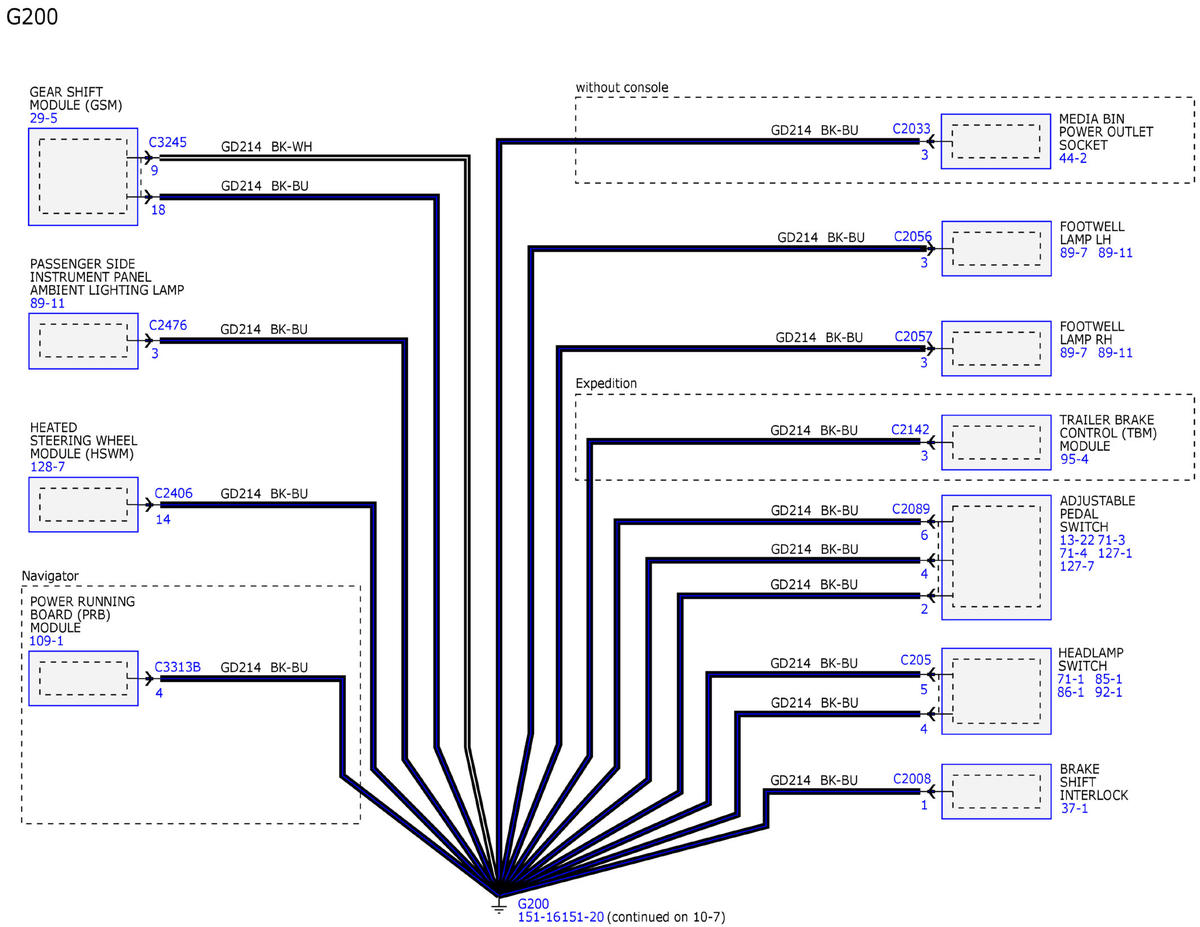

GFDWR115472Courtesy of FORD MOTOR COMPANY

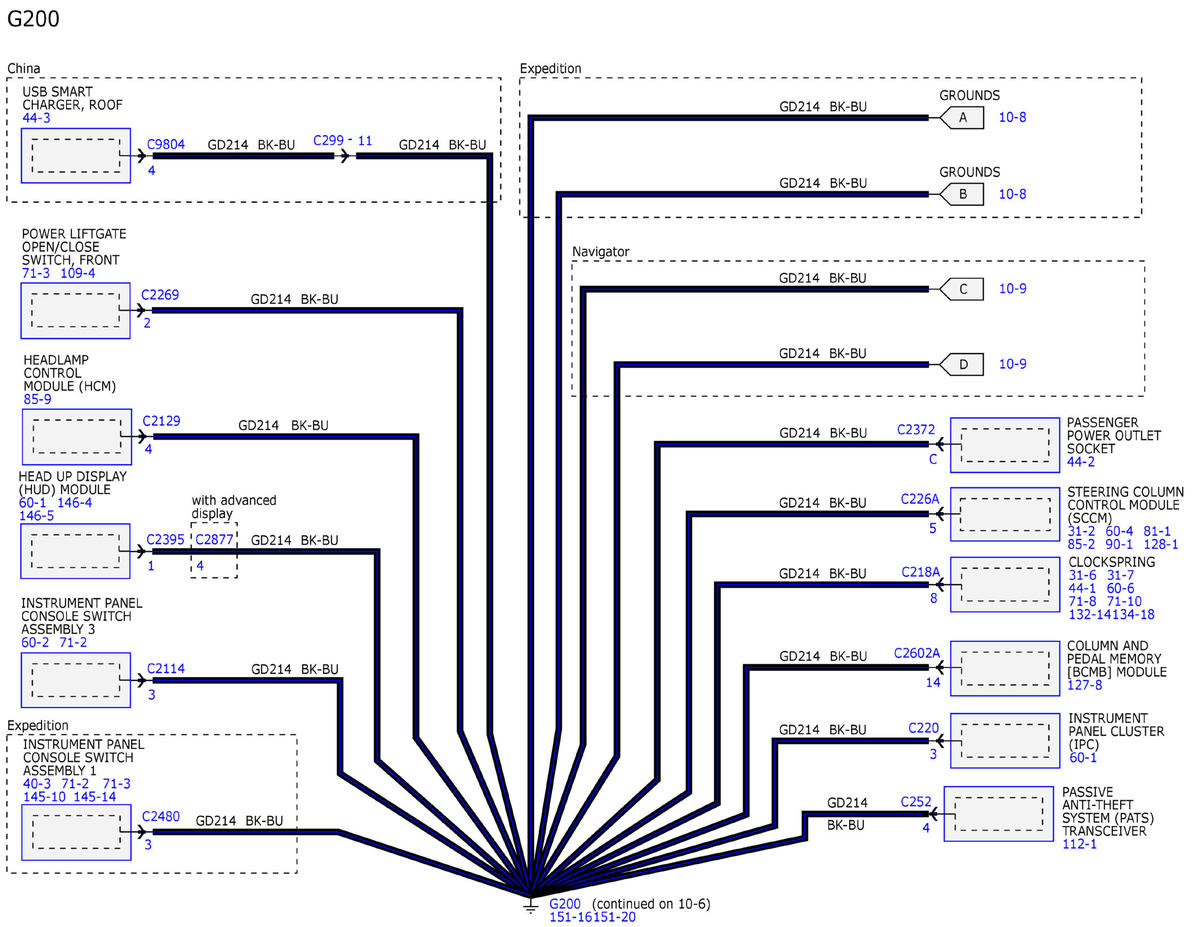

GFDWR115468Courtesy of FORD MOTOR COMPANY

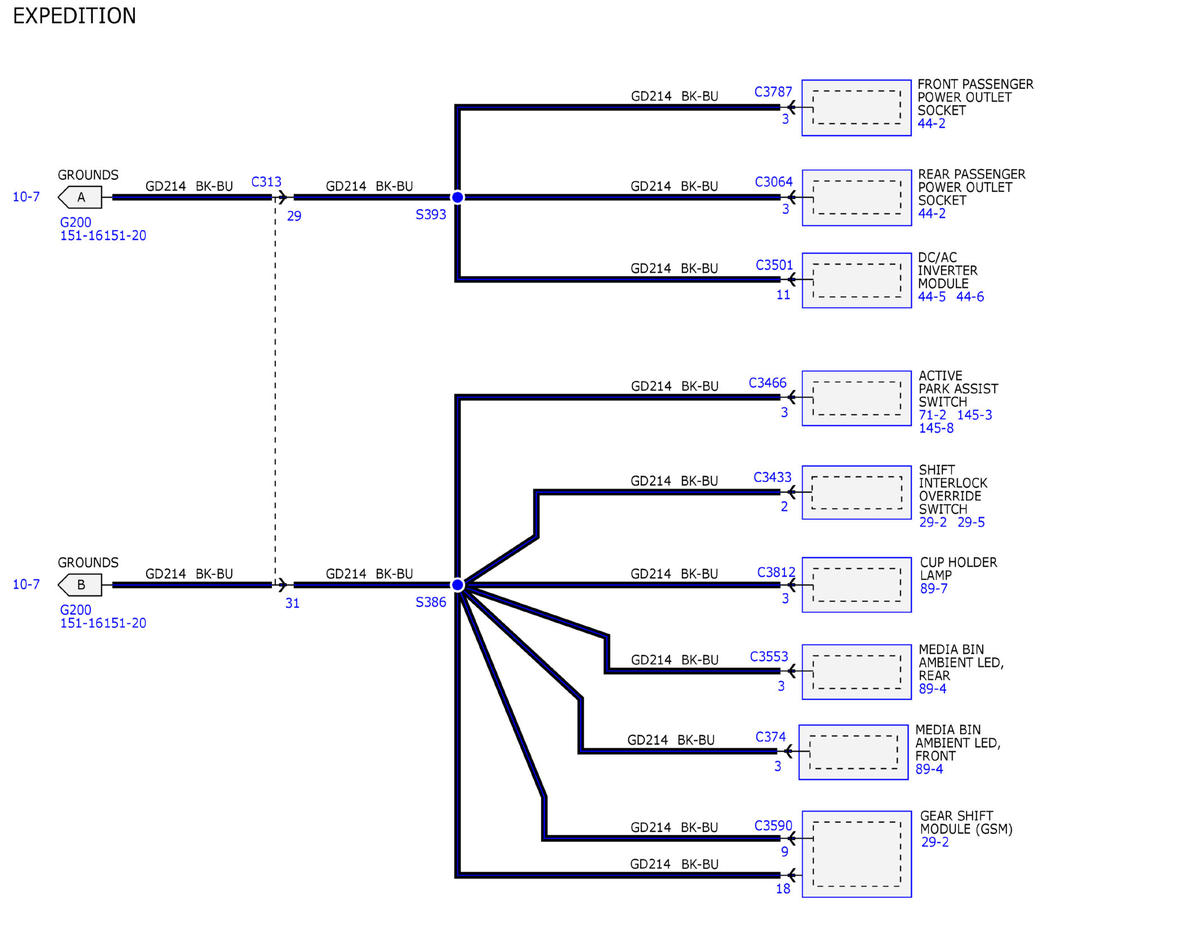

GFDWR115465Courtesy of FORD MOTOR COMPANY

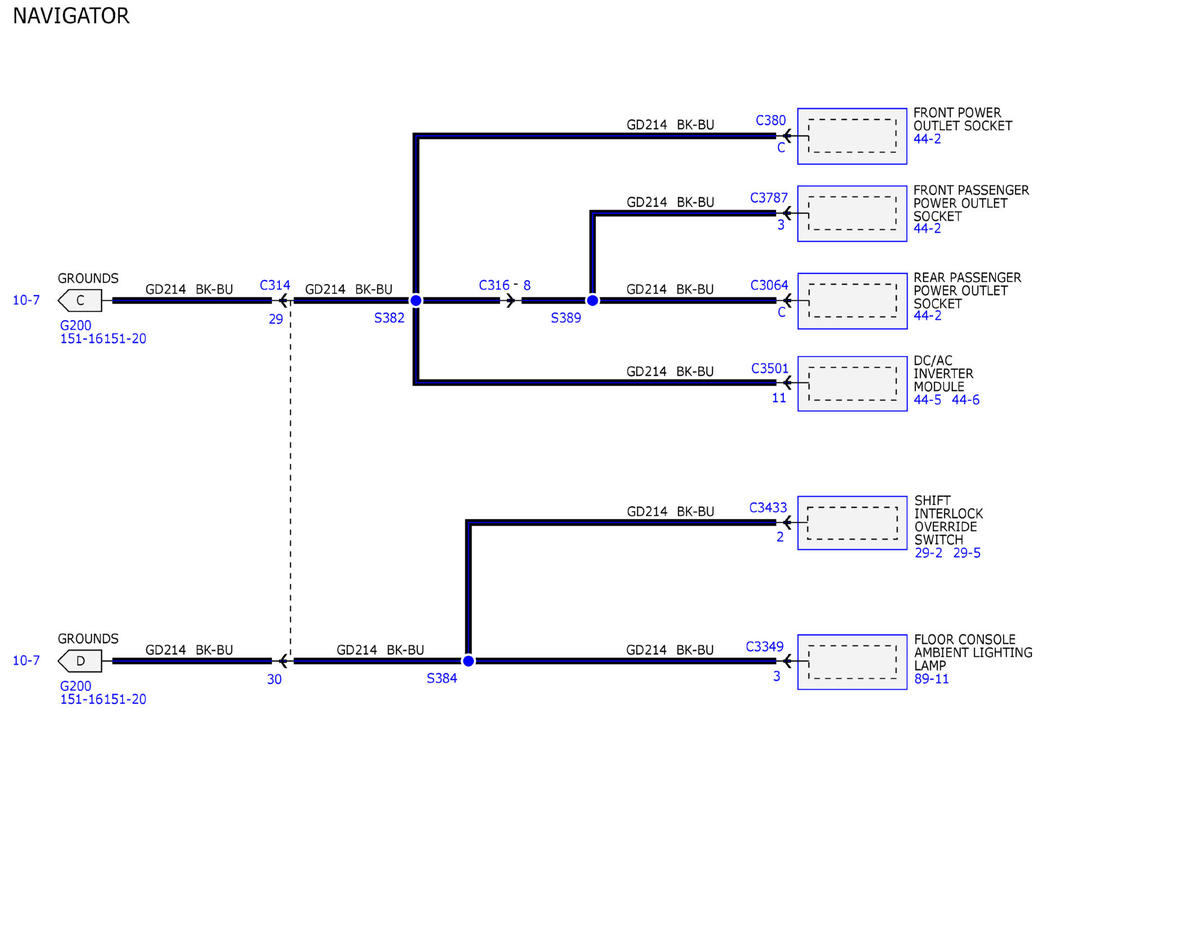

GFDWR115463Courtesy of FORD MOTOR COMPANY

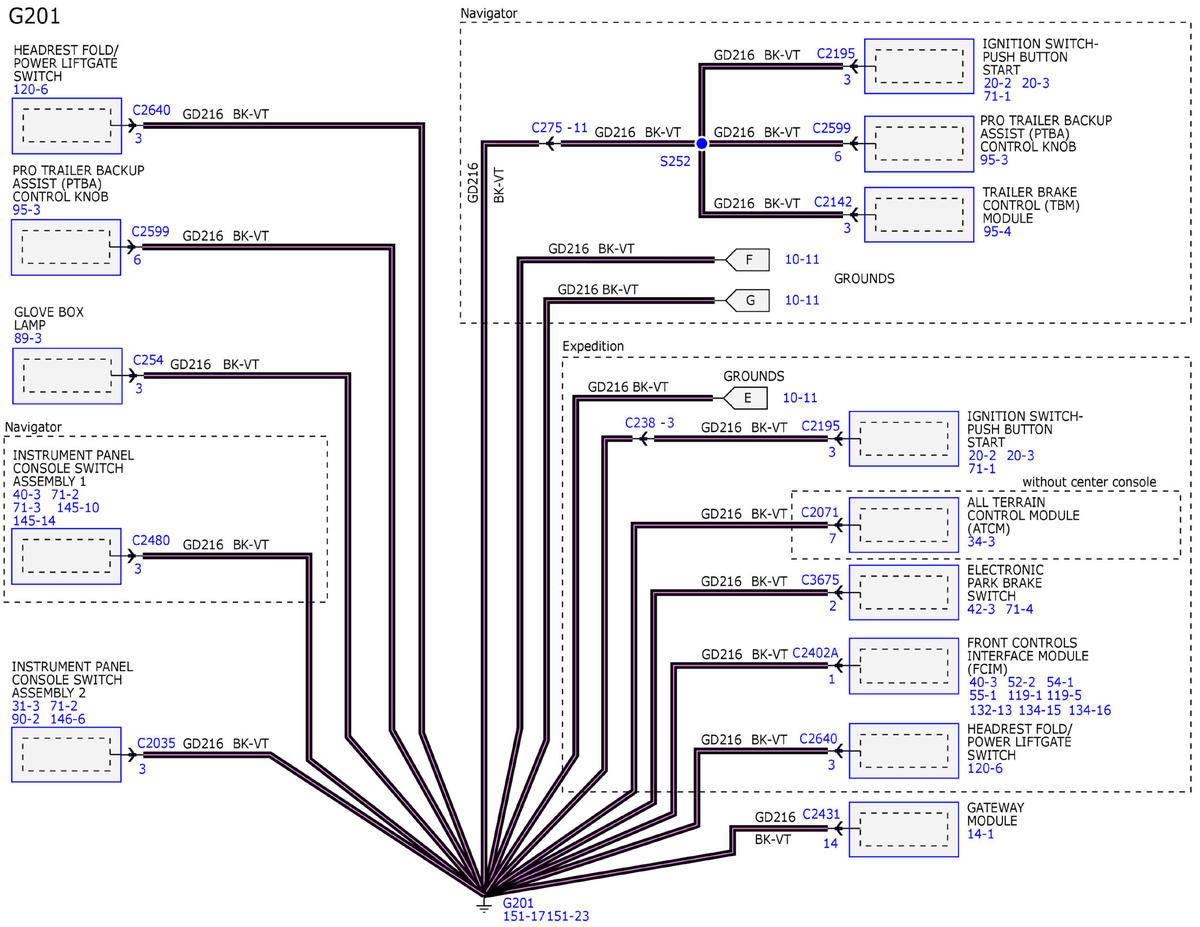

GFDWR115483Courtesy of FORD MOTOR COMPANY

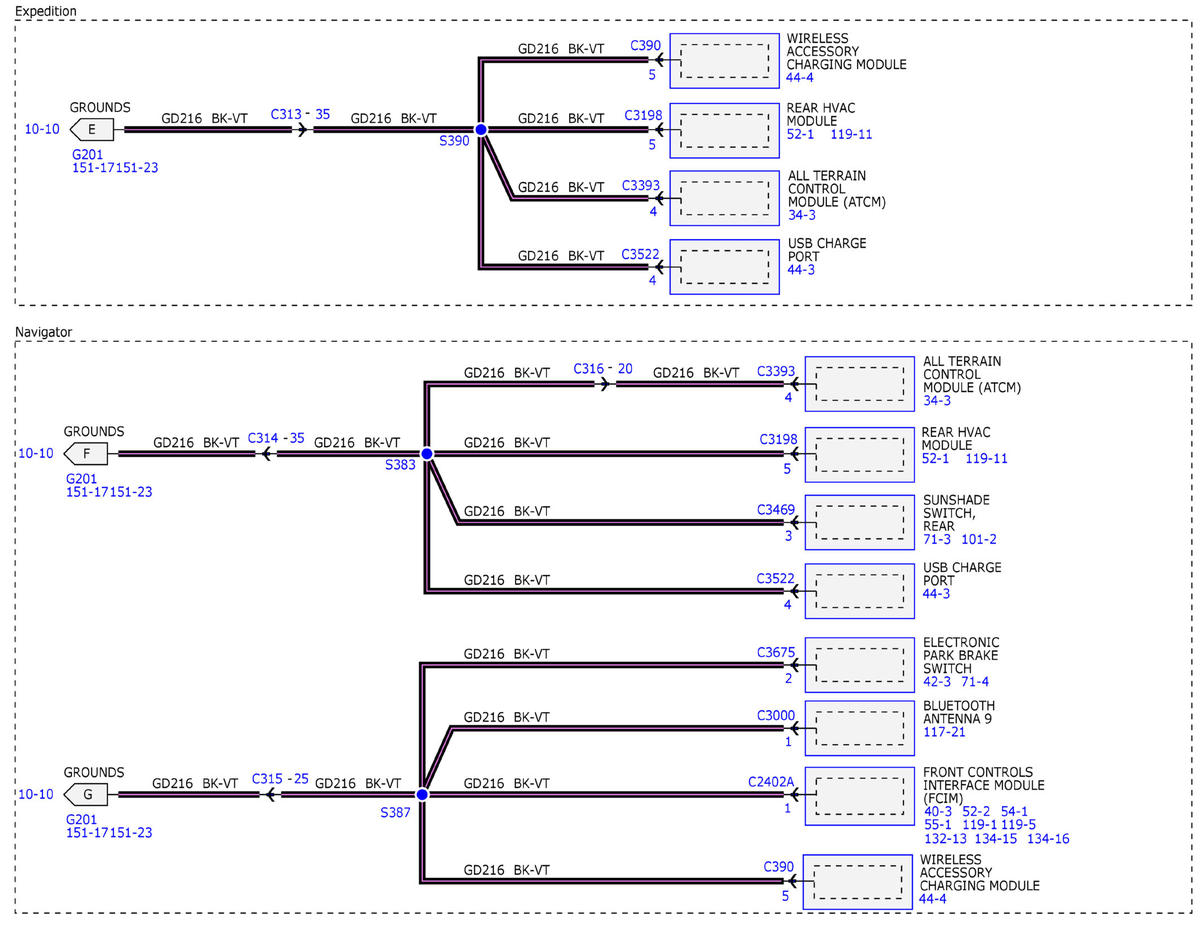

GFDWR115478Courtesy of FORD MOTOR COMPANY

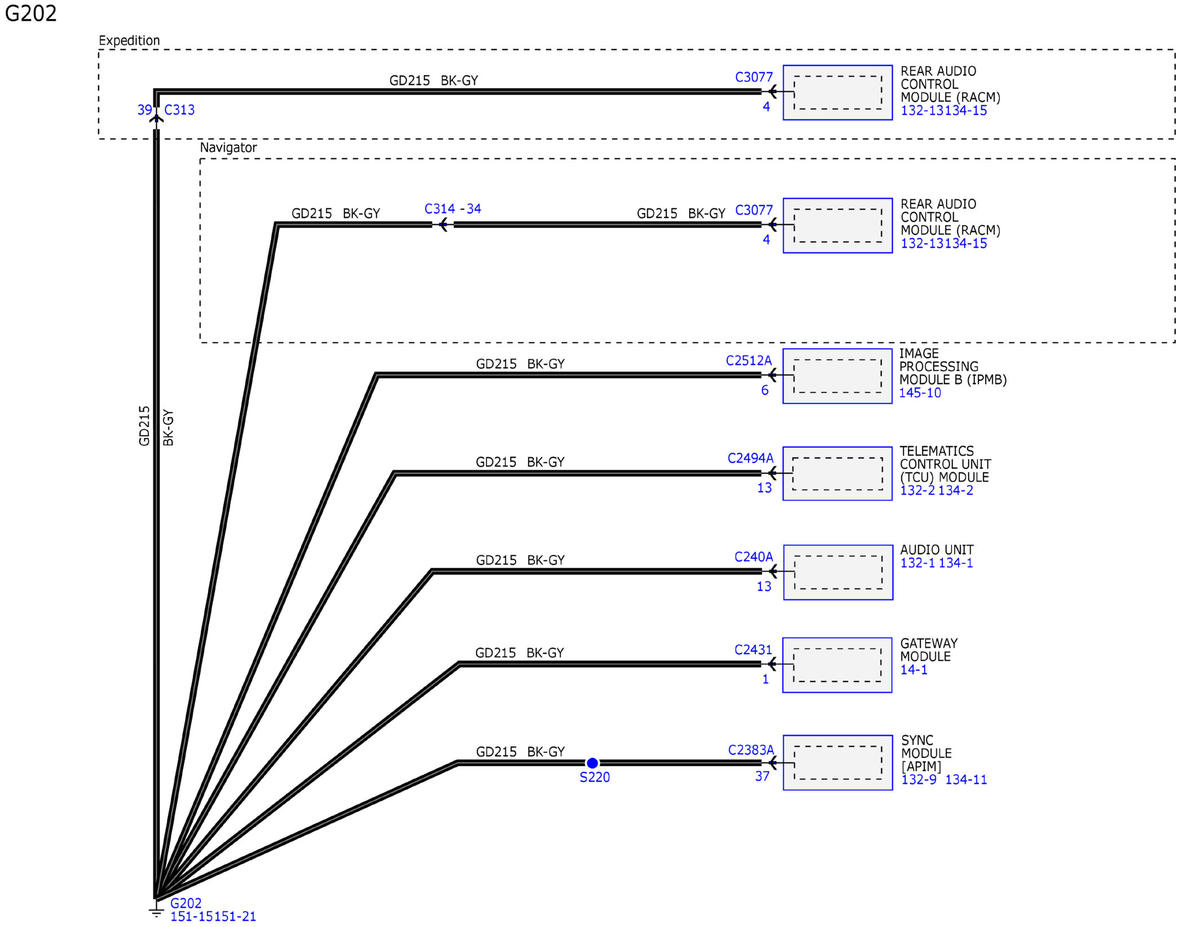

GFDWR115466Courtesy of FORD MOTOR COMPANY

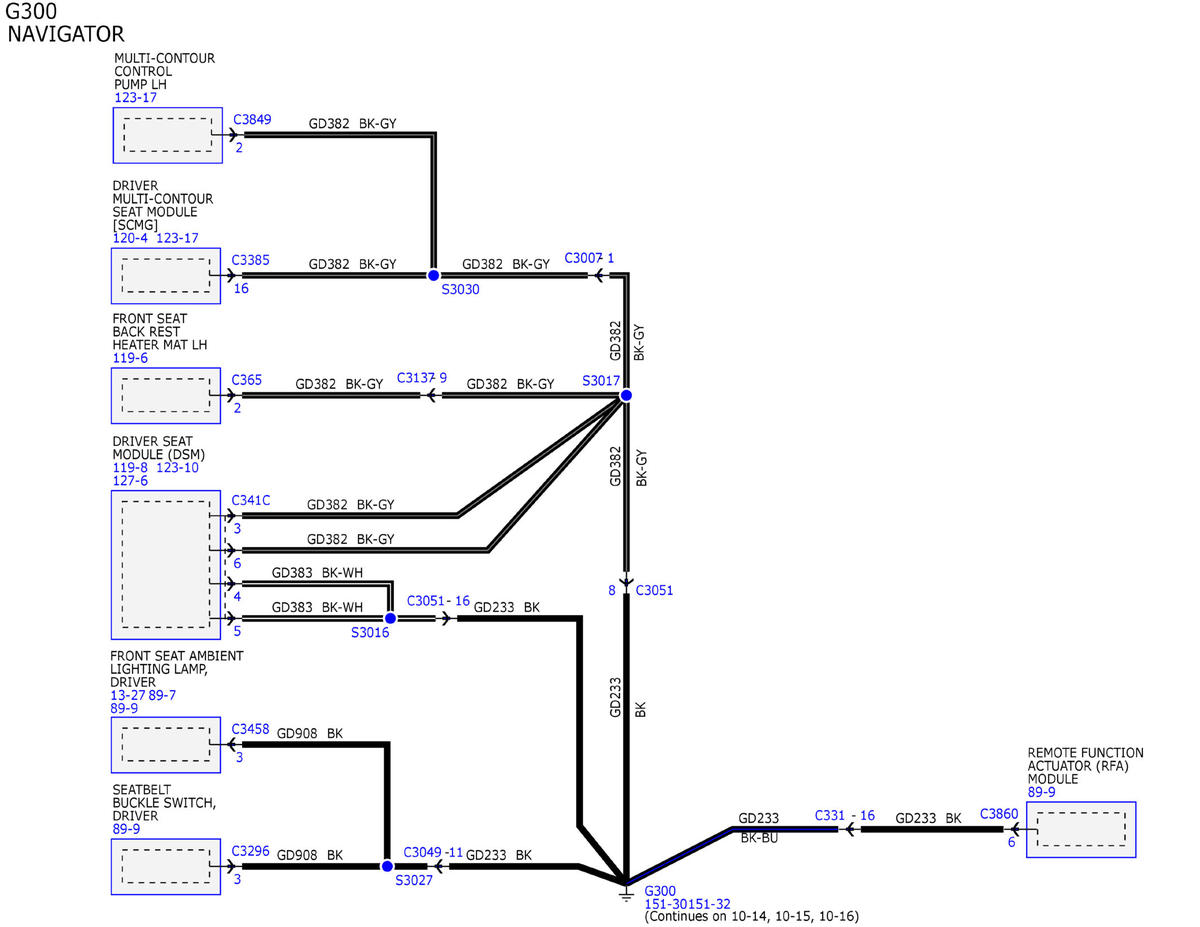

GFDWR115462Courtesy of FORD MOTOR COMPANY

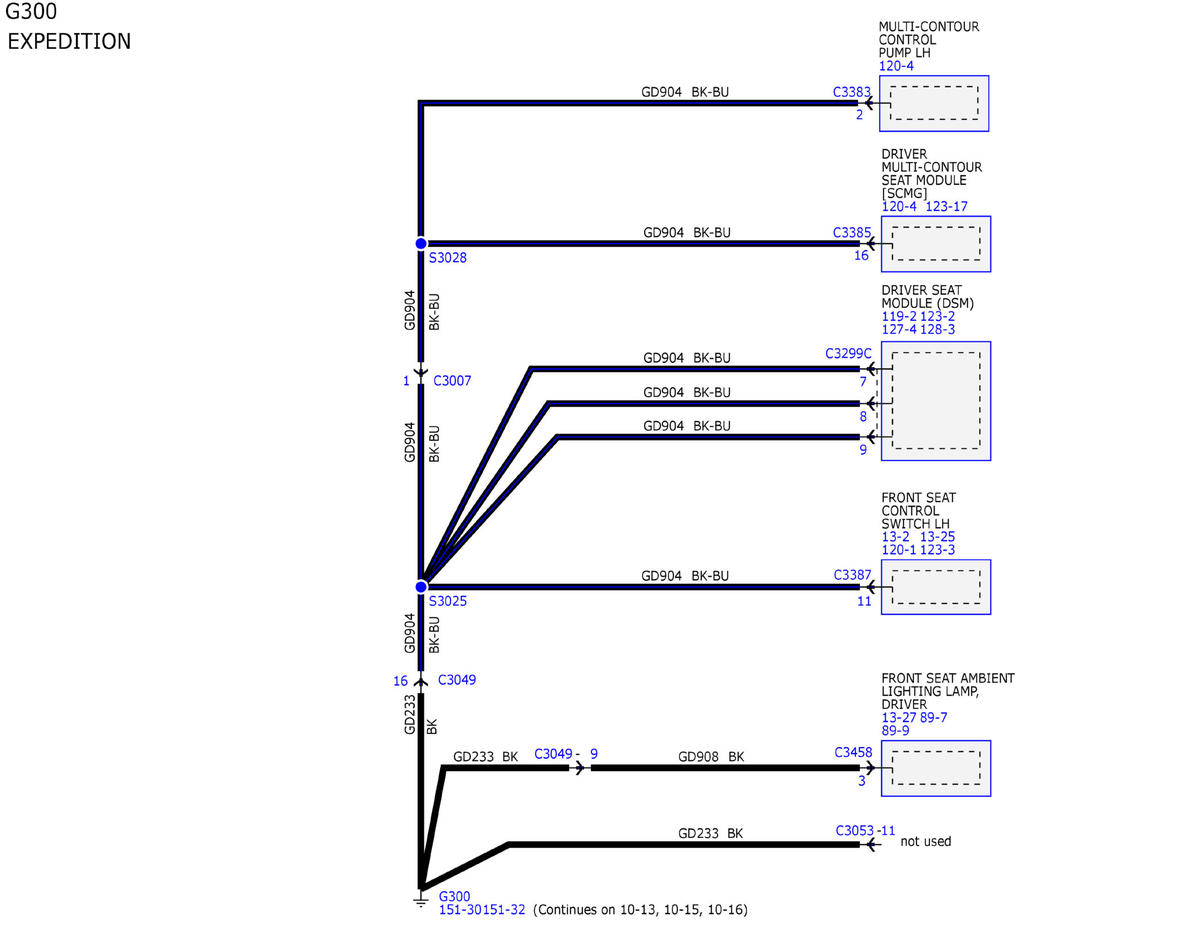

GFDWR115480Courtesy of FORD MOTOR COMPANY

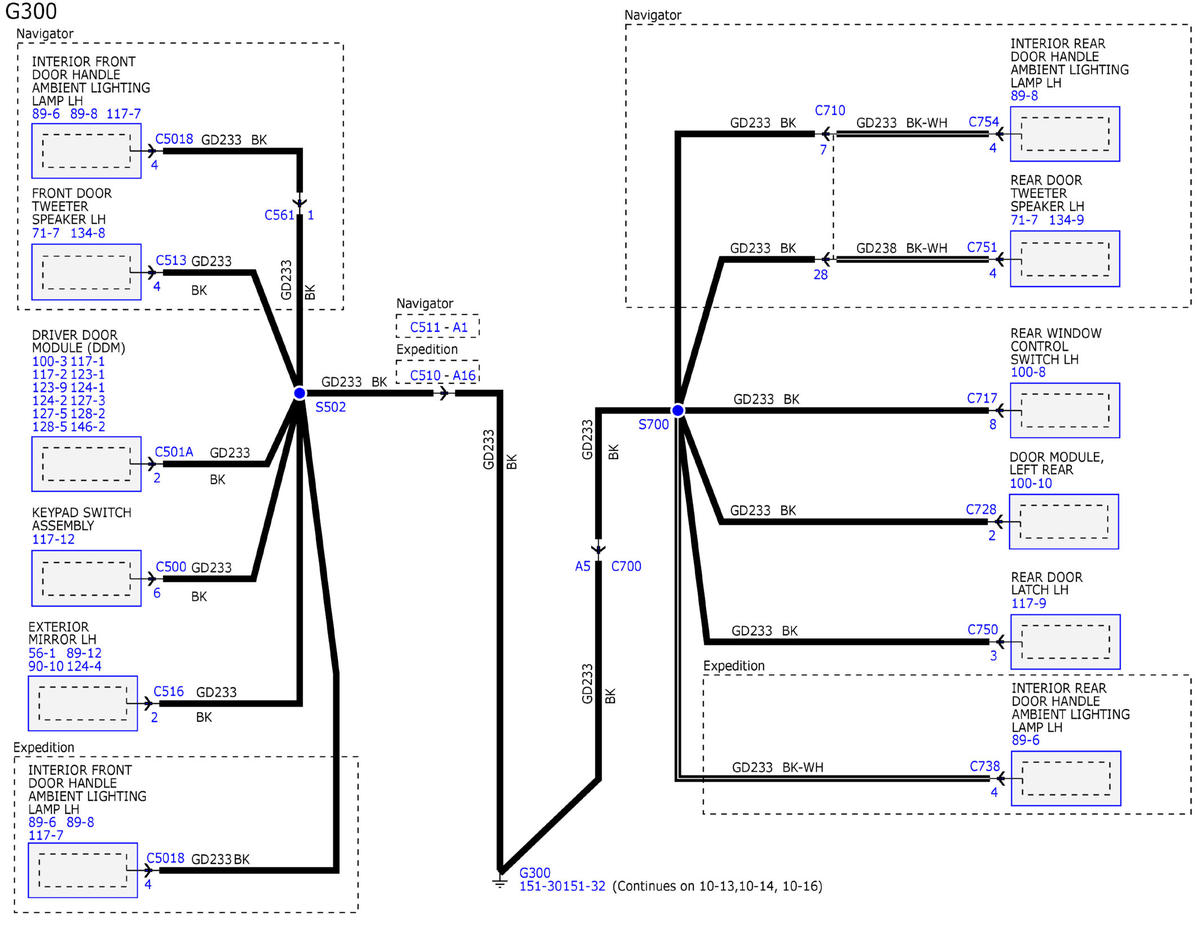

GFDWR115473Courtesy of FORD MOTOR COMPANY

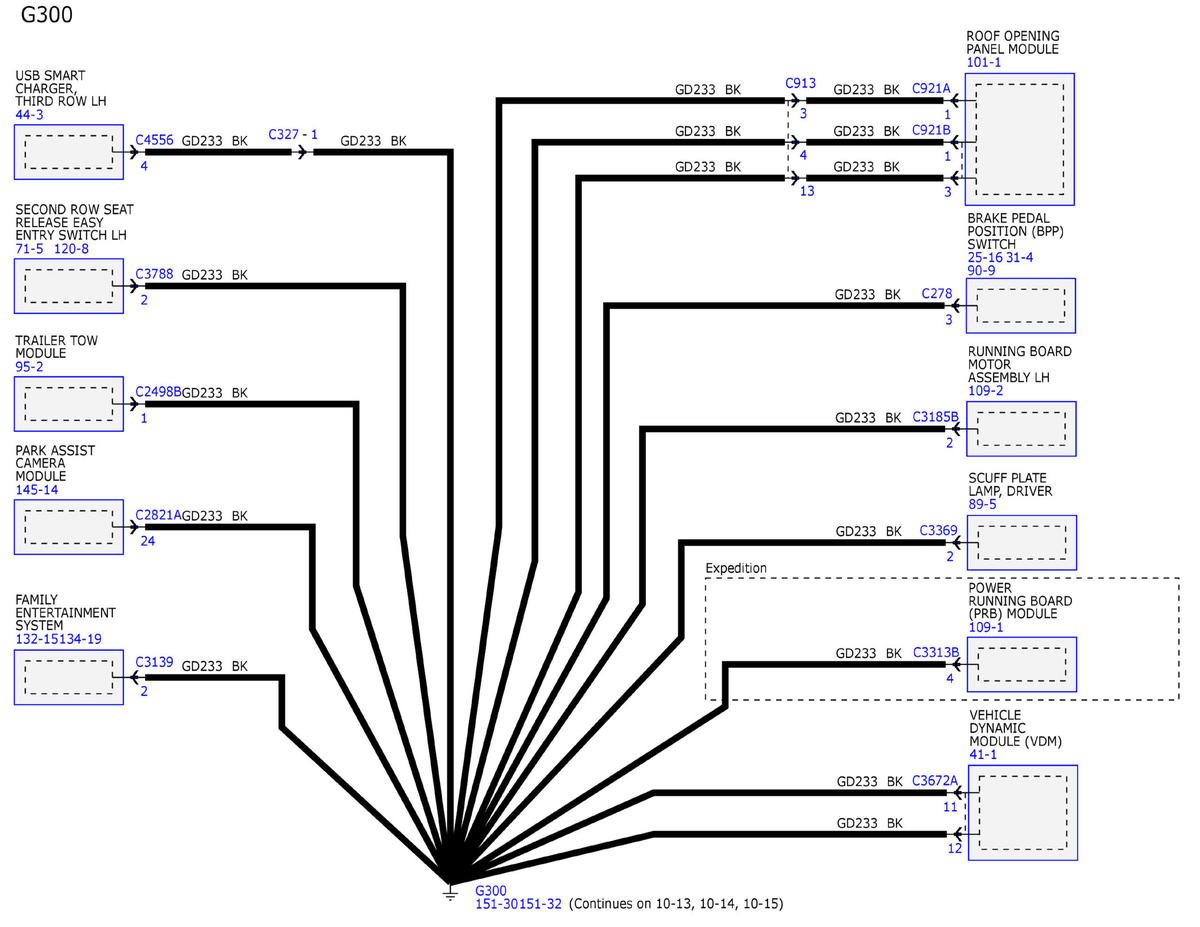

GFDWR115464Courtesy of FORD MOTOR COMPANY

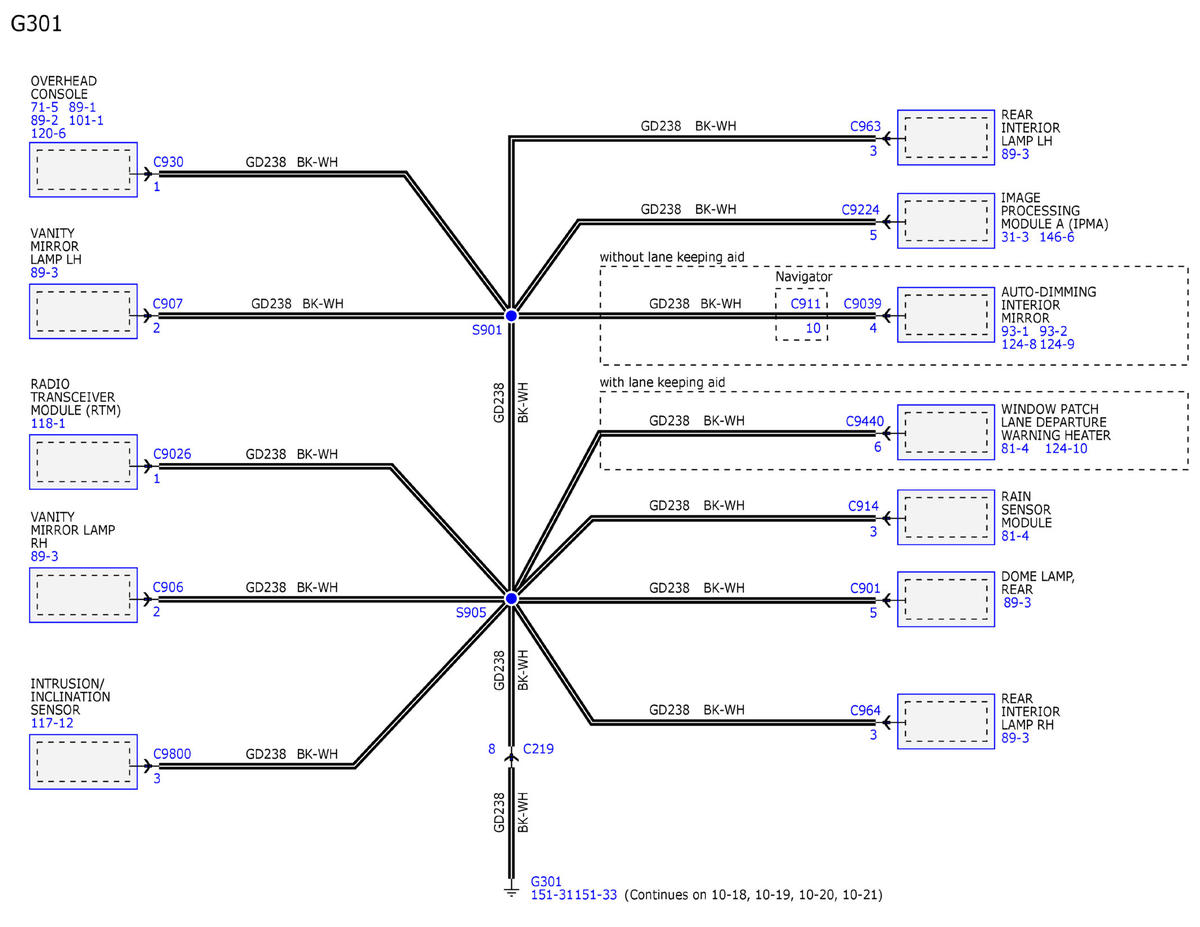

GFDWR115477Courtesy of FORD MOTOR COMPANY

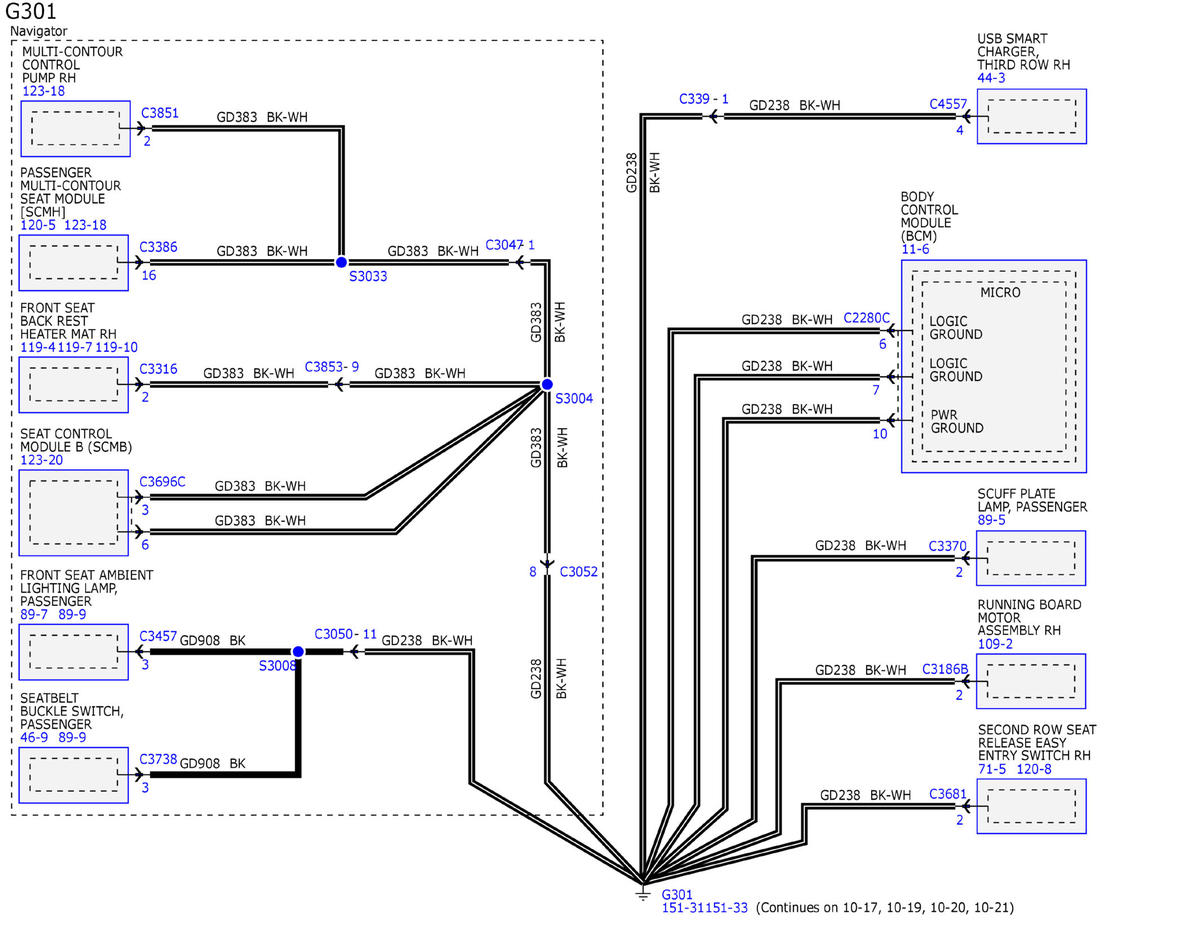

GFDWR115479Courtesy of FORD MOTOR COMPANY

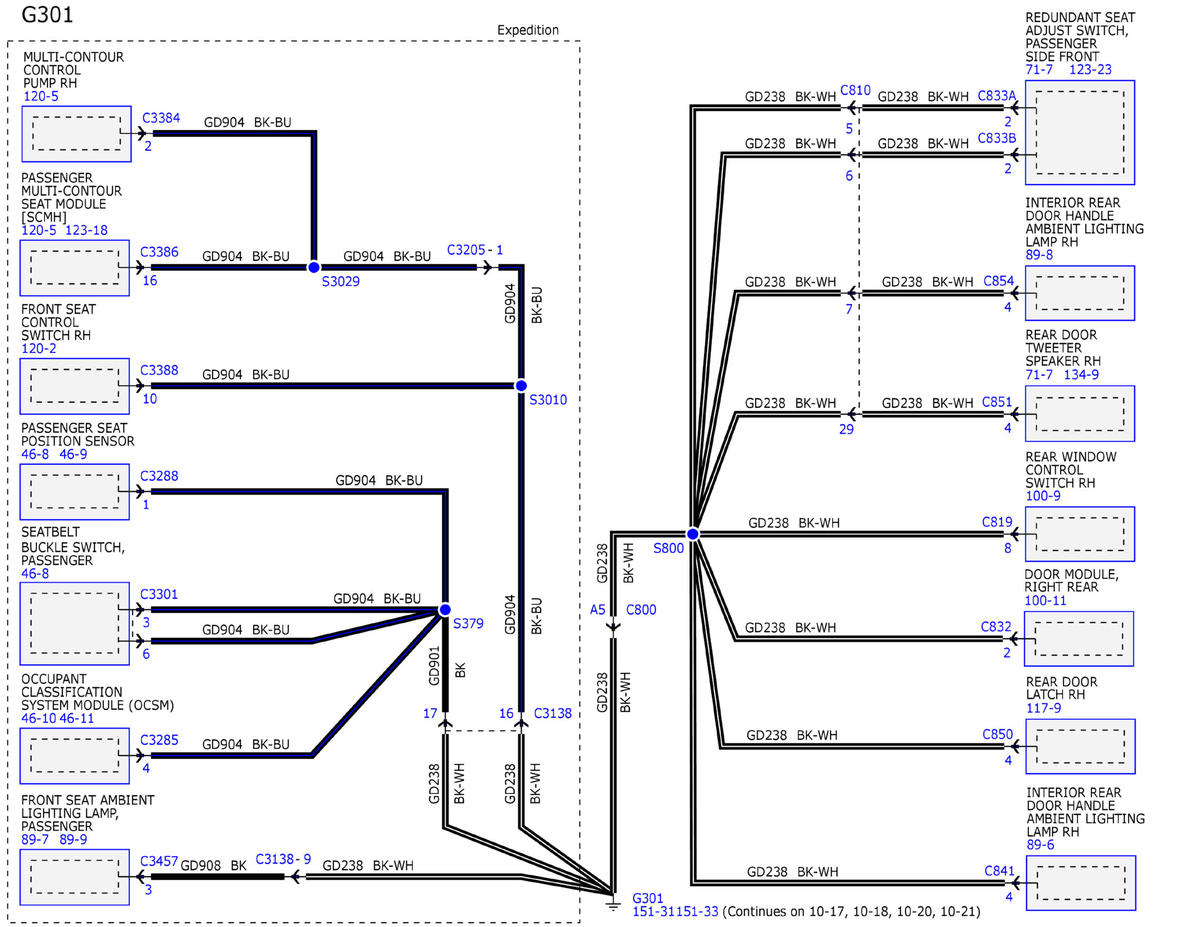

GFDWR115467Courtesy of FORD MOTOR COMPANY

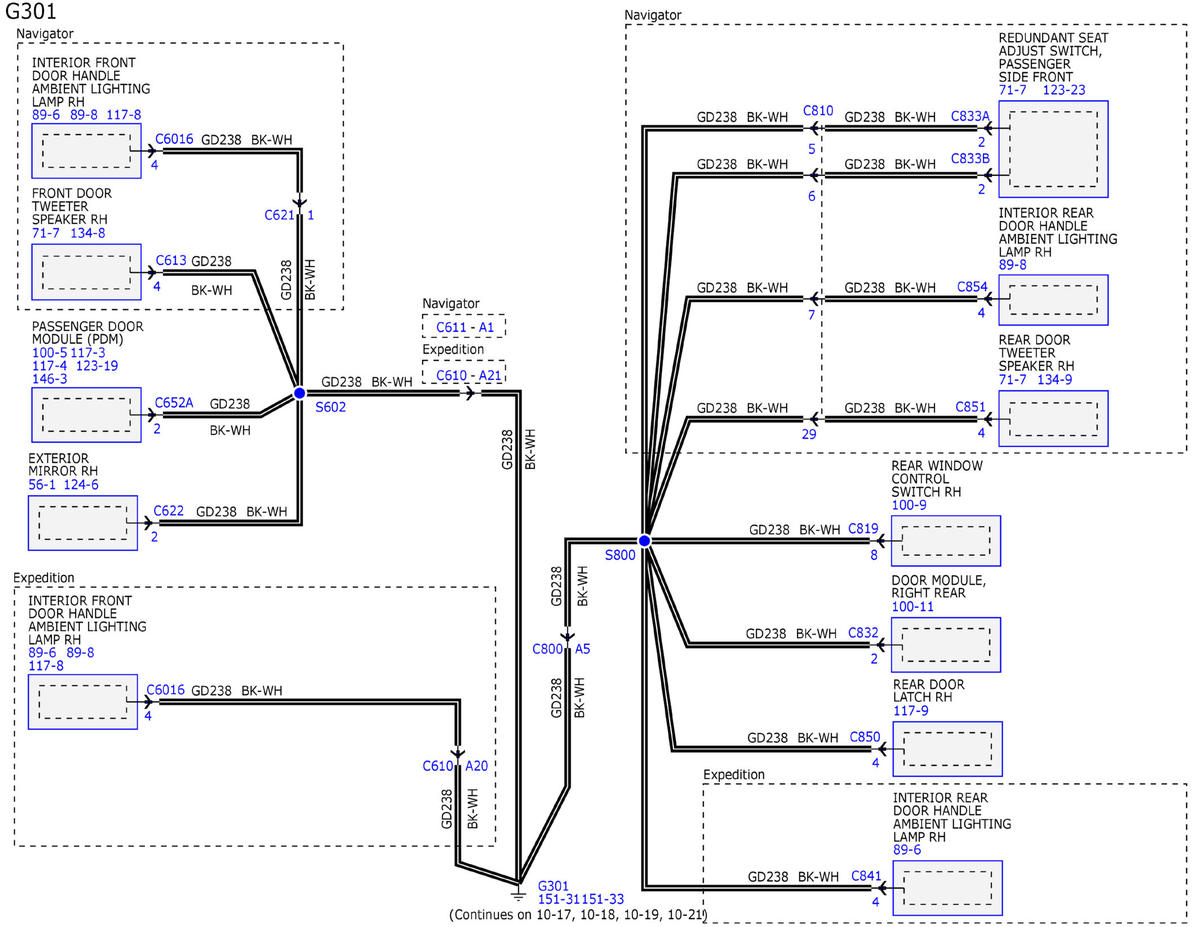

GFDWR115469Courtesy of FORD MOTOR COMPANY

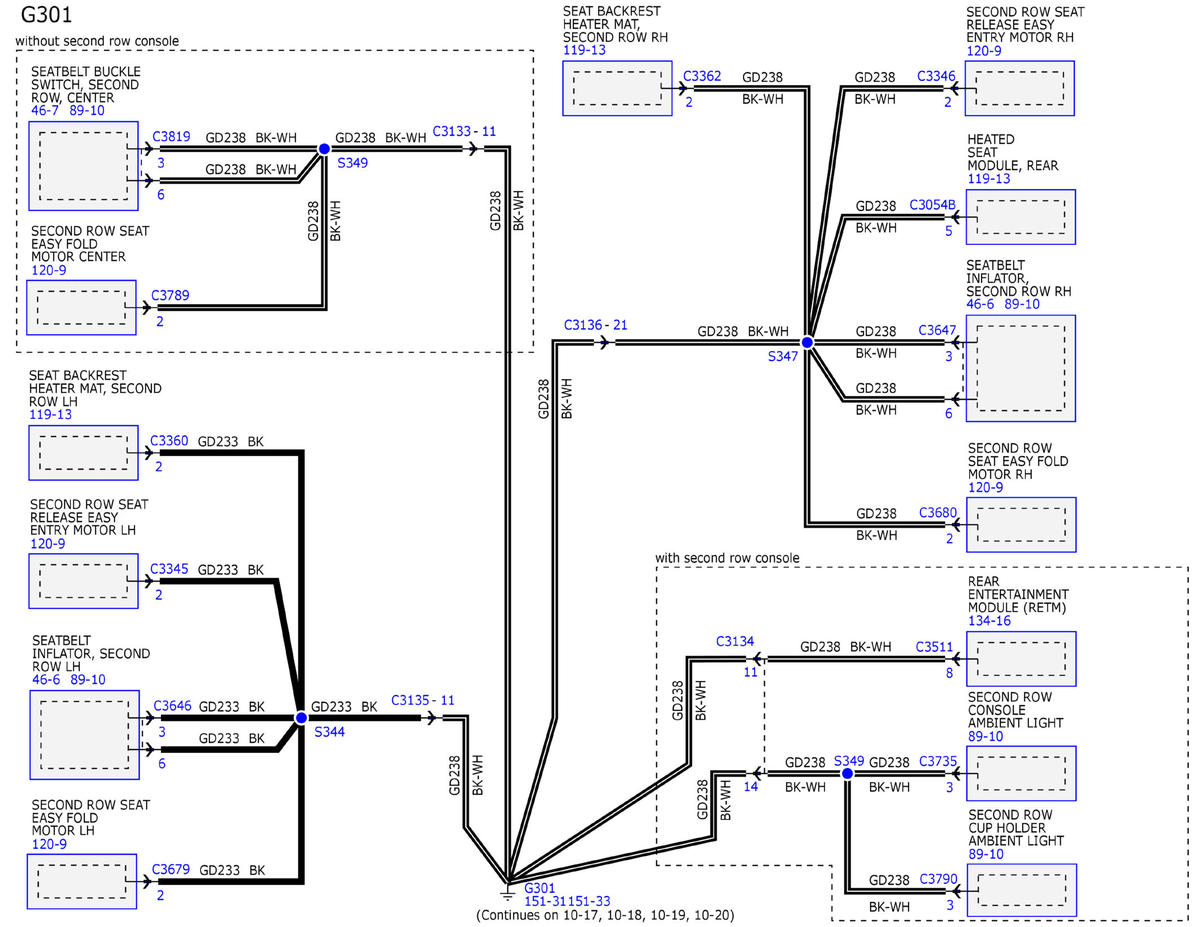

GFDWR115461Courtesy of FORD MOTOR COMPANY

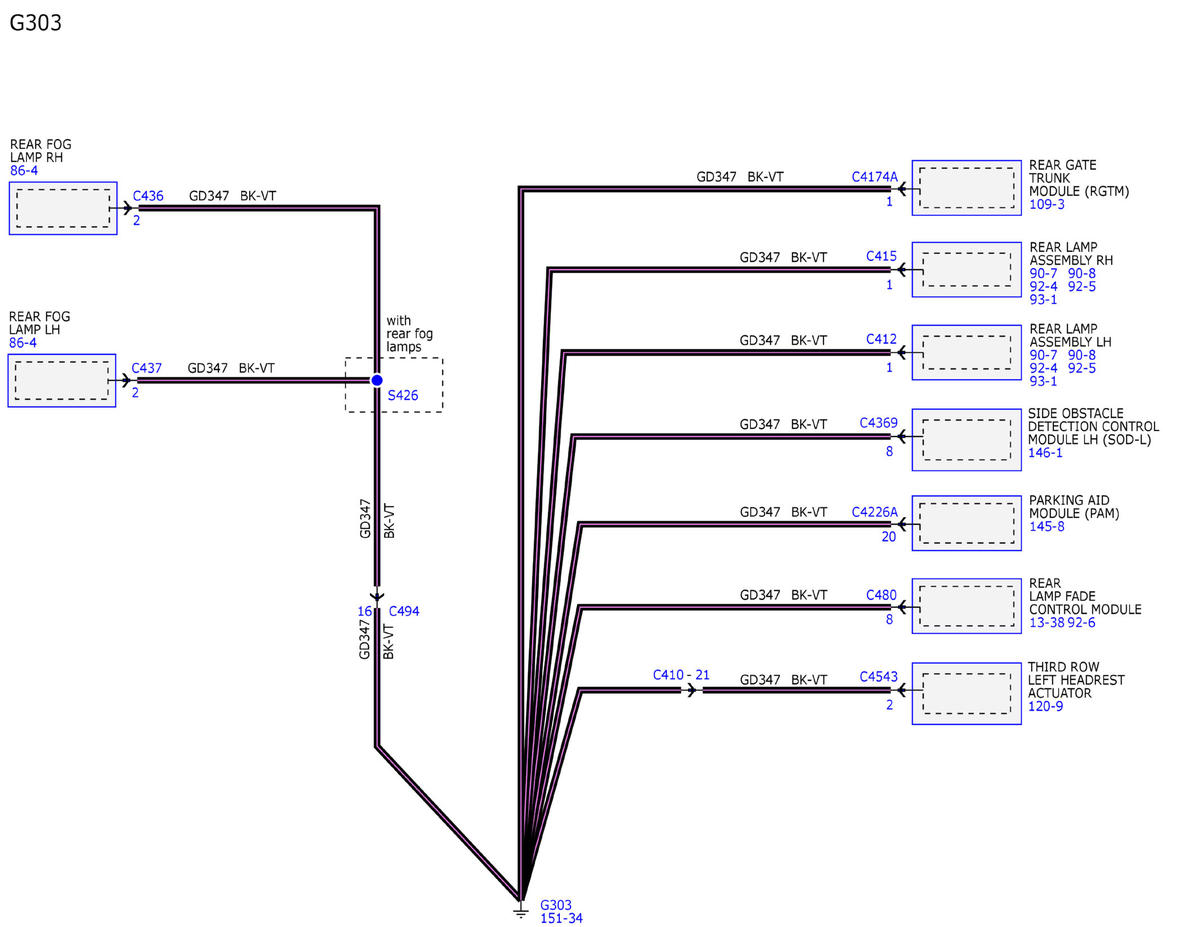

GFDWR115475Courtesy of FORD MOTOR COMPANY

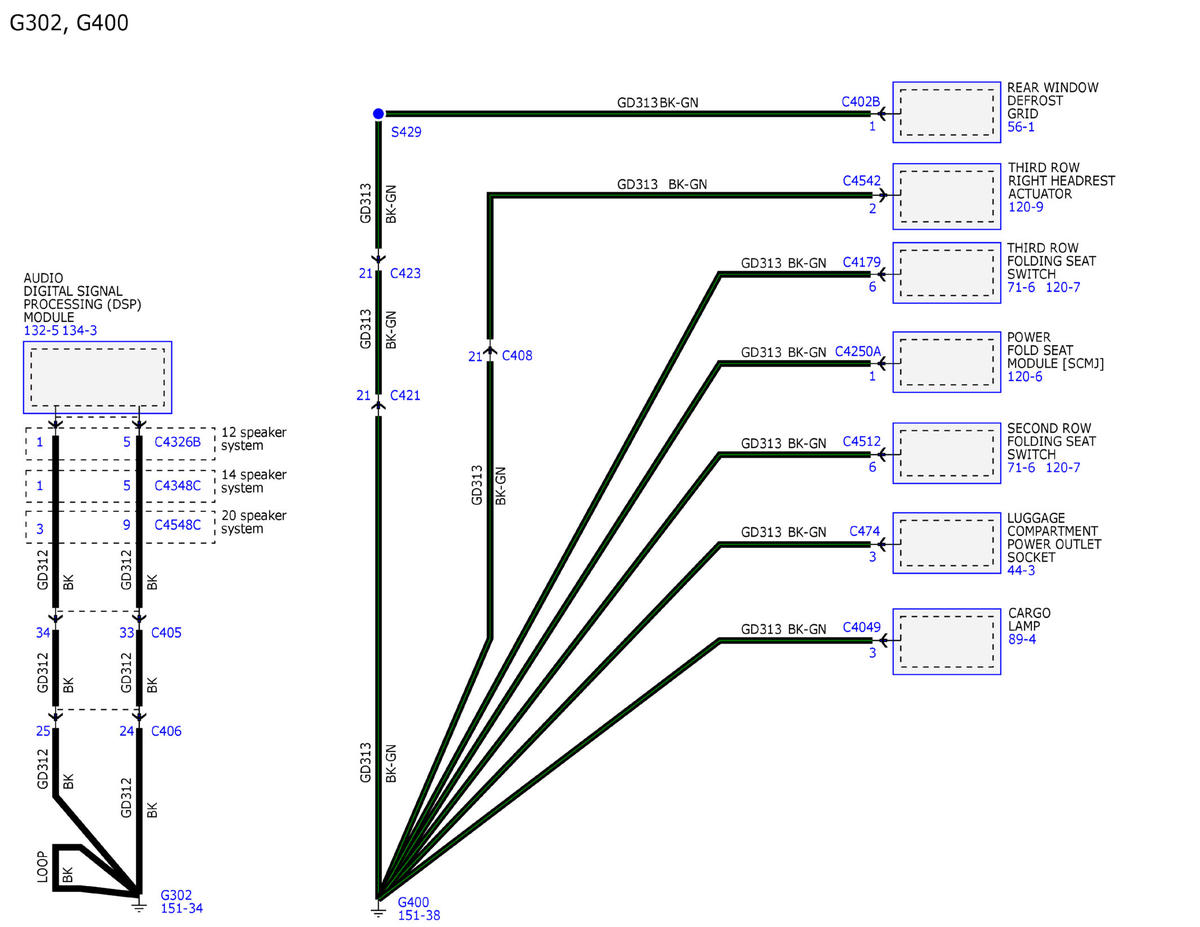

GFDWR115460Courtesy of FORD MOTOR COMPANY

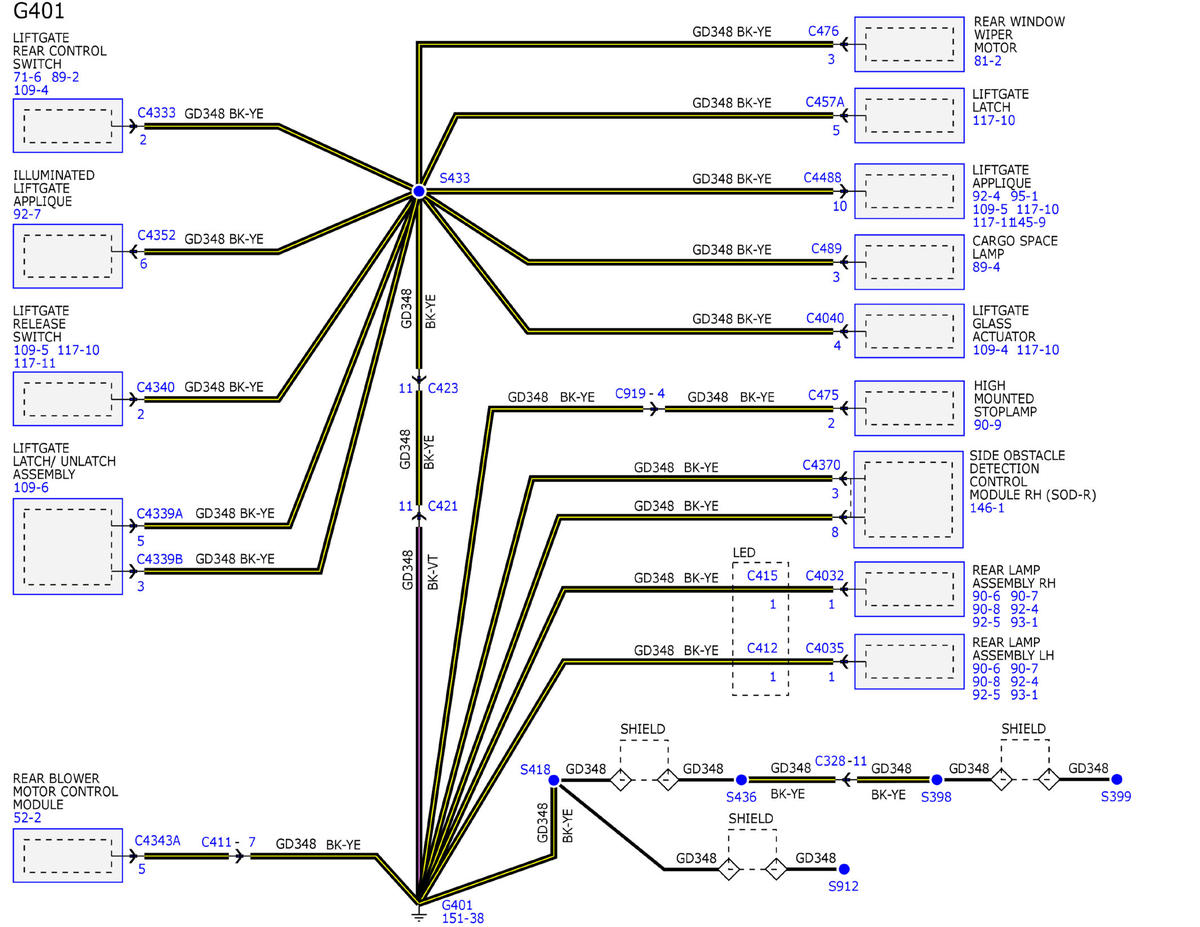

GFDWR115481Courtesy of FORD MOTOR COMPANY

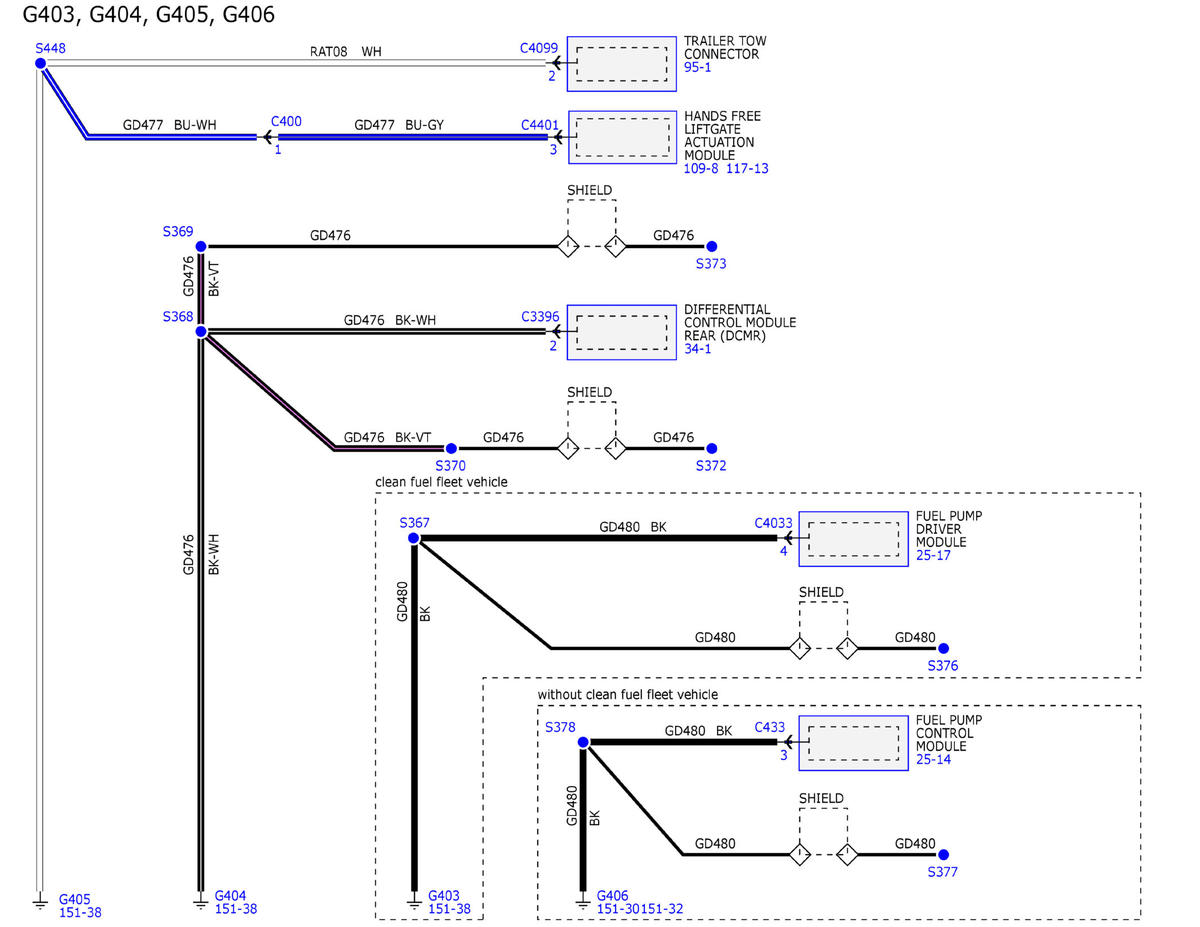

GFDWR115470Courtesy of FORD MOTOR COMPANY
