WARNING: This page is about a different car, the 2019 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

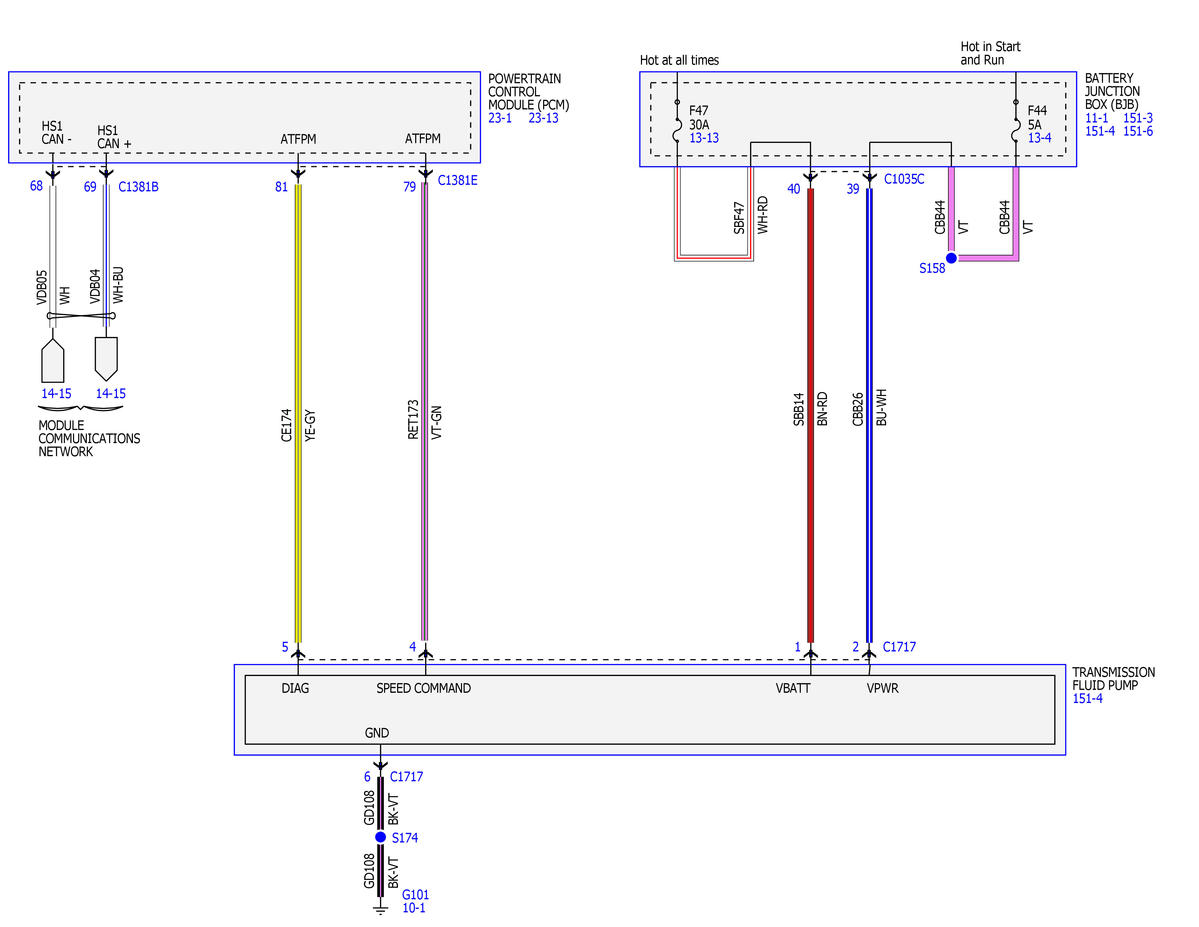

Fig 1: Auto-Start-Stop System Wiring Diagram (1 Of 6)
Courtesy of FORD MOTOR COMPANY

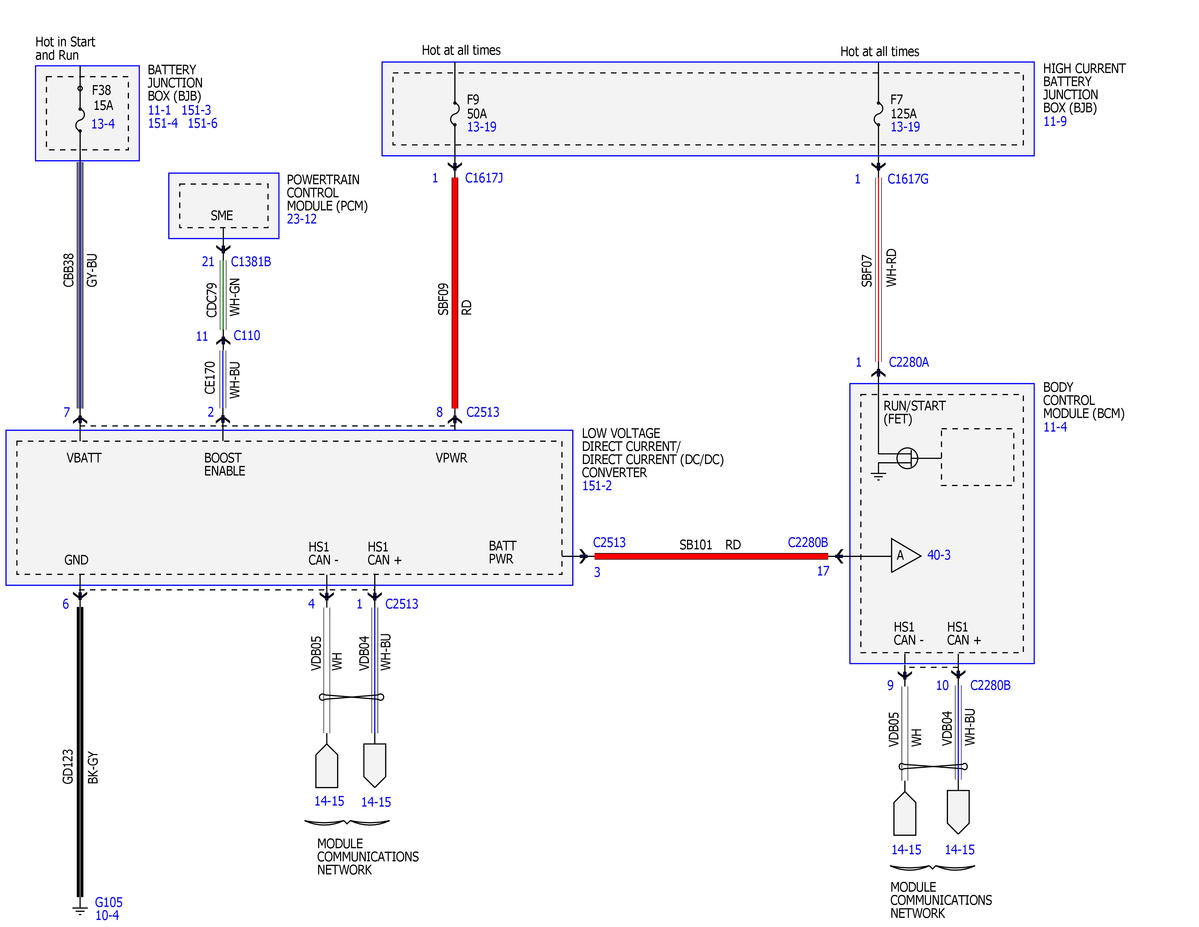

Fig 2: Auto-Start-Stop System Wiring Diagram (2 Of 6)
Courtesy of FORD MOTOR COMPANY

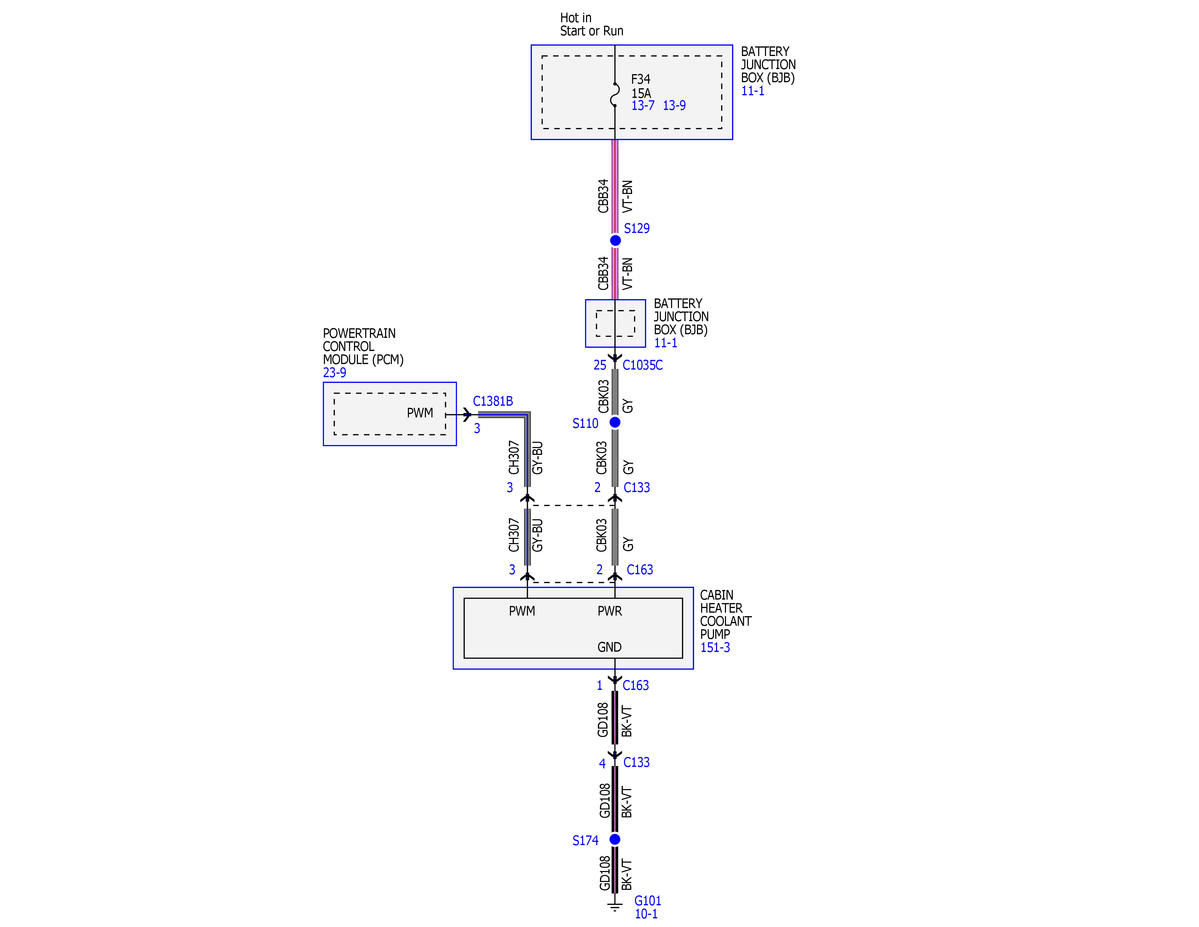

Fig 3: Auto-Start-Stop System Wiring Diagram (3 Of 6)
Courtesy of FORD MOTOR COMPANY

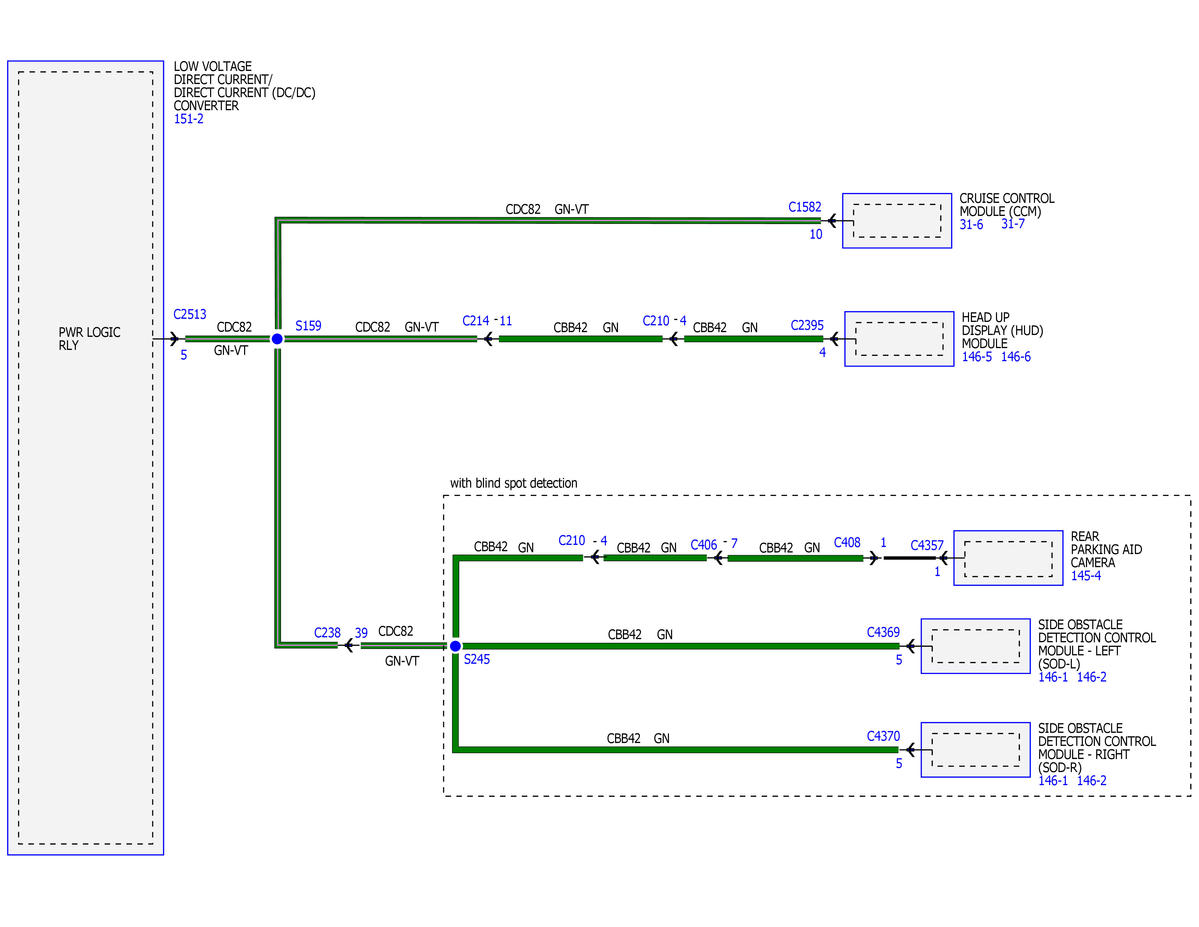

Fig 4: Auto-Start-Stop System Wiring Diagram (4 Of 6)
Courtesy of FORD MOTOR COMPANY

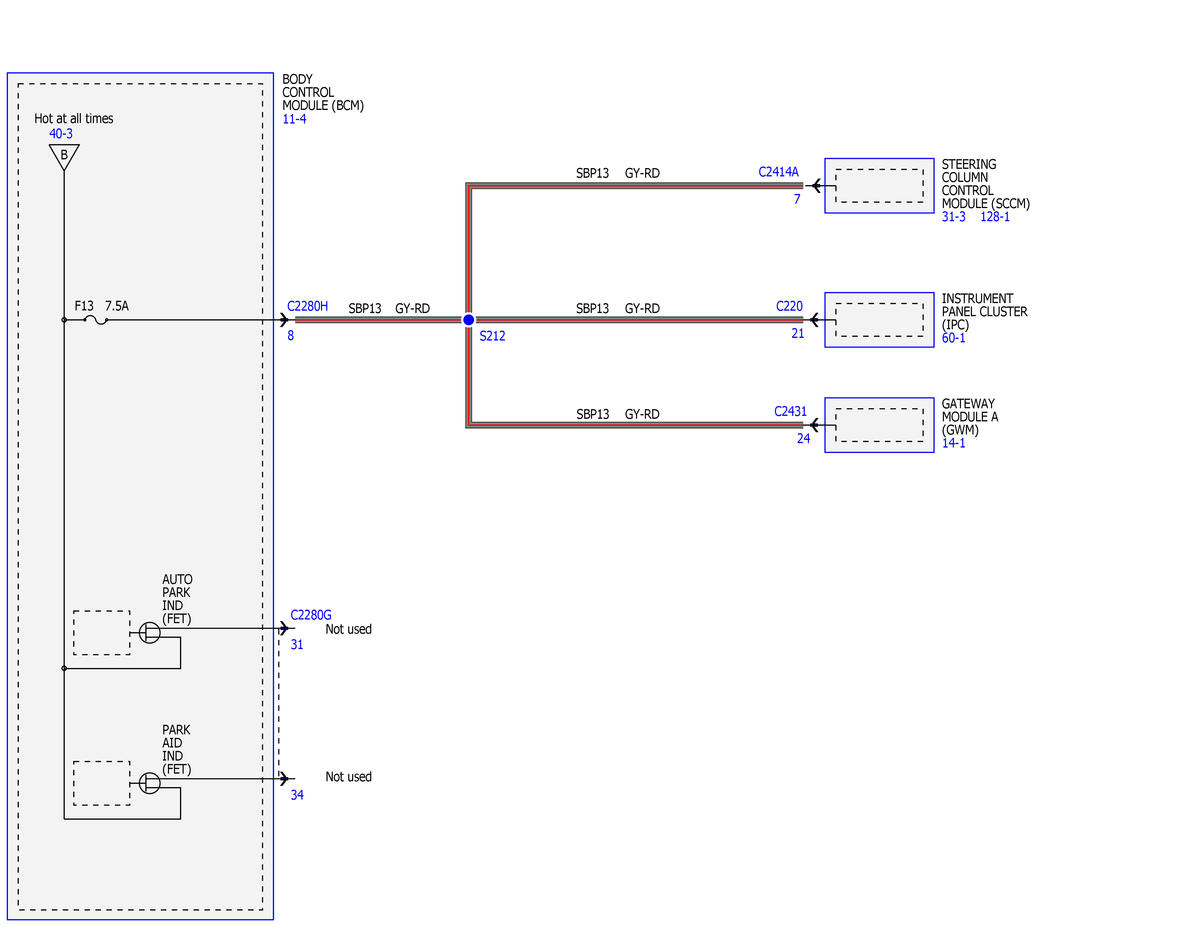

Fig 5: Auto-Start-Stop System Wiring Diagram (5 Of 6)
Courtesy of FORD MOTOR COMPANY

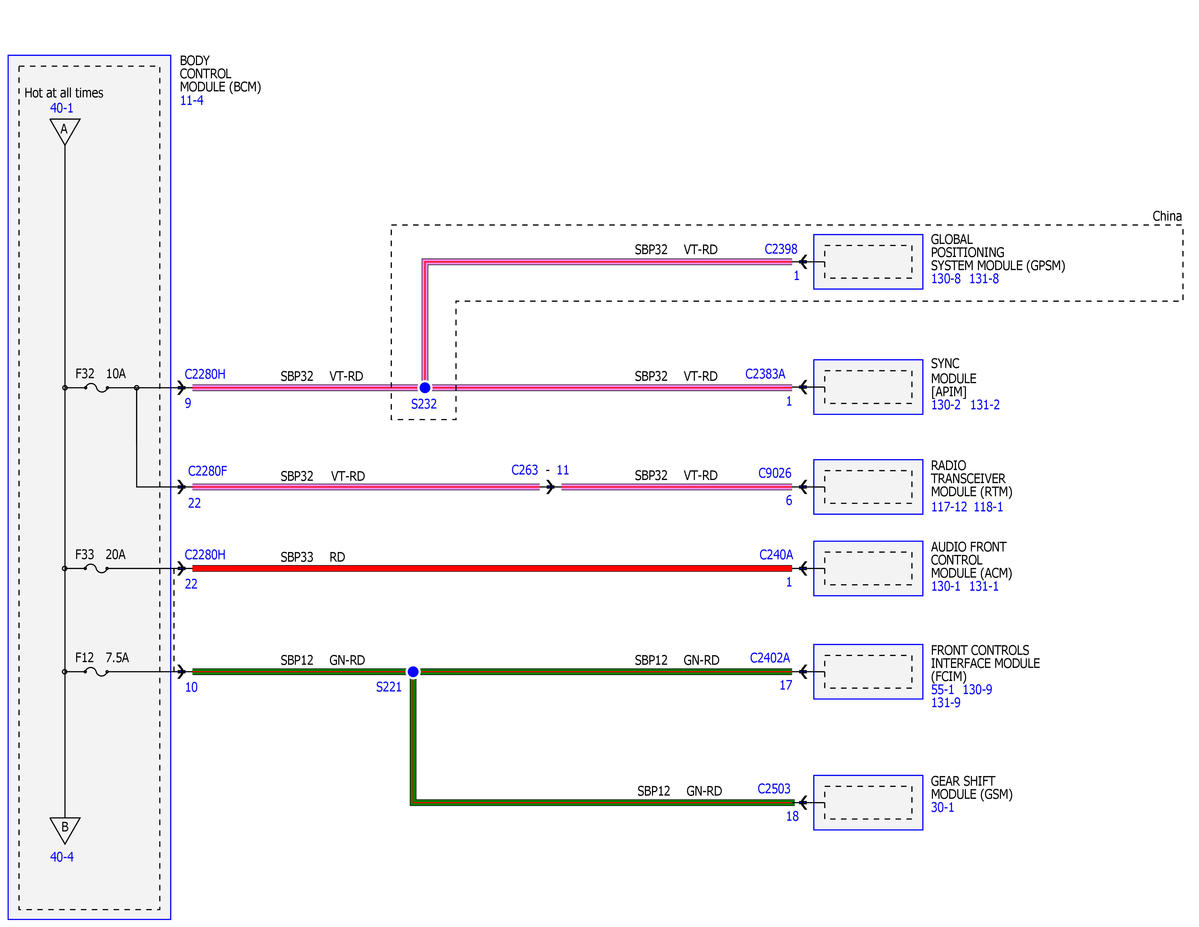

Fig 6: Auto-Start-Stop System Wiring Diagram (6 Of 6)
