Image Processing Module A (IPMA): Removal

WARNING: This page is about a different car, the 2020 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

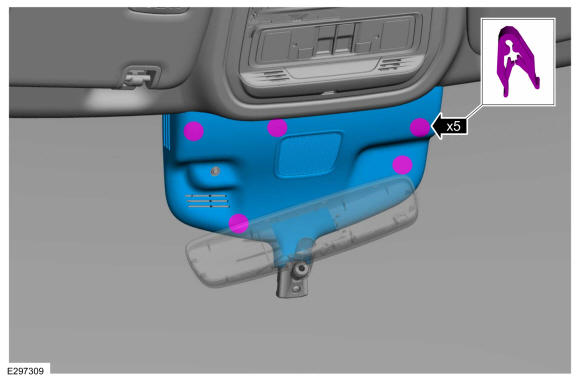

  1. Release the clips and remove the IPMA cover.
    GFD534256Courtesy of FORD MOTOR COMPANY

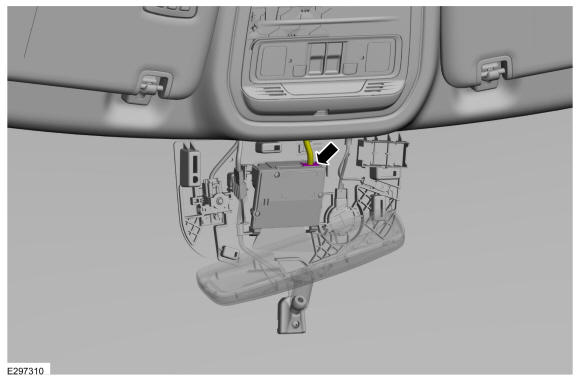

  2. Disconnect the electrical connector.
    GFD534257Courtesy of FORD MOTOR COMPANY

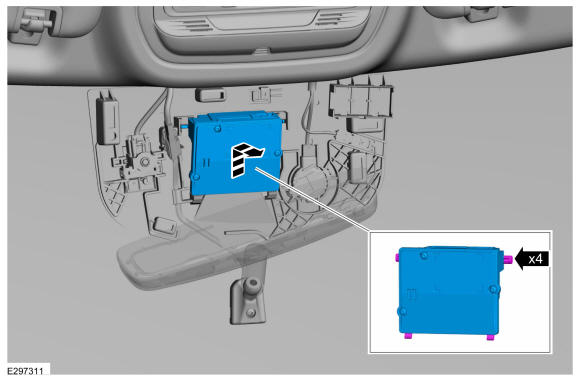

  3. Release the tabs and remove the IPMA.
GFD534258Courtesy of FORD MOTOR COMPANY
