Removal And Installation: Halfshaft: Installation

WARNING: This page is about a different variant/trim than selected.
  1. If the LH halfshaft is removed, replace the LH axle shaft seal. Refer to: Axle Shaft Seal .
  2. To install, reverse the removal procedure.
  3. NOTE: While placing the halfshaft and the IWE in the hub, hold the CV outboard joint with outboard pressure to maintain spline engagement with the IWE actuator gear.

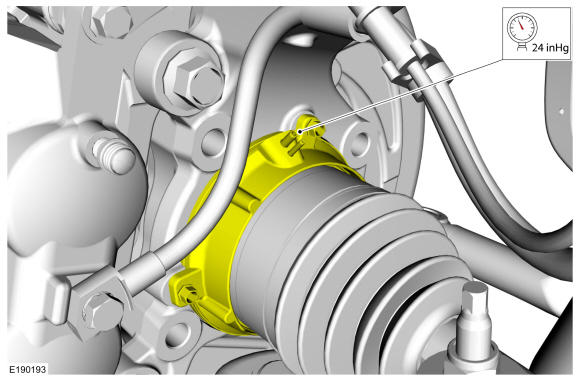

    Using a hand vacuum pump apply and hold 24 in Hg of vacuum to the IWE actuator through the large port on IWE to retract the actuator.

    GFD542213Courtesy of FORD MOTOR COMPANY
  4. NOTE: Measure the depth of the CV shaft threaded end to the inner bearing race (shown in illustration). The minimum depth is 15.5 mm (0.61 in). If the depth is less than 15.5 mm (0.61 in) rotate the CV shaft to clear a binding condition between the IWE and CV splines. Installing the axle nut and tightening without the proper depth of protrusion will result in damage to the IWE.

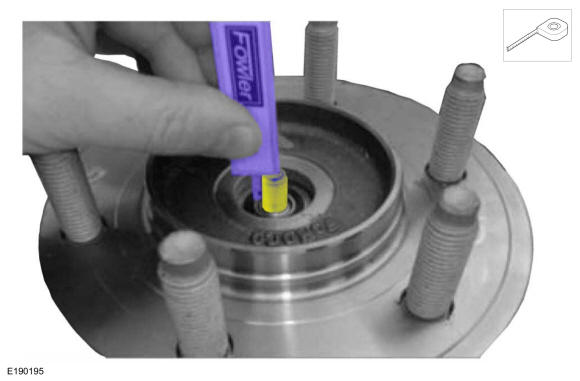

    When installing the halfshaft, measure the CV shaft threaded end to the inner bearing race.

    GFD542214Courtesy of FORD MOTOR COMPANY
  5. NOTE: Verify the spline engagement by checking for spline lash before installing the wheel hub nut or component damage may occur.
    NOTE: With vacuum still applied to the IWE.

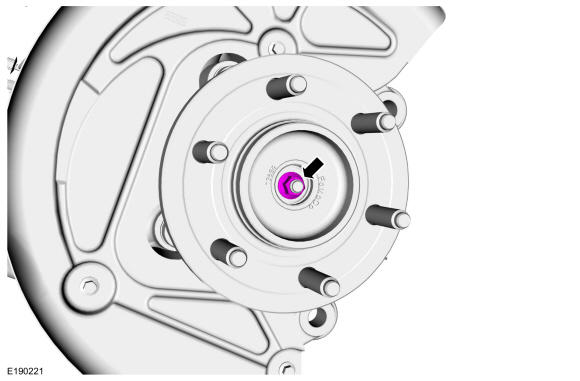

    1. Install the new the axle nut.

      Torque

      : 30 lb.ft (40 Nm)

    2. Verify free rotation of the hub with no CV joint rotation. No clicking or grinding noise should be present.
    3. Release vacuum and rotate bearing slightly to engage actuator (may hear single click when IWE system engages). Verify hub and CV joint rotate together.

    GFD542215Courtesy of FORD MOTOR COMPANY
  6. Check the front differential fluid level. Refer to: Differential Fluid Level Check .
  7. If equipped with dynamic suspension, calibrate the suspension height sensor. Connect the scan tool and carry out the Ride Height Calibration routine. Follow the scan tool directions.
