OEM Electrical Wiring Diagram Introduction: Introduction

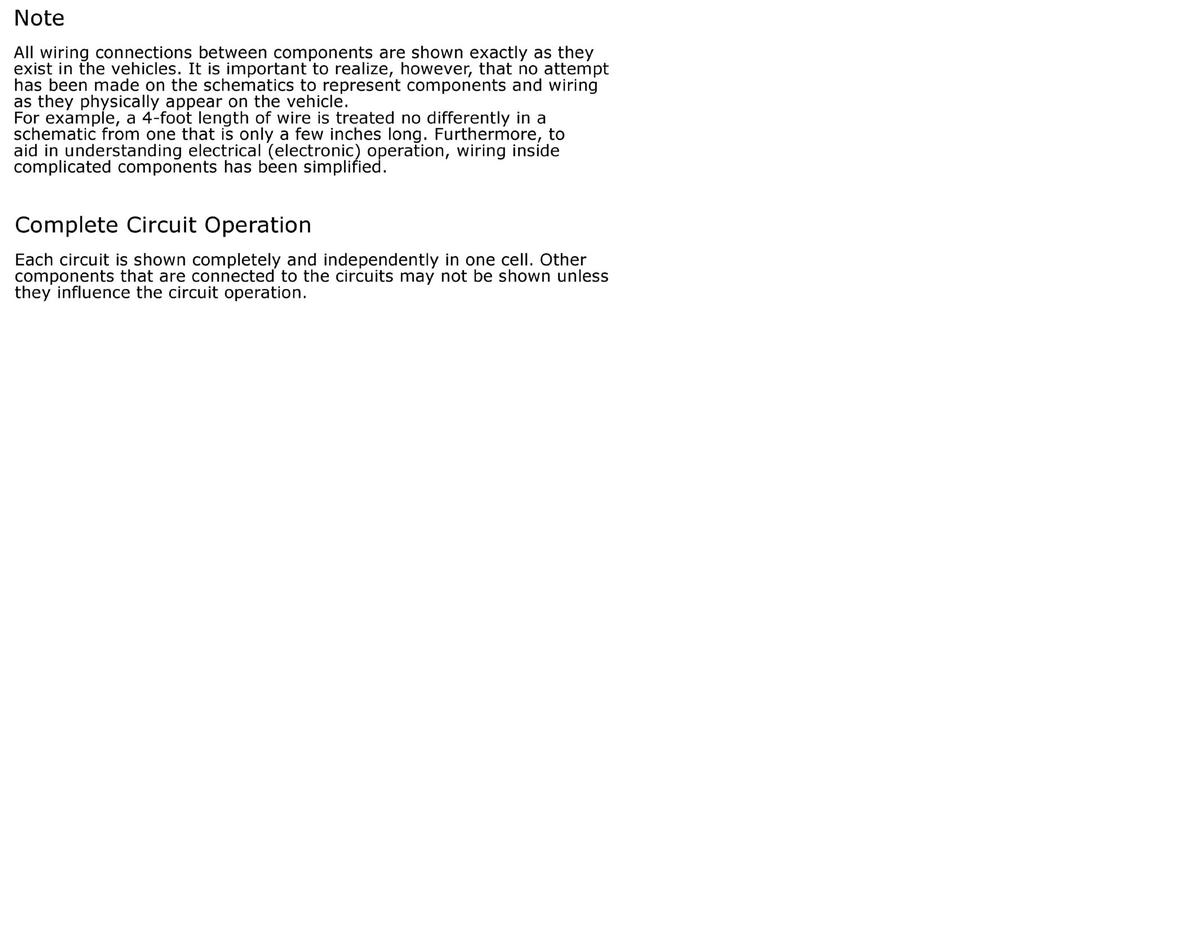

GFDWR115448Courtesy of FORD MOTOR COMPANY

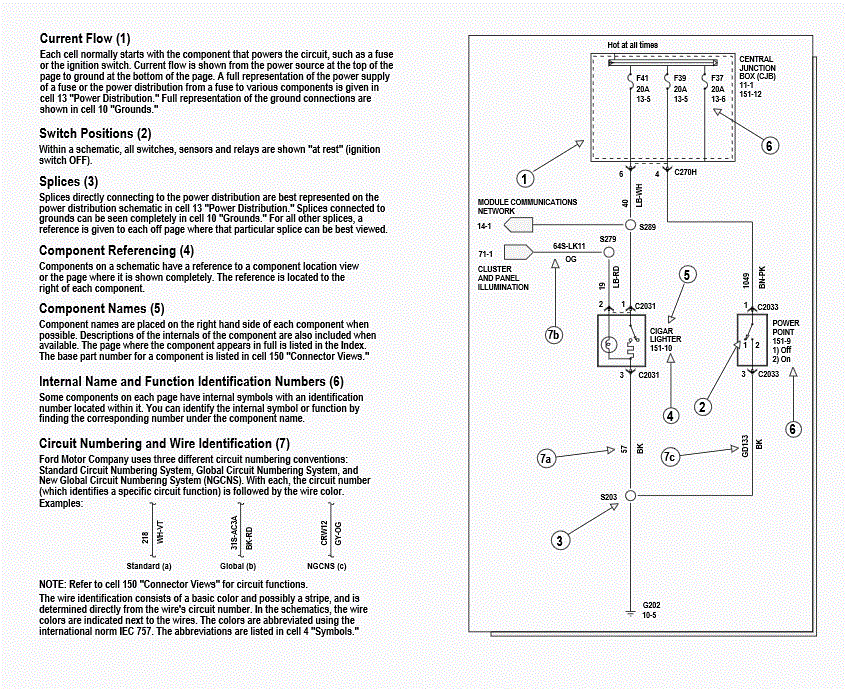

GFDWR115446Courtesy of FORD MOTOR COMPANY

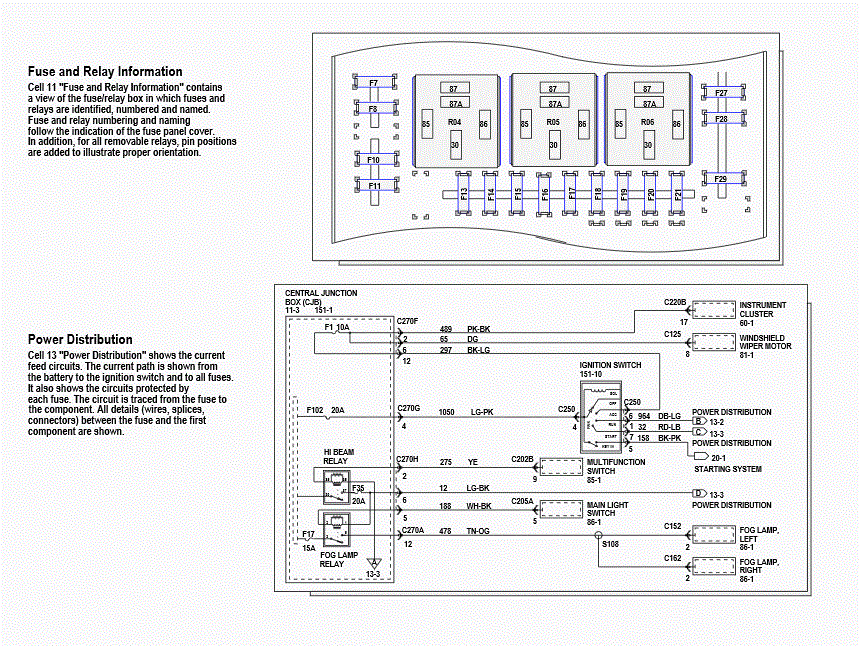

GFDWR115447Courtesy of FORD MOTOR COMPANY

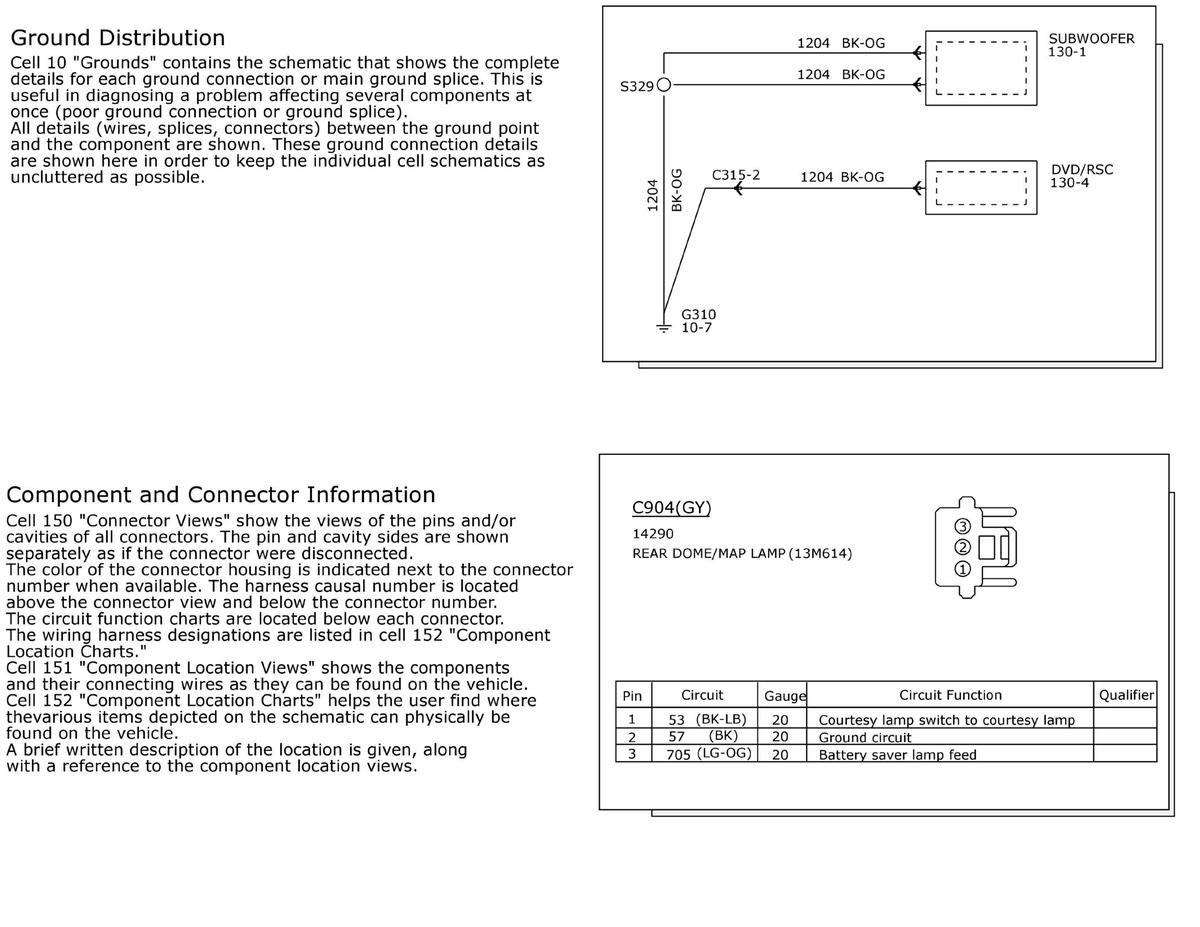

GFDWR115449Courtesy of FORD MOTOR COMPANY

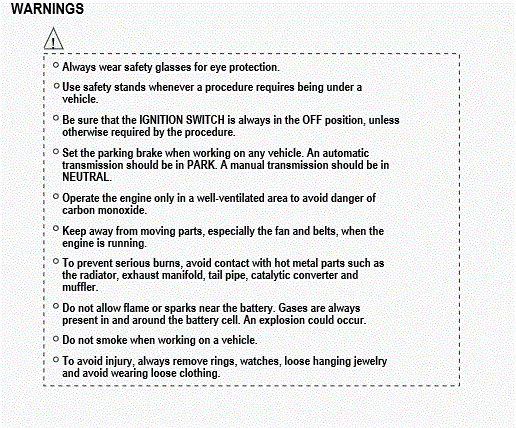

GFDWR115450Courtesy of FORD MOTOR COMPANY
