Module Controlled Functions - Component Location

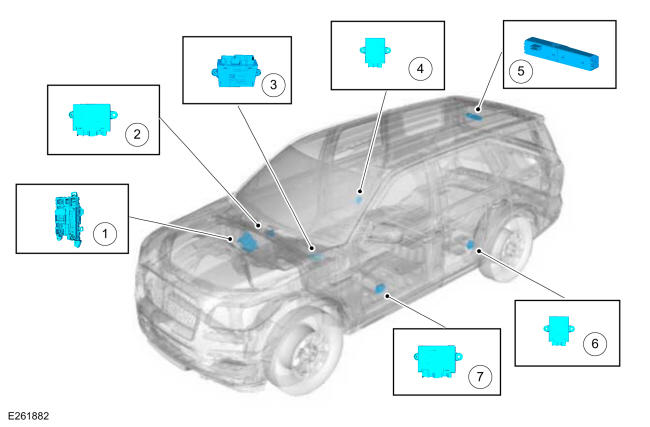

GFD545124Courtesy of FORD MOTOR COMPANY
Item Description
1 BCM
2 PDM
3 BCMB
4 RDM - RH
5 RTM
6 RDM - LH
7 DDM
